Speco O2D60M Quick Install Manual

QUICK INSTALL GUIDE

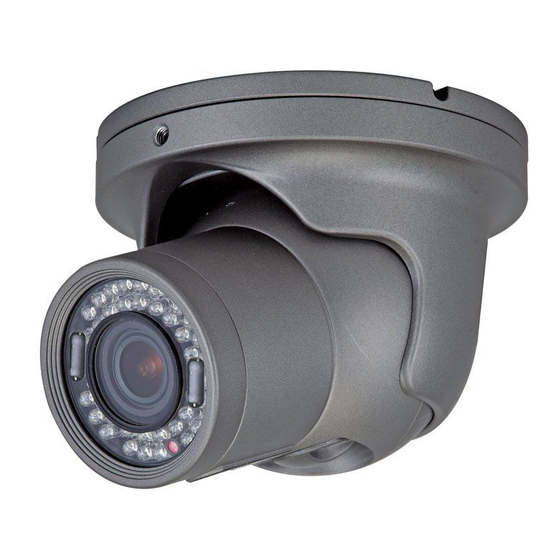

O2D60M
Full HD Vandal Dome IP Camera
Please read this guide carefully before operating
the unit and retain it for future reference.
Introduction
This manual is intended for users of the network camera and includes instructions for using and managing the camera on the network
Fetures
• Multistream for live monitoring and recording
• H.264 and M-JPEG compression algorithm
• Four levels of video compression and various video compression resolutions
• Two-way audio communication
• Pre- and post-event buffering and video stream buffering to enhance reliability of network recording
• Remote monitoring via web browser or remote software
• Automatic HTML code generation for webcasting on a user's website
• Up to 10 simultaneous connections to the camera for remote monitoring
• Enhanced security using IP address filtering, HTTPS, SSL and IEEE 802.1X functions and password protected
• multiple user levels
• Network bandwidth limit and MAT functions to use network bandwidth efficiently
• Convenient network connection using the UPnP (Universal Plug and Play) function and built-in mDNS (Multicast
DNS) protocol
• Supports ONVIF protocol
• Digital WDR (Wide Dynamic Range) to adjust the image display in high contrast conditions
• Slow shutter to reduce the minimum illumination requirements
• Day and night functionality with the built-in IR-cut filter changer
• Auto focus functionality
• Convenient firmware upgrades via the network connection
• Firmware duplication and autorecovery functions to enhance system stability
• Management of multiple cameras via Ethernet connections
• Event detection functions: motion, trip-zone, tampering
• Power sources: 12 VDC, PoE (Power over Ethernet)
• NTSC or PAL programmable video output
CAUTION
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated dangerous
voltage within the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
WARNING: This product contains chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm. Wash hands after handling.
FCC WARNING: This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the modifications are
expressly approved in the instruction manual. The user could lose the authority to operate
this equipment if an unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to
radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
• A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of
this product in the end user.
• Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the
same or equivalent type recommended by the manufacturer. Dispose of used batteries
according to the manufacturer's instructions.
• Holes in metal, through which insulated wires pass, shall have smooth well rounded
.
surfaces or shall be provided with brushings
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Warning: Do not install this equipment in Note:
a confined space such as a bookcase or
Please make sure the product is installed
similar unit.
appropriate places where secured from
Warning: Wiring methods shall be in flood, such as under the eaves, to operate
accordance with the National Electric Code, properly. This product is certified as IP66
ANSI/NFPA 70. standard. However, if there is any flood
concerns, it is highly recommended to use
Warning: This is a class A product. In a
an outdoor Housing. When you install the
domestic environment this product may
camera inside an outdoor Housing, please
cause radio interference in which case the
use one of the following methods:
user may be required to take adequate measures.
Warning: To reduce a risk of fire or electric 1. Remove the front glass of Housing
before installing the camera.
shock, do not expose the internal apparatus
to rain or moisture 2. To keep the front glass of Housing,
remove the front cover, and then put
Warning: Please adopt the power adapter
which can meet the safety extra low voltage the camera close to the front glass.
(SELV) standard. And source with DC 12 V or
To disconnect power from mains, pull
AC 24 V (depending on models) according
out the mains cord plug. When installing
to the IEC60950-1 and Limited Power Source
the product, ensure that the plug is easily
standard.
accessible.
Warning: Install the camera on a ceiling or
wall where can withstand the weight of 5
Important Safety
times of the camera including mounting
bracket. Instructions
Caution: This installation shall be made by a
qualified service person and shall conform to 1. Read these instructions.
all local codes. 2. Keep these instructions.
Caution: To avoid electrical shock, do not
3. Heed all warnings.
open the cabinet. Refer servicing to qualified
4. Follow all instructions.
personnel only.
5. Do not use this apparatus near water.
Caution: The internal apparatus shall not be
6. Clean only with dry cloth.
exposed to water (dripping or splashing) and
7. Do not block any ventilation openings.
no objects filled with liquids, such as vases,
Install in accordance with the
shall be placed within the enclosure
manufacturer's instructions.
Caution: Make sure the power supply voltage
8. Do not install near any heat sources
is correct before using the camera.
such as radiators, heat registers, stoves,
Caution: Do not drop the camera or subject it
or other apparatus (including amplifiers)
to physical shock.
that produce heat.
Caution: The sensor may be burned out by a
9. Do not defeat the safety purpose of
laser beam, so when any laser equipment is
the polarized or grounding-type plug.
being used, make sure that the surface of the
A polarized plug has two blades with
sensor not be exposed to the laser beam.
one wider than the other. A grounding
Caution: While shipping, the camera should
type plug has two blades and a third
be packed in its original packing.
grounding prong. The wide blade or the
third prong are provided for your safety.
If the provided plug does not fit into
Specification
MODEL 02D60M
LENS
Lens Type 3~10mm Motorized Focus Lens
Lens Iris Control DC Auto Iris
CAMERA
Image Sensor
1/2.8" 2 Mega Pixel Sony CMOS
Minimum Illumination
IR LED Off : 0.5Lux, IR LED On : 0Lux
Scanning Mode Progressive Scan
Dynamic Range (D-WDR)
74.7dB or Higher (90dB or higher)
Electronic Shutter Auto
42pcs (850nm)
IR LED
VIDEO
Compression Algorithm H.264, M-JPEG
Compression Resolution 352X240, 704X480, 1280X720, 1920X1080
Bitrate Control H.264-CBR /VBR (up to 12Mbps)
Maximum Frame Rate 30ips @ 1920X1080 + 30ips @ 4CIF
Multi Stream Primary, Secondary, Tertiary
INPUTS/OUTPUTS
Video Output
1 Composite, 1 Vp-p
Audio Input 1 line in
Audio Output 1 line out
Alarm Input 1 TTL, NC/NO programmable, 4.3V (NC) or 0.3V (NO) threshold, 5 VDC
1 relay out, NO only, 0.3A @ 125 VAC, 1A @ 30 VDC
Alarm Output
Network Connectivity 10/100 Mbps Ethernet
CONNECTORS
Video Output BNC
Φ 3.5 audio jack
Audio In/Out
Wires
Alarm In
your outlet, consult an electrician for Handling of the unit
replacement of the obsolete outlet.
Be careful not to spill water or other liquids in the
10. Protect the power cord from being
unit. Be cautious not to get combustible or
walked on or pinched particularly
metallic material inside the body. If used with
at plugs, convenience receptacles, and
CAUTION foreign matter inside, the camera is liable to fail or to
the point where they exit from the apparatus.
get cause of fire or electric shock.
RISK OF ELECTRIC SHOCK
11. Only use attachments/accessories
DO NOT OPEN
• Remove dust or dirt on the surface of the
specified by the manufacturer .
lens with a blower.
12. Use only with the cart, stand, tripod, bracket,
• Use a soft and lint-free, dry cloth(such as
or table specified by the manufacturer, or
glass cleaner) to clean the body. If it is
sold with the apparatus. When a cart is used,
very dirty, use a cloth dampened with a
use caution when moving the cart/apparatus
small quantity of neutral detergent then
combination to avoid injury from tip-over .
wipe dry.
• Avoid the use of volatile solvents such
as thinners, alcohol, benzene and
insecticides.
They may damage the surface finish and/
or impair the operation of the camera.
•
This camera is designed for mounting
on the ceiling or wall. If you install this
camera upside down, it may cause
13. Unplug this apparatus during lightning
malfunction.
storms or when unused for long periods
of time .
Operating and storage
14. Refer all servicing to qualified service
location
personnel. Servicing is required when
the apparatus has been damaged in any
Avoid viewing a very bright object (such as
way, such as power-supply cord or plug
light fittings) during an extended period. Avoid
is damaged, liquid has been spilled
operating or storing the unit in the following
or objects have fallen into the apparatus,
locations.
the apparatus has been exposed to rain
• Extremely hot or cold places (operating
or moisture, does not operate normally,
temperature -10 °C to 50 °C, however, we
or has been dropped.
recommend that the unit be used within
a temperature range of 0 °C to 45 °C)
• Damp or dust place
• Places exposed to rain
• Places subject to strong vibration
• Close to generators of powerful
electromagnetic radiation such as radio
or TV transmitters.
• Do not use the camera in such place
where rapid temperature fluctuation by
switching an air conditioner on and off.
Alarm Out Wires
Ethernet Port RJ-45
AUDIO
Compression Algorithm G.726 (16KHz), G.711 μ – Law (8KHz)
GENERAL
Dimensions (Ø x H) 5.5"(W)X4.3"(H)X5.5"(D)
Unit Weight 3.08lbs
