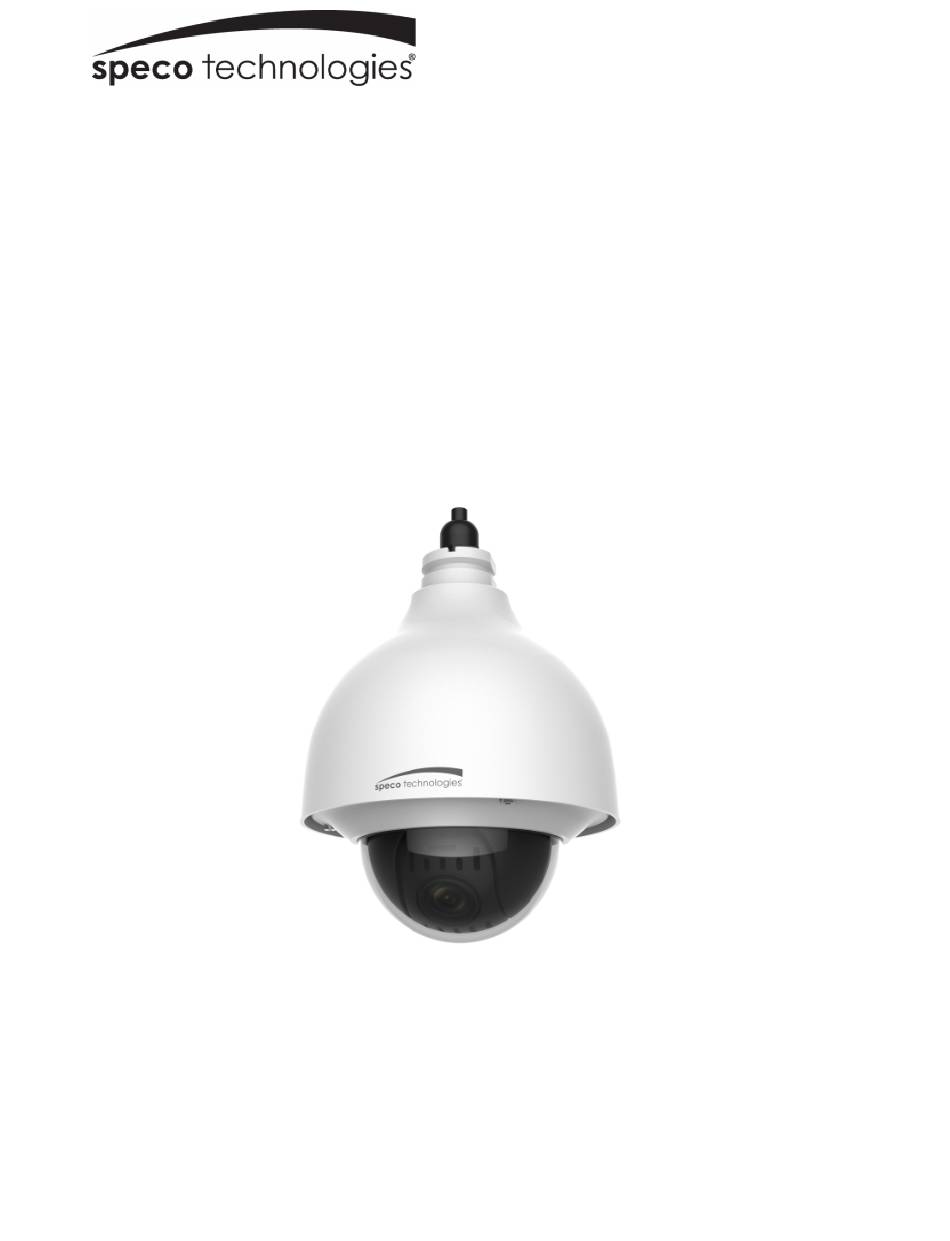

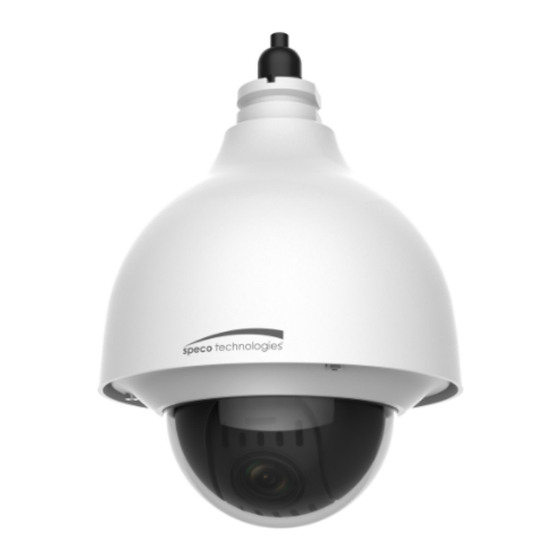

- Page 1 Quick Start Guide 12X PTZ IP Camera O2P12XH Version 1.1.1...
-
Page 2: Table Of Contents
Table of Contents DEVICE CHECK ......................1 Installation Requirements ........................1 Check Accessories ........................... 1 WALL MOUNT INSTALLATION ..................2 Component Installation .......................... 2 Wall Mount Installation Steps ........................ 2 2.2.1 Installation Environments ........................2 2.2.2 Installation Steps ..........................2 IP SCANNER ...................... - Page 3 Thank you for purchasing this Network camera! This manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, please contact Speco Technologies Technical Support.
- Page 4 Important Safeguards and Warnings 1． ． ． ． Electrical safety All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC Class 2 power supply only. Please note: Do not connect two power supplying sources to the device at the same time; it may result in device damage! The product must be grounded to reduce the risk of electric shock.
- Page 5 Before installation, check the package and make sure that all components are included. Keep the package material in case the camera needs to be sent back for service or repair. Contact your rep or Speco customer service department immediately if something is broken or missing in the package.
-
Page 6: Device Check
1.2 Check Accessories Before installation, check the package and make sure that all components are included. Contact your rep or Speco customer service department immediately if something is broken or missing in the package. Accessory Name... -
Page 7: Wall Mount Installation
2 Wall Mount Installation 2.1 Component Installation The wall mount bracket and outdoor speed dome are shown in Figure 2-1. Figure 2-1 2.2 Wall Mount Installation Steps 2.2.1 Installation Environments The wall mount speed dome can be installed on a hard surface wall in indoor or outdoor environments. - Page 8 Figure 2-2 3) Drill holes in the wall according to the installation holes at the bottom of the wall mount bracket. Please make sure the cable exit of the bracket is facing the round hole on the wall. Connect the cable and then pull it through the hole in the wall. Use four hex screws and flat washer to secure the bracket on the wall.
- Page 9 Now the installation is complete. See Figure 2-4. Figure 2-4...
-
Page 10: Ip Scanner
3 IP Scanner Overview IP Scanner can search for the device on the local network. IP Scanner can search for the device on the local network. Please note that only devices that are on the same subnet can be discovered. Please note that only devices that are on the same subnet can be discovered. -
Page 11: Web Operation
4 Web Operation This device supports viewing and management via a web browser on a PC. This device supports viewing and management via a web browser on a PC. Login and Main Interface Login and Main Interface Open the browser and input network camera address in the address bar or double click the twork camera address in the address bar or double click the twork camera address in the address bar or double click the device in IP Scanner. -
Page 12: Appendix Surge Protection
5 APPENDIX Ⅰ Ⅰ Ⅰ Ⅰ Surge Protection This device uses TVS lighting protection technology. It can effectively prevent damages from various pulse signals below 2000W, such as sudden lighting and surge. While maintaining your local electrical safety code, you still need to take necessary precaution measures when installing the speed dome in an outdoor environment. -
Page 13: Appendix 1 2V Dc Wire Gauge And Transmission Distance Reference
6 APPENDIX Ⅱ Ⅱ Ⅱ Ⅱ 12V DC Wire Gauge and Transmission Distance Reference The recommended max transmission distance is under the following environments: The wire diameter is fixed and the DC 12V power voltage loss rate is below 10%. For the device being supplied the DC power, the max allowed voltage loss rate is 10%. -
Page 14: Wire Gauge Reference
7 APPENDIX Ⅲ Ⅲ Ⅲ Ⅲ Wire Gauge Reference Metric bare wire Bare wire cross diameter section （ ） （ ） 0.050 0.00196 0.060 0.00283 0.070 0.00385 0.080 0.00503 0.090 0.00636 0.100 0.00785 0.110 0.00950 0.130 0.01327 0.140 0.01539 0.160 0.02011 0.180 0.02545...
