PCIII USB EX
connectors
i233-411EX
stock
connectors
PCIII USB EX
ground wire
6

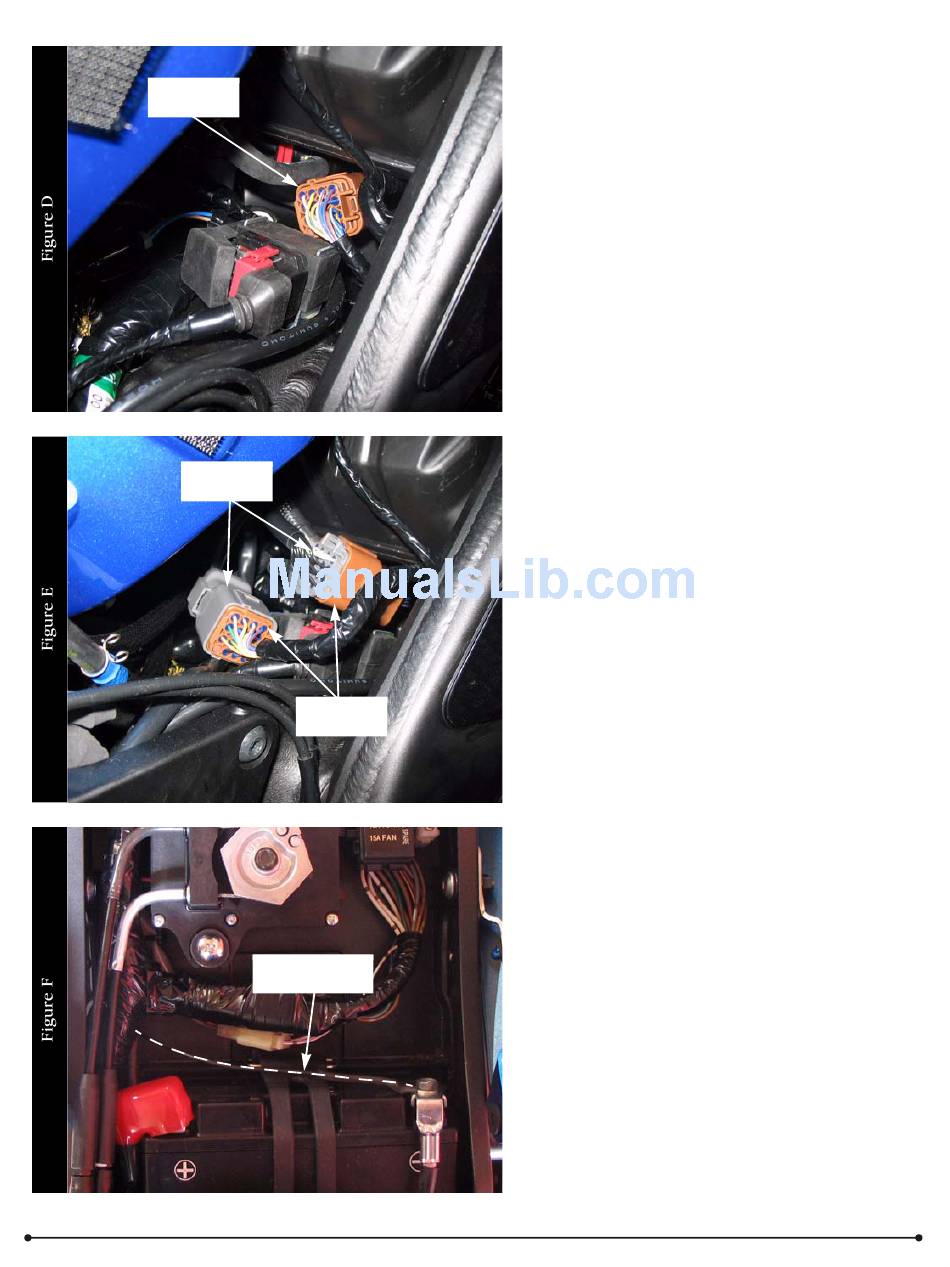

Unplug the stock connector from the throttle
bodies as shown in Figure D.
This is a 16-pin brown connector located
under the fuel tank on the right hand side of
the bike.
7
Attach the connectors from the PCIII USB EX
harness to the throttle bodies and stock wiring
harness connectors as shown in Figure E.
8
Attach the ground wire from the PCIII USB EX
to the negative side of the battery as shown in
Figure F.
2008 Kawasaki ZX10R - PCIII USB EX - 3
