4.3
Bluetooth installation guide for Windows XP OS
In order to connect the R-PO7470 reader to a host PC through Bluetooth, a PC equipped with
Bluetooth hardware as well as the R-PO7470 equipped with the Bluetooth module are needed.
4.3.1
Configure R-PO7470 for the Bluetooth connection
During the Bluetooth discovery process done by the PC, it is important that the R-PO7470 reader
keeps itself ON. Therefore it is suggested to set the shutdown timeout to 5 minutes (Menu -> Setup ->
Shutdown timeout). Moreover, periodically press the LEFT or RIGHT arrow button in order to reset the
shutdown timeout.
Under the Bluetooth menu, switch on the feature Act as a Server and switch off Act as a Client.
4.3.2
Search for and recognize the R-PO7470 by a host PC

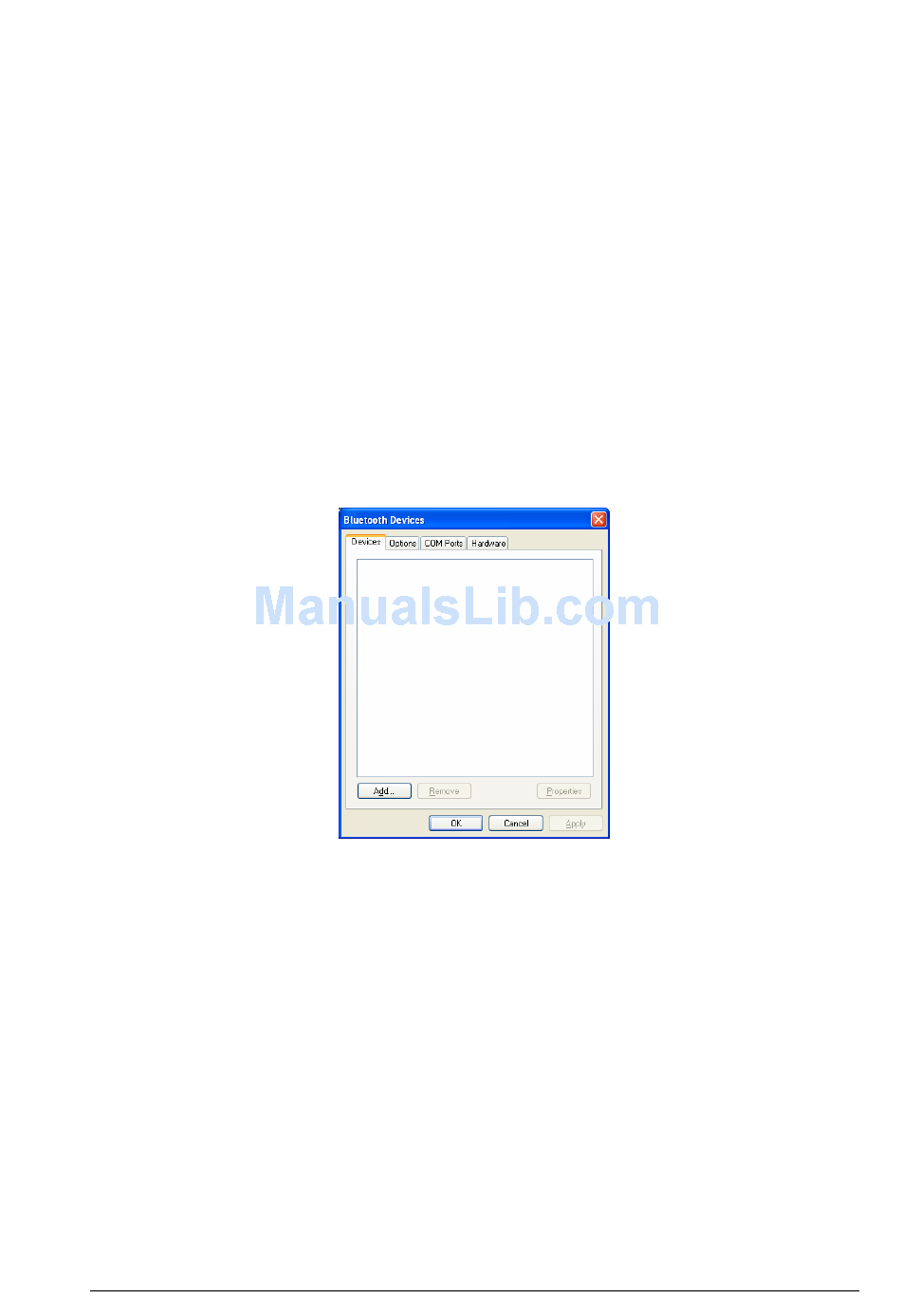

From the control panel choose Bluetooth Device. The following dialog window appears.
Select the Options tab, then check the box featuring Turn discovery on.
R-PO7470 Manual – v. 1.1 – August 2008
16
