Summary of Contents for Datamars Compact Max

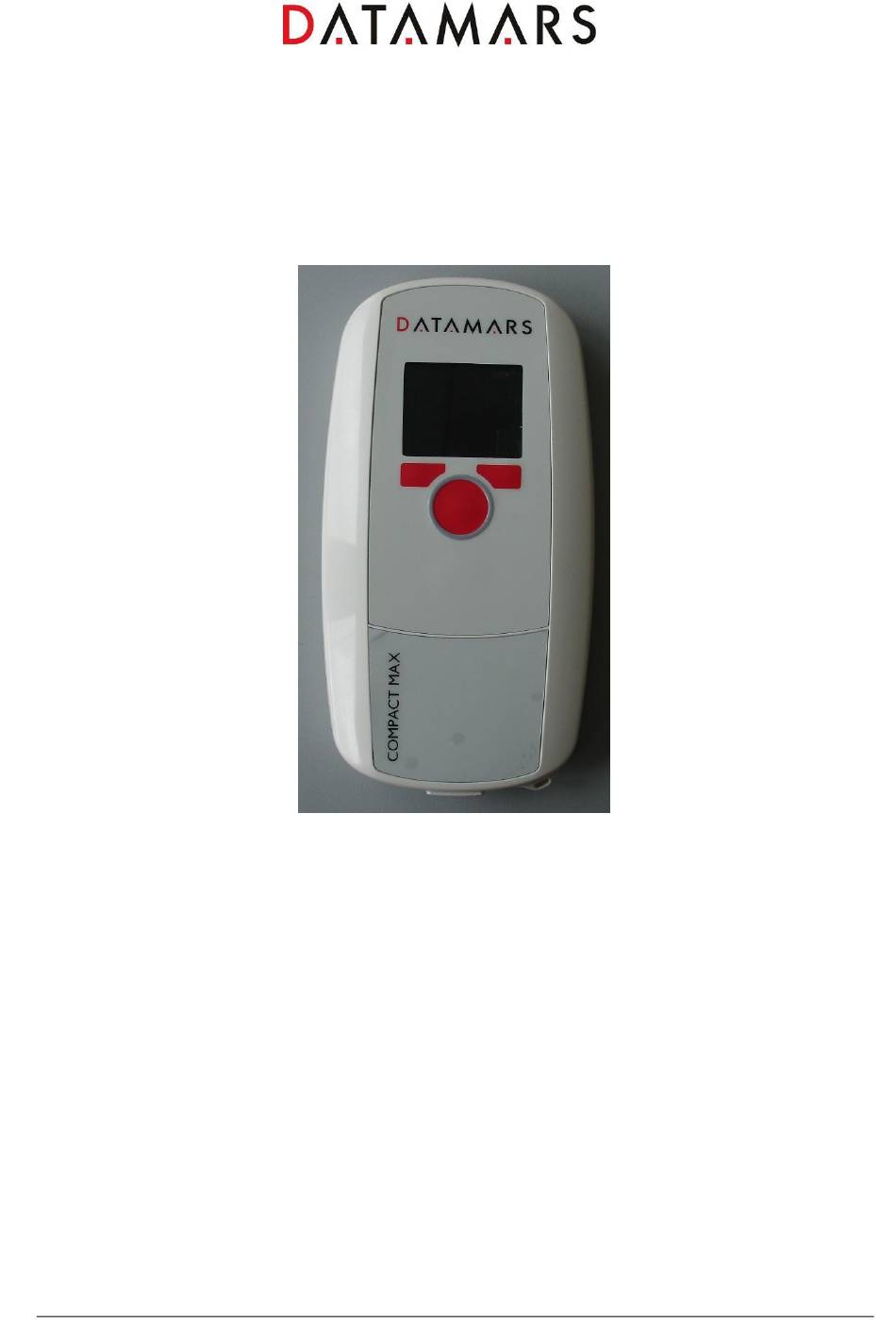

- Page 1 COMPACT MAX Scanner User Manual...
-
Page 2: Table Of Contents
RIGHT button ..........................4 SCREEN NAVIGATION ........................5 ............................5 ESCRIPTION CONTROL MENU ..........................6 CONNECT THE COMPACT MAX TO A PC ..................7 TAKE CARE OF THE READER ....................... 7 SPECIFICATIONS ..........................7 DO YOU HAVE A PROBLEM IDENTIFYING AN ANIMAL? ............8 ....................8 HE READING DISTANCE IS TOO SHORT .................8... -
Page 3: Description
1 Description Display Antenna Keyboard Micro USB communication port Switch on the scanner Press the central red button. Switch off the scanner Press the left red button to switch off the reader. COMPACT MAX Reader User Manual 05.08.2014... -
Page 4: Keyboard
1.3.1 CENTER button The CENTER button is used to switch on the COMPACT MAX reader, to start and stop a reading session or to select and confirm the various available settings, the settings are described in later chapters of this manual. -
Page 5: Screen Navigation
2 Screen navigation Description Main Menu Active screen after power up. Shut Down Read CONTROL MENU COMPACT MAX Reader User Manual 05.08.2014... -
Page 6: Control Menu
In this folder it can be chosen to start a Cyclic Test, to start a Statistic Test and to Dump the signal. In this folder it can be found which version of COMPACT MAX it is been using and which firmware version is load. ... -
Page 7: Connect The Compact Max To A Pc
If for any reason the reader is not working, please do not attempt to repair it, return it to your local dealer. The COMPACT MAX reader is equipped with Li-Ion type battery. This battery lasts longer and does not contain Cadmium or lead, which makes it much safer for the environment. If the reader has to be destroyed, please return it to a battery specialist for battery recycling. -
Page 8: Do You Have A Problem Identifying An Animal
If you’re still having problems, please contact your dealer. The COMPACT MAX reader is a product developed and produced by DATAMARS, Switzerland. If you have any suggestions or require information regarding this or other DATAMARS products, please contact your dealer. -
Page 9: Ic Rss 210
8 Certifications European directives Datamars SA, Via ai Prati, CH-6930 Bedano declares, under its own responsibility, that the product COMPACT MAX is in accordance with the following standards: ETSI EN 300 330-1 /... -
Page 10: End Of Life
9 End of life Disassembly Instructions for COMPACT MAX reader Product Name / Model Description COMPACT MAX / Any models Universal portable reader Only authorized recyclers are permitted to use these disassembly instructions. Any attempted disassembly by a user or unauthorized party will void the product warranty and may irreparably damage the product.
