Datamars Textile ID R-PO7470 User Manual

Portable reader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

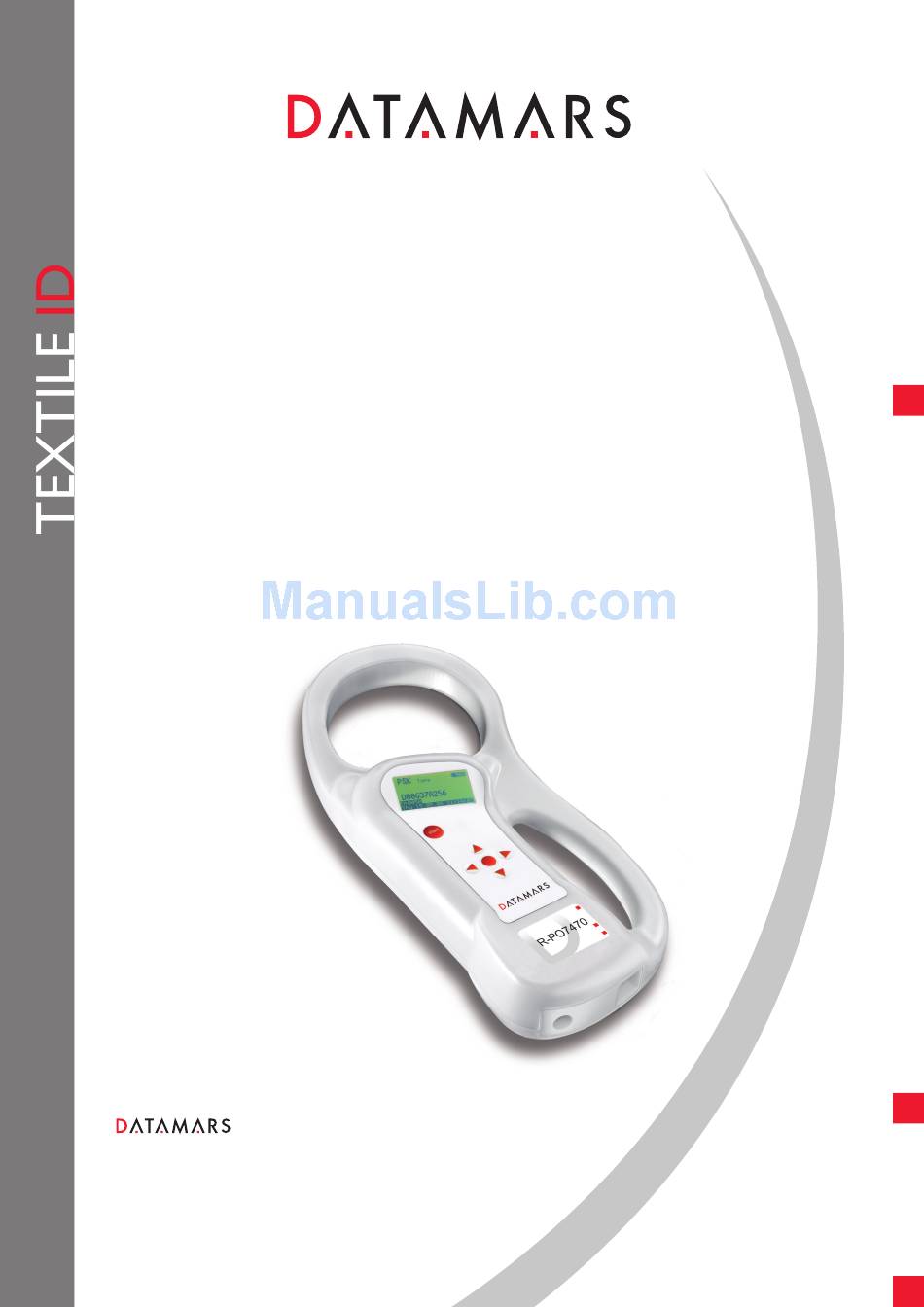

R-PO7470
Portable reader
USER MANUAL
Corporate Headquarters:
Americas Headquarters:
Via ai Prati
8433 South Av. Bldg., 4-2
6930 Bedano-Lugano
Youngstown, OH 44514 USA
Switzerland
Phone: +1 330 758 1240
Phone: +41 91 935 73 80
Fax: +1 330 758 3805
Fax: +41 91 945 03 30
textile-id@datamars.com
www.datamars.com
Version 1.1
Asia Headquarters:
Northern Region Industrial Estate
179/1 Moo 4, T. Ban Klang, A. Muang
Lamphun, Thailand 51000
Phone: +66 53 582 021
Fax: +66 53 582 680
© 2008 DATAMARS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Textile ID R-PO7470 and is the answer not in the manual?

Questions and answers

Related Manuals for Datamars Textile ID R-PO7470

Summary of Contents for Datamars Textile ID R-PO7470

  • Page 1 Phone: +1 330 758 1240 Lamphun, Thailand 51000 Phone: +41 91 935 73 80 Fax: +1 330 758 3805 Phone: +66 53 582 021 Fax: +41 91 945 03 30 Fax: +66 53 582 680 textile-id@datamars.com www.datamars.com © 2008 DATAMARS...

  • Page 2: Table Of Contents

    Contents: Description ............................4 Operation............................5 Power on the R-PO7470......................5 Read a transponder ........................6 Managing the menu ......................... 7 Navigating the menu ......................... 7 Browse memory ........................7 Memory functions........................8 3.3.1 Store in memory ........................ 8 3.3.2 Memory hit .........................
  • Page 3 9.4.6 Sets the date’s day of the week..................25 9.4.7 Sets the current date format .................... 26 9.4.8 Gets the current date format.................... 26 9.4.9 Gets the current date ....................... 26 9.4.10 Sets the time’s hour ......................26 9.4.11 Sets the time’s minute ..................... 26 9.4.12 Sets the time’s second ....................

  • Page 4: Description

    1 Description R-PO7470 Manual – v. 1.1 – August 2008...

  • Page 5: Operation

    The display shows the following start-up figure: R-PO7470 V1.0 Under the Datamars logo you can see the name of the reader and the firmware version. After a few seconds this main screen shot appears: 2. Connected to power net 6.

  • Page 6: Read A Transponder

    2. ID code D0060BAFF5 Thu 07.02.08 14:48:22 1. The transponder type for Industrial application is PSK and it is a Datamars transponder 2. Identity Code number. The following figure shows the result of an unsuccessful reading session: After a while the reading mode times out. The reader stops and shows the message “NO TAG FOUND”.

  • Page 7: Managing The Menu

    Managing the menu Navigating the menu Power up the reader by pressing the STRAT button (please refer to chapter 2.1). Press the ENTER button which is the round button in the center of the arrows pad. The display shows the following figure: You can scroll through the menu by pressing the UP or DOWN buttons which are the arrows around the central ENTER button.

  • Page 8: Memory Functions

    Memory functions In the ‘memory functions’ menu you will find various features and functions. The following figure shows the ‘memory functions’ menu: You can scroll through the ‘memory functions’ by pressing the UP or DOWN button. You can change the parameter highlighted by pressing the LEFT or RIGHT button 3.3.1 Store in memory The ‘store in memory’...

  • Page 9: Selected Hit

    3.3.3 Selected hit The ‘selected hit’ function checks and displays the current ID code read is present in the memory. This function is useful to identify a specific item in a large group of items. When this function is OFF, the reader does not show anything. While it is ON, it shows the message “TAG ID FOUND”...

  • Page 10: Clear All Memory

    3.3.4 Clear all memory This function clears the memory’s contents. Press the LEFT button to highlight the Yes answer. Then press the ENTER button to confirm the action to clear the memory. Are you sure you want to clear the memory? Cancel 3.3.5 Data download...

  • Page 11: Set-Up

    Set-up There are various features in the ‘set-up’ menu. The following figure shows the ‘set-up’ menu: SET-UP READING BEEPS KEY BEEP READING TIMEOUT SHUTDOWN TIMEOUT 2m SERIAL BAUD RATE 115k You can scroll through the ‘set-up’ features by pressing the UP or DOWN button. You can change the highlighted parameter by pressing the LEFT/RIGHT button.

  • Page 12: Act As A Server

    3.6.1 Act as a server This command sets the default server profile. The default server profile is the profile that other devices can connect to when the Serial Port Adapter is in data mode. 3.6.2 Act as a client This command sets the default client profile. The default client profile is the profile that the Serial Port Adapter uses when it establishes a connection, in data mode, to the default remote peer.
  • Page 13 Found New Hardware Click Next CD ROM Click Next R-PO7470 Manual – v. 1.1 – August 2008...
  • Page 14 Wizard Found a Driver Click Next Completing Click Finish R-PO7470 Manual – v. 1.1 – August 2008...

  • Page 15: Usb Driver Installation Guide For Mac Os

    Welcome to the found new hardware wizard Click Next USB driver installation guide for MAC OS 1. Insert the CD in the computer. 2. Click on the CD volume 3. Double click on the ”R-PO7470.HTML” 4. Double click on the MAC OSX or OS8/9 (according for your operating system). 5.

  • Page 16: Bluetooth Installation Guide For Windows Xp Os

    Bluetooth installation guide for Windows XP OS In order to connect the R-PO7470 reader to a host PC through Bluetooth, a PC equipped with Bluetooth hardware as well as the R-PO7470 equipped with the Bluetooth module are needed. 4.3.1 Configure R-PO7470 for the Bluetooth connection During the Bluetooth discovery process done by the PC, it is important that the R-PO7470 reader keeps itself ON.
  • Page 17 Select the Devices tab. Double check that the R-PO7470 reader is switched on and configured to Act as a Server (Menu -> Bluetooth), then press the Add button. R-PO7470 Manual – v. 1.1 – August 2008...
  • Page 18 The welcome window for the configuration guide of the new Bluetooth peripheral appears. Press Next in order to start the search and recognize procedure. The result of the search and recognize procedure shows all the Bluetooth devices which are in the nearby area.
  • Page 19 Select the option Let me choose my own passkey, then input the number zero (just one 0 character). Press Next to continue. Finally the R-PO7470 reader has been recognized and installed in your PC as a Bluetooth device. Press the Finish button. R-PO7470 Manual –...

  • Page 20: Communication On The Fly

    At this point select the COM Ports tab and verify that two COM ports have been created: one called Outgoing and the other called Incoming. The Outgoing COMxx is needed to connect to the R-PO7470 reader when it is in Act as a Server mode, while the COMxx Ingoing is needed to connect to the R-PO7470 reader when it is in Act as a Client mode.

  • Page 21: Battery Managment

    To open a new HyperTerminal session 1. Select the Start menu 2. Choose Programs 3. Choose Accessories 4. Choose Communication 5. Launch HyperTerminal 6. A dialog box appears 7. Input a session name, (i.e. R-PO7470) 8. Press the ‘ok’ button 9.

  • Page 22: Take Care Of Your Reader

    5. External power supply (battery charger): Input: 100 to 240 VAC. Output: 15 VDC, 1A. 6. Dimensions: 330x160x40 mm3. 7. TAG compatibility: T-BT 7700; T-BT 7711; T-BT 7720; T-BT 7755; T-BH 7550; T-IA 7711 Datamars Low Frequency Single Read transponder only 8. Transmission frequency: 110 KHz. 9. Battery life: >500 cycles.

  • Page 23: Regulations

    8 Regulations Equipment Modification Equipment modifications not expressly approved by Datamars SA, CH-6930 Bedano, the party responsible for FCC compliance, are forbidden. Such modifications could void the user’s warranty and authority to operate the equipment and cause hazardous conditions. 10.2. EN 300330-1/-2 (Europe) The R-PO7470 reader system is a sending and receiving equipment and is in accordance with the R &...

  • Page 24: Technical Supplement - Console Commands

    Technical supplement – Console commands Introduction This chapter describes how to connect the R-PO7470 to a personal computer (PC). The R-PO7470 can be connected to a PC in two ways: the first is a wired USB connection, while the other is a wire less Bluetooth connection (optional).

  • Page 25: Get Firmware Version Command

    9.4.1 Get firmware version command • Command syntax: “.v” [CR] • Command answer: [CR][LF] ”R-PO7470 V1.0” [CR][LF] • Command action: none • Parameter range: none Description: this command returns the firmware version. 9.4.2 Read remotely command • Command syntax: “.r” [CR] •...

  • Page 26: Sets The Current Date Format

    9.4.7 Sets the current date format • Command syntax: “.DF#” [CR] • Command answer: [LF] • Command action: Sets the date format • Parameter range: #= 0 or 1. where 0=Europe, 1=USA Description: this command sets the date format. 9.4.8 Gets the current date format •...

  • Page 27: Gets The Current Time

    9.4.13 Gets the current time • Command syntax: “?TM” [CR] • Command answer: [CR][LF] ”TM=14.58.45” [CR][LF] • Command action: Gets the current time • Parameter range: none Description: this command retrieves the current time. 9.4.14 Clears the memory’s data • Command syntax: “.rX”...

  • Page 28: Sets The "Store In Memory" Function

    9.4.18 Sets the “store in memory” function • Command syntax: “.SM#” [CR] • Command answer: [LF] • Command action: sets the “store in memory” function • Parameter range: #= 0 or 1. Description: this command stores in memory the TAG’s ID correlated with the current date and time. 1: enable function.

  • Page 29: Gets The "Selected Hit" Function

    9.4.23 Gets the “selected hit” function • Command syntax: “?SH” [CR] • Command answer: [CR][LF] ”SH=#” [CR][LF] • Command action: gets the “selected hit” function status • Parameter range: #= 0 or 1. Description: this command returns the selected hit function status. 1: enable function.

  • Page 30: Sets The Reading Timeout

    9.4.28 Sets the reading timeout • Command syntax: “.RT##”[CR] • Command answer: [LF] • Command action: sets the reading timeout in seconds • Parameter range: ##= 0 to 99. Description: this command sets the reading timeout in seconds. 9.4.29 Gets the reading timeout •...

  • Page 31: Gets The Vcp Baud Rate

    Parameter range: #= 0 or 1 or d. Description: this command sets the UID character length. The Datamars transponders have a UID of 10 hexadecimal characters (i.e. D0060BC5D3). 0: standard format of 10 characters. 1: 12 characters (add ‘00’ at the begin of the UID). D: decimal format of 10 characters.
