Life Gear 26800 Owner's Manual

Dynasty magnetic recumbent bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

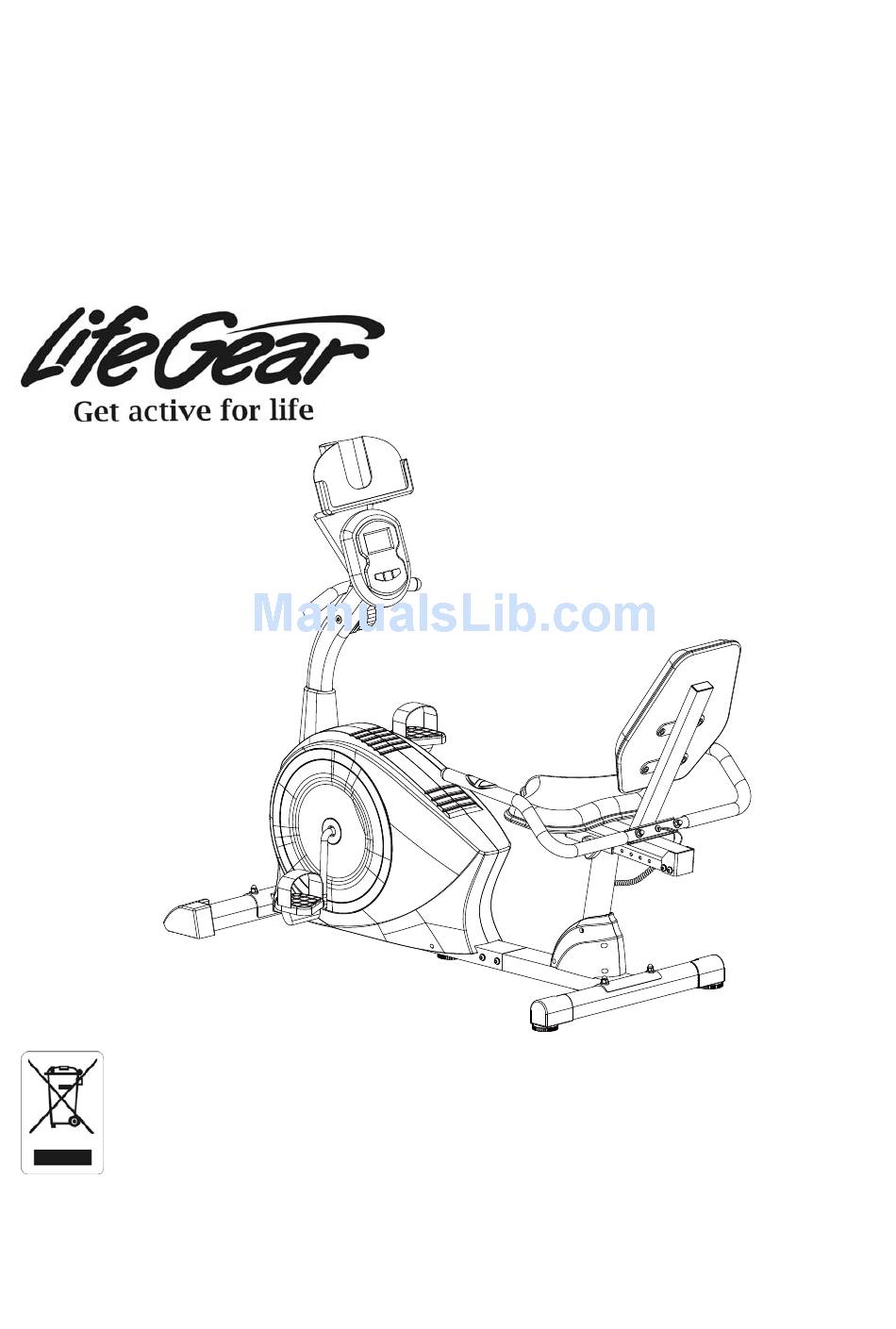

DYNASTY
MAGNETIC RECUMBENT BIKE
ITEM NO: 26800
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo, subject to change without notice.
2014, Oct.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 26800 and is the answer not in the manual?

Questions and answers

Related Manuals for Life Gear 26800

Summary of Contents for Life Gear 26800

  • Page 1 DYNASTY MAGNETIC RECUMBENT BIKE ITEM NO: 26800 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY ------------------------------------------------------------------------------- 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST ------------------------------------------------------------------------------- 4 HARDWARE LIST ----------------------------------------------------------------------- 6 TOOLS -------------------------------------------------------------------------------------- 6 OVERVIEW DRAWING ----------------------------------------------------------------- 7 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8 OPERATING THE COMPUTER ------------------------------------------------------ 18 ADJUSTMENTS -------------------------------------------------------------------------- 20 MAINTENANCE -------------------------------------------------------------------------- 21 TROUBLESHOOTING ------------------------------------------------------------------ 21 WARM UP AND COOL DOWN ROUTINE ----------------------------------------- 22...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing free of charge, any parts which may prove to be defective under normal home use.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed, including the following important safety instructions when using this equipment. Read all instructions before using this equipment. Read all instructions and follow it carefully before using this equipment. Make sure the equipment is properly assembled and tightened before use.

  • Page 5: Parts List

    PARTS LIST Description Qty No. Description Hexagon Socket Pan Head Cap 2 024 Screw ST4.8x20 Bolt M8x45 002 Big Curve Washer Ø8xØ20x2.0T 7 025R Right Decorative Cover Rear Handlebar Foam Grip 2 025L Left Decorative Cover Ø30xØ24x595 Hand Pulse Sensor with Wire Cross Recessed Pan Head 2 026 (L=750 mm)
  • Page 6 PARTS LIST Description Qty No. Description 046 Washer Ø6xØ12x1.0t 1 067 Belt Pulley with Crank Ø260 Cross Recessed Pan Head Bolt 1 068 Washer Ø24xØ40x3.0t M6x10 048 Hexagon Nut M6 (S10) 2 069 Bearing Nut I 15/16” 049 Spring Washer Ø6 2 070 Ball Bearing 050 Tension Bracket 31x30x1.0t 2 071 Bearing Cup Ø56x2.25x68...

  • Page 7: Hardware List

    HARDWARE LIST (1) Hexagon Socket Pan (2) Big Curve Washer (8) Washer Ø8xØ16x1.5T Head Cap Bolt M8x45 Ø8xØ20x2.0T 2 PCS 2 PCS 6 PCS (9) Cap Nut M8 (S13) (57) Carriage Bolt M8x65 6 PCS 4 PCS TOOLS Allen Wrench S6 Multi Hex Tool with Phillips Screwdriver 1 PC S10, S13, S14, S15...

  • Page 8: Overview Drawing

    OVERVIEW DRAWING...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Tool: Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 1. Front Stabilizer Installation Position the Front Stabilizer (81) in front of the Front Main Frame (76) and align bolt holes. Attach the Front Stabilizer (81 onto the front curve of the Front Main Frame (76) with two Ø8xØ20x2.0T Big Curve Washers (2), two M8 Cap Nuts (9), and two M8x65 Carriage Bolts (57).
  • Page 10 Tool: Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 2. Rear Stabilizer Installation Position the Rear Stabilizer (56) behind the Rear Main Frame (20) and align bolt holes. Attach the Rear Stabilizer (56) onto the rear curve of the Rear Main Frame (20) with two Ø8xØ20x2.0T Big Curve Washers (2), two M8 Cap Nuts (9), and two M8x65 Carriage Bolts (57).
  • Page 11 Tool: Allen Wrench S6 3. Rear Main Frame Installation Remove six Ø8xØ16x1.5T Washers (8) and six M8x15 Hexagon Socket Pan Head Cap Bolts (17) from the Rear Main Frame (20). Remove bolts with the S6 Allen Wrench provided. Connect the Extension Hand Pulse Sensor Wires (22) from the Rear Main Frame (20) to the Extension Hand Pulse Sensor Wires I (72) from the Front Main Frame (76).
  • Page 12 Tool: Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 4. Left and Right Foot Pedals Installation The Cranks, Pedal Shafts, and Foot Pedals are marked “R” for Right and “L” for Left. Insert the pedal shaft of Left Foot Pedal (66L) into threaded hole in the left Crank (67). Turn the pedal shaft by hand in the counter-clockwise direction until snug.
  • Page 13 2 37 Tool: Allen Wrench S6 Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 5. Front Post, Tension Control Knob, and Front Post Cover Installation Remove four Ø8xØ16x1.5T Washers (8), four M8x10 Hexagon Socket Pan Head Cap Bolts (36), one Ø8xØ20x2.0T Big Curve Washer (2), and one M8x15 Hexagon Socket Flat Head Cap Bolt (37) from the tube of the Front Main Frame (76).
  • Page 14 Remove the Ø5xØ19x1.0T Big Washer (34) and M5x20 Cross Recessed Pan Head Bolt (35) from the Tension Control Knob (31). Remove bolt with the Multi Hex Tool with Phillips Screwdriver provided. Put the cable end of resistance cable of Tension Control Knob (31) into the cable lock of Tension Cable (32), see Figure A.
  • Page 15 Tool: Allen Wrench S6 Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 6. Computer and Tablet/Water Bottle Holder Installation Remove four M5x10 Cross Recessed Pan Head Bolts (33) from the Computer (27). Remove bolts with the Multi Hex Tool with Phillips Screwdriver provided. Connect the Extension Sensor Wire (28) and Extension Hand Pulse Sensor Wires II (29) to the wires that come from the Computer (27).
  • Page 16 Tool: Allen Wrench S6 7. Seat Sliding Tube and Back/Seat Support Bracket Installation Remove eight Ø8xØ16x1.5T Washers (8) and eight M8x15 Hexagon Socket Pan Head Cap Bolts (17) from the Seat Sliding Tube (19). Remove bolts with the S6 Allen Wrench provided.
  • Page 17 Tool: Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 Allen Wrench S6 8. Rear Handlebar Installation Attach the Rear Handlebar (6) onto the Back and Seat Support Bracket (16) with two M8x45 Hexagon Socket Pan Head Cap Bolts (1), two Ø8xØ20x2.0T Big Curve Washers (2), two Ø8xØ16x1.5T Washers (8), and two M8 Cap Nuts (9).
  • Page 18 Tool: Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 9. Back and Seat Cushions Installation Remove eight M6x15 Cross Recessed Pan Head Bolts (11) and eight Ø6xØ18x1.5T Big Washers (12) from the back of the Back and Seat Cushions (14, 15). Remove bolts with the Multi Hex Tool with Phillips Screwdriver provided.

  • Page 19: Operating The Computer

    OPERATING THE COMPUTER USING YOUR COMPUTER The computer can be activated by pressing the buttons or by pedaling. If you leave the equipment idle for approximately 4 minutes, the power will turn off automatically. BUTTON FUNCTIONS: MODE: Press the MODE button to select each function of computer. Press and hold the MODE button for 2 seconds, all data values will clear to zero.
  • Page 20 the MODE button to select DST (DISTANCE) which displays on the screen. Press the SET button until you see the DST (DISTANCE) begin blinking. Press the SET button to set the target distance, each time you press the SET button DST (DISTANCE) should change by 1.0 km.

  • Page 21: Adjustments

    ADJUSTMENTS Adjusting the Tension Control Knob To increase the tension, turn the tension control knob in a clockwise direction. To decrease the tension, turn the tension control knob in a counterclockwise direction. Tension Control Knob Adjusting the Adjustable Leveler Turn the adjustable leveler on the rear stabilizer as needed to level the recumbent bike.

  • Page 22: Maintenance

    MAINTENANCE Cleaning The recumbent bike can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the recumbent bike after each use. Be careful not to get excessive moisture on the computer display panel as this might cause an electrical hazard or electronics to fail.

  • Page 23: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 24 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
