Life Gear 26260 Owner's Manual

Magnetic recumbent bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

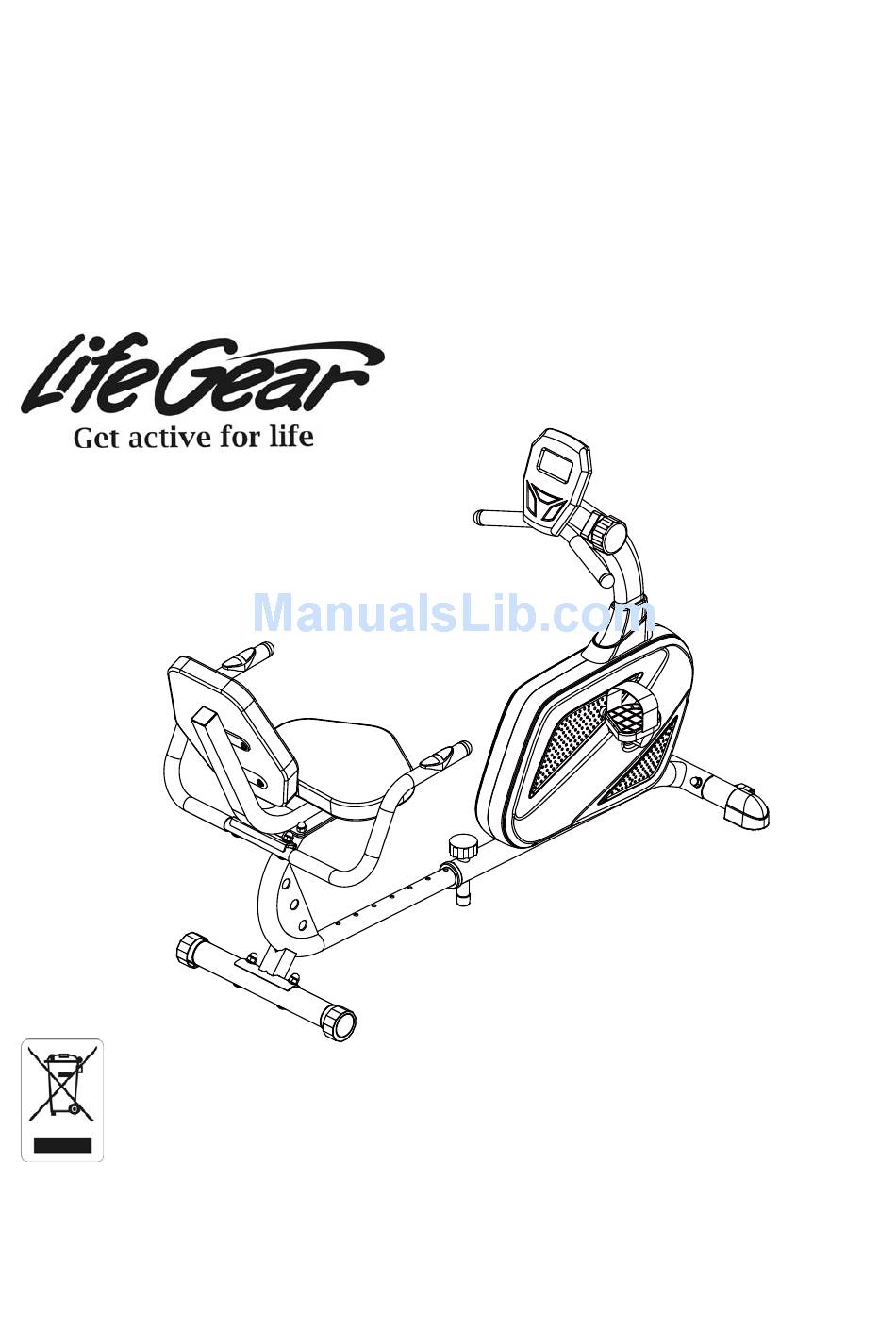

II ,
CLASSIC
MAGNETIC RECUMBENT BIKE
ITEM NO: 26260
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo, subject to change without notice.
2013, May

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 26260 and is the answer not in the manual?

Questions and answers

Related Manuals for Life Gear 26260

Summary of Contents for Life Gear 26260

  • Page 1 II , CLASSIC MAGNETIC RECUMBENT BIKE ITEM NO: 26260 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 2 PARTS LIST ------------------------------------------------------------------------------- 3 HARDWARE PACKING LIST --------------------------------------------------------- 4 TOOLS -------------------------------------------------------------------------------------- 5 OVERVIEW DRAWING ----------------------------------------------------------------- 6 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 7 OPERATING THE COMPUTER ------------------------------------------------------ 13 ADJUSTMENTS -------------------------------------------------------------------------- 14 MAINTENANCE -------------------------------------------------------------------------- 15 TROUBLESHOOTING ------------------------------------------------------------------ 15 WARM UP AND COOL DOWN ROUTINE ----------------------------------------- 16...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed, including the following important safety instructions when using this equipment. Read all instructions before using this equipment. Read all instructions and follow it carefully before using this equipment. Make sure the equipment is properly assembled and tightened before use.

  • Page 4: Parts List

    PARTS LIST Description Qty No. Description 001 Backrest Support Bracket 1 030 Bolt M10x57 002 Front Stabilizer 1 031 Curve Washer Ø10.5xØ25x2 003 Rear Main Frame 1 032 Cap Nut M10 004 Rear Stabilizer Ø50x1.5x430 1 033 Left Cover 005 Front Main Frame 1 034 Right Cover 006 Front Handlebar Post...

  • Page 5: Hardware Packing List

    PARTS LIST Description Qty No. Description Hand Pulse Sensor Wire 059 Left Foot Pedal YH-30X 1 068 L=650mm Pan Head Phillips Self Drilling 060 Right Foot Pedal YH-30X 1 069 Screw ST4.2x20 061 Sensor with Wire L=500mm 1 070 Bolt M8x45 062 Belt 330J6 1 071 Cap Nut M8...

  • Page 6: Tools

    TOOLS Allen Wrench S6 Multi Hex Tool with Phillips Screwdriver 1 PC S10, S13, S14, S15 1 PC Multi Hex Tool 1 PC...

  • Page 7: Overview Drawing

    OVERVIEW DRAWING...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Tool: Multi Hex Tool 1. Front and Rear Stabilizers Installation Position the Front Stabilizer (2) in front of the Front Main Frame (5) and align bolt holes. Attach the Front Stabilizer (2) onto the front curve of the Front Main Frame (5) with two M10x57 Bolts (30), two Ø10.5xØ25x2 Curve Washers (31), and two M10 Cap Nuts (32).
  • Page 9 Tool: Allen Wrench S6 Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 2. Front Handlebar Post, Tension Control Knob, and Foot Pedals Installation Remove one M8x15 Bolt (23), one Ø8.4xØ25x2 Big Curve Washer (25), four Ø8 Flat Washers (24), and four M8x10 Bolts (76) from the tube of the Front Main Frame (5). Remove bolts with the S6 Allen Wrench provided.
  • Page 10 “L” for Left. Insert the pedal shaft of Left Foot Pedal (59) into threaded hole in the left Crank (46). Turn the pedal shaft by hand in the counter-clockwise direction until snug. Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip the threads.
  • Page 11 Tool: Allen Wrench S6 Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 3. Backrest Support Bracket and Handlebar Installation Attach the Backrest Support Bracket (1) onto the Rear Main Frame (3) with four M8x15 Bolts (23), four Ø8 Flat Washers (24), and two M8 Cap Nuts (71). Tighten bolts and cap nut with the S6 Allen Wrench and Multi Hex Tool with Phillips Screwdriver provided.
  • Page 12 Tool: Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 4. Computer Installation Remove four M5x12 Bolts (39) from the back of the Computer (9). Remove bolts with the Multi Hex Tool with Phillips Screwdriver provided. Connect the Extension Hand Pulse Sensor Wires II (63) and Extension Sensor Wire (64) to the wires that come from the Computer (9).
  • Page 13 Tool: Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 5. Seat and Back Cushions Installation Remove eight M6x15 Bolts (21) and eight Ø6 Flat Washers (58) from the back of the Seat and Back Cushions (7, 8). Remove bolts with the Multi Hex Tool with Phillips Screwdriver provided.

  • Page 14: Operating The Computer

    OPERATING THE COMPUTER USING YOUR COMPUTER The computer can be activated by pressing the buttons or by pedaling. If you leave the equipment idle for 4 minutes, the power will turn off automatically. BUTTON FUNCTIONS: MODE: Press the MODE button to select each function of the computer.

  • Page 15: Adjustments

    ADJUSTMENTS Adjusting the Tension Control Knob To increase the tension, turn the tension control knob in a clockwise direction. To decrease the tension, turn the tension control knob in a counterclockwise direction. Tension Control Knob Adjusting the Rear Stabilizer End Cap Turn the rear stabilizer end cap on the rear stabilizer as needed to level the recumbent bike.

  • Page 16: Maintenance

    MAINTENANCE Cleaning The recumbent bike can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the recumbent bike after each use. Be careful not to get excessive moisture on the computer display panel as this might cause an electrical hazard or electronics to fail.

  • Page 17: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 18 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
