Altronix Pace4PRM Installation Manual page 4

Fig. 3
OUT
Ports Ports
1 4 5
IN
Powered Switch or NetWay MidSpan
- 4 -

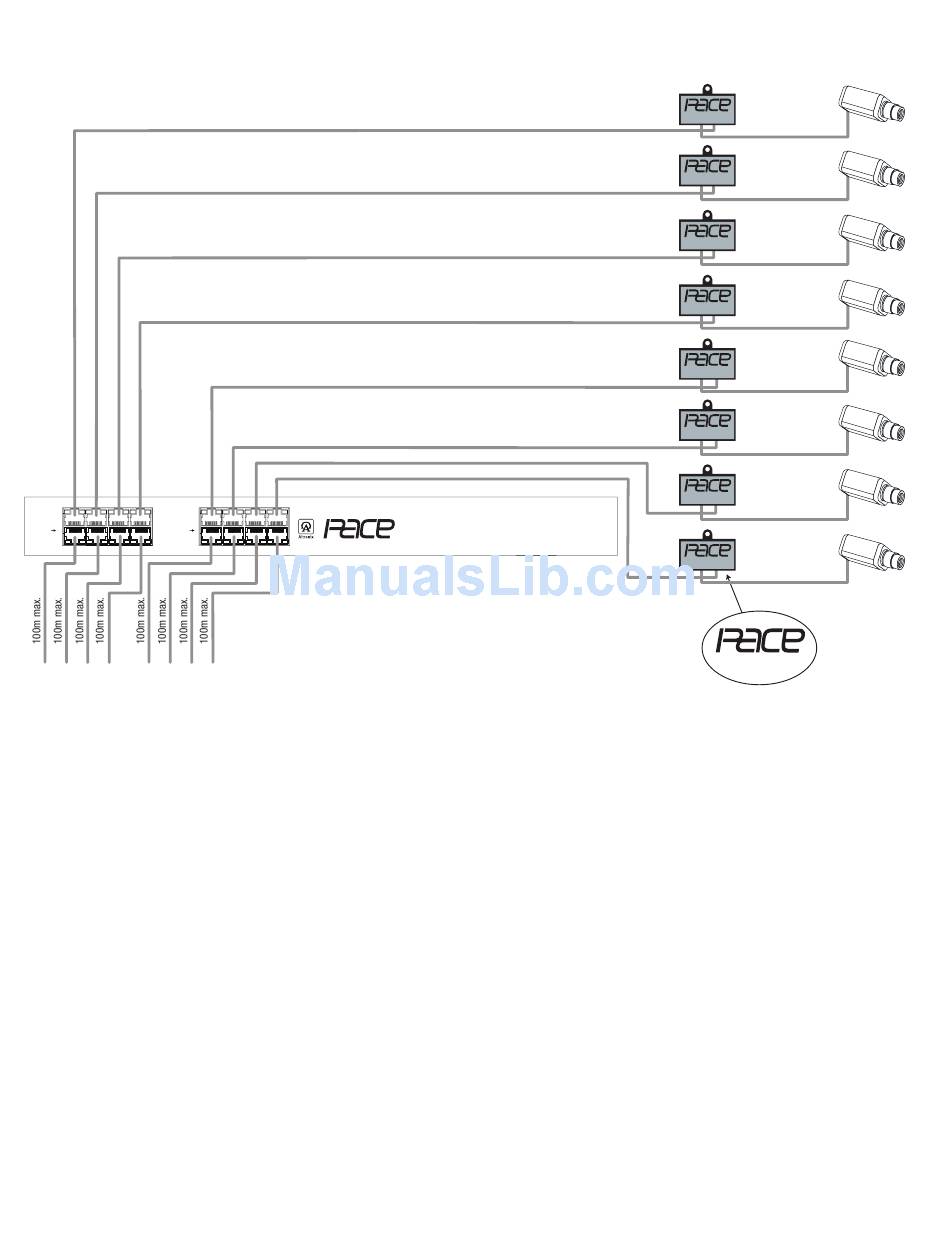

Multiple PoE Camera Connection:
Pace8PRM shown. Pace16PRM is similar, with twice as many channels.
OUT
8
IN
500m max.
500m max.
500m max.
500m max.
500m max.
500m max.
500m max.
500m max.
Pace8PRM
- Front Panel
PoE compliant
Pace1PTM
100m max.
PoE Camera
PoE compliant
Pace1PTM
100m max.
PoE Camera
PoE compliant
Pace1PTM
100m) max.
PoE Camera
PoE compliant
Pace1PTM
100m max.
PoE Camera
PoE compliant
Pace1PTM
100m max.
PoE Camera
PoE compliant
Pace1PTM
100m max.
PoE Camera
PoE compliant
Pace1PTM
100m) max.
PoE Camera
PoE compliant
Pace1PTM
100m max.
PoE Camera
Pace1PTM
Pace4/8/16PRM
