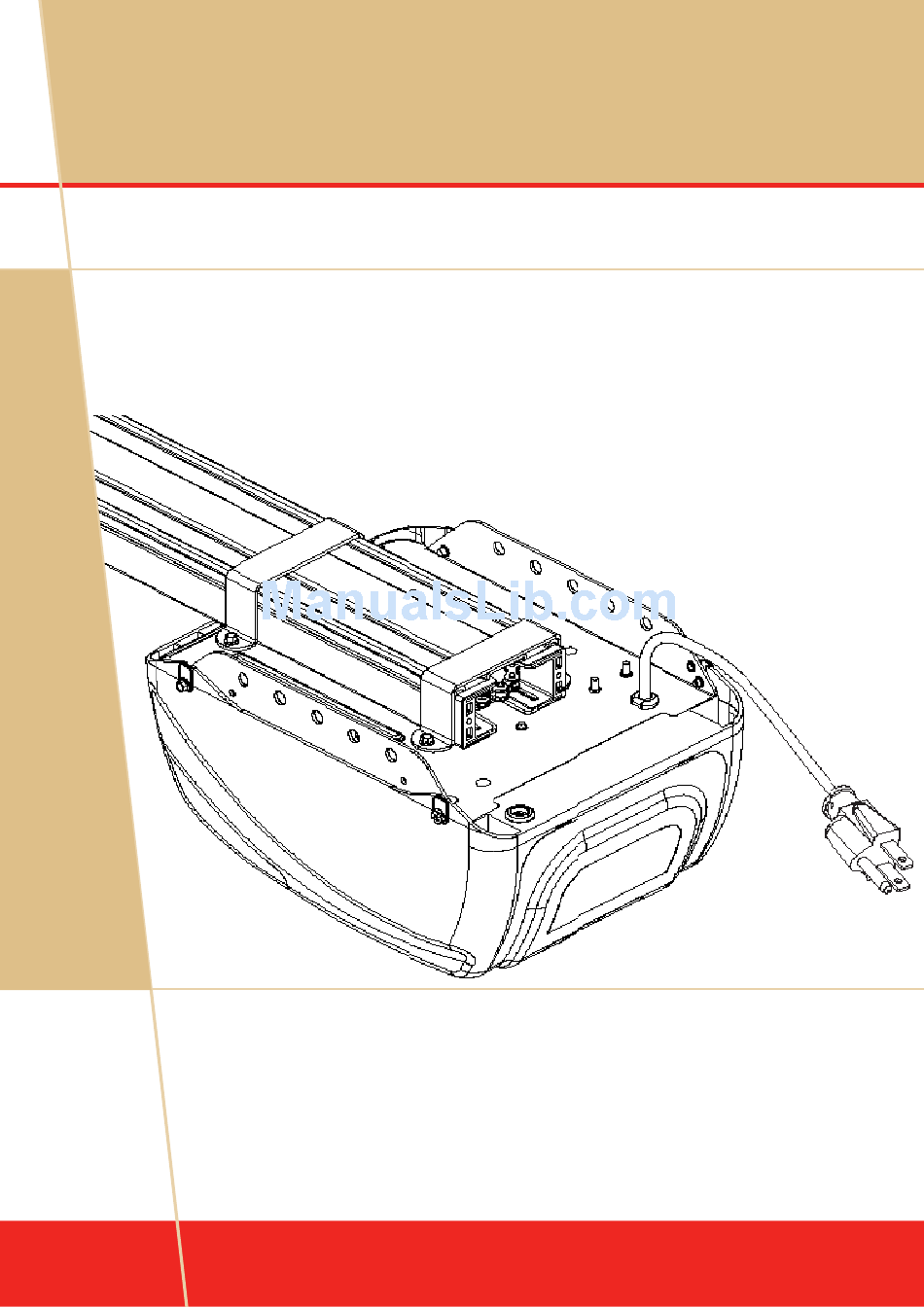

- Page 1 PA1000 - Overhead Garage Door Operator Instruction Manual (Notice D’exploitation) FOR RESIDENTIAL USE ONLY Part Number #40020 Model: PA1000V1 October 2011 www.bnd.com.au...
- Page 2 WARNING: It is vital for the safety of persons to follow all instructions. Failure to comply with the installation instructions and the safety warnings may result in serious personal injury and/or property and remote control opener damage. Please save these instructions for future reference.
-
Page 3: Table Of Contents
PA1000 Instruction Manual (Instructions d’installation) CONTENTS PA1000V1 Overhead Garage Door Operator Safety Rules System Specifications Default Settings and Technical Specification About Your Operator Operating Controls Kit Contents Installation Knockdown C-Rail Assembly C-Rail Assembly Mounting Operator for Track Type Door Mounting Door Bracket & Arms... - Page 4 PA1000 Instruction Manual (Instructions d’installation) CONTENTS PA1000V1 Overhead Garage Door Operator How to Use Your Operator Remote Control Transmitter In-Build Locking Manual Door Operation Power Failure Removing Transmitter Battery Safety Beam Option Auto-Close Option Courtesy Light Auxiliary Output Vacation Mode...
-
Page 5: Safety Rules
PA1000 Instruction Manual (Instructions d’installation) Safety Rules Les règles de la sécurité Please read these important safety rules These safety alert symbols indicate a personal safety or property damage instruction exists. READ ThESE INSTRuCTIoNS CAREfuLLy. This automatic garage door operator is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety rules. -
Page 6: System Specifications
PA1000 Instruction Manual (Instructions d’installation) System Specifications Factory Default Settings Default Step Maximum Maximum motor run time 30 Secs. Courtesy light time 3 Mins. approx. Obstruction force margin Auto close time 30 Secs Technical Specifications Input Voltage 120Vac / 60Hz Fuse (primary) 1.3A (slow blow) Input power (max) -
Page 7: About Your Operator
PA1000 Instruction Manual (Instructions d’installation) About Your Operator Courtesy Light Thank you for choosing a PA1000 automatic garage door operator. The courtesy light automatically switches on for approximately three (3) minutes when operating the The technically advanced construction of this operator door. -
Page 8: Operating Controls
PA1000 Instruction Manual (Instructions d’installation) Operating controls Terminal is used to connect Vac to the control board. Close Limit Red LED illuminates and flashes when the door is closing and remains steady on when the close 10 Amps fuse to protect the electronic circuit board. limit position has been reached. - Page 9 PA1000 Instruction Manual (Instructions d’installation) Operating controls fig.01 24V power input connector. foRCE MARGIN SET Button 10Amp fuse. Close Limit LED SBC02 Battery Backup Connector Minus (-) (Red) CoDE SET button Motor connector Code Set LED oPERATE (Blue) button LIMIT SET Button Plus (+) (Green) button Service LED PG-3 Programmer connector...
-
Page 10: Kit Contents
PA1000 Instruction Manual (Instructions d’installation) Kit contents: Powerhead Drive unit Kit (fig.02). 1 X PA1000 drive unit; 1 X Handheld Transmitter with battery; 1 X Wall mount Transmitter with battery; 2 X Door attachment arms; 1 X Accessory and hardware pack. fig.02 PLuS Single Piece Track With Pre-Assembled Chain... -
Page 11: Installation
PA1000 Instruction Manual (Instructions d’installation) Kit contents: Multi-Piece Knockdown Track with Pre-Assembled Chain (fig.05) IMPoRTANT NoTE: If modification to the track length fig.05 required, adjustment must be made only from power head End. Multi-Piece Knockdown Track With Pre-Assembled Timing Belt (fig.06) fig.06 IMPoRTANT NoTE: If modification to the track length... -
Page 12: Knockdown C-Rail Assembly
PA1000 Instruction Manual (Instructions d’installation) Knockdown C-Rail Assembly Step 1 Unpack and assemble C-Rail shown fig.07. above in fig.07... -
Page 13: C-Rail Assembly
PA1000 Instruction Manual (Instructions d’installation) C-Rail Assembly Step 2 Locate and insert the shaft of drive unit into sprocket as Shaft shown in fig.08. fig.08 Locate shaft into sprocket 4 Taptite screws ‘S’ M4 X 10 Step 3 Fix the two track brackets with four screws supplied in accessory pack as shown in fig.09. -
Page 14: Mounting Operator For Track Type Door
PA1000 Instruction Manual (Instructions d’installation) Mounting Operator for a Track Type Door Step 4 - Determine Bracket Position Open the door and find the highest point of travel of the top door panel. Using a level, transfer this height to the wall 10) and mark a line 0.197”... -
Page 15: Mounting Door Bracket & Arms
PA1000 Instruction Manual (Instructions d’installation) Mounting Door Bracket and Arms Drill hole at centre of Step 8 - Alternative Mounting Option track (recommended The operator can be fastened to the roof by drilling a hole bolt size M6 or M8) in the centre of the C-Rail and driving a bolt through it into structural timber support. -
Page 16: Safety Beam Installation
PA1000 Instruction Manual (Instructions d’installation) Safety Beam Installation Beam IMPoRTANT NoTE: The Safety must be installed and connected before the travel limits are set. Step 15 - Safety Infra-Red Beam A Safety Beam extends across the door opening. This Safety fig.17 Beam is designed to detect an obstruction while the door is closing and to send a signal to the door operator to reverse or... -
Page 17: Setting Speed And Limits
PA1000 Instruction Manual (Instructions d’installation) Setting Speed and Limits Step 16 - Setting Speed Mode The default speed of the operator has been set to suit the majority of applications. However, there are 3 speed modes available if required: SLOW - suits one piece door without tracks. MEDIUM (default) - suits majority of applications. -
Page 18: Setting Limits Position
PA1000 Instruction Manual (Instructions d’installation) Setting Speed and Limits IMPoRTANT NoTE: The operate button will not function until the open and close limits positions are set. Step 17 - Setting Travel Limits NoTE: The door and shuttle must be engaged fig.21 into the chain/belt index. -
Page 19: Testing Safety Obstruction Force
PA1000 Instruction Manual (Instructions d’installation) Testing Safety Obstruction Force CAuTIoN: Please take care when testing the safety obstruction force. Excessive force may cause serious personal injury and/or property damage can result from failure to follow this warning. 18.1 - Testing the Close Cycle Press the OPERATE button to open the door fig.23 (fig.23). -
Page 20: Setting Safety Obstruction Force
PA1000 Instruction Manual (Instructions d’installation) Setting Safety Obstruction Force Adjusting Safety Obstruction Force The safety obstruction force is calculated automatically and set in memory on the operator. It is usually not necessary to adjust the safety obstruction force. The only time the force may need to be increased is due to environmental conditions, for example, windy or dusty areas, and areas fig.25... -
Page 21: Coding Transmitters
PA1000 Instruction Manual (Instructions d’installation) Coding Transmitters Step 19 - Setting Transmitters Codes The garage door operator can only operate from remote control transmitters that have been programmed into the opener’s receiver. The receiver needs to learn the codes of any remote control transmitter that will be used with the operator. -
Page 22: Vacation Mode
PA1000 Instruction Manual (Instructions d’installation) Coding Transmitters 19.3. Setting the Transmitter to Operate Vacation Mode The opener can be programmed into a “Vacation Mode” where the operator will not respond to any transmitter except one programmed unit. Press CODE SET button three times. The CODE SET LED will illuminate and the courtesy light will flash fig.30 Press Code... -
Page 23: Pet Mode
PA1000 Instruction Manual (Instructions d’installation) Coding Transmitters 19.5 - Setting the Transmitter to Operate Pet (Pedestrian) Mode (Fig.32) The opener can be programmed into a “Pet Mode” where the door opens partially to allow pet to enter/exit the garage. Press CODE SET button five times. The CODE SET LED will illuminate and the courtesy light will flash quickly (twice per second) to indicate that the learning mode for “Pet Mode”... -
Page 24: Accessories
PA1000 Instruction Manual (Instructions d’installation) Accessories Terminal Block A variety of wired accessory items can be connected to the terminal block such as Safety Beam, Electric Key Switch and more (fig. 35). Terminal connections from top down are as follows: (+35V/+24V);... -
Page 25: Battery Backup Installation
PA1000 Instruction Manual (Instructions d’installation) Battery Backup Installation (Optional) fig. 37 Battery Back up (optional) Testing Battery Back up The operator has provision for a Battery Back Up kit that Press either the OPERATE button or transmitter to allows continued operation of the door in the absence of activate the operator. -
Page 26: How To Use Your Operator
PA1000 Instruction Manual (Instructions d’installation) How to Use Your Operator For maximum efficiency of your operator, your garage door must be in good operating condition. An annual service of your garage door by an authorised dealer is recommended. CAuTIoN: Activate the operator only when the door is in full view, free of obstructions and with the operator properly adjusted. -
Page 27: In-Build Locking
PA1000 Instruction Manual (Instructions d’installation) How to Use Your Operator In-built Locking facility Do NoT lock your door with the locking bars when your operator is engaged. This operator has an in-built locking facility. With the operator engaged your door will be locked whether the power is on or off. -
Page 28: Safety Beam Option
PA1000 Instruction Manual (Instructions d’installation) How to Use Your Operator Safety Beam option Pet Mode A Safety Beam Kit must be fitted to this operator. A remote control transmitter can be programmed to open • When this Kit is fitted, the operation of this device is the door partially to allow pet access to the garage. -
Page 29: Maintenance
PA1000 Instruction Manual (Instructions d’installation) Maintenance The Service LED will indicate the requirement for a service and/or adjustment. To reset the Service LED CAuTIoN: Frequently examine installation, in particular cables, springs when the door is serviced, reprogram the Door Travel and mountings, for signs of wear, damage or Limits and the Door Travel Force –... -
Page 30: Troubleshooting Guide
PA1000 Instruction Manual (Instructions d’installation) Troubleshooting Guide Symptom Possible cause Remedy The opener does not work from the Garage door in poor condition e.g. Check the door for normal operation hand remote control transmitter springs may be broken – see monthly maintenance. The opener does not have power Plug a device e.g. -
Page 31: Parameters
PA1000 Instruction Manual (Instructions d’installation) Parameters Door status indicators Door opener state Open LED green Close LED red Door status Beeper LED yellow Open Close Opening Flashing Closing Flashing Door travel stopped Flashing Flashing Door obstructed when opening Flashing Door obstructed when closing Flashing Beeps while door is moving... -
Page 32: Spare Parts List
PA1000 Instruction Manual (Instructions d’installation) Spare Parts List... - Page 33 PA1000 Instruction Manual (Instructions d’installation) © Copyright 2011 Diamond PD Power Drive : Instruction Manual...
-
Page 34: Warranty
PA1000 Instruction Manual (Instructions d’installation) Warranty 1. Definitions 2. . - Page 35 PA1000 Instruction Manual (Instructions d’installation) Warranty Purchased From: Installed By: Installed Date: The Purchaser shall complete this certificate and keep it together with a copy of the receipt of purchase in a safe place – production of such information will assist the handling of a claim made under this warranty. ©...
-
Page 36: Optional Accessories
PA1000 Instruction Manual (Instructions d’installation) Optional Accessories There is a range of additional accessories for your convenience and security. • Safety Infra-Red Beams - Gives additional protection if the door is closing onto your property or person. Simply breaking the beam “stops” the door! Must be fitted if auto closing feature is operational. •... - Page 37 PA1000 Instruction Manual (Instructions d’installation) © Copyright 2011 Diamond PD Power Drive : Instruction Manual...
- Page 38 ©Copyright October 2011. All Rights Reserved. www.
