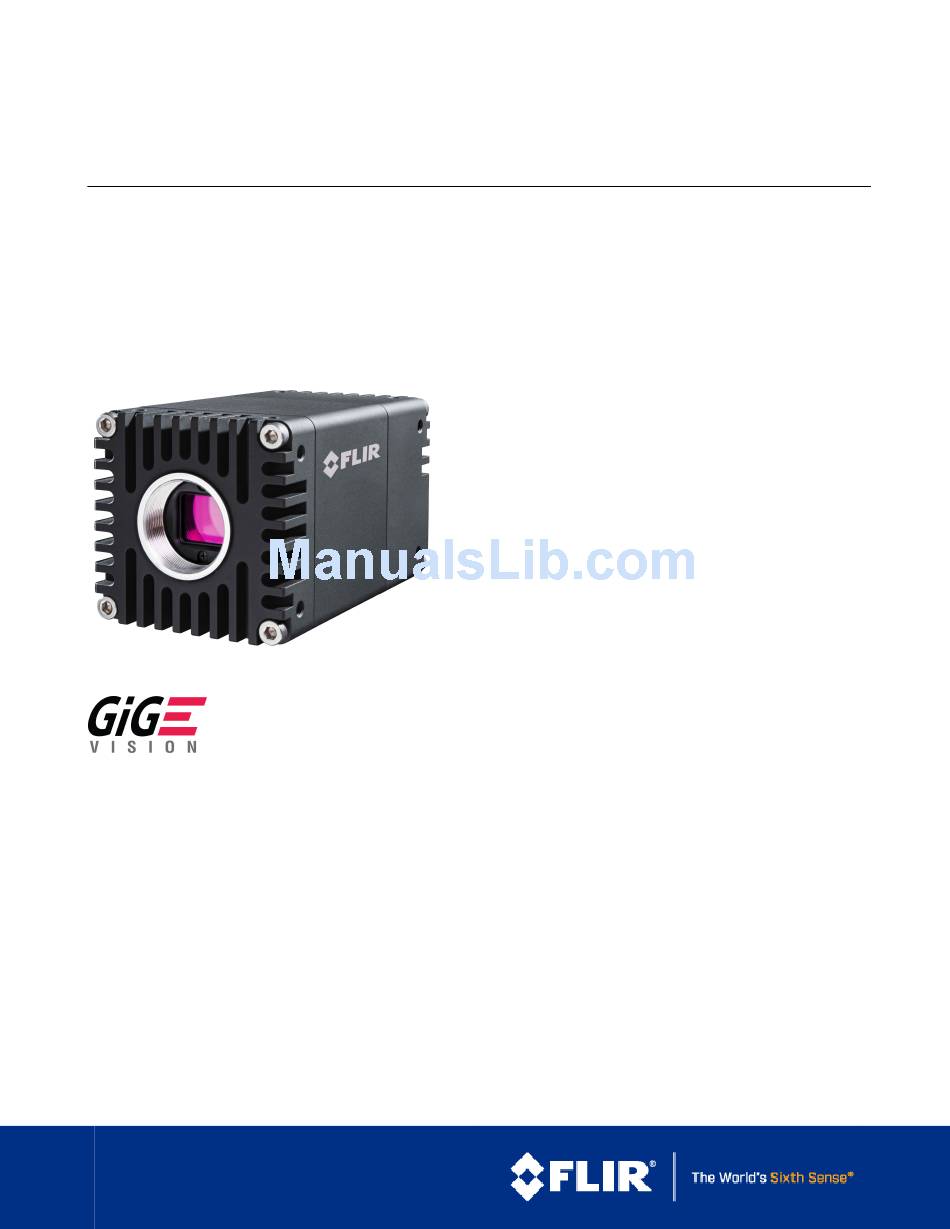

- Page 1 INSTALLATION GUIDE FLIR ORYX® Version 1.0 Revised 10/27/2017 Copyright © 2017 FLIR Integrated Imaging Solutions Inc. All rights reserved.
- Page 2 The KCC symbol indicates that this product complies with Korea’s Electrical Communication Basic Law regarding EMC testing for electromagnetic interference (EMI) and susceptibility (EMS). Hardware Warranty The warranty for the Oryx camera is 3 years. For detailed information on how to repair or replace your camera, please see the terms and conditions on our website.
-
Page 3: Table Of Contents
3.2 Installing Your Interface Card and Software 3.3 Installing Your Oryx 3.4 Powering Your Oryx 4 Tools to Control the Oryx 4.1 Using the Spinnaker® Software Development Kit 4.1.1 SpinView Camera Evaluation Application 4.1.2 Custom Applications Built with the Spinnaker API 4.2 Using GenICam Applications... - Page 4 7.2 GPIO Electrical Characteristics 7.2.1 Output Timing Characteristics 7.2.2 Input Timing Characteristics 8 Troubleshooting 8.1 Support 8.2 Status Indicator LED 8.2.1 Network Status LEDs Contacting Us 10/27/2017 ©2017 FLIR Integrated ® FLIR Oryx Installation Guide Imaging Solutions Inc. All rights reserved.
-
Page 5: Oryx Installation Guide
1 Oryx Installation Guide Oryx Installation Guide Welcome to the Oryx camera. We offer a number of resources to assist you with the Oryx. Release Notes—information about the current firmware release including feature additions or changes, bug fixes, and known issues. -
Page 6: Handling Precautions And Camera Care
Hardware Warranty described in the Terms and Conditions our website. Your FLIR digital camera is a precisely manufactured device and should be handled with care. Here are some tips on how to care for the device. Avoid electrostatic charging. When handling the camera unit, avoid touching the lenses. Fingerprints will affect the quality of the image produced by the device. -
Page 7: Oryx Installation
C-mount Lens (see Lens Mounting Interface card (see Interface Card) FLIR sells a number of the additional parts required for installation. To purchase, visit our Accessories page. Do you have a downloads account? downloads page has many resources to help you operate your camera effectively, including: Spinnaker SDK software, including drivers (required for installation) -
Page 8: Installing Your Interface Card And Software
3 Oryx Installation Installing Your Interface Card and Software 1. Install your Interface Card Ensure the card is installed per the manufacturer's instructions. Connect the internal IDE or SATA power connector on the card to the computer power supply. Alternatively, use your PC's built-in host controller, if equipped. -
Page 9: Installing Your Oryx
3 Oryx Installation Installing Your Oryx 1. Attach a Lens Unscrew the dust cap from the lens holder to install a lens. 2. Connect the interface Card and Cable to the Camera Plug the interface cable into the host controller card and the camera. The cable jack screws can be used for a secure connection. -
Page 10: Powering Your Oryx
3 Oryx Installation Powering Your Oryx Power is provided externally through the GPIO interface: 12 - 24 V. Power consumption is 15 W maximum, 11 W nominal. The camera does not transmit images for the first 100 ms after power- up. The auto- exposure and auto- white balance algorithms do not run while the camera is powered down. -
Page 11: Tools To Control The Oryx
4 Tools to Control the Oryx Tools to Control the Oryx The Oryx's features can be accessed using various controls, including: Spinnaker SDK including API examples SpinView camera evaluation application, included in the Spinnaker SDK installation Third-party GenICam applications ®... -
Page 12: Using Genicam Applications
4 Tools to Control the Oryx Using GenICam Applications GigE Vision is an interface standard that allows for fast image transfer over Ethernet networks. All cameras supporting GigE Vision interact the same way with software also supporting GigE Vision. For more information on the standard, visit visiononline.org. -
Page 13: Configuring Oryx Setup
Firmware. Configuring Camera Driver For the Oryx camera, ensure that PGRLWF driver version 2.7.3.92 or above is installed. The PGRLWF driver should already be installed automatically using the Spinnaker SDK installer when the Camera Evaluation option is selected. Or in the case of Application Development option, the driver is installed if you select the GigE Driver checkbox. - Page 14 5 Configuring Oryx Setup 4. If you need to update the driver, right-click on the device and select Filter Driver Configuration. 5. In the Filter Driver Configuration window, ensure the driver is installed and enabled. Click Refresh if making changes.
-
Page 15: Configuring The Ip Address
IP address using the GenICam Features Transport Layer Control. Alternatively, SpinView is a tool included with the Spinnaker SDK that allows you to set the internet protocol (IP) configuration for any GigE interface cards or FLIR GigE Vision cameras connected to your system. Using SpinView, you can: Set the IP address for the current connection. -
Page 16: Configuring Other Ethernet Settings
5 Configuring Oryx Setup use some bandwidth. Therefore, when calculating your bandwidth requirements, you should not attempt to use the full maximum of 1.25 GB. The default bandwidth is 850 MB. Note: If the packet size and packet delay combination exceeds the available bandwidth, frames will be dropped. -
Page 17: Heartbeat
5 Configuring Oryx Setup To control SCDA use: GenICam—GevSCDA in the Transport Layer Control 5.4.2 Heartbeat The heartbeat is a mandatory GigE Vision feature to monitor the connection between an application and the camera. The application must continually reset the heartbeat timer, or the camera assumes an error has occurred and shuts down the connection. -
Page 18: Camera Firmware
Firmware is programming that is inserted into the programmable read- only memory (programmable ROM) of most FLIR cameras. Firmware is created and tested like software. When ready, it can be distributed like other software and installed in the programmable read-only memory by the user. -
Page 19: Oryx Physical Interface
6 Oryx Physical Interface Oryx Physical Interface Oryx Physical Description 5. Status LED 1. Lens holder (C-mount) Status Indicator LED Lens Mounting 6. Interface connector 2. Glass/IR filter system Interface Connector Dust Protection Infrared Cut- Off 7. Camera label Filters 3. -
Page 20: Oryx Dimensions
Products Accessories page. Category 5e cables up to 40 meters in length can be used with 10 GigE. For cable lengths greater than 40 meters, Category 6a cables should be used. FLIR sells Category 5e cables. 10/27/2017 ©2017 FLIR Integrated ®... -
Page 21: Interface Card
The camera must connect to an interface card. This is sometimes called a host adapter, a bus controller, or a network interface card (NIC). A 10G BASE-T NIC is recommended for streaming images on the Ethernet network between the camera and host system. FLIR sells a compatible card (PN: ACC-01-1101) available from our Products Accessories page. 6.3.4 General Purpose Input/Output (GPIO) The camera has an 12-pin GPIO connector on the back of the case;... - Page 22 6 Oryx Physical Interface Color Line Function Description stripes Orange with POWER DC camera power black stripes Blue with black Line +3.3 V output, current 120 mA (nominal) - firmware 3.3 V OUTPUT stripes enabled Black with white Ground for opto-isolated I/O, not connected to camera...
-
Page 23: Mounting
6 Oryx Physical Interface Mounting The case is equipped with the following mounting holes: Four (4) M4.0 x 0.7 mounting holes on each side of the case One (1) 1/4-20 UNC mounting hole on the bottom of the case Case Temperature and Heat Dissipation You must provide sufficient heat dissipation to control the internal operating temperature of the camera. -
Page 24: Lens Mounting
6 Oryx Physical Interface Lens Mounting Lenses are not included with individual cameras. Related Knowledge Base Articles Title Article Selecting a lens for your Knowledge Base Article 10694 camera The lens mount is compatible with C-mount lenses. Correct focus cannot be achieved using a CS-mount lens on a C-mount camera. -
Page 25: Non-Volatile Flash Memory
6 Oryx Physical Interface Non-Volatile Flash Memory The camera has 4 MB non-volatile memory for users to store data. Related Knowledge Base Articles Title Article Knowledge Base Storing data in on-camera flash memory Article 10370 Dust Protection The camera housing is designed to prevent dust from falling directly onto the sensor's protective glass surface. -
Page 26: Infrared Cut-Off Filters
Infrared Cut-Off Filters FLIR color camera models are equipped with an additional infrared (IR) cut- off filter. This filter can reduce sensitivity in the near infrared spectrum and help prevent smearing. The properties of this filter are illustrated in the results below. -
Page 27: Input/Output Control
+3.3 V output, current 120 mA (nominal) - firmware 3.3 V OUTPUT stripes enabled Black with white Ground for opto-isolated I/O, not connected to camera OPTO_GND stripes ground 10/27/2017 ©2017 FLIR Integrated ® FLIR Oryx Installation Guide Imaging Solutions Inc. All rights reserved. - Page 28 7 Input/Output Control For details on GPIO circuits, see GPIO Electrical Characteristics. 10/27/2017 ©2017 FLIR Integrated ® FLIR Oryx Installation Guide Imaging Solutions Inc. All rights reserved.
-
Page 29: Gpio Electrical Characteristics
Voltage Resistor Low Voltage High Voltage 3.3 V 200 Ω 1.44 V 3.29 V 8.2 mA 5.0 V 1.0 kΩ 0.88 V 4.94 V 3.8 mA 10/27/2017 ©2017 FLIR Integrated ® FLIR Oryx Installation Guide Imaging Solutions Inc. All rights reserved. - Page 30 0.75 V 23.75 V 4.5 mA 30 V 4.7 kΩ 0.88 V 29.81 V 5.7 mA Values are for reference only Opto-isolated input circuit Opto-isolated output circuit 10/27/2017 ©2017 FLIR Integrated ® FLIR Oryx Installation Guide Imaging Solutions Inc. All rights reserved.
- Page 31 7 Input/Output Control Input/Output circuit 10/27/2017 ©2017 FLIR Integrated ® FLIR Oryx Installation Guide Imaging Solutions Inc. All rights reserved.
-
Page 32: Output Timing Characteristics
Opto Current 3.8 mA 3.8 mA Opto Isolator Delay (High to Low) 2.92 µs 2.92 µs Opto Isolator Delay (Low to High) 24.2 µs 24.2 µs 10/27/2017 ©2017 FLIR Integrated ® FLIR Oryx Installation Guide Imaging Solutions Inc. All rights reserved. -
Page 33: Input Timing Characteristics
Propagation Delay Low to High 7.7 µs PDLH Propagation Delay High to Low 16.2 µs PDHL Minimum Positive Pulse Width 0.772 ms MPPW Minimum Negative Pulse Width 32.56 ms MNPW 10/27/2017 ©2017 FLIR Integrated ® FLIR Oryx Installation Guide Imaging Solutions Inc. All rights reserved. -
Page 34: Troubleshooting
8 Troubleshooting Troubleshooting Support FLIR endeavors to provide the highest level of technical support possible to you. Most support resources can be accessed through our Product Support page. Creating a Customer Login Account The first step in accessing our technical support resources is to obtain a Customer Login Account. This requires a valid name and e-mail address. -
Page 35: Status Indicator Led
Left and Right Bright Green 10 GigE connection Left Dim and Right Bright Green 1 GigE connection Left and/or Right Blinking Green Data transfer in progress 10/27/2017 ©2017 FLIR Integrated ® FLIR Oryx Installation Guide Imaging Solutions Inc. All rights reserved. -
Page 36: Contacting Us
Find answers to commonly asked questions in our Knowledge Base Knowledge Base Downloads Download the latest documents and software Contact Information Contact Us on our website 10/27/2017 ©2017 FLIR Integrated ® FLIR Oryx Installation Guide Imaging Solutions Inc. All rights reserved.
