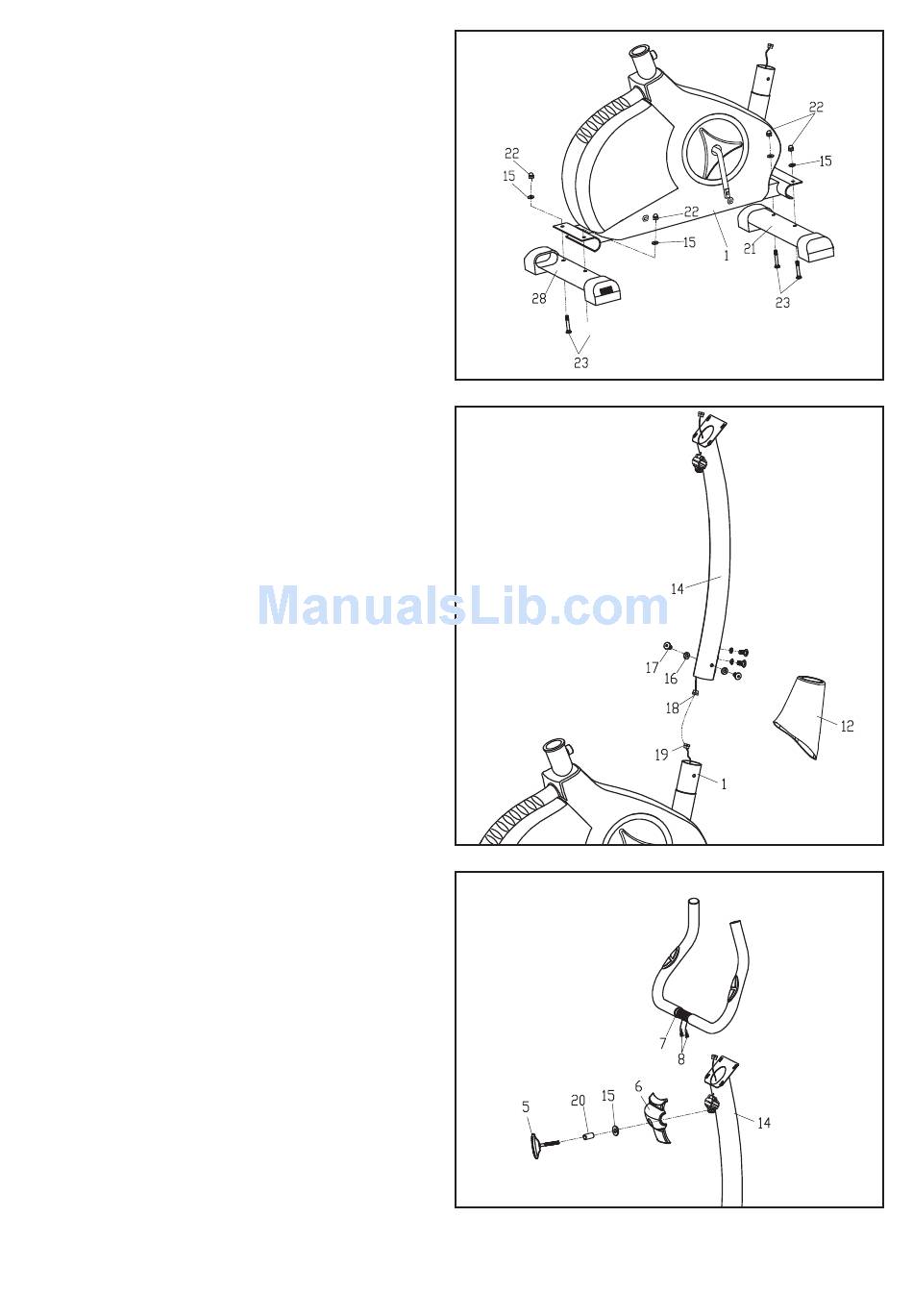

STEP 1
Attach the Front stabilizer (21) and Rear stabilizer
(28) to the Main frame (1) with the Carriage bolts
(23), Flat washers (15) and Cap nuts (22) as
shown.
Note: The Leveler end caps of the rear stabilizer
can be ADJUSTED to keep the equipment stable.
STEP 2
Insert the Handle post cover (12) into the Handle
post (14) then connect the Meter upper sensor
wire (18) with the sensor wire (19).
Fix the Handle post (14) to the post of main frame
(1) with the Allen pan head bolts (17) and arc
washers (16).
STEP 3
I: Feed the Handle pulse wire (8) out of the
Handle post (14) through the top of the computer
bracket.
II: Adjust the Handlebar (7) to a suitable position
then fix the Handle post (14) with the T shaped
knob (5), Spacer (20), Flat washer (15) and Front
handlebar cover (6) as shown.
