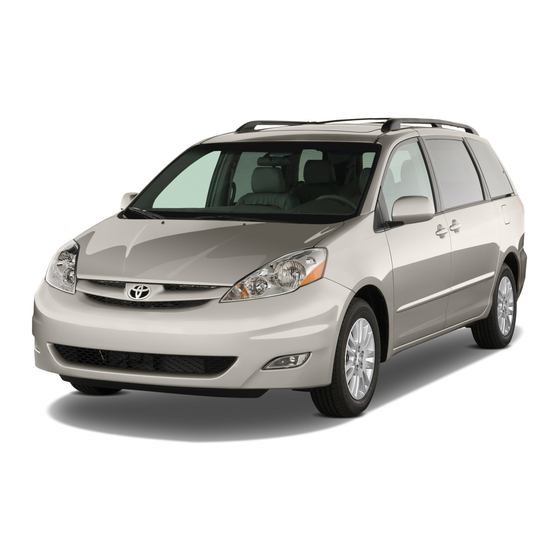

Toyota Sienna 2010 Owner's Manual

Toyota Sienna 2010 Owner's Manual

Hide thumbs Also See for Sienna 2010:

Quick reference manual (17 pages)

,

Quick reference manual (30 pages)

,

Quick reference manual (19 pages)

Table Of Contents

page of 583

/ 583
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

See also: Quick Reference Manual

TABLE OF CONTENTS

Before driving

1

When driving

2

Interior fea-

3

tures

Maintenance

4

and care

When trouble

5

arises

Vehicle

6

specifications

For owners

7

Index

Adjusting and operating features such as door locks,

mirrors, and steering column.

Driving, stopping and safe-driving information.

Air conditioning and audio systems, as well as other in-

terior features for a comfortable driving experience.

Cleaning and protecting your vehicle, performing do-it-

yourself maintenance, and maintenance information.

What to do if the vehicle needs to be towed, gets a flat

tire, or is involved in an accident.

Detailed vehicle information.

Reporting safety defects for U.S. owners and seat belt

instructions for Canadian owners

Alphabetical listing of information contained in this

manual.

1

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the Sienna 2010 and is the answer not in the manual?

Questions and answers

Summary of Contents for Toyota Sienna 2010

Page 1 TABLE OF CONTENTS Adjusting and operating features such as door locks, Before driving mirrors, and steering column. When driving Driving, stopping and safe-driving information. Interior fea- Air conditioning and audio systems, as well as other in- tures terior features for a comfortable driving experience. Maintenance Cleaning and protecting your vehicle, performing do-it- and care...
Page 2: Table Of Contents
TABLE OF CONTENTS Index 1-6. Theft deterrent system Before driving Engine immobilizer system ......111 Alarm ........113 1-1. Key information Theft prevention labels Keys ........26 (for U.S.A.) ....... 115 1-2. Opening, closing and 1-7. Safety information locking the doors Correct driving posture ..
Page 3 Windshield wipers and 3-2. Using the audio system washer ......191 Audio system types .... 262 Rear window wiper and Using the radio ....265 washer ......193 Using the CD player ... 271 Playing back MP3 and 2-4. Using other driving systems WMA discs .......
Page 4 TABLE OF CONTENTS Index Security and system Garage door opener ... 405 setup ........ 350 Garage door opener box ..410 Using the phone book ..353 Compass ......413 3-5. Using the interior lights Maintenance and care Interior lights list ....361 •...
Page 5 When trouble arises Vehicle specifications 5-1. Essential information 6-1. Specifications If your vehicle needs to Maintenance data be towed ......496 (fuel, oil level, etc.) ... 542 If you think something Fuel information....550 is wrong ......500 Tire information ....553 Fuel pump shut off system ......
Page 6 Pictorial index Exterior ∗ Windshield wipers P. 191 Moon roof P. 104 Outside rear view mirrors P. 97 Hood P. 434 Parking and turn Side marker lights P. 185 signal lights P. 185 Headlights (high beam) Headlights (low beam) P. 186 P.
Page 7 Fuel filler door Rear window defogger P. 107 P. 260 ∗ Roof luggage carrier P. 219 Sliding doors P. 37 Rear window wiper P. 193 Front doors P. 33 Back door P. 47 Tires License plate lights P. 185 P. 454 ●Rotation P.
Page 8 Pictorial index Interior Power window Seat belts P. 85 switches P. 100 Head restraints P. 82 SRS driver airbag P. 118 SRS side airbags P. 118 Floor mat ∗ P. 401 Sunshades P. 393 SRS front passenger Quarter windows airbag P.
Page 9 With garage door opener Vanity mirrors P. 384 Garage door opener switches P. 405 Trip information display P. 181 Personal/interior lights P. 362 ∗ Power back door switch P. 47 ∗ Power sliding door switches P. 38 ∗ Moon roof switch P.
Page 10 Pictorial index Interior Without garage door opener Sun visors P. 383 Vanity mirrors P. 384 Personal/interior lights P. 362 Conversation mirror P. 386 Personal/interior lights P. 362 Rear air conditioning system P. 253 Auxiliary box P. 375 SRS curtain shield airbags P.
Page 11: Power Window Switch
Inside door lock buttons P. 33 ∗ Driving position memory switches P. 80 Door lock switches P. 33 Window lock switch P. 100 Power window switches P. 100 ∗ : If equipped...
Page 12 Pictorial index Interior With console box Cup holders Console box P. 370 P. 365 Note pad holder P. 381 Cup holders Cup holders P. 370 P. 370 Auxiliary box P. 375...
Page 13 With front seat side table Cup holders P. 370 Cup holder Front seat side table P. 370 P. 399 Auxiliary box P. 375...
Page 14 Pictorial index Instrument panel Windshield wiper and washer switch P. 191 Rear window wiper and washer switch P. 193 ∗ TRAC off switch P. 216 Gauges and meters P. 174 Auxiliary box P. 375 Headlight switch P. 185 Glove box P.
Page 15 ∗ Power quarter window switch P. 102 Outside rear view mirror Headlight beam level ∗ switches control dial P. 97 P. 187 Power back door Tire pressure warning reset ∗ main switch switch P. 48 P. 454 ∗ Power sliding door main switch P.
Page 16: Talk Switch
Pictorial index Instrument panel Audio remote control Engine (ignition) switch P. 167 ∗ switches P. 292 ∗ Telephone switch P. 332 Cruise control switch P. 194, 197 ∗ Talk switch P. 332 ∗ Distance switch P. 197...
Page 17 Rear window defogger switch P. 260 ∗ AUX adapter P. 291 Outside rear view mirror defogger switch P. 260 ∗ Windshield wiper de-icer switch P. 260 Power outlet main ∗ switch P. 388 Emergency flasher switch Audio system P. 262 Rear view monitor/navigation system ∗...
Page 18 Pictorial index Instrument panel With seat heater Shift lever P. 170 Seat heater switches P. 390 Shift lock override button Auxiliary box P. 530 P. 375 Without seat heater Shift lever P. 170 Shift lock override button Auxiliary box P. 530 P.
Page 19 Pictorial index Luggage compartment Power outlet (12 V) P. 387 ∗ Power outlet (115 VAC) P. 388 ∗ Power third seat switches P. 72, 75 Luggage compartment light P. 363 Grocery bag Back door strap P. 47 hooks P. 394 Grocery bag hooks P.
Page 20 A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available on the market. You should know that these parts are not covered by Toyota warranty and that Toyota is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.
Page 21 Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.
Page 22 CAUTION General precautions while driving ■ Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury.
Page 23 This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.
Page 25: 1-1. Key Information
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 531)
Page 26: Wireless Remote Control
1-2. Opening, closing and locking the doors Wireless remote control The wireless remote control can be used to lock and unlock the vehi- cle from outside the vehicle. Type A Locks all doors Unlocks all doors Pressing the button unlocks the driver’s door.
Page 27 1-2. Opening, closing and locking the doors Type B Locks all doors Unlocks all doors Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors. Pushing holding: Opens and closes the left side power sliding door (if equipped) Pushing...
Page 28 1-2. Opening, closing and locking the doors Operation signals ■ Doors: A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice) Back door (type B only): A buzzer sounds and the emergency flashers flash twice to indicate that the back door has been opened/closed.
Page 29 If window tint with a metallic content or metallic objects is attached to the ● rear window Customization that can be configured at Toyota dealer ■ Settings (e.g. operation signal) can be changed. (Customizable features →P. 565)
Page 30 1-2. Opening, closing and locking the doors Certification for wireless remote control ■ For vehicles sold in the U.S.A. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 31 1-2. Opening, closing and locking the doors When riding in an aircraft ■ When bringing a wireless remote control onto an aircraft, make sure you do not press any buttons on the wireless remote control while inside the aircraft cabin. If you are carrying a wireless remote control in your bag etc, ensure that the buttons are not likely to be pressed accidentally.
Page 32: Front Doors
1-2. Opening, closing and locking the doors Front doors The vehicle can be locked and unlocked using the wireless remote control, key, door lock switch or inside lock button. Wireless remote control ■ →P. 27 ■ Locks the door Unlocks the door Turning the key unlocks the driver's door.
Page 33 1-2. Opening, closing and locking the doors Locking the front doors from the outside without the wireless remote control or key Move the inside door lock button to the lock position. STEP Close the door. STEP The doors cannot be locked when the key is in the engine switch and either of the front door is open.
Page 34 1-2. Opening, closing and locking the doors Setting and canceling the functions ■ To switch between set and canceled, follow the procedure below: Close all the doors and turn the engine switch to the “ON” STEP position. (Perform step 2 within 10 seconds.) Shift the shift lever to P or N, and STEP press and hold the driver's door...
Page 35 The doors cannot be unlocked with the door lock switch. The door lock switch can be reset by unlocking all the doors with the wire- less remote control or key. Customization that can be configured at Toyota dealer ■ Settings (e.g. unlocking function using a key) can be changed.
Page 36: Sliding Doors
1-2. Opening, closing and locking the doors Sliding doors Vehicles without power sliding doors The sliding doors can be opened and closed using the sliding door handle. The sliding door can be locked and unlocked using the inside lock knob or wireless remote control. Vehicles with power sliding doors The power sliding doors can be opened and closed using the sliding door handle, power sliding door switches or wireless remote control.
Page 37 1-2. Opening, closing and locking the doors Inside lock knobs ■ Unlocks Locks Power sliding door switches (vehicles with power sliding ■ doors) From front seats (type A) Push and hold the switch to open and close the right side sliding door.
Page 38 1-2. Opening, closing and locking the doors From rear seats Push the switch to open and close each sliding door. Canceling the power sliding door system (if equipped) Turn the main switch off to dis- able the power sliding door sys- tem.
Page 39 1-2. Opening, closing and locking the doors Sliding door child-protector locks The sliding door cannot be opened from inside the vehicle when the child-protector lock is set. These locks can be set to prevent children from opening the sliding doors. Push down on each sliding door switch to lock both sliding doors.
Page 40 The power sliding door system must be initialized in order to ensure proper operation. To initialize it, close the sliding doors completely by hand. Customization that can be configured at Toyota dealer ■ Settings (e.g. opening and closing operation) can be changed.
Page 41 1-2. Opening, closing and locking the doors CAUTION Caution while driving ■ Observe the following precautions while driving. Failure to do so may cause a door to open unexpectedly and an occupant to fall out of the vehicle, resulting in death or serious injury. Always use a seat belt.
Page 42 1-2. Opening, closing and locking the doors CAUTION Operating the sliding doors ■ Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in seri- ous injury. When opening or closing a sliding door, thoroughly check to make sure the ●...
Page 43 1-2. Opening, closing and locking the doors CAUTION Sliding door closer (if equipped) ■ In the event that the sliding door is left ● slightly open, the sliding door closer will automatically close it to the fully closed position. It takes several seconds before the sliding door closer begins to operate.
Page 44 “ON” position or the engine is started during automatic operation Do not attach any accessories other than genuine Toyota parts to the ● power sliding door. The power sliding door may not operate, causing itself to malfunction, or the power sliding door may close again after it is opened.
Page 45 1-2. Opening, closing and locking the doors NOTICE To prevent damage to your vehicle ■ Do not apply excessive force when the sliding door closer (if equipped) is ● operating. Make sure there is nothing in the doorway before closing. ●...
Page 46: Back Door
1-2. Opening, closing and locking the doors Back door Vehicles without power back door The back door can be opened using the back door opener. The back door can be locked and unlocked using the wireless remote control or door lock switch. Vehicles with power back door The power back door can be opened and closed using the power back door switch or wireless remote control.
Page 47 1-2. Opening, closing and locking the doors As the power back door starts to open or close automatically, two beeps sound and the turn signal lights flash twice. Wireless remote control (vehicles with power back door) ■ →P. 27 Canceling the power back door system (vehicles with power back door) Turn the main switch off to dis- able the power back door sys- tem.
Page 48 1-2. Opening, closing and locking the doors Back door strap ■ Use the strap when closing the back door. If the back door opener is inoperative ■ The back door can be operated from the inside. Remove the cover. STEP Vehicles without power back door Pull the lever.
Page 49 1-2. Opening, closing and locking the doors The power back door can be operated when (vehicles with power back ■ door) The engine switch is in the “ON” position and the shift lever is in P. ● The back door is unlocked. ●...
Page 50 1-2. Opening, closing and locking the doors CAUTION Caution while driving ■ Keep the back door closed while driving. ● If the back door is left open, it may hit near-by objects while driving or lug- gage may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a seri- ous health hazard.
Page 51 Doing so may cause hands to be caught or the back door damper stay to break, causing an accident. Do not attach any accessories other than genuine Toyota parts to the back ● door. Such additional weight on the back door may cause the back door to...
Page 52 1-2. Opening, closing and locking the doors CAUTION Back door closer (if equipped) ■ In the event that the back door is left ● slightly open, the back door closer will automatically close it to the fully closed position. It takes several seconds before the back door closer begins to operate.
Page 53 “ON” position or the engine is started during automatic operation Do not attach any accessories other than genuine Toyota parts to the back ● door. The power back door may not operate, causing itself to malfunction, or the back door may fall closed again after it is opened.
Page 54 1-2. Opening, closing and locking the doors NOTICE To prevent damage to the back door components ■ Do not apply any force, paint or let any other foreign matter on the damper. ● Do not apply excessive force when the back door closer is operating. ●...
Page 55: Adjustable Components
1-3. Adjustable components (seats, mirrors, steering wheel) Front seats Manual seat Passenger’s seat Driver’s seat Seat position adjustment lever Seatback angle adjustment lever Vertical height adjustment lever Lumbar support adjustment knob Seatback folding lever (if equipped)
Page 56 1-3. Adjustable components (seats, mirrors, steering wheel) Power seat Seat position adjustment switch Seatback angle adjustment switch Seat cushion (front) angle adjustment switch (driver’s side only) Vertical height adjustment switch (driver’s side only) Lumbar support switch (driver’s side only) Seatback table (if equipped on manual seat) ■...
Page 57 1-3. Adjustable components (seats, mirrors, steering wheel) CAUTION Seat adjustment ■ Be careful that the seat does not hit passengers or luggage. ● Do not recline the seat more than necessary when the vehicle is in motion ● to reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of...
Page 58: Second Seats
1-3. Adjustable components (seats, mirrors, steering wheel) Second seats Center seat Outer seats Seat position adjustment lever Seatback angle adjustment lever/strap (from front) The seatback can be folded down by this lever/strap. Seatback angle adjustment strap (from rear) The seatback can be folded down by this strap. Tumbling the seat for third seat entry ■...
Page 59 1-3. Adjustable components (seats, mirrors, steering wheel) CAUTION Seat adjustment ■ Be careful that the seat does not hit passengers or luggage. ● Do not recline the seat more than necessary when the vehicle is in motion ● to reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of...
Page 60: Third Seats
1-3. Adjustable components (seats, mirrors, steering wheel) Third seats Manual seat Seatback angle adjustment strap Power seat Seatback angle adjustment switch...
Page 61 1-3. Adjustable components (seats, mirrors, steering wheel) CAUTION Seat adjustment ■ Be careful that the seat does not hit passengers or luggage. ● Do not recline the seat more than necessary when the vehicle is in motion ● to reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of...
Page 62: Seating Configurations
1-3. Adjustable components (seats, mirrors, steering wheel) Seating configurations Tumbling the second seats Before tumbling the second seats ■ Stow the seat belt buckles. STEP Outer seats: Use the seat belt STEP hangers to prevent the belts from being tangled. Tumbling the second seats ■...
Page 63 1-3. Adjustable components (seats, mirrors, steering wheel) 7-passenger models: Pull the STEP armrests up. Outer seats: Fold down the seat- STEP back while pulling the seatback angle adjustment lever or strap and swing up the seat. If the front seat is in the way, adjust it so it will not interfere.
Page 64 1-3. Adjustable components (seats, mirrors, steering wheel) Removing the second seats The seats can be removed after tumbling the second seats. Before removing the second seats ■ Tumble the second seats. (→P. 63) Removing the second seats ■ Pull and hold the front leg STEP release strap and fold down the seat.
Page 65 1-3. Adjustable components (seats, mirrors, steering wheel) Installing the second seats When you install the second seats, be sure to place them where the seats are originally positioned because the second seats are not interchangeable. Outer seats You can distinguish the original Front of vehicle seat position by the position of the front leg pins and the shape...
Page 66 1-3. Adjustable components (seats, mirrors, steering wheel) Installing the second seats ■ Align the front leg hooks with the STEP rear strikers, then swing up the seat. Make sure the front legs align with the strikers before swinging up the seat. Fold down the seat and engage STEP the rear leg locks.
Page 67 1-3. Adjustable components (seats, mirrors, steering wheel) Center seat: Disengage the rear STEP leg locks by pulling the rear leg release lever. Reinstall the seat following the correct procedure. STEP Changing the installed position ■ Outer seat (7-passenger models) The right side second seat can be moved to the inside when the console box (if equipped) is not installed between the second...
Page 68 1-3. Adjustable components (seats, mirrors, steering wheel) Center seat (8-passenger models) The second center seat can be used in the forward position. To use the second center seat in the forward position, install it according to the following procedure: Slide the front seats forward and stand the seatbacks in the STEP upright position.
Page 69 1-3. Adjustable components (seats, mirrors, steering wheel) Align the front leg hooks with the STEP rear strikers of the foremost pair. Then swing up the seat. Push the foot pedal forward to STEP securely latch the front leg locks. Make sure the front legs are locked securely, fold down the seat and engage the rear leg locks.
Page 70 1-3. Adjustable components (seats, mirrors, steering wheel) Folding the third seats (manual seats) Before folding the third seats ■ Lower the head restraints to the STEP lowest position and stow the seat belt buckles. Stow the center seat belt. (→P. 87) STEP Folding the third seats ■...
Page 71 1-3. Adjustable components (seats, mirrors, steering wheel) Folding the third seats (power seats) You can operate the power third seats when the engine switch is in the “ACC” or “LOCK” position, and/or the shift lever is in P. Before folding the third seats ■...
Page 72 1-3. Adjustable components (seats, mirrors, steering wheel) Stowing the third seats (manual seats) Before stowing the third seats ■ Fold down the seatbacks. (→P. 71) Stowing the third seats ■ Pull and hold the “TO STOW/ STEP USE” strap and lift up the seat rearward.
Page 73 1-3. Adjustable components (seats, mirrors, steering wheel) Returning the third seats ■ Pull and hold the “TO STOW/ STEP USE” strap and lift up the seat rearward. Push the seat forward and then STEP engage the front leg locks. Make sure the front legs are locked securely.
Page 74 1-3. Adjustable components (seats, mirrors, steering wheel) Stowing the third seats (power seats) You can operate the power third seats when the engine switch is in the “ACC” or “LOCK” position, and/or the shift lever is in P. Before stowing the third seats ■...
Page 75 1-3. Adjustable components (seats, mirrors, steering wheel) Returning the third seats ■ Push and hold the returning switch until the seat cushion is locked. A beep sounds twice to indicate the start of the operation. The beep sounds again twice when operation is completed.
Page 76 1-3. Adjustable components (seats, mirrors, steering wheel) “3RD SEAT” warning light (power third seat) ■ The warning light comes on if the third seat operation is not yet complete when the engine switch is in the “ON” position. CAUTION When seats are moved ■...
Page 77 1-3. Adjustable components (seats, mirrors, steering wheel) CAUTION Tumbling the second seats ■ In order to prevent personal injury in a collision or sudden stop, do not ● allow passengers to sit in the third seats when a second seat is tumbled. When tumbling the second seats, fix the seats securely by adjusting the ●...
Page 78 1-3. Adjustable components (seats, mirrors, steering wheel) NOTICE To prevent damage to the seat ■ Avoid putting heavy loads on a folded seat that is being used as a tempo- ● rary table. Before folding a second seat as preparation for removal or tumbling the ●...
Page 79: Driving Position Memory
1-3. Adjustable components (seats, mirrors, steering wheel) Driving position memory (if equipped) Your preferred driving position (the position of the driver’s seat and outside rear view mirrors) can be memorized and recalled with the touch of a button. Two different driving positions can be entered into memory. Entering a position to memory ■...
Page 80 1-3. Adjustable components (seats, mirrors, steering wheel) Operating the driving position memory after turning the engine switch ■ to the “LOCK” position Memorized positions can be activated up to 30 seconds after the driver's door is opened, even after turning the engine switch to the “LOCK” position. To cancel memorized position recall ■...
Page 81: Head Restraints
1-3. Adjustable components (seats, mirrors, steering wheel) Head restraints Head restraints are provided for all seats. Front seats Vertical adjustment Pull the head restraints up. Down Push the head restraint down while pushing the lock release Lock release button button. Second seats Vertical adjustment Pull the head restraints up.
Page 82 1-3. Adjustable components (seats, mirrors, steering wheel) Removing the head restraints ■ Pull the head restraint up while pressing the lock release button. Installing the head restraints ■ Align the head restraint with the installa- tion holes and push it down to the lock position.
Page 83 1-3. Adjustable components (seats, mirrors, steering wheel) CAUTION Head restraint precautions ■ Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury. Use the head restraints designed for each respective seat. ●...
Page 84: Seat Belts
1-3. Adjustable components (seats, mirrors, steering wheel) Seat belts Make sure that all occupants are wearing their seat belts before driv- ing the vehicle. Correct use of the seat belts ■ ● Extend the shoulder belt so that it comes fully over the shoulder, does come into contact with the...
Page 85 1-3. Adjustable components (seats, mirrors, steering wheel) Adjusting the height of the belt (front seats) ■ Down Move the height adjuster up and down as needed until you hear a click. Center third seat belt The center third seat belt is a 3-point type restraint with 2 buckles. Both seat belt buckles must be correctly located and securely latched for proper operation.
Page 86 1-3. Adjustable components (seats, mirrors, steering wheel) Release method ■ The belt can be completely released when not required, such as when folding down the third seat. Insert the key into the hole on STEP the center seat belt buckle to release the tab (with the hooked end), and allow the belt to retract.
Page 87 1-3. Adjustable components (seats, mirrors, steering wheel) Seat belt comfort guide (outer third seat) If the shoulder belt sits close to a person's neck, use the seat belt comfort guide. Seat belt pretensioners (front seats) The pretensioner helps the seat belt to quickly restrain the occu- pant by retracting the seat belt when the vehicle is subjected to...
Page 88 1-3. Adjustable components (seats, mirrors, steering wheel) Pregnant women ■ Obtain medical advice and wear the seat belt in the proper way. (→P. 85) Women who are pregnant should position the lap belt as low as possible over the hips in the same manner as other occu- pants.
Page 89 Seat belt extender ■ If your seat belts cannot be fastened securely because they are not long enough, personalized seat belt extender is available from your Toyota dealer free of charge.
Page 90 Each seat belt should be used by one person only. Do not use a seat belt ● for more than one person at once, including children. Toyota recommends that children be seated in the rear seat and always ● use a seat belt and/or an appropriate child restraint system.
Page 91 Ensure that the belt and tab are locked and the belt is not twisted. ● If the seat belt does not function correctly, immediately contact your Toyota dealer. Replace the seat assembly, including the belts, if your vehicle has been ●...
Page 92 1-3. Adjustable components (seats, mirrors, steering wheel) CAUTION Using a seat belt comfort guide ■ Make sure the belt is not twisted and that it lies flat. ● Always make sure the shoulder belt is positioned across the center of the ●...
Page 93: Steering Wheel
1-3. Adjustable components (seats, mirrors, steering wheel) Steering wheel The steering wheel can be adjusted to a comfortable position. Hold steering STEP wheel and press the lever down. Adjust to the ideal STEP position by moving the steering wheel hori- zontally and vertically.
Page 94: Anti-Glare Inside Rear View Mirror
1-3. Adjustable components (seats, mirrors, steering wheel) Anti-glare inside rear view mirror Glare from the headlights of vehicles behind can be reduced using the following functions. Manual anti-glare inside rear view mirror Normal position Anti-glare position Auto anti-glare inside rear view mirror In automatic mode, sensors are used to detect the headlights of vehicles behind and the reflected light is automatically reduced.
Page 95 1-3. Adjustable components (seats, mirrors, steering wheel) To prevent sensor error (vehicles with auto anti-glare inside rear view ■ mirror) To ensure that the sensors operate prop- erly, do not touch or cover them. CAUTION Caution while driving ■ Do not adjust the position of the mirror while driving. Doing so may lead to mishandling of the vehicle and an accident, resulting in death or serious injury.
Page 96: Outside Rear View Mirrors
1-3. Adjustable components (seats, mirrors, steering wheel) Outside rear view mirrors Mirror angle can be adjusted using the switch. Select a mirror to adjust. STEP Left Right Adjust the mirror. STEP Right Down Left Folding back the mirrors Manual folding type Push backward to fold the mir- rors.
Page 97 1-3. Adjustable components (seats, mirrors, steering wheel) Power folding type Press the switch. Pressing again will extend the mirror. Mirror can be adjusted when ■ The engine switch is in the “ACC” or “ON” position. When the mirrors are fogged up (vehicles with outside rear view mirror ■...
Page 98 1-3. Adjustable components (seats, mirrors, steering wheel) CAUTION When driving the vehicle ■ Observe the following precautions while driving. Failing to do so may result in loss of control of the vehicle and cause an acci- dent, resulting in death or serious injury. Do not adjust the mirrors while driving.
Page 99: Opening And Closing The
1-4. Opening and closing the windows Power windows The power windows can be opened and closed using the following switches. Type A Closing Opening One-touch opening (driver’s window only) Type B Closing Opening One-touch opening (driver’s window only) One-touch closing (driver’s window only) Pressing the switch in the opposite direction will stop win-...
Page 100 1-4. Opening and closing the windows The power windows can be operated when ■ The engine switch is in the “ON” position. Operating the power windows after turning the engine off ■ The power windows can be operated for approximately 45 seconds after the engine switch is turned to the “ACC”...
Page 101: Quarter Windows
1-4. Opening and closing the windows Quarter windows The quarter windows can be opened to bring in fresh outside air for additional ventilation. Manual type ■ Pull the handle and swing the window fully out to open. Power type ■ Opening Closing Both the left and right rear...
Page 102 1-4. Opening and closing the windows CAUTION Closing the windows ■ Observe the following precautions. Failing to do so may result in death or serious injury. Check to make sure that all passengers do not have any part of their body ●...
Page 103: Moon Roof
1-4. Opening and closing the windows Moon roof (if equipped) Use the overhead switches to open, close, and tilt the moon roof up and down. Opening and closing ■ Opening Closing Push the switch in either direc- tion to stop the moon roof part- way.
Page 104 1-4. Opening and closing the windows The moon roof can be operated when ■ The engine switch is in the “ON” position. Operating the moon roof after turning the engine off ■ The moon roof can be operated for approximately 45 seconds after the engine switch is turned to the “ACC”...
Page 105 1-4. Opening and closing the windows CAUTION Opening the moon roof ■ Observe the following precautions. Failing to do so may cause death or serious injury. Do not allow any passengers to put their hands or heads outside the vehi- ●...
Page 106: Refueling Opening The Fuel Tank Cap
1-5. Refueling Opening the fuel tank cap Perform the following steps to open the fuel tank cap. Before refueling the vehicle ■ Turn the engine off and ensure that all the doors and windows are closed. Opening the fuel tank cap ■...
Page 107 1-5. Refueling Closing the fuel tank cap When replacing the fuel tank cap, turn it until a clicking sound is heard. After releasing your hand, the cap will turn slightly to the opposite direction. Fuel type ■ Unleaded gasoline (Octane rating 87 [Research Octane Number 91] or higher) Fuel tank capacity (reference) ■...
Page 108 This may cause static electricity to build up, resulting in a possible ignition hazard. When replacing the fuel cap ■ Do not use anything but a genuine Toyota fuel tank cap designed for your vehicle. Doing so may cause a fire or other incident which may result in death or serious injury.
Page 109 1-5. Refueling NOTICE Refueling ■ Do not spill fuel during refueling. Doing so may damage the vehicle, such as causing the exhaust systems to operate abnormally or damaging fuel system components or the vehicle's painted surface.
Page 110: 1-6. Theft Deterrent System
1-6. Theft deterrent system Engine immobilizer system (if equipped) The vehicle's keys have built-in transponder chips that prevent the engine from starting if the key has not been previously registered in the vehicle's on-board computer. Never leave the keys inside the vehicle when you leave the vehicle. On some models: The indica- tor light flashes after the key has been removed from the...
Page 111: 1-6. Theft Deterrent System
1-6. Theft deterrent system CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTICE To prevent damage to the key ■ Do not modify, remove or disable the engine immobilizer system. If any unauthorized changes or modifications are made, the proper operation of the system cannot be guaranteed.
Page 112: System
1-6. Theft deterrent system Alarm (if equipped) The system sounds the alarm and flashes the lights when forcible entry is detected. Triggering of the alarm ■ The alarm is triggered in the following situations. ● A locked door is unlocked or opened without the key or wire- less remote control.
Page 113 1-6. Theft deterrent system Items to check before locking the vehicle ■ To prevent unexpected triggering of the alarm and vehicle theft, make sure of the following. Nobody is in the vehicle. ● The windows and moon roof are closed before the alarm is set. ●...
Page 114: Theft Prevention Labels (For U.s.a.)
1-6. Theft deterrent system Theft prevention labels (for U.S.A.) These labels are attached to the vehicle to reduce vehicle theft by facilitating the tracing and recovery of parts from sto- len vehicles. Do not remove under penalty of law.
Page 115: 1-7. Safety Information
1-7. Safety information Correct driving posture Drive in a good posture as follows: Sit upright and well back in the seat. (→P. 56) Adjust the position of the seat forward or backward to ensure the pedals can be reached easily depressed to the extent required.
Page 116 1-7. Safety information CAUTION While driving ■ Do not adjust the position of the driver's seat while driving. ● Doing so could cause the driver to lose control of the vehicle. Do not place a cushion between the driver or passenger and the seatback. ●...
Page 117: Srs Airbags
1-7. Safety information SRS airbags The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury. Front airbags Driver airbag/front passenger airbag Can help protect the head and chest of the driver and front pas-...
Page 118 1-7. Safety information Airbag system components Curtain shield airbags SRS warning light Side airbags Driver airbag Front passenger airbag Driver’s seat position sen- Side and curtain shield air- bag sensors Driver’s seat belt buckle switch Front airbag sensors “AIR BAG ON” and “AIR Front passenger’s seat belt BAG OFF”...
Page 119 1-7. Safety information The main SRS airbag system components are shown above. The SRS airbag system is controlled by the airbag sensor assembly. The airbag sensor assembly consists of a safing sensor and an airbag sensor. In certain types of severe frontal or side impacts, the SRS airbag sys- tem triggers the airbag inflators.
Page 120 1-7. Safety information Operating conditions (front airbags) ■ The SRS front airbags will deploy if the severity of the frontal impact is ● above the designed threshold level, comparable to an approximate 15 mph (25 km/h) collision when the vehicle impacts straight into a fixed bar- rier that does not move or deform.
Page 121 1-7. Safety information Conditions under which the SRS airbags may deploy (inflate), other ■ than a collision The SRS front airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration. Hitting a curb, edge of pavement or ●...
Page 122 1-7. Safety information Types of collisions that may not deploy the SRS side airbags and cur- ■ tain shield airbags The SRS side airbag and curtain shield airbag system may not activate if the vehicle is subjected to a collision from the side at certain angles, or a colli- sion to the side of the vehicle body other than the passenger compartment.
Page 123 1-7. Safety information When to contact your Toyota dealer ■ In the following cases, contact your Toyota dealer as soon as possible. Do not disconnect the battery cables before contacting your Toyota dealer. Any of the SRS airbags have been inflated.
Page 124 1-7. Safety information CAUTION SRS airbag precautions ■ Observe the following precautions regarding the airbags. Failure to do so may cause death or serious injury. The driver and all passengers in the vehicle must wear their seat belts ● properly. The SRS airbags are supplemental devices to be used with the seat belts.
Page 125 An infant or child who is too small to use a seat belt should be properly secured using a child restraint sys- tem. Toyota strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained. The rear seats are...
Page 126 1-7. Safety information CAUTION SRS airbag precautions ■ Do not sit on the edge of the seat or ● lean against the dashboard. Do not allow a child to stand in front of ● the SRS front passenger airbag unit or sit on the knees of a front passenger.
Page 127 1-7. Safety information CAUTION SRS airbag precautions ■ Do not attach anything to or lean any- ● thing against areas such as the dash- board or steering wheel pad. These items can become projectiles when SRS driver and front passenger airbags deploy.
Page 128 If the areas where the SRS airbags are stored, such as the steering wheel ● pad and front and rear pillar garnishes, are damaged or cracked, have them replaced by your Toyota dealer. Modification and disposal of SRS airbag system components ■...
Page 129: Front Passenger Occupant Classification System
1-7. Safety information Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classifica- tion system. This system detects the conditions of the front passen- ger seat and activates or deactivates the devices for front passenger. SRS warning light Front passenger's seat belt reminder light “AIR BAG OFF”...
Page 130 1-7. Safety information Conditions and operation of the front passenger occupant classification system Adult* ■ “AIR BAG ON” and “AIR BAG OFF” “AIR BAG indicator lights ON” Indicator/ SRS warning light warning light Front passenger's seat belt reminder Flashing* light Front passenger airbag Side airbag on the front passenger seat Devices...
Page 131 1-7. Safety information Unoccupied ■ “AIR BAG ON” and “AIR BAG OFF” indicator lights illuminated Indicator/ SRS warning light warning light Front passenger's seat belt reminder light Front passenger airbag Deactivated Side airbag on the front passenger seat Devices Curtain shield airbag in the front Activated passenger side Front passenger's seat belt pretensioner...
Page 132 1-7. Safety information *4: Never install a rear-facing child restraint system on the front pas- senger seat. A forward-facing child restraint system should only be installed on the front passenger seat when it is unavoidable. (→P. 137) *5: In case the indicator is not illuminated, consult this manual as for installing the child restraint system properly.
Page 133 1-7. Safety information CAUTION Front passenger occupant classification system precautions ■ Observe the following precautions regarding front passenger occupant clas- sification system. Failure to do so may cause death or serious injury. Wear the seat belt properly. ● Make sure the front passenger's seat belt tab has not been left inserted ●...
Page 134 Do not kick the front passenger seat or subject it to severe impact. Other- ● wise, the SRS warning light may come on to indicate a malfunction of the detection system. In this case, contact your Toyota dealer immediately. Child restraint systems installed on the rear seat should not contact the ●...
Page 135: Child Restraint Systems
1-7. Safety information Child restraint systems A child restraint system for a small child or baby must be properly restrained on the seat with the lap portion of the lap/shoulder belt. The laws of all 50 states of U.S.A. and Canada now require the use of child restraint systems.
Page 136 1-7. Safety information Types of child restraints Child restraint systems are classified into the following 3 types according to the age and size of the child. Rear facing ⎯ Infant seat/convertible seat Forward facing ⎯ Convertible seat Booster seat...
Page 137 In an accident, the child can be crushed against the windshield, or between you and the vehicle's interior. Toyota strongly urges the use of a proper child restraint system that con- ●...
Page 138 1-7. Safety information CAUTION Child restraint precautions ■ Do not use the seat belt extender when installing a child restraint system ● on the front or rear passenger seat. If installing a child restraint system with the seat belt extender connected to the seat belt, the seat belt will not securely hold the child restraint system, which could cause death or seri- ous injury to the child or other passengers in the event of an accident.
Page 139: Installing Child Restraints
1-7. Safety information Installing child restraints Follow the child restraint system manufacturer's instructions. Firmly secure child restraints to the rear seats using the LATCH anchors or a seat belt. Attach the top tether strap when installing a child restraint. The lap/shoulder belt can be used if your child restraint system is not compatible with the LATCH (Lower Anchors and Tethers for Chil- dren) system.
Page 140: Third Seats
1-7. Safety information Third seats Child restraint LATCH anchors LATCH anchors are provided for right and center seats. (But- tons displaying the location of the anchors are attached to the seats.) Using the seat belts ■ Seat belts equipped with a child restraint locking mecha- nism (ALR/ELR belts except driver’s seat belt)
Page 141 1-7. Safety information Second seats (8-passenger models) Anchor brackets are provided for all second seats. Second seats (7-passenger models) Anchor brackets are provided for both second seats. Third seats Anchor brackets are provided for right and center seats.
Page 142 1-7. Safety information Installation with LATCH system (second seat) Outer seats ■ Fold the seatback while pulling STEP the lever. Return the seatback and secure it at the 1st lock posi- tion (most upright position). Adjust the seatback to the 5th lock position.
Page 143 1-7. Safety information Type A LATCH anchors STEP behind the button. Open the cover and confirm the position of the LATCH anchors. Latch the buckles onto STEP the LATCH anchors. If the child restraint has a STEP top tether strap, the top tether strap should be latched onto...
Page 144 1-7. Safety information Type B LATCH anchors STEP behind the button. Open the cover and confirm the position of the LATCH anchors. Latch the hooks of the STEP lower straps onto the LATCH anchors. If the child restraint has a STEP top tether strap, the top tether strap should be...
Page 145 1-7. Safety information Installation with LATCH system (third seat) Manual seat Fold the seatback while pulling STEP the lever. Return the seatback and secure it at the 1st lock posi- tion (most upright position). Adjust the seatback to the 11th lock position.
Page 146 1-7. Safety information Type A Widen the gap between STEP the seat cushion and seatback slightly confirm the position of the LATCH anchors near the button on the seatback. Latch the buckles onto STEP the LATCH anchors. If the child restraint has a STEP top tether strap, the top tether strap should be...
Page 147 1-7. Safety information Type B Widen the gap between STEP the seat cushion and seatback slightly confirm the position of the LATCH anchors near the button on the seatback. Latch the hooks of the STEP lower straps onto the LATCH anchors. If the child restraint has a STEP top tether strap, the top...
Page 148 1-7. Safety information Run the seat belt through the STEP child seat and insert the plate into the buckle. Make sure that the belt is not twisted. Fully extend the shoulder belt STEP and then allow it to retract slightly in order to activate the ALR lock mode.
Page 149 1-7. Safety information Run the seat belt through the STEP child seat and insert the plate into the buckle. Make sure that the belt is not twisted. Fully extend the shoulder strap STEP and then allow it to retract slightly into the ALR lock mode. Lock mode allows the seat belt to retract only.
Page 150 1-7. Safety information Booster seat ■ Place the booster seat on the STEP seat facing the front of the vehi- cle. Sit the child in the booster seat. STEP Fit the seat belt to the booster seat according to the manufac- turer's instructions and insert the plate into the buckle.
Page 151 1-7. Safety information Child restraint systems with a top tether strap (second seat) Secure the child restraint using STEP the seat belt or LATCH anchors. Remove the head restraint. Latch the hook onto the anchor STEP bracket and tighten the top tether strap.
Page 152 1-7. Safety information Child restraint systems with a top tether strap (third seat) Secure the child restraint using STEP the seat belt or LATCH anchors. Remove and safely stow the head restraint. Latch the hook onto the anchor STEP bracket and tighten the top tether strap.
Page 153 1-7. Safety information CAUTION When installing a booster seat ■ Do not fully extend the shoulder belt to prevent the belt from going to ALR lock mode: (→P. 88) ALR mode causes the belt to tighten only which could cause injury or dis- comfort to the child.
Page 154 1-7. Safety information CAUTION When installing a child restraint system ■ When installing a child restraint system in the third center seat, adjust both ● seatbacks at the same angle. Otherwise, the child restraint system cannot be securely restrained and this may cause death or serious injuries in an accident.
Page 155 1-7. Safety information CAUTION To correctly attach a child restraint system to the anchors ■ When using the LATCH anchors, be sure that there are no foreign objects around the anchors and that the seat belt is not caught behind the child restraint.
Page 156: 2-1. Driving Procedures
2-1. Driving procedures Driving the vehicle The following procedures should be observed to ensure safe driv- ing. Starting the engine ■ →P. 167 Driving ■ With the brake pedal depressed, shift the shift lever to D. STEP (→P. 170) Release the parking brake. (→P.
Page 157 Breaking in your new Toyota ■ To extend the life of the vehicle, the following precautions are recommended...
Page 158 Your vehicle has a drum-in-disc type parking brake system. This type of brake system needs bedding-down of the brake shoes periodically or when- ever the parking brake shoes and/or drum are replaced. Have your Toyota dealer perform the bedding down.
Page 159 Large amounts of exhaust in the vehi- cle can cause driver drowsiness and an accident, resulting in death or a serious health hazard. Have the vehicle inspected by your Toyota dealer immediately. Do not shift the shift lever to P while the vehicle is moving.
Page 160 2-1. Driving procedures CAUTION Always check that all passengers' arms, heads or other parts of their bod- ● ies are not outside the vehicle, as this may result in death or serious injury. Do not drive the vehicle off-road. ● This is not a AWD vehicle designed for real off-road driving.
Page 161 2-1. Driving procedures CAUTION Do not leave the vehicle with the engine running for a long time. ● If such a situation cannot be avoided, park the vehicle in an open space and check that exhaust fumes do not enter the vehicle interior. Always keep a foot on the brake pedal while the engine is running to pre- ●...
Page 162 ● caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle inspected and repaired by your Toyota dealer. Failure to do so may allow exhaust gases to enter the vehicle, resulting in death or a serious health hazard.
Page 163 If you hear a squealing or scraping noise (brake pad wear limit indica- ■ tors) Have the brake pads checked and replaced by your Toyota dealer as soon as possible. Rotor damage can result if the pads are not replaced when needed.
Page 164 Engine damage caused by water immersion ● In the event that you drive on a flooded road and the vehicle is flooded, be sure to have your Toyota dealer check the following. Brake function ● Changes in quantity and quality of oil and fluid used for the engine, tran- ●...
Page 165: Engine (Ignition) Switch
2-1. Driving procedures Engine (ignition) switch Starting the engine ■ Check that the parking brake is set. STEP Check that the shift lever is set in P. STEP Sit in the driver’s seat and firmly depress the brake pedal. STEP Turn the engine switch to the “START”...
Page 166 2-1. Driving procedures Steering lock release ■ When starting the engine, the engine switch may seem stuck in the “LOCK” position. To free it, turn the key while turn- ing the steering wheel slightly in either direction. If the engine does not start (vehicles with engine immobilizer system) ■...
Page 167 2-1. Driving procedures NOTICE To prevent battery discharge ■ Do not leave the key in the “ACC” or “ON” position for long periods if the engine is not running. When starting the engine ■ Do not race a cold engine. ●...
Page 168: Automatic Transmission
2-1. Driving procedures Automatic transmission Select a shift position appropriate for the driving conditions. Shifting the shift lever ■ While the engine switch is in the “ON” position, depress the brake pedal and move the shift lever. Shift position uses ■...
Page 169 2-1. Driving procedures Downshifting restrictions ■ The shift lever cannot be downshifted if the following speeds are exceeded. 2WD models mph (km/h) Downshifting Maximum speed 4→3 100 (162) 3→2 64 (104) 2→L 36 (58) AWD models mph (km/h) Downshifting Maximum speed 4→3 95 (154) 3→2...
Page 170: Turn Signal Lever
2-1. Driving procedures Turn signal lever Right turn Left turn Move and hold the lever partway to signal a lane change. The right hand signal will flash until you release the lever. Move and hold the lever partway to signal a lane change.
Page 171: Parking Brake
2-1. Driving procedures Parking brake Sets the parking brake* (Depressing the pedal again releases the parking brake.) U.S.A. Canada *: Fully depress the parking brake pedal with your left foot while depressing the brake pedal with your right foot. NOTICE Before driving ■...
Page 172: Instrument Cluster And Information Display Gauges And Meters
2-2. Instrument cluster and information display Gauges and meters Optitron type meters Non-Optitron type meters Optitron type meters only ⎯ The following gauges, meters and dis- plays illuminate when the engine switch is in the “ON” position. Tachometer Displays the engine speed in revolutions per minute. Speedometer Displays the vehicle speed.
Page 173 2-2. Instrument cluster and information display Fuel gauge Displays the quantity of fuel remaining in the tank. Engine coolant temperature gauge Displays the engine coolant temperature. Dynamic laser cruise control display (if equipped) →P. 197 Odometer/trip meter/instrument panel light control and trip meter reset button Switches between odometer and trip meter displays.
Page 174 2-2. Instrument cluster and information display Instrument panel light control The brightness of the instrument panel lights can be adjusted. Darker Brighter Optitron type meters only: When the headlight switch is turned on, the brightness will be reduced slightly unless the control button is turned fully clockwise.
Page 175: Indicators And Warning Lights
2-2. Instrument cluster and information display Indicators and warning lights The indicator and warning lights on the instrument cluster and cen- ter panel inform the driver of the status of the vehicle’s various sys- tems. Instrument cluster ■ Optitron type meters Non-Optitron type meters...
Page 176 2-2. Instrument cluster and information display Center panel ■...
Page 177 There may be a malfunction in a system if a light does not come on, or if the lights do not turn off. Have the vehicle inspected by your Toyota dealer for details.
Page 178 There may be a malfunction in a system if a light does not come on, or if the lights do not turn off. Have the vehicle inspected by your Toyota dealer for details.
Page 179: Trip Information Display
2-2. Instrument cluster and information display Trip information display (if equipped) The trip information display presents the driver with a variety of driv- ing-related data, including the current outside temperature. Trip information (→P. 182) Displays outside temperature, fuel consumption and cruising range.
Page 180 2-2. Instrument cluster and information display Trip information Push the “MODE” button to dis- play trip information. Display items can be switched by pressing the “MODE” button. Outside temperature ■ Displays the outside temperature. The temperature range that can be displayed is from -40°F (-40°C) to 140°F (60°C).
Page 181 2-2. Instrument cluster and information display Cruising range ■ Displays the estimated maximum distance that can be driven with the quantity of fuel remaining. • This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.
Page 182 2-2. Instrument cluster and information display Outside temperature display ■ In the following situations, the correct outside temperature may not be dis- played, or the display may take longer than normal to change. When stopped, or driving at low speeds (less than 12 mph [20 km/h]) ●...
Page 183: 2-3. Operating The Lights And Wipers
2-3. Operating the lights and wipers Headlight switch The headlights can be operated manually or automatically. The side marker, park- ing, tail, license plate and instrument panel lights turn on. The headlights and all lights listed above turn U.S.A. Canada The headlights, side marker, parking, tail, (if equipped)
Page 184 2-3. Operating the lights and wipers Turning on the high beam headlights With the headlights on, push the lever forward to turn on the high beams. Pull the lever back to the center position to turn the high beams off. Pull the lever toward you to turn on the high beams.
Page 185 2-3. Operating the lights and wipers Manual headlight leveling dial (vehicles with discharge headlights) The level of the headlights can be adjusted according to the number of passengers and the loading condition of the vehicle. Raises the level of the head- lights Lowers the level of the head- lights...
Page 186 To turn the lights on again, turn the engine switch to the “ON” position, or turn the light switch off once and then back to the position. Customization that can be configured at Toyota dealer ■ Settings (e.g. light sensor sensitivity) can be changed.
Page 187 2-3. Operating the lights and wipers NOTICE To prevent battery discharge ■ Do not leave the lights on longer than necessary when the engine is not run- ning.
Page 188: Fog Light Switch
2-3. Operating the lights and wipers Fog light switch (if equipped) The fog lights improve visibility in difficult driving conditions, such as in rain or fog. They can be turned on only when the headlights are on low beam. To turn the front fog lights To turn the front fog lights...
Page 189: Windshield Wipers And Washer
2-3. Operating the lights and wipers Windshield wipers and washer Wiper intervals can be adjusted for intermittent operation (when intermittent wiper operation is selected). Intermittent windshield wiper operation Low speed windshield wiper operation High speed windshield wiper operation Temporary operation Decreases the intermittent windshield wiper frequency Increases the intermittent...
Page 190 2-3. Operating the lights and wipers Washer/wiper dual operation Wipers operate automatically. The windshield wipers and washer can be operated when ■ The engine switch is in the “ON” position. If no windshield washer fluid sprays ■ Check that the washer nozzles are not blocked if there is washer fluid in the windshield washer fluid reservoir.
Page 191: Rear Window Wiper And Washer
2-3. Operating the lights and wipers Rear window wiper and washer Intermittent window wiper operation Normal window wiper oper- ation Washer/wiper dual opera- tion Washer/wiper dual opera- tion Wiper operates automatically. The rear window wiper and washer can be operated when ■...
Page 192: 2-4. Using Other Driving Systems
2-4. Using other driving systems Cruise control (if equipped) Use cruise control to maintain a set speed without using the acceler- ator. Indicator Cruise control switch Setting the vehicle speed ■ STEP Turn the “ON-OFF” button on. Press the button once more to deactivate the cruise control.
Page 193 2-4. Using other driving systems Adjusting the speed setting ■ Increase speed Decrease speed Hold the lever until the desired speed setting is obtained. Fine adjustment of the set speed (approximately 1.0 mph [1.6 km/h]) can be made by lightly pushing the lever up or down and releasing it.
Page 194 If the cruise control speed cannot be set or if the cruise control cancels immediately after being activated, there may be a malfunction in the cruise control system. Have the vehicle inspected by your Toyota dealer. CAUTION To avoid operating the cruise control by mistake ■...
Page 195: Dynamic Laser Cruise Control
2-4. Using other driving systems Dynamic laser cruise control (if equipped) Dynamic laser cruise control supplements conventional cruise con- trol with a vehicle-to-vehicle distance control. In the vehicle-to-vehi- cle distance control mode, the vehicle automatically accelerates or decelerates in order to maintain a set following distance from vehi- cles ahead.
Page 196 2-4. Using other driving systems Selecting cruise mode ■ Selecting vehicle-to-vehicle distance control mode Turn the “ON-OFF” button Push the button once more to deactivate.
Page 197 2-4. Using other driving systems Selecting conventional fixed speed control mode Turn the “ON-OFF” button Push the button once more to deactivate. Vehicle-to-vehicle distance control mode is always reset when the engine switch is turned to the “ON” position. Switch to fixed speed con- trol mode.
Page 198 2-4. Using other driving systems Adjusting the speed setting ■ Increase speed Decrease speed Hold the lever until the desired speed setting is displayed. Canceling and resuming the speed setting ■ Cancel Push the lever towards you to cancel cruise control. The setting is also canceled when the brakes are applied.
Page 199 2-4. Using other driving systems Changing the vehicle-to-vehicle distance ■ Each pull of the switch toward you changes the vehicle-to- Preceding vehicle distance. vehicle mark Long Medium Short The vehicle-to-vehicle distance is automatically set to the long mode when the engine switch is turned to the “ON”...
Page 200 2-4. Using other driving systems Driving in vehicle-to-vehicle distance control mode This mode employs a laser radar sensor to detect the presence of vehicles within 400 ft. (120 m) ahead and to judge the distance between your vehicle and those vehicles. Note that vehicle-to-vehicle distance will close when traveling on long downhill slopes.
Page 201 2-4. Using other driving systems Example of follow-up cruising (when following a vehicle driving slower than the set speed): When the speed is set to 62 mph (100 km/h) and the vehicle ahead is driving at 50 mph (80 km/h) The system continues follow-up cruising while adjusting for changes in the speed of the vehicle ahead in order to maintain the vehicle-to-vehicle dis- tance set by the driver.
Page 202 Indicates that a sys- Turn off the engine tem malfunction has and restart it. (Flashing) been detected. If the same code appears again after implementing the correction procedure, or if the cruise control cannot be set, contact your Toyota dealer.
Page 203 : Vehicle-to-vehicle distance control driving must be reset by turning the “ON-OFF” button on again. If vehicle-to-vehicle distance control driving is automatically canceled for any other reason, there may be a malfunction in the system. Contact your Toyota dealer. Automatically cancelling fixed speed control ■...
Page 204 2-4. Using other driving systems Vehicle-to-vehicle distance settings ■ Select a distance from the table below. Note that the distances shown corre- spond to a vehicle speed of 55 mph (88 km/h). Vehicle-to-vehicle distance increases/decreases in accordance with vehicle speed. Distance options Vehicle-to-vehicle distance Long...
Page 205 2-4. Using other driving systems CAUTION Before using dynamic laser cruise control ■ Do not overly rely on vehicle-to-vehicle distance control. Be aware of the set vehicle speed. If automatic deceleration/acceleration is not appropriate, adjust the vehicle speed, as well as the distance between your vehicle and vehicles ahead by applying the brakes, etc.
Page 206 2-4. Using other driving systems CAUTION When the laser radar sensor may not be correctly detecting the vehicle ■ ahead Apply the brakes as necessary when any of the following types of vehicles are in front of you. As the sensor may not be able to correctly detect these types of vehicles, the proximity alarm (→P.
Page 207: Intuitive Parking Assist
2-4. Using other driving systems Intuitive parking assist (if equipped) The distance to obstacles measured by the sensors is communi- cated via the indicator and a buzzer when parallel parking or maneu- vering into a garage. Always check the surrounding area when using this system.
Page 208 2-4. Using other driving systems The indicator and buzzer system Corner sensor operation and distance to an obstacle ■ The system operates when the vehicle approaches within following distance to an obstacle. The indicator flashes and the buzzer sounds when the system is operating. Front (if equipped) ft.
Page 209 2-4. Using other driving systems Back sensor operation and distance to an obstacle ■ The system operates when the vehicle approaches within following distance to an obstacle. The indicator flashes and the buzzer sounds when the system is operating. ft. (cm) Distance to an obstacle Indicator and buzzer Approximately 5.9 - 3.0 (180 - 90)
Page 210 2-4. Using other driving systems Detection range of the sensors Approximately 2.0 ft. (60 cm) Approximately 2.8 ft. (85 cm) Approximately 5.9 ft. (180 cm) The diagram shows the detection range of the sensors. Note that the sensors cannot detect obsta- cles that are extremely close to the vehicle.
Page 211 2-4. Using other driving systems Sensor detection information ■ Certain vehicle conditions and the surrounding environment may affect ● the ability of the sensor to correctly detect obstacles. Particular instances where this may occur are listed below. • There is dirt, snow or ice on the sensor. •...
Page 212 2-4. Using other driving systems When to contact your Toyota dealer ■ In the following cases, have your Toyota dealer check the system. When the bumper is damaged. ● When the indicator is continuously on. ● Certification (Canada only) ■...
Page 213: Driving Assist Systems
2-4. Using other driving systems Driving assist systems To help enhance driving safety and performance, the following sys- tems operate automatically in response to various driving situations. Be aware, however, that these systems are supplementary and should not be relied upon too heavily when operating the vehicle. ABS (Anti-lock Brake System) ■...
Page 214 2-4. Using other driving systems To disable TRAC (2WD models only) If the vehicle gets stuck in fresh snow or mud, TRAC may reduce power from the engine to the wheels. You may need to turn the sys- tem off to enable you to rock the vehicle in order to free it. Turning off TRAC ■...
Page 215 2-4. Using other driving systems Another situation in which the “TRAC OFF” indicator light comes on ■ (2WD models only) When the “VSC” warning light comes on, the “TRAC OFF” indicator light comes on even if the “TRAC OFF” switch is not pushed. CAUTION ABS does not operate effectively when ■...
Page 216 The ABS and VSC systems will not function correctly if different tires are fit- ted on the vehicle. Contact your Toyota dealer for further information when replacing tires or wheels. Handling of tires and suspension ■...
Page 217: Driving Information Cargo And Luggage
2-5. Driving information Cargo and luggage Take notice of the following information about storage precau- tions, cargo capacity and load. ● Stow cargo and luggage in the luggage compartment whenever possible. Be sure all items are secured in place. ● Be careful to keep the vehicle level. Placing the weight as far for- ward as possible helps maintain vehicle balance.
Page 218 2-5. Driving information Slide the cross rails to the appro- STEP priate position for loading lug- gage turn knobs clockwise to tighten the cross rails securely. Capacity and distribution Cargo capacity depends on the total weight of the occupants. (Cargo capacity) = (Total load capacity) - (Total weight of occupants) Steps for Determining Correct Load Limit ⎯...
Page 219: Total Load Capacity
2-5. Driving information (6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle. (→P. 542) Example on your vehicle Cargo capacity Total load capacity...
Page 220 2-5. Driving information Seating configuration variation Cargo capacity Weight of the removed second seat If removing the second seats, it is possible to load extra cargo equal to the weight of the removed seats. (Cargo capacity) = (Total load capacity) - (Total weight of occupants) + (Weight of the removed second seats) Second seats weight: 7-passenger models ⎯...
Page 221: Storage Precautions
2-5. Driving information CAUTION Storage precautions ■ Observe the following precautions. Failing to do so may result in death or serious injury. Do not place cargo or luggage in or on the following locations as the ● item may get under the brake or accelerator pedal and prevent the pedals from being depressed properly, block the driver’s vision, or hit the driver or passengers, causing an accident.
Page 222 2-5. Driving information CAUTION Roof luggage carrier precautions ■ When you load cargo on the roof luggage carrier, observe the following: Place the cargo so that its weight is distributed evenly between the ● front and rear axles. If loading long or wide cargo, never exceed the vehicle overall length ●...
Page 223: Vehicle Load Limits
2-5. Driving information Vehicle load limits Vehicle load limits include total load capacity, seating capacity, towing capacity and cargo capacity. Total load capacity: (→P. 542) ■ Total load capacity means the combined weight of occupants, cargo and luggage. Seating capacity: ■...
Page 224: Winter Driving Tips
2-5. Driving information Winter driving tips Carry out the necessary preparations and inspections before driving the vehicle in winter. Always drive the vehicle in a manner appropri- ate to the prevailing weather conditions. Pre-winter preparations ■ ● Use fluids that are appropriate to the prevailing outside tem- peratures.
Page 225 2-5. Driving information When driving the vehicle ■ Accelerate the vehicle slowly and drive at a reduced speed suit- able to road conditions. When parking the vehicle ■ Park the vehicle and move the shift lever to P without setting the parking brake.
Page 226: Snow Tires
NOTICE Repairing or replacing snow tires ■ Request repairs of and obtain replacement snow tires from Toyota dealers or legitimate tire retailers. This is because the removal and attachment of snow tires affects the opera- tion of the tire pressure warning valves and transmitters.
Page 227: Trailer Towing
For your safety and the safety of others, do not overload the vehicle or trailer. Toyota warranties do not apply to damage or malfunction caused by towing a trailer for commercial purposes. Weight limits ■...
Page 228 The total trailer weight and tongue load can be measured with platform scales found at highway weighing stations, building supply companies, trucking companies, junk yards, etc. Total trailer weight Tongue load Towing a trailer Contact your Toyota dealer for further information about additional requirements such as a towing kit, etc.
Page 229 Break-in schedule ■ Toyota recommends that you do not use a new vehicle or a vehicle with any new power train components (engine, transmission, differential, wheel bear- ings, etc.) to tow a trailer for the first 500 miles (800 km) of driving.
Page 230 If the gross trailer weight exceeds 1000 lb. (453 kg), trailer brakes are ● required. Toyota recommends trailers with brakes that conform to all appli- cable federal and state/provincial regulations. Never tap into your vehicle's hydraulic system, as this will lower the vehi- ●...
Page 231 NOTICE When installing a trailer hitch ■ Use only the position recommended by your Toyota dealer. Do not install ● the trailer hitch on the bumper; this may cause body damage. Do not use axle-mounted hitches, as they can cause damage to the axle ●...
Page 232 2-5. Driving information ● Reversing with a trailer attached is difficult and requires practice. Grip the bottom of the steering wheel and move your hand to the left to move the trailer to the left. Move your hand to the right to move the trailer to right.
Page 233 2-5. Driving information ● Due to the added load of the trailer, your vehicle's engine may overheat on hot days (at temperatures over 85°F [30°C]) when driving up a long or steep grade. If the engine coolant temperature gauge indicates overheating, immediately turn off the air condition- ing (if in use), pull your vehicle off the road and stop in a safe spot.
Page 234 2-5. Driving information CAUTION To avoid an accident ■ Do not exceed 45 mph (72 km/h) or posted towing speed limit, whichever ● is lower. As instability (swaying) of the towing vehicle-trailer combination increases as speed increases, exceeding 45 mph (72 km/h) may cause loss of control.
Page 235: Dinghy Towing
2-5. Driving information Dinghy towing Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground) behind a motor home. NOTICE To avoid serious damage to your vehicle ■ Do not tow your vehicle with four wheels on the ground.
Page 236: Using The Air Conditioning System And Defogger Front Manual Air Conditioning System
3-1. Using the air conditioning system and defogger Front manual air conditioning system (if equipped) Air conditioning on/off switch Outside air or recirculated air mode Rear air conditioning Temperature fan speed control dial control dial Front air conditioning Air outlet selection dial fan speed control dial Adjusting the settings Adjusting the temperature setting...
Page 237 3-1. Using the air conditioning system and defogger Adjusting the fan speed ■ Turn the fan speed control dial clockwise (increase) or counter- clockwise (decrease). Set the dial to “OFF” to turn the fan off. Changing the air outlets ■ Set the air outlet selection dial to an appropriate position.
Page 238 3-1. Using the air conditioning system and defogger Feet and windshield The air conditioning system oper- ates automatically. Recirculated air mode will auto- matically switch to outside air mode. Windshield and side windows The air conditioning system oper- ates automatically. Recirculated air mode will auto- matically switch to outside air mode.
Page 239 3-1. Using the air conditioning system and defogger Changing the rear setting Adjusting the fan speed ■ Turn the rear fan speed control dial clockwise (increase) or counter- clockwise (decrease). When the rear fan speed control dial is turned to “REAR”, rear fan speed can be operated from the rear air conditioning control panel.
Page 240 There may be a problem in the air conditioning system if the indi- cator light continues to flash. Turn the air conditioning system off and have it inspected by your Toyota dealer. Air conditioning odors ■...
Page 241 3-1. Using the air conditioning system and defogger CAUTION To prevent the windshield from fogging up ■ Do not set the air outlet selection dial to during cool air operation in extremely humid weather. The difference between the temperature of the outside air and that of the windshield can cause the outer surface of the windshield to fog up, blocking your vision.
Page 242: Front Automatic Air Conditioning System
3-1. Using the air conditioning system and defogger Front automatic air conditioning system (if equipped) Airflow and outlets are automatically adjusted according to the tem- perature setting. Windshield defogger Temperature setting display Front passenger’s side for rear passengers temperature setting display Driver’s side temperature Front passenger’s side setting display...
Page 243 3-1. Using the air conditioning system and defogger Adjusting the settings Adjusting the temperature setting ■ Press “∧” on to increase the temperature and “∨” to decrease the temperature. The air conditioning system switches between individual and simulta- neous modes each time is pressed.
Page 244 3-1. Using the air conditioning system and defogger Changing the air outlets ■ Press The air outlets switch each time is pressed. The air flow shown on the display indicates the following. Upper body Upper body and feet Feet...
Page 245 3-1. Using the air conditioning system and defogger Feet and windshield Switching between outside air and recirculated air modes ■ Press The mode switches between outside air mode (indicator off) and recircu- lated air mode (indicator on) each time is pressed. Defogging the windshield Press The air conditioning system oper-...
Page 246 3-1. Using the air conditioning system and defogger Changing the rear setting Adjusting the temperature setting ■ Press (indicator on). STEP Press “∧” on to increase the temperature and “∨” to STEP decrease the temperature. The air conditioning system switches between individual and simul- taneous modes each time is pressed.
Page 247 3-1. Using the air conditioning system and defogger Right and left side outlets Direct air flow to the left or right, up or down. Turn the knob to open or close the vent. Using the automatic mode ■ Fan speed is adjusted automatically in accordance with the temperature set- ting and ambient conditions.
Page 248 There may be a problem in the air conditioning system if the indi- cator light continues to flash. Turn the air conditioning system off and have it inspected by your Toyota dealer. Air conditioning odors ■...
Page 249: Rear Manual Air Conditioning System
3-1. Using the air conditioning system and defogger Rear manual air conditioning system (if equipped) Changes the air outlet used Fan speed control dial Temperature control dial Adjusting the settings Adjusting the temperature setting ■ Turn the temperature control dial clockwise (warm) or counter- clockwise (cool).
Page 250 3-1. Using the air conditioning system and defogger Changing the air outlets ■ Press the desired Air flows as shown below according to the mode selected. Upper body Upper body and feet Feet...
Page 251 3-1. Using the air conditioning system and defogger Adjusting the position of and opening and closing the air outlets Direct air flow to the front or rear, up or down. NOTICE To prevent battery discharge ■ Do not leave the air conditioning system on longer than necessary when the engine is off.
Page 252: Rear Automatic Air Conditioning System
3-1. Using the air conditioning system and defogger Rear automatic air conditioning system (if equipped) Airflow and outlets are automatically adjusted according to the tem- perature setting. Changes the Automatic mode Temperature air outlet used setting display Temperature control Fan speed control Using the automatic mode Press STEP...
Page 253 3-1. Using the air conditioning system and defogger Adjusting the settings Adjusting the temperature setting ■ Press “∧” on to increase the temperature and “∨” to decrease the temperature. Changing the air outlets ■ Press the desired Air flows as shown below according to the mode selected. Upper body Upper body and feet...
Page 254 3-1. Using the air conditioning system and defogger Feet Adjusting the fan speed ■ (decrease ↔ increase). Press Press to turn the fan off. Adjusting the position of the air outlets Direct air flow to the front or rear, up or down.
Page 255 3-1. Using the air conditioning system and defogger Temperature display ■ The temperature display (English/U.S. Customary System and metric units) on the trip information display can be changed. (→P. 183) When the front air conditioning system is in simultaneous mode ■...
Page 256: Rear Window And Outside Rear View Mirror Defoggers, And Windshield Wiper De-Icer
3-1. Using the air conditioning system and defogger Rear window and outside rear view mirror defoggers, and windshield wiper de-icer The rear window defogger is used to defog the rear window. The out- side rear view mirror defoggers are used to remove frost, dew or raindrops from the outside rear view mirrors.
Page 257 3-1. Using the air conditioning system and defogger CAUTION Outside rear view mirror defoggers (vehicles with outside rear view ■ mirror defoggers) The surfaces of the outside rear view mirrors become hot. Do not touch them to prevent from burning yourself. When the windshield wiper de-icer is on (vehicles with windshield ■...
Page 258: Using The Audio System Audio System Types
3-2. Using the audio system Audio system types With navigation system Owners of models equipped with a navigation system should refer to the “Navigation System Owner's Manual”. Without navigation system (type A) CD player with changer controller and AM/FM radio Without navigation system (type B) CD player with changer and AM/FM radio...
Page 259 3-2. Using the audio system Without navigation system (type C) CD player with changer and AM/FM radio Title Page Using the radio P. 265 Using the CD player P. 271 Playing back MP3 and WMA discs P. 279 Optimal use of the audio system P.
Page 260 3-2. Using the audio system CAUTION For vehicles sold in U.S.A. and Canada ■ Part 15 of the FCC Rules ● FCC Warning: Any unauthorized changes or modifications to this equipment will void the user’s authority to operate this device. Laser products ●...
Page 261: Using The Radio
3-2. Using the audio system Using the radio Power Volume Adjusting the frequency (AM, FM mode) or channel (SAT mode) Station selector Seeking the frequency Displaying Scanning for text messages receivable stations AM/SAT Changing the channel mode buttons : Type B and C ®...
Page 262 3-2. Using the audio system ® Scanning radio stations (excluding XM Satellite Radio) Scanning the preset radio stations ■ Press and hold until you hear a beep. STEP Preset stations will be played for 5 seconds each. When the desired station is reached, press once STEP again.
Page 263 3-2. Using the audio system Changing the channel category ■ Press “∧” or “∨” on ® Scanning XM Satellite Radio channels ■ ● Scanning channels in the current category Press STEP When the desired channel is reached, press STEP again. ●...
Page 264 3-2. Using the audio system When the battery is disconnected ■ Station presets are erased. Reception sensitivity ■ Type B and C ⎯ Cargo loaded on the roof luggage carrier, especially ● ® metal objects, may adversely affect the reception of XM Satellite Radio.
Page 265 ® the XM antenna cable is attached securely. ANTENNA There is a short-circuit in the antenna or the sur- rounding antenna cable. See a Toyota certified dealer. ® You have not subscribed to XM Satellite Radio. The radio is being updated with the latest encryp- ®...
Page 266 3-2. Using the audio system The channel you selected is no longer available. Wait for about 2 seconds until the radio returns to the previous channel or “CH001”. If it does not change automatically, select another channel. ® Contact the XM Listener Care Center at 1-800-967-2346 (U.S.A.) or 1-877- 438-9677 (Canada).
Page 267: Using The Cd Player
3-2. Using the audio system Using the CD player Power Volume Fast-forwarding a track CD load Reversing a track (type B and C) CD eject Random playback Selecting a track Repeat play Playback Displaying text messages Selecting a CD Search playback Loading CDs Loading a CD ■...
Page 268 3-2. Using the audio system Loading multiple CDs (type B and C) ■ Press and hold until you hear a beep. STEP “WAIT” is shown on the display. Insert a CD when the indicator on the slot turns from amber to STEP green.
Page 269 3-2. Using the audio system Selecting a track To select one track at a time ■ Press “∧” to move up or “∨” to move down using until the desired track number is displayed. To return to the beginning of the current track ■...
Page 270 3-2. Using the audio system Repeat play To repeat a track ■ Press (RPT). To repeat all of the tracks on a CD (type A with a CD changer, ■ type B and type C) Press and hold (RPT) until you hear a beep. Random playback Current CD ■...
Page 271 “ERROR 3”: There is a problem inside the player. “ERROR 4”: Over-current. Ask your Toyota dealer. “WAIT”: Operation has stopped due to a high temperature inside the player. Wait for a while and then press . Contact your Toyota dealer if the CD still cannot be played back.
Page 272 3-2. Using the audio system Discs that can be used ■ Discs with the marks shown below can be used. Playback may not be possible depending on recording format or disc fea- tures, or due to scratches, dirt or deterioration. CDs with copy-protect features may not be used.
Page 273 3-2. Using the audio system NOTICE CDs and adapters that cannot be used ■ Do not use the following types of CDs, 3 in. (8 cm) CD adapters (type A only) or Dual Discs. Doing so may damage the CD player and/or the CD insert/eject function. Type A: CDs that have a diameter other ●...
Page 274 3-2. Using the audio system NOTICE CD player precautions ■ Failure to follow the precautions below may result in serious damage to the CDs or the player itself. Do not insert anything other than CDs into the CD slot. ● Do not apply oil to the CD player.
Page 275: Playing Back Mp3 And Wma Discs
3-2. Using the audio system Playing back MP3 and WMA discs Fast-forwarding a file Power Volume CD load (type B and C) Reversing a file Selecting a file CD eject Random playback Selecting Selecting a folder a file Repeat play Playback Displaying text Selecting a CD...
Page 276 3-2. Using the audio system Selecting and scanning a folder Selecting folders one at a time ■ Press “∧” or “∨” on to select the desired folder. Selecting the desired folder by cueing the first file of each ■ folder Press and hold until you hear a beep.
Page 277 3-2. Using the audio system Fast-forwarding and reversing files To fast-forward or reverse, press (reverse) or (fast-for- ward). Repeat play To repeat a file ■ Press (RPT). To repeat all of the files in a folder ■ Press and hold (RPT) until you hear a beep.
Page 278 Operation has stopped due to a high temperature inside the player. Wait for a while and then press . Contact your Toyota dealer if the CD still cannot be played back. “NO MUSIC”: This indicates that the MP3/WMA file is not included in the Discs that can be used ■...
Page 279 3-2. Using the audio system MP3 and WMA files ■ MP3 (MPEG Audio LAYER3) is a standard audio compression format. Files can be compressed to approximately 1/10 of their original size using MP3 compression. WMA (Windows Media Audio) is a Microsoft audio compression format. This format compresses audio data to a size smaller than that of the MP3 format.
Page 280 3-2. Using the audio system Compatible media ● Media that can be used for MP3 and WMA playback are CD-Rs and CD- RWs. Playback in some instances may not be possible, depending on the status of the CD-R or CD-RW. Playback may not be possible or the audio may jump if the disc is scratched or marked with fingerprints.
Page 281 3-2. Using the audio system ID3 and WMA tags ● ID3 tags can be added to MP3 files, making it possible to record the track title, artist name, etc. The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags. (The number of characters is based on ID3 Ver.
Page 282 3-2. Using the audio system NOTICE CDs and adapters that cannot be used ■ →P. 277 CD player precautions ■ →P. 278...
Page 283: Optimal Use Of The Audio System
3-2. Using the audio system Optimal use of the audio system Displays the current mode Changes the following set- ting • Sound quality and volume balance (→P. 288) The sound quality and bal- ance setting can be changed to produce the best sound. •...
Page 284 3-2. Using the audio system Using the audio control function Changing sound quality modes ■ Pressing selects the mode to be changed in the following order. “BAS”→“MID* ”→“TRE”→“FAD”→“BAL”→“SURROUND* ”→“ASL”→“RSE* ” : Type C only : Vehicles with rear seat entertainment system Adjusting sound quality and volume balance ■...
Page 285 3-2. Using the audio system Adjusting the Automatic Sound Levelizer (ASL) ■ ASL automatically adjusts the volume and tone quality to compen- sate for varying noise levels while driving. Type A and B When “ASL” is selected, turning to the right changes the “ASL”...
Page 286 3-2. Using the audio system Trademark owned by SRS Labs, Inc. (type A and B) ■ ® ® The audio systems utilize SRS FOCUS and SRS TruBass audio enhancement technologies, under license from SRS Labs, Inc., in all modes except AM radio mode. FOCUS, TruBass, SRS and symbols are trademarks of SRS Labs, Inc.
Page 287: Using The Aux Adapter
3-2. Using the audio system Using the AUX adapter This adapter can be used to connect a portable audio device and lis- ten to it through the vehicle’s speakers. Open the cover and connect STEP the portable audio device. Press STEP Operating portable audio devices connected to the audio system ■...
Page 288: Using The Steering Wheel Audio Switches
3-2. Using the audio system Using the steering wheel audio switches (if equipped) Some audio features can be controlled using the switches on the steering wheel. Volume Radio: Select radio stations Select tracks, files (MP3 and WMA) and discs RSE: Select tracks and chapters Power on/off, select audio source...
Page 289 3-2. Using the audio system Changing the audio source Press when the audio system is turned on. The audio source changes as follows each time is pressed. Type A: →AUX→AM FM1→FM2→CD→CD changer Type B: FM1→FM2→CD changer→AUX→AM→SAT1→SAT2→SAT3 Type C: →AUX→AM→SAT1→SAT2→SAT3 FM1→FM2→CD changer→RSE* : If installed with a CD changer : Vehicles with rear seat entertainment system Adjusting the volume...
Page 290 3-2. Using the audio system Selecting a radio station/channel To select a preset station/channel ■ Press to select the radio mode. STEP Press “∧” or “∨” on to select a preset station/channel. STEP To scan for receivable stations ■ Press to select the radio mode.
Page 291 3-2. Using the audio system Selecting a folder (type A) Press to select the CD mode. STEP Press and hold until you hear a beep. STEP Selecting a disc (type A with a CD changer, type B and type C) Press to select the CD mode.
Page 292: Using The Rear Audio System Rear Seat Entertainment System Features
3-3. Using the rear audio system Rear seat entertainment system features (if equipped) The rear seat entertainment system is designed for the rear passen- gers to enjoy audio and DVD video separately from the front audio system. Rear seat entertainment system controller Display DVD player Headphone volume control dials and headphone jacks...
Page 293 3-3. Using the rear audio system Opening and closing the display Press the lock release button to open the display. Pull the display down to an easily viewable angle (between 90° and 125°). To close the display, push the display up until a click is heard. The illumination of the screen is automatically turned off when the display is closed.
Page 294 3-3. Using the rear audio system Ejecting a disc Press and remove the disc. Headphone jacks To use the headphones, con- nect them to the jack. To adjust the volume Right side dial: Turn it toward the front of the vehicle to increase the volume.
Page 295 “REGION ERROR”: Indicates that the DVD region code is not set properly. “DVD ERROR”: Indicates that there is a problem inside the player. Eject the disc. Set the disc again. If the malfunction still exists, take the vehicle to your Toyota dealer.
Page 296 When using 3 AA batteries ■ Batteries can be purchased at your Toyota dealer, electric appliance shops, or camera stores. Replace only with the same or equivalent type recommended by a Toyota dealer. Dispose of used batteries according to the local laws.
Page 297 3-3. Using the rear audio system Headphones ■ With some headphones generally available in the market, it may be difficult to catch signals properly. Toyota recommends the use of Toyota genuine wireless headphones. Please contact your Toyota dealer for further details. Volume ■...
Page 298 3-3. Using the rear audio system NOTICE For normal operation after replacing the battery ■ Observe the following precautions to prevent accidents. Always work with dry hands. ● Moisture may cause the battery to rust. Do not touch or move any other components inside the remote controller. ●...
Page 299: Using The Dvd Player (Dvd Video)
3-3. Using the rear audio system Using the DVD player (DVD video) Remote controller ■ Turning on the DVD mode Turning on or off the opera- tion switches (icon) on the display Selecting a chapter Reversing a disc Turning on the menu screen Turning on the title selection screen Searching the title...
Page 300 3-3. Using the rear audio system Unit ■ Turning on the DVD mode Skipping to the desired chapter Playing/pausing a disc Turning on or off the opera- tion switches (icon) on the display Selecting a switch (icon)/ inputting selected switch (icon) Display (Page 1) ■...
Page 301 3-3. Using the rear audio system Display (Page 2) ■ Displaying the initial setting screen Displaying page 1 Search for a title Returning to the previous screen Changing the audio lan- guage Changing the subtitle lan- guage Changing the angle Front audio system ■...
Page 302 3-3. Using the rear audio system NOTICE To prevent damage to the remote controller ■ Keep the remote control away from direct sunlight, temperature heat and ● high humidity. Do not drop or knock the remote controller against hard objects. ●...
Page 303 3-3. Using the rear audio system Slow playback Press or select and then press or select . Video is played slowly when you press or select by pressing and holding Returning to the previous screen Select to return to the previous screen. For the operation of the menu screen, see the separate manual for the DVD disc.
Page 304 3-3. Using the rear audio system Changing the subtitle language Press or select display the subtitle language screen. Each time is pressed or is selected, another lan- guage stored on the disc is selected. Select to return to the pre- vious screen.
Page 305 3-3. Using the rear audio system Changing the angle Press or select display the screen to change the angle. Each time is pressed or is selected, the angle changes. Select to return to the pre- vious screen. DVD player and DVD video discs ■...
Page 306 3-3. Using the rear audio system Marks shown on DVD video discs ■ Indicates NTSC format of color TV. Indicates the number of audio tracks. Indicates the number of language subtitles. Indicates the number of angles. Indicates the screen to be selected. Wide screen: 16:9 Standard: 4:3 Indicates regions in which this video disc can...
Page 307 3-3. Using the rear audio system Multi-angle feature: Allows you to enjoy the same scene at different ● angles. Multi-language feature: Allows you to select the language of the subtitles ● and audio. Region codes: Region codes are provided on DVD players and DVD ●...
Page 308: Using The Dvd Player (Video Cd)
3-3. Using the rear audio system Using the DVD player (video CD) Remote controller ■ Selecting a switch (icon) Selecting a chapter Playing/pausing a disc Reversing a disc Displaying operation switches (icon) Inputting selected switch (icon) Fast forwarding a disc Stopping a disc Changing the initial setting Unit...
Page 309 3-3. Using the rear audio system Display (page 1) ■ Selecting a disc menu num- Turning off the menu screen Displaying page 2 Turning on the disc menu Returning to the previous page screen (with the disc menu displayed) Proceeding to the next page screen (with the disc menu displayed) Changing to a multiplex...
Page 310 3-3. Using the rear audio system Selecting a disc menu number Select to display the disc menu number search screen. Select the disc menu number, and press to input it. Select to return to the previous screen. Slow playback Press or select and then press or select...
Page 311: Using The Dvd Player (Audio Cd/Cd Text)
3-3. Using the rear audio system Using the DVD player (audio CD/CD text) Using control screen, press to display the control screen. Repeat play Random playback Search playback Front audio system ■ Selecting a track Selecting either the front audio system or DVD player audio for the speakers Canceling random, repeat and scan play ■...
Page 312: Using The Dvd Player (Mp3 Discs)
3-3. Using the rear audio system Using the DVD player (MP3 discs) Using the control screen ■ Press to dis- play the control screen. Repeat play Random playback Search playback Displaying file information Selecting a folder Front audio system ■ Selecting a file Selecting either the front audio system or DVD player...
Page 313 3-3. Using the rear audio system Random playback Playing files from a particular folder in random order ■ Select Playing all of the files on a disc in random order ■ Select , and press and hold Search playback Selecting the desired file by cueing the files in the folder ■...
Page 314: Using The Video Mode
3-3. Using the rear audio system Using the video mode Press to select the video mode. Before switching to the video mode, connect audio device input adapter. Using the adapter Open the cover. The A/V input adapter is com- posed of 3 input adapters. Yellow: Image input adapter White: Left channel audio input adapter...
Page 315 3-3. Using the rear audio system NOTICE When the A/V input adapter is not in use ■ Keep the A/V input adapter cover closed. Inserting anything other than an appropriate plug may cause electrical fail- ure or short circuit.
Page 316: Changing The Initial Setting
3-3. Using the rear audio system Changing the initial setting Press or select display initial setting screen. The following initialization can be changed here. ● Audio language ● Subtitle language ● DVD language ● Angle mark ● Parental lock Changing the audio language Select “Audio Language”.
Page 317 3-3. Using the rear audio system Changing the subtitle language Select “Subtitle Language”. Select the language you want to read, and press to input it. Select “Others” if you cannot find the language you want to read. Enter the appropriate 4-digit lan- guage code.
Page 318 3-3. Using the rear audio system Changing the DVD language Select “DVD Language”. Select the language you want to read, and press to input it. Select “Others” if you cannot find the language you want to read. Enter the appropriate 4-digit lan- guage code.
Page 319 3-3. Using the rear audio system Setting viewer restriction levels Setting a password allows the viewer restriction to be effective. Select “Parental Lock”. Enter the password and press The setting cannot be changed unless the password is entered. When you forget the password, initialize the password.
Page 320 3-3. Using the rear audio system Returning to the previous screen ■ Select and press To initialize the password ■ Press on the remote controller or unit ten times when the screen to enter the personal code is displayed. Language code list ■...
Page 321 3-3. Using the rear audio system Code Language Code Language 0721 Gujarati 1311 Macedonian 0801 Hausa 1312 Malayalam 0809 Hindi 1314 Mongolian 0818 Croatian 1315 Moldavian 0821 Hungarian 1318 Marathi 0825 Armenian 1319 Malay 0901 Interlingua 1320 Maltese 0905 Interlingue 1325 Burmese 0911...
Page 322 3-3. Using the rear audio system Code Language Code Language 1914 Shona 2014 Setswana 1915 Somali 2015 Tonga 1917 Albanian 2018 Turkish 1918 Serbian 2019 Tsonga 1919 Siswati 2020 Tatar 1920 Sesotho 2023 1921 Sundanese 2111 Ukrainian 1923 Swahili 2118 Urdu 2001 Tamil...
Page 323: Using The Hands-Free
3-4. Using the hands-free phone system (for cellular phone) Hands-free phone system (for cellular phone) features (if equipped) Owners of models equipped with a navigation system should refer to the “Navigation System Owner's Manual”. ® This system supports Bluetooth , which allows you to make or receive calls without using cables to connect a cellular phone and the system, and without operating the cellular phone.
Page 324: Using The Hands-Free Phone System (For Cellular Phone)
3-4. Using the hands-free phone system (for cellular phone) Trademark owned by Bluetooth SIG. Inc. ■ Certification for the hands-free phone system ■ FCC ID: HYQBTAU01A IC ID: 1551A-BTAU01A MADE IN JAPAN NOTE: This device complies with Part 15 of the FCC Rules and RSS-210 of industry Canada.
Page 325 3-4. Using the hands-free phone system (for cellular phone) NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 326 3-4. Using the hands-free phone system (for cellular phone) CAUTION Caution while driving ■ ® Do not use a cellular phone, or connect the Bluetooth phone. NOTICE To prevent damage to a cellular phone ■ Do not leave a cellular phone in the vehicle. The temperature inside may become high resulting in damage to the phone.
Page 327: Using The Hands-Free Phone System
3-4. Using the hands-free phone system (for cellular phone) Using the hands-free phone system (for cellular phone) (if equipped) Audio unit ■ Displays such items as messages, name, phone number Lower-case characters and special characters, such as an umlaut, cannot be dis- played.
Page 328 3-4. Using the hands-free phone system (for cellular phone) Steering wheel telephone switches ■ Volume The voice guidance volume cannot be adjusted using this button. Hands-free phone system off/ends a call/refuses a call Hands-free phone system on/starts a call Press: Voice command sys- tem on Press and hold: Voice com- mand system off...
Page 329 3-4. Using the hands-free phone system (for cellular phone) Operating the system using a voice command By following voice guidance instructions output from the speaker, voice commands can be given to allow for operation of the hands- free phone system without checking the display or operating Operation procedure when using a voice command ■...
Page 330 3-4. Using the hands-free phone system (for cellular phone) Using the hands-free phone system for the first time Before using the hands-free phone system, it is necessary to register a cellular phone in the system. The phone registration mode will be entered automatically when starting the system with no cellular phone registered.
Page 331 3-4. Using the hands-free phone system (for cellular phone) Menu list of the hands-free phone system Normal operation ■ Second First menu Third menu Operation detail menu Dialing a number stored in Callback the incoming call history memory Dialing a number stored in Redial the outgoing call history memory...
Page 332 3-4. Using the hands-free phone system (for cellular phone) Second First menu Third menu Operation detail menu Set PIN Setting a PIN code Phonebook Locking the phone book Security Lock Phonebook Unlocking the phone book Unlock Registering the cellular Pair Phone phone to be used Changing a registered name Change Name...
Page 333 3-4. Using the hands-free phone system (for cellular phone) Using a short cut key ■ First menu Second menu Operation detail Dialing a number registered Dial “XXX (name)” in the phone book Phone book add Adding a new number entry Changing the name of a Phone book change phone number in the phone...
Page 334 3-4. Using the hands-free phone system (for cellular phone) Automatic adjustment of volume ■ When vehicle speed is 50 mph (80 km/h) or more, the volume automatically increases. The volume returns to the previous volume setting when vehicle speed drops to 43 mph (70 km/h) or less. When using a voice command ■...
Page 335: Making A Phone Call
3-4. Using the hands-free phone system (for cellular phone) Making a phone call Making a phone call ■ ● Dialing by inputting a number “Dial by number” ● Dialing by inputting a name “Dial by name” ● Speed dialing ● Dialing a number stored in the outgoing history memory “Redial”...
Page 336 3-4. Using the hands-free phone system (for cellular phone) Dialing by inputting a number Press and say “Dial by number”. STEP Press and say the phone number. STEP Dial by one of the following methods: STEP a. Press b. Press and say “Dial”.
Page 337 3-4. Using the hands-free phone system (for cellular phone) Dialing by inputting a name Press and say “Dial by name”. STEP Select a registered name to be input by either of the following STEP methods: a. Press and say a registered name. b.
Page 338 3-4. Using the hands-free phone system (for cellular phone) When receiving a phone call Answering the phone ■ Press Refusing the call ■ Press Transferring a call A call can be transferred between the cellular phone and system while dialing or receiving a call, or during a call. Use one of the follow- ing methods: a.
Page 339 3-4. Using the hands-free phone system (for cellular phone) Using the call history memory Follow the procedure below to use a number stored in the call history memory: Press and say “Redial” (when using a number stored STEP in the outgoing call history memory) or “Call back” (when using a number stored in the incoming call history memory).
Page 340 3-4. Using the hands-free phone system (for cellular phone) Call history ■ Up to 5 phone numbers can be stored in each of the outgoing and incoming call history memories. When talking on the phone ■ Do not talk simultaneously with the other party. ●...
Page 341: Setting A Cellular Phone
3-4. Using the hands-free phone system (for cellular phone) Setting a cellular phone Registering a cellular phone in the hands-free phone system allows the system to function. The following functions can be used for reg- istered cellular phones: Functions and operation procedures ■...
Page 342 3-4. Using the hands-free phone system (for cellular phone) Selecting the cellular phone to be used Select “Select Phone” using a voice command or STEP Pattern A Select the cellular phone to be used by either of the following STEP methods, and select “Confirm”...
Page 343 3-4. Using the hands-free phone system (for cellular phone) b. Press and say “List phones”. While the desired phone name is being read aloud, press c. Select the desired phone name using Press or select “Record Name” using , and say STEP a new name.
Page 344 3-4. Using the hands-free phone system (for cellular phone) Deleting a cellular phone Select “Delete” using a voice command or STEP Pattern A Select the cellular phone to be deleted by either of the follow- STEP ing methods and select “Confirm” using a voice command or a.
Page 345 3-4. Using the hands-free phone system (for cellular phone) Pattern B Select a 4 to 8-digit number using STEP The number should be input 1 digit at a time. When the entire number to be registered as a passkey has STEP been input, press once again.
Page 346: Security And System Setup
3-4. Using the hands-free phone system (for cellular phone) Security and system setup To enter the menu of each setting, follow the steps below: Security setting items and operation procedure ■ ● Setting or changing the PIN (Personal Identification Number) 1.
Page 347 3-4. Using the hands-free phone system (for cellular phone) Enter the registered PIN using a voice command or STEP Enter a new PIN using a voice command or STEP When using , input the code 1 digit at a time. Locking or unlocking the phone book Select “Phonebook lock (Phbk Lock)”...
Page 348 3-4. Using the hands-free phone system (for cellular phone) Initialization Select “Initialize” and then “Confirm” using STEP Select “Confirm” using STEP Initialization ■ The following data in the system can be initialized: ● • Phone book • Outgoing and incoming call history •...
Page 349: Using The Phone Book
3-4. Using the hands-free phone system (for cellular phone) Using the phone book To enter the menu of each setting, follow the steps below: ● Adding a new phone number 1. “Phonebook” → 2. “Add Entry” ● Setting speed dial 1.
Page 350 3-4. Using the hands-free phone system (for cellular phone) Adding procedure ■ Select “Add Entry” using a voice command or STEP Use one of the following methods to input a phone number: STEP Inputting a phone number using a voice command STEP2-1:Select “By Voice”...
Page 351 3-4. Using the hands-free phone system (for cellular phone) Inputting a phone number using STEP2-1:Select “Manual Input” using STEP2-2:Input a phone number using Input the phone number 1 digit at a time. STEP2-3:When the entire number has been input, press once again.
Page 352 3-4. Using the hands-free phone system (for cellular phone) Select the name to be registered by either of the following STEP methods, and select “Confirm” using a voice command or a. Press and say the desired name. b. Select “Record Name” using , and say the desired name.
Page 353 3-4. Using the hands-free phone system (for cellular phone) b. Press , and say “List names”. While the desired name is being read aloud, press , and select “Con- firm” using a voice command or c. Select the desired data using Select the desired preset button, and register the data into STEP speed dial by either of the following methods:...
Page 354 3-4. Using the hands-free phone system (for cellular phone) b. Press , and say “List names”. While the desired name is being read aloud, press , and select “Con- firm” using a voice command or c. Select the desired name using Press or select “Record Name”...
Page 355 3-4. Using the hands-free phone system (for cellular phone) b. Press , say “List phones”. While the name of the desired phone number is being read aloud, press Pattern B Select the data to be deleted using STEP Deleting speed dials Select “Delete Speed Dial (Del Spd Dial)”...
Page 356 3-4. Using the hands-free phone system (for cellular phone) Limitation of number of digits ■ A phone number that exceeds 24 digits cannot be registered.
Page 357: 3-5. Using The Interior Lights
3-5. Using the interior lights Interior lights list Your Toyota is equipped with the illuminated entry system to assist in entering the vehicle. Owing to the function of the system, the lights shown in the following illustration automatically turn on/off according to whether the doors are locked/unlocked, whether the doors are opened/closed, and the engine switch position.
Page 358: Personal/Interior Light Main Switch
3-5. Using the interior lights Personal/interior light main switch and personal/interior lights Personal/interior light main switch The front personal light function can still be turned on and off. Door position The personal/interior lights and luggage compartment light come on when a door is opened. They turn off when the doors are closed.
Page 359: Luggage Compartment Light
If the lights remain on when a door is not fully closed and the personal/inte- rior light main switch is in door position, the lights will go off automatically after 20 minutes. Customization that can be configured at Toyota dealer ■ Settings (e.g. the time elapsed before lights turn off) can be changed.
Page 360: 3-6. Using The Storage Features
3-6. Using the storage features List of storage features Auxiliary boxes Cup holders Bottle holders Coin holder and cup holder Auxiliary box (if equipped) Glove box Trays (if equipped) Console box, cup holders and note pad holder (if equipped) Cup holder (if equipped) Auxiliary box and cup holders (if equipped)
Page 361: Glove Box
3-6. Using the storage features Glove box and console box Glove box Unlock with the master key Lock with the master key Open (pull the lever) CAUTION Caution while driving ■ Keep the glove box closed. Injuries may result in the event of an accident or sudden braking. Console box (if equipped) Using the console box ■...
Page 362 3-6. Using the storage features Console box Lower console box Pull up the knob to release the lock and lift the lid. Removing the console box (7-passenger models) ■ Press down the lever. STEP Pull up the lever to disengage STEP the rear lock.
Page 363 3-6. Using the storage features Console box Installing the console box (7-passenger models) ■ Between the front seats Install the front hook in the front striker of the console box installation base. Push down on the back to engage the rear lock. Between the second seats If the right side second seat is in the inside position: Return STEP...
Page 364 3-6. Using the storage features Console box CAUTION Caution while driving ■ Keep the console box closed. Injuries may result in the event of an accident or sudden braking. When installing the console box (7-passenger models) ■ Be careful not to catch hands or feet in or under the console box. ●...
Page 365: Coin Holder
3-6. Using the storage features Coin holder Coin holder Push the button. CAUTION Caution while driving ■ Keep the coin holder closed. Injuries may result in the event of an accident or sudden braking.
Page 366: Cup Holders
3-6. Using the storage features Cup holders Cup holders Type A Push the button. Type B Type C (if equipped) Raise the table if it is folded down.
Page 367 3-6. Using the storage features Cup holders Type D (if equipped) Raise the table if it is folded STEP down. Open the lid and pull down the STEP tab on the back of the lid. Type E (if equipped)
Page 368 3-6. Using the storage features Cup holders Type F (if equipped) Press down the lever. Type G (if equipped) Remove the console box. (→P. 366) STEP Pull down the cup bottom to STEP extend them (the cup holder is stored in the console box). Turn them clockwise to lock.
Page 369 3-6. Using the storage features Cup holders When the cup holders of type C and D are not in use (if equipped) ■ Pull up the lever and push against the driver’s seat side. CAUTION When installing the cup holder of type G (if equipped) ■...
Page 370: Bottle Holders
3-6. Using the storage features Bottle holders Bottle holders Front Rear CAUTION Items unsuitable for the bottle holder ■ Do not place anything other than a bottle in the bottle holders. Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury.
Page 371: Auxiliary Boxes
3-6. Using the storage features Auxiliary boxes Auxiliary boxes Type A Push the button and pull down the box. Type B Push the button. Type C Pull up the lever and open the box.
Page 372 3-6. Using the storage features Auxiliary boxes Type D Lift the lid. Type E Pull up the lever and lift the lid. Type F (if equipped) Press in and release the lid to open.
Page 373 3-6. Using the storage features Auxiliary boxes Type G (if equipped) Press in and release the lid to open. Type H (if equipped) Press down the lever. Type I (if equipped) Raise the table if it is folded STEP down.
Page 374 3-6. Using the storage features Auxiliary boxes Open the lid. STEP Changing the position of the partition in the auxiliary box of type G (if ■ equipped) The partition can be moved as shown in the illustration. Pull out the partition and place it in the desired position as following illustration.
Page 375 3-6. Using the storage features Auxiliary boxes CAUTION Items that should not be left in the auxiliary box (type A) ■ Do not leave glasses or lighters in the auxiliary box. If the interior of the vehicle becomes hot, lighters may explode and glasses may warp or become cracked.
Page 376: Trays
3-6. Using the storage features Trays Trays (if equipped) Under the front passenger’s seat Lift the tray and pull it forward. Between the front seats Remove the console box. (→P. 366) STEP To install the tray (the tray is STEP stored in the console box), hook it onto the outer edge of the con- sole box installation base, then...
Page 377: Note Pad Holder
3-6. Using the storage features Trays and note pad holder CAUTION When the tray between the front seats is not in use ■ Keep the tray stowed. Injuries may result in the event of an accident or sudden braking. When installing the tray between the front seats ■...
Page 378 3-6. Using the storage features Note pad holder CAUTION Caution while driving ■ Keep the upper console box lid closed. Injuries may result in the event of an accident or sudden braking.
Page 379: 3-7. Other Interior Features
3-7. Other interior features Sun visors Forward position: Flip down. Side position: Flip down, unhook, and swing to the side.
Page 380: Vanity Mirrors
3-7. Other interior features Vanity mirrors Flip down. Open the cover. The light turns on when the cover is opened.
Page 381: Clock
3-7. Other interior features Clock With a manual air conditioning system Adjusts the hours. Adjusts the minutes. With an automatic air conditioning system Adjusts the hours. Adjusts the minutes. The clock is displayed when ■ The engine switch is in the “ACC” or “ON” position. When disconnecting and reconnecting battery terminals ■...
Page 382: Conversation Mirror
3-7. Other interior features Conversation mirror The conversation mirror can provide the driver and the front passen- ger with a view of the rear seat area without the need to turn around. Push the tab and flip down the STEP lid.
Page 383: Power Outlets
3-7. Other interior features Power outlets The following power outlets can be used for: 12 V: Accessories that use a combined total of less than 120 W (10 A at 12 V). 115 VAC: Accessories that use a combined total of less than 100 12 V ■...
Page 384 3-7. Other interior features 115 VAC (if equipped) ■ Main switch To use the power outlet, turn on the main switch. The indicator light comes on. Power outlet socket (beside third seat) Power outlet socket (luggage compartment)
Page 385 3-7. Other interior features The power outlet can be used when ■ 12 V The engine switch is in the “ACC” or “ON” position. 115 VAC The engine switch is in the “ON” position. NOTICE To avoid damaging the power outlet ■...
Page 386: Seat Heaters
3-7. Other interior features Seat heaters (if equipped) Front passenger’s seat The indicator light comes on. Adjusts the seat tempera- ture The further you move the dial upward, the warmer the seat Driver’s seat becomes. The seat heaters can be used when ■...
Page 387 3-7. Other interior features NOTICE To prevent seat heater damage ■ Do not put unevenly weighted objects on the seat and do not stick sharp objects (needles, nails, etc.) into the seat. To prevent battery discharge ■ Turn the switches off when the engine is not running.
Page 388: Armrests
3-7. Other interior features Armrests Front seat Pull the armrest down for use. Second seat (if equipped) Pull the armrest down for use. NOTICE To prevent damage to the armrest ■ Do not place too much strain on the armrest.
Page 389: Rear Side Sunshades
3-7. Other interior features Rear side sunshades (if equipped) Rear door window Pull the tab up. Secure the sunshade using the hooks. To retract the sunshade, pull the tab up slightly to unhook the sunshade, and lower the sunshade slowly. Rear quarter window Pull the tab up.
Page 390: Grocery Bag Hooks
3-7. Other interior features Grocery bag hooks The hooks are designed to hang things like a grocery bag. Type A (instrument panel) Pull the hook down. Type B (front seatback) Type C (manual third seat)
Page 391 3-7. Other interior features Type C (power third seat) Type D (luggage compartment) Pull the hook up. CAUTION When not in use (Type A and D) ■ Keep the grocery bag hook stowed. Injuries may result in the event of an accident or sudden braking. NOTICE Grocery bag hook weight capacity (Type A, B and C) ■...
Page 392: Coat Hooks
3-7. Other interior features Coat hooks To use the coat hook, pull it down. CAUTION Items that must not be hung on the hook ■ Do not hang a coat hanger or other hard or sharp objects on the hook. If the SRS curtain shield airbags deploy, these items may become projectiles that cause death or serious injury.
Page 393: Seatback Tables
3-7. Other interior features Seatback tables Following seatbacks can be used as a temporary table only when the vehicle is stopped. Front passenger’s seatback table (if equipped) Fold down the seatback. (→P. 56) Second outside seatback table Fold down the seatback. (→P.
Page 394 3-7. Other interior features CAUTION Caution while driving ■ Observe the following precautions to avoid death or serious injury. Do not set up the seatback table. ● Do not sit on or place anything on the seatback table. ● NOTICE To prevent damage to the seatback table ■...
Page 395: Front Seat Side Table
3-7. Other interior features Front seat side table (if equipped) Front seat side table can be used as a temporary table only when the vehicle is stopped. Raise the table if it is folded down. Folding down the front seat side table ■...
Page 396 3-7. Other interior features CAUTION Caution while driving ■ Do not place anything on the front seat side table to avoid death or serious injury. When not in use ■ Keep the front seat side table folded down and securely locked. Injuries may result in the event of an accident or sudden braking.
Page 397: Floor Mat
3-7. Other interior features Floor mat Securely place a mat that matches the size of the space on the car- pet. Secure the driver's floor mat using the hooks provided. CAUTION When inserting the floor mat ■ Observe the following precautions. Failure to do so may result in the floor mat slipping and interfering with the movement of the pedals during driving, resulting in an accident.
Page 398: Luggage Compartment Features
3-7. Other interior features Luggage compartment features Cargo hooks ■ Cargo hooks are provided for securing loose items. Cargo net hooks ■ Pattern 1 Pattern 2...
Page 399 3-7. Other interior features Pattern 3 Pattern 4 Storage box (if equipped) ■...
Page 400 3-7. Other interior features CAUTION When the cargo hooks are not in use ■ To avoid injury, always return the cargo hooks to their positions when they are not in use. NOTICE To prevent damage to the cargo net hooks ■...
Page 401: Garage Door Opener
3-7. Other interior features Garage door opener (if equipped) The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, secu- rity systems, and other devices. ® The garage door opener (HomeLink Universal Transceiver) is manufac- ®...
Page 402 3-7. Other interior features Press and hold down one of the STEP ® buttons on the HomeLink the button on the transmitter. When the indicator light on the ® HomeLink changes from a slow to a rapid flash after 20 seconds, you can release both buttons.
Page 403 3-7. Other interior features Programming a Rolling Code system (for U.S.A. owners) ■ If your device is Rolling Code equipped, follow the steps under the ® heading “Programming the HomeLink ” before proceeding with the steps listed below. Locate the training button on the ceiling mounted garage door STEP opener motor.
Page 404 ® the remaining HomeLink buttons. Programming other devices ■ To program other devices such as home security systems, home door locks or lighting, contact your authorized Toyota dealer for assistance. Reprogramming a button ■ ® The individual HomeLink buttons cannot be erased but can be reprogrammed.
Page 405 3-7. Other interior features Before programming ■ Install a new battery in the transmitter. ● The battery side of the transmitter must be pointed away from the ● ® HomeLink Certification for the garage door opener ■ This device complies with Part 15 of the FCC Rules and with RSS-210 of the IC Rules.
Page 406: Garage Door Opener Box
3-7. Other interior features Garage door opener box (if equipped) The box is designed to store a garage door opener transmitter. Setting the transmitter ■ Push the button and flip down STEP the lid. Remove the hook-and-loop STEP fastener. Remove the paper strip cover- STEP ing the adhesive on backside of loop and adhere loop to...
Page 407 3-7. Other interior features Place the transmitter with the STEP fastener facing inside of box into the box. Remove spacers from the STEP center panel. Place one spacer on the pin that would be below the trans- mitter button when the cover is closed.
Page 408 3-7. Other interior features When the spacer does not contact your transmitter button ■ Check to see if the spacer is on the correct pin. If the spacer is on the correct pin, attach another spacer on top of the original spacer. Recheck transmitter opera-...
Page 409: Compass
3-7. Other interior features Compass (if equipped) The compass on the trip information display indicates the direction in which the vehicle is heading. Operation ■ Direction display “E/M” button “MODE” button Displays and directions ■ Display Direction North Northeast East Southeast South Southwest...
Page 410 3-7. Other interior features Calibrating the compass The direction display deviates from the true direction determined by the earth’s magnetic field. The amount of deviation varies according to the geographic position of the vehicle. If you cross over a map boundary shown in illustration, the compass will deviate.
Page 411 3-7. Other interior features Press the “E/M” button, and referring to the map above, select STEP the number of the zone where you are. If the direction is displayed several seconds after adjustment, the calibration is complete. Circling calibration ■ When the direction display may not change after a turn, the com- pass needs to be calibrated.
Page 412 3-7. Other interior features Conditions unfavorable to correct operation ■ The compass may not show the correct direction in the following conditions: The vehicle is stopped immediately after turning. ● The vehicle is on an inclined surface. ● The vehicle is in a place where the earth's magnetic field is subject to ●...
Page 413: 4-1. Maintenance And Care
4-1. Maintenance and care Cleaning and protecting the vehicle exterior Perform the following to protect the vehicle and maintain it in prime condition. ● Working from top to bottom, liberally apply water to the vehicle body, wheel wells and underside of the vehicle to remove any dirt and dust.
Page 414 4-1. Maintenance and care Aluminum wheels ■ Remove any dirt immediately using a neutral detergent. Do not use hard brushes or abrasive cleaners. Do not use strong or harsh chemical cleaners. Use the same mild detergent and wax as used on the paint. Bumpers and side moldings ■...
Page 415 Do not use organic cleaners such as benzene or gasoline. If the windshield washer nozzle or rear window washer nozzle ■ becomes blocked Contact your Toyota dealer. Do not try to clear it with a pin or other object. This may damage the nozzle. Cleaning the exterior lights ■...
Page 416: 4-1. Maintenance And Care
4-1. Maintenance and care Cleaning and protecting the vehicle interior The following procedures will help protect your vehicle's interior and keep it in top condition: Protecting the vehicle interior ■ Remove dirt and dust using a vacuum cleaner. Wipe dirty sur- faces with a cloth dampened with lukewarm water.
Page 417 4-1. Maintenance and care Caring for leather areas ■ Toyota recommends cleaning the interior of the vehicle at least twice a year to maintain the quality of the vehicle's interior. Shampooing the carpets ■ There are several commercial foaming-type cleaners available. Use a sponge or brush to apply the foam.
Page 418 4-1. Maintenance and care NOTICE Cleaning detergents ■ Do not use organic substances such as benzene or gasoline, acidic or alka- line solutions, dye, bleach or other detergent. Doing so may discolor the vehicle interior or cause streaks or damage to painted surfaces. Preventing damage to leather surfaces ■...
Page 419: 4-2. Maintenance
It is recommended that genuine Toyota parts be used for repair to ensure performance of each system. If non-Toyota parts are used in replacement or if a repair shop other than a Toyota dealer performs repairs, confirm the war- ranty coverage.
Page 420 4-2. Maintenance Allow inspection and repairs to be performed by a Toyota dealer ■ Toyota technicians are well-trained specialists and are kept up to date ● with the latest service information. They are well informed about the operations of all systems on your vehicle.
Page 421: 4-2. Maintenance
“Scheduled Maintenance Guide” or “Owner’s Manual Supplement”. It is recommended that any problem you notice should be brought to the attention of your Toyota dealer or qualified service shop for advice. Engine compartment Items...
Page 422 4-2. Maintenance Vehicle interior Items Check points • Moves smoothly (without uneven Accelerator pedal pedal effort or catching)? • Can the vehicle be held securely Automatic transmission “Park” on an incline with the shift lever in mechanism • Moves smoothly? •...
Page 423: Inflation Pressure
4-2. Maintenance Vehicle exterior Items Check points Doors • Operate smoothly? Engine hood • The lock system works properly? • Is there any leakage after park- Fluid leaks ing? • Inflation pressure is correct? • Tire surfaces not worn or dam- aged? Tires •...
Page 424: Emission Inspection And Maintenance (I/M) Programs
The OBD system determines that a problem exists somewhere in the emission control system. Your vehicle may not pass the I/ M test and may need to be repaired. Contact your Toyota dealer to service the vehicle. Your vehicle may not pass the I/M test: ■...
Page 425: 4-3. Do-It-Yourself Maintenance
Brake fluid level (→P. 446) • Rag or paper towel • Funnel (used only for adding brake fluid) • “Toyota Super Long Life Coolant” or similar high quality ethylene glycol based non-silicate, non- amine, non-nitrite and non-borate coolant with long-life hybrid organic acid technology.
Page 426 4-3. Do-it-yourself maintenance Items Parts and tools • Fuse with same amperage rating Fuses (→P. 474) as original • Bulb with same number and watt- age rating as original Light bulbs (→P. 486) • Phillips-head screwdriver • Flathead screwdriver • Wrench •...
Page 427 4-3. Do-it-yourself maintenance CAUTION The engine compartment contains many mechanisms and fluids that may move suddenly, become hot, or become electrically energized. To avoid death or serious injury, observe the following precautions. When working on the engine compartment ■ Keep hands, clothing, and tools away from the moving fan and engine ●...
Page 428 4-3. Do-it-yourself maintenance NOTICE If you remove the air cleaner ■ Driving with the air cleaner removed may cause excessive engine wear due to dirt in the air. Also a backfire could cause a fire in the engine compart- ment.
Page 429: Hood
4-3. Do-it-yourself maintenance Hood Release the lock from the inside of the vehicle to open the hood. Pull the hood release lever. STEP The hood will pop up slightly. Lift the auxiliary catch lever STEP and lift the hood. Hold the hood open by insert- STEP ing the supporting rod into the slot.
Page 430 4-3. Do-it-yourself maintenance CAUTION Pre-driving check ■ Check that the hood is fully closed and locked. If the hood is not locked properly, it may open while the vehicle is in motion and cause an accident, which may result in death or serious injury. After installing the support rod into the slot ■...
Page 431: Positioning A Floor Jack
4-3. Do-it-yourself maintenance Positioning a floor jack When raising your vehicle with a floor jack, position the jack cor- rectly. Improper placement may damage your vehicle or cause injury. Front ■ Rear ■ 2WD models AWD models...
Page 432 4-3. Do-it-yourself maintenance CAUTION When raising your vehicle ■ Make sure to observe the following to reduce the possibility of death or seri- ous injury. Lift up the vehicle using a floor jack ● such as the one shown in the illustra- tion.
Page 433: Engine Compartment
4-3. Do-it-yourself maintenance Engine compartment Power steering fluid reservoir Engine coolant reservoir (→P. 448) (→P. 444) Windshield and rear window Brake fluid reservoir washer fluid tank (→P. 453) (→P. 446) Engine oil filler cap Fuse box (→P. 474) (→P. 440) Battery (→P.
Page 434 4-3. Do-it-yourself maintenance Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick. Checking the engine oil ■ Park the vehicle on level ground. After turning off the engine, STEP wait more than five minutes for the oil to drain back into the bottom of the engine.
Page 435 4-3. Do-it-yourself maintenance Adding engine oil ■ If the oil level is below or near the low level mark, add engine oil of the same type as already in the engine. Make sure to check the oil type and prepare the items needed before adding oil.
Page 436 4-3. Do-it-yourself maintenance Recommended viscosity ■ SAE 5W-30 is the best choice for good fuel economy, and good starting in cold weather. If SAE 5W-30 oil is not available, SAE 10W-30 oil may be used. However, it should be replaced Outside temperature with SAE 5W-30 at the next oil change.
Page 437 ● not dispose of used oil and filters in household trash, in sewers or onto the ground. Call your Toyota dealer, service station or auto parts store for information concerning recycling or disposal. Do not leave used engine oil within the reach of children.
Page 438 4-3. Do-it-yourself maintenance NOTICE To prevent serious engine damage ■ Check the oil level on a regular basis. When replacing the engine oil ■ Be careful not to spill engine oil on the vehicle components. ● Avoid overfilling, as the engine could be damaged. ●...
Page 439 If the coolant level drops within a short time after replenishing ■ Visually check the radiator, hoses, engine coolant reservoir cap, radiator cap, drain cock and water pump. If you cannot find a leak, have your Toyota dealer test the cap and check for leaks in the cooling system.
Page 440 4-3. Do-it-yourself maintenance Coolant selection ■ Only use “Toyota Super Long Life Coolant” or similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology. U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water.
Page 441 Check the radiator and condenser, and clear any foreign objects. If either of the above parts are extremely dirty or you are not sure of their condition, have your vehicle checked by your Toyota dealer. CAUTION When the engine is hot ■...
Page 442 4-3. Do-it-yourself maintenance Adding fluid ■ Make sure to check the fluid type and prepare the necessary items. Fluid type FMVSS No.116 DOT 3 or SAE J1703 brake fluid Items Clean funnel Brake fluid can absorb moisture from the air ■...
Page 443 4-3. Do-it-yourself maintenance Power steering fluid Fluid level ■ The fluid level should be within the appropriate range. Full (when cold) Add fluid (when cold) Full (when hot) Add fluid (when hot) Hot: Vehicle has been driven around 50 mph (80 km/h) for 20 minutes, or slightly longer in cold temperatures.
Page 444 4-3. Do-it-yourself maintenance CAUTION Checking the fluid level ■ Take care, as the reservoir may be hot. NOTICE When adding fluid ■ Avoid overfilling, or the power steering may be damaged. After replacing the reservoir cap ■ Check the steering box case, vane pump and hose connections for leaks or damage.
Page 445 ■ Check the battery condition using the indicator color. Type A Green: Good condition Dark: Charging is necessary. Have the vehicle inspected by your Toyota dealer. Clear or light yellow: Not working properly. Have the battery checked your Toyota dealer.
Page 446 4-3. Do-it-yourself maintenance Before recharging ■ When recharging, the battery produces hydrogen gas which is flammable and explosive. Therefore, before recharging: If recharging with the battery installed on the vehicle, be sure to discon- ● nect the ground cable. Make sure the power switch on the charger is off when connecting and ●...
Page 447 4-3. Do-it-yourself maintenance CAUTION Chemicals in the battery ■ A battery contains poisonous and corrosive sulfuric acid and may produce hydrogen gas which is flammable and explosive. To reduce the risk of death or serious injury, take the following precautions while working on or near the battery: Do not cause sparks by touching the battery terminals with tools.
Page 448 4-3. Do-it-yourself maintenance NOTICE When recharging the battery ■ Never recharge the battery while the engine is running. Also, be sure all accessories are turned off. Washer fluid Add washer fluid in the following situations. ● Any washer does not work. ●...
Page 449: Tires
The tire pressure warning system ■ Your Toyota is equipped with a tire pressure warning system that uses tire pressure warning valves and transmitters to detect low tire inflation pressure before serious problems arise. (→P. 507) Vehicles with compact spare tire: The compact spare tire is not equipped with the tire pressure warning valve and transmitters.
Page 450 ID codes must be registered in the tire pressure warning computer and tire pressure warning system must be initialized. Have tire pressure warning valve and transmitter ID codes registered by your Toyota dealer. (→P. 456) Initializing the tire pressure warning system The tire pressure warning system must be initialized when the ■...
Page 451 The tire pressure warning valve and transmitter is equipped with a unique ID code. When replacing a tire pressure warning valve and transmitter, it is necessary to register the ID code of tire pressure warning valve and transmitter. Have the ID code registered by your Toyota dealer.
Page 452: Tire Inflation Pressure
A tire goes flat repeatedly or cannot be properly repaired due to the ● size or location of a cut or other damage If you are not sure, consult with your Toyota dealer. Replacing tires and wheels ■ If the ID code of the tire pressure warning valve and transmitter is not registered, the tire pressure warning system will not work properly.
Page 453 4-3. Do-it-yourself maintenance Tire types ■ 1 Summer tires Summer tires are high-speed performance tires best suited to highway driving under dry conditions. Since summer tires do not have the same traction performance as snow tires, summer tires are inadequate for driving on snow-covered or icy roads.
Page 454 If repeated attempts to record tire inflation pressure settings are unsuccessful, have the vehicle inspected by your Toyota dealer. When operating the tire pressure warning reset switch, the tire pres- ●...
Page 455 4-3. Do-it-yourself maintenance Tire pressure warning system certification ■ MODEL/FCC IDs: Transmitter: GQ4-32T Receiver: GQ4-37R IC (Canada) IDs: Transmitter: 1470A-13T Receiver: 1470A-9R For vehicles sold in the U.S.A. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 456 Do not mix tires of different makes, models or tread patterns. Also, do ● not mix tires of remarkably different treadwear. Do not use tire sizes other than those recommended by Toyota. ● Do not mix differently constructed tires (radial, bias-belted or bias-ply ●...
Page 457 When removing or fitting the wheels, tires or the tire pressure warning valve and transmitter, contact your Toyota dealer as the tire pressure warning valve and transmitter may be damaged if not handled correctly. To avoid damaging the tire pressure warning valves and transmit- ■...
Page 458: Tire Inflation Pressure
4-3. Do-it-yourself maintenance Tire inflation pressure Tire inflation pressure ■ The recommended cold tire inflation pressure and tire size is dis- played on the tire and loading information label. (→ P. 548...
Page 459 4-3. Do-it-yourself maintenance Inspection and adjustment procedure ■ Tire valve Tire pressure gauge Remove the tire valve cap. STEP Press the tip of the tire pressure gauge onto the tire valve. STEP Read the pressure using the graduations of the gauge. STEP If the tire inflation pressure is not within the recommended STEP...
Page 460 Reduced safety ● Damage to the drive train ● If a tire needs frequent refilling, have it checked by your Toyota dealer. Instructions for checking tire inflation pressure ■ When checking tire inflation pressure, observe the following: Check only when the tires are cold.
Page 461 4-3. Do-it-yourself maintenance CAUTION Proper inflation is critical to save tire performance ■ Keep your tires properly inflated. Otherwise, the following conditions may occur and result in an accident causing death or serious injury. Excessive wear ● Uneven wear ● Poor handling ●...
Page 462: Wheels
● Bent wheels that have been straightened Aluminum wheel precautions ■ ● Use only Toyota wheel nuts and wrenches designed for use with your aluminum wheels. ● When rotating, repairing or changing your tires, check that the wheel nuts are still tight after driving 1000 miles (1600 km).
Page 463 Because tire repair or replacement may affect the tire pressure ● warning valves and transmitters, make sure to have tires serviced by your Toyota dealer or other qualified service shop. In addition, make sure to purchase your tire pressure warning valves and transmitters at your Toyota dealer.
Page 464: Air Conditioning Filter
4-3. Do-it-yourself maintenance Air conditioning filter The air conditioning filter must be cleaned or changed regularly to maintain air conditioning efficiency. Removal method ■ Turn the engine switch to the “LOCK” position. STEP Open the glove box. Slide off STEP the damper.
Page 465 2 minutes at 72 psi (500 kPa, 5.0 kgf/cm bar). If it is not available, have the filter cleaned by your Toyota dealer. Replacement method ■ Install a new filter to the filter case.
Page 466 4-3. Do-it-yourself maintenance Checking interval ■ Inspect, clean and replace the air conditioning filter according to the mainte- nance schedule. In dusty areas or areas with heavy traffic flow, more fre- quent cleaning or early replacement may be required. (For scheduled maintenance information, please refer to the “Scheduled Maintenance Guide”...
Page 467: Wireless Remote Control Battery
4-3. Do-it-yourself maintenance Wireless remote control battery Replace the battery with a new one if it is discharged. You will need the following: ■ Lithium battery (CR2032) Replacing the battery ■ Remove the cover using a STEP coin protected with tape etc. Remove the discharged trans- STEP mitter battery.
Page 468 ● The operational range is reduced. ● Use a CR2032 lithium battery ■ Batteries can be purchased at your Toyota dealer, jewelers, or camera ● stores. Replace only with the same or equivalent type recommended by your ● Toyota dealer.
Page 469: Checking And Replacing Fuses
4-3. Do-it-yourself maintenance Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary. Turn the engine switch to the “LOCK” position. STEP The fuses are located in the following places.
Page 470 4-3. Do-it-yourself maintenance Passenger’s side instrument panel 1. Open the glove box. Slide off the damper. 2. Push in each side of the glove box to disconnect the claws. After a system failure, see “Fuse layout and amperage rat- STEP ings”...
Page 471 4-3. Do-it-yourself maintenance Take out the pullout tool. STEP Only type A fuse can be removed using the pullout tool. Check if the fuse has blown. STEP Type A Normal fuse Blown fuse Replace it with one of an appropriate amperage rating. The amperage rating can be found on the fuse box lid.
Page 472 4-3. Do-it-yourself maintenance Type C Normal fuse Blown fuse Contact your Toyota dealer. Type D Normal fuse Blown fuse Contact your Toyota dealer.
Page 473 4-3. Do-it-yourself maintenance Fuse layout and amperage ratings Engine compartment ■ Fuse Ampere Circuit Headlights, daytime running light MAIN 30 A system, H-LP RL, H-LP LL 30 A INJ, IGN, GAUGE 2 Multiport fuel injection system/ ETCS 10 A sequential multiport fuel injection system Daytime running light system, 20 A...
Page 474 4-3. Do-it-yourself maintenance Fuse Ampere Circuit RAD NO.1 15 A Audio system Multiport fuel injection system/ EFI NO.1 20 A sequential multiport fuel injection system, EFI NO.2 ALT-S 7.5 A Charging system Turn signal lights, emergency 15 A flashers Power sliding door, air conditioning system, power windows, multiplex ECU-B 10 A...
Page 475 4-3. Do-it-yourself maintenance Fuse Ampere Circuit L-PSD 30 A Left side power sliding door RR A/C 40 A Rear air conditioning system 40 A Rear window defogger, MIR HTR SPARE 7.5 A Spare fuse Charging system, RR A/C, HTR, 140 A FAN, PBD, R-PSD, L-PSD, DEF Anti-lock brake system, traction ABS1...
Page 476 4-3. Do-it-yourself maintenance Under the driver’s side instrument panel ■ Fuse Ampere Circuit MIR HTR 10 A Outside rear view mirror defoggers Audio system, navigation system, RAD2 7.5 A rear seat entertainment system PWR OUTLET 15 A Power outlets 15 A Cigarette lighter Shift lock control system, air condi- ECU ACC...
Page 477 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Windshield washer and rear win- 20 A dow washer 10 A Air conditioning system Intuitive parking assist system, rear view monitor system, multiplex communication system, multiport fuel injection system/sequential multiport fuel injection system, anti- lock brake system, traction control system, vehicle stability control ECU-IG...
Page 478 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Stop/tail lights, high mounted stop- light, shift lock control system, anti- lock brake system, traction control system, vehicle stability control STOP 10 A system, multiport fuel injection sys- tem/sequential multiport fuel injec- tion system, multiplex communication system Power windows, power rear view 25 A...
Page 479 (→P. 486) If the replaced fuse blows again, have the vehicle inspected by your ● Toyota dealer. If there is an overload in the circuits ■ The fuses are designed to blow before the entire wiring harness is damaged.
Page 480 Never use a fuse of a higher amperage rating than indicated, or use any ● other object in place of a fuse. Always use a genuine Toyota fuse or equivalent. ● Never replace a fuse with a wire, even as a temporary fix.
Page 481: Light Bulbs
You may replace the following bulbs yourself. The difficulty level of replacement varies depending on the bulb. If necessary bulb replacement seems difficult to perform, contact your Toyota dealer. For more information about replacing other light bulbs, contact your Toyota dealer.
Page 482 4-3. Do-it-yourself maintenance Rear bulb locations ■ Rear turn signal lights Back-up lights Stop/tail and rear side License plate lights marker lights Tail lights Replacing light bulbs Headlight (halogen bulbs) ■ Turn the bulb base counterclock- STEP wise. Headlight (high beam) Headlight (low beam) Pull out the light bulb while STEP...
Page 483 4-3. Do-it-yourself maintenance Front side marker light ■ Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP...
Page 484 4-3. Do-it-yourself maintenance Parking and front turn signal lights ■ Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP...
Page 485 4-3. Do-it-yourself maintenance Rear turn signal, stop/tail and rear side marker lights ■ Remove the securing bolts and STEP remove the unit. To protect the cover, place a rag between the flathead screwdriver and cover as shown in the illus- tration.
Page 486 4-3. Do-it-yourself maintenance Tail and back-up lights ■ Open the back door and remove STEP the strap. Remove the back door trim STEP board. Turn the bulb bases counter- STEP clockwise. Remove the light bulbs. STEP Tail light Back-up light...
Page 487 4-3. Do-it-yourself maintenance License plate lights ■ Open the back door and remove STEP the strap. Remove the back door trim STEP board. Turn the bulb bases counter- STEP clockwise. Remove the light bulb. STEP...
Page 488 The discharge bulbs will come on when normal power is restored. LED high mounted stoplight ■ The high mounted stoplight consists of a number of LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer to have the light replaced.
Page 489 Doing so could result in electric shock and serious injury or death. Discharge headlights ■ Contact your Toyota dealer before replacing discharge headlights (includ- ● ing light bulbs). Do not touch the high-intensity discharge headlight’s high voltage socket ●...
Page 490: Essential Information If Your Vehicle Needs To Be Towed
If your vehicle needs to be towed If towing is necessary, we recommend having your vehicle towed by your Toyota dealer or a commercial towing service, using a lift-type truck or a flat bed truck. Use a safety chain system for all towing, and abide by all state/pro- vincial and local laws.
Page 491 5-1. Essential information Towing with a sling-type truck NOTICE To prevent body damage ■ Do not tow with a sling-type truck, either from the front or rear. Towing with a wheel-lift type truck from the front 2WD models Release the parking brake.
Page 492 5-1. Essential information AWD models Use a towing dolly under the rear wheels. NOTICE To prevent damaging the vehicle ■ When raising the vehicle, ensure adequate ground clearance for towing at the opposite end of the raised vehicle. Without adequate clearance, the vehicle could be damaged while being towed.
Page 493 5-1. Essential information Using a flat bed truck If you use chains or cables to tie down your vehicle, the angles shaded in black must be 45°. Do not overly tighten the tie downs or the vehicle may be damaged.
Page 494: If You Think Something Is Wrong
5-1. Essential information If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs adjustment or repair. Contact your Toyota dealer as soon as possible. Visible symptoms ■ ● Fluid leaks under the vehicle (Water dripping from the air conditioning after use is normal.)
Page 495: Fuel Pump Shut Off System
5-1. Essential information Fuel pump shut off system To minimize the risk of fuel leakage when the engine stalls or an air- bag inflates upon collision, the fuel pump shut off system stops sup- plying fuel to the engine. Follow the procedure below to restart the engine after the system is activated.
Page 496: Event Data Recorder
5-1. Essential information Event data recorder Your vehicle has computers that monitor and control certain aspects of your vehicle. These computers assist in driving and maintaining optimal vehicle performance. Besides storing data useful for troubleshooting, there is an event data recorder (EDR) that records data in a crash or a near car crash event.
Page 497 5-1. Essential information Disclosure of the data Toyota will not disclose the data recorded in an EDR to a third party except when: ● An agreement from the vehicle's owner (or the leasing company for a leased vehicle) is obtained ●...
Page 498: 5-2. Steps To Take In An Emergency
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous. The following warning indicates a possible problem in the brake sys- tem. Immediately stop the vehicle in a safe place and contact your Toyota dealer. Warning light Warning light/Details Brake system warning light (warning buzzer)* •...
Page 499 Have the vehicle inspected immediately. Failing to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Toyota dealer immediately. Warning light Warning light/Details Malfunction indicator lamp Indicates a malfunction in: (U.S.A.)
Page 500 If it is, tighten it securely. The malfunction indicator lamp will go off after taking several driving trips. If the malfunction indicator lamp does not go off even after several trips, con- tact your Toyota dealer as soon as possible.
Page 501 5-2. Steps to take in an emergency Follow the correction procedures. After taking the specified steps to correct the suspected problem, check that the warning light turns off. Warning light Warning light/Details Correction procedure Open door warning light Check that all doors are Indicates that a door is not closed.
Page 502 When the light comes on after blinking for 1 minute: Have the system checked Malfunction in the tire by your Toyota dealer. pressure warning system Third seat warning light Indicates that the third Complete the third seat seat operation is not yet operation.
Page 503 5-2. Steps to take in an emergency Warning light Warning light/Details Correction procedure Dynamic laser cruise con- trol master warning light Indicates a malfunction in the dynamic laser cruise →P. 204 control system. When the light comes on, the alarm sounds and the warning code will appear on the display.
Page 504 5-2. Steps to take in an emergency Front passenger detection sensor and passenger seat belt reminder ■ If luggage is placed on the front passenger seat, the front passenger ● detection sensor may cause the warning light to flash, even if a passen- ger is not sitting in the seat.
Page 505 If there is a lot of snow or ice on the vehicle, in particular around the ● wheels or wheel housings. If non-genuine Toyota wheels are used. (Even if you use Toyota ● wheels, the tire pressure warning system may not work properly with some types of tires.)
Page 506 • If the tire pressure warning light comes on even after tire inflation pressure adjustment, it is probable that you have a flat tire. Have the tire replaced by the nearest Toyota dealer. • Avoid abrupt maneuvering and braking. If the vehicle tires deterio- rate, you could lose control of the steering wheel or the brakes.
Page 507 5-2. Steps to take in an emergency CAUTION Maintenance of the tires ■ Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label (tire and load information label).
Page 508 5-2. Steps to take in an emergency CAUTION Your vehicle has also been equipped with a TPMS (tire pressure warning system) malfunction indicator to indicate when the system is not operat- ing properly. The TPMS (tire pressure warning system) malfunction indi- cator is combined with the low tire pressure telltale (tire pressure warning light).
Page 509: If You Have A Flat Tire (Vehicles With Run-Flat Tires)
5-2. Steps to take in an emergency If you have a flat tire (vehicles with run-flat tires) Take your vehicle to the nearest Toyota dealer or authorized tire dealer as soon as possible. Run-flat tires (A “RFT” or “DSST” mark is molded on the ■...
Page 510: If You Have A Flat Tire (Vehicles With Standard Tires)
5-2. Steps to take in an emergency If you have a flat tire (vehicles with standard tires) Remove the flat tire and replace it with the spare provided. Before jacking up the vehicle ■ ● Stop the vehicle on a hard, flat surface. ●...
Page 511 5-2. Steps to take in an emergency Type B Tire bag Jack handle Wheel nut wrench Jack Spare tire Taking out the jack and tools Turn the knobs to the “OPEN” STEP position and remove the cover. Remove the adapter socket. STEP (Type A only) The adapter socket is in a bag.
Page 512 5-2. Steps to take in an emergency Remove the jack. STEP Remove the wheel nut wrench. STEP Taking out the spare tire (type A) Slide the front passenger’s seat to the front-most lock position STEP and the right side second seat to the rear-most lock position so they will not interfere with the jack handle.
Page 513 5-2. Steps to take in an emergency Attach the adapter socket over STEP the spare tire clamp bolt. Connect the jack handle and the adapter socket. Turn the jack handle. The tire will be lowered com- pletely to the ground. Take the spare tire out from STEP underneath...
Page 514 5-2. Steps to take in an emergency Replacing a flat tire Chock the tires. STEP Wheel Flat tire chock posi- tions Behind the Left- rear right- hand hand side side tire Front Behind the Right- rear left- hand hand side side tire In front of...
Page 515 5-2. Steps to take in an emergency Slightly loosen the wheel nuts STEP (one turn). Turn the tire jack portion “A” by STEP hand until the notch of the jack is in contact with the jack point. Raise the vehicle until the tire is STEP slightly raised off the ground.
Page 516 5-2. Steps to take in an emergency Installing the spare tire Remove any dirt or foreign mat- STEP ter from the wheel contact sur- face. If foreign matter is on the wheel contact surface, the wheel nuts may loosen while the vehicle is in motion, and the tire may come off the vehicle.
Page 517 5-2. Steps to take in an emergency Lower the vehicle. STEP Firmly tighten each nut two or STEP three times in the order shown in the illustration. Tightening torque: 76 ft•lbf (103 N•m, 10.5 kgf•m) Stow the flat tire, tire jack and all tools. STEP Stowing the flat tire Wrap the flat tire in the tire bag...
Page 518 5-2. Steps to take in an emergency When reinstalling the wheel ornament (vehicles with a steel wheel) ■ Align the cutout of the wheel ornament with the valve stem as shown. When stowing the adapter socket (Type A only) ■ Insert the bag with the fold portion facing downward.
Page 519 5-2. Steps to take in an emergency CAUTION Using the tire jack ■ Improper use of the tire jack may lead to death or serious injuries due to the vehicle suddenly falling off the jack. Do not use the tire jack for any purpose other than replacing tires or ●...
Page 520 5-2. Steps to take in an emergency CAUTION Replacing a flat tire ■ Observe the following precautions to reduce the risk of death or serious injury: Remove the spare tire before jacking up the vehicle. If the spare tire is ●...
Page 521 5-2. Steps to take in an emergency CAUTION When the spare tire is installed ■ The vehicle speed may not be correctly detected, and the following sys- tems may not operate correctly: ABS & Brake assist ● ● TRAC ● Navigation system (if equipped) ●...
Page 522 ■ When removing or fitting the wheels, tires or the tire pressure warning valve and transmitter, contact your Toyota dealer as the tire pressure warning valve and transmitter may be damaged if not handled correctly. To avoid damaging the tire pressure warning valves and transmit- ■...
Page 523: If The Engine Will Not Start
One of the following may be the cause of the problem. ● One or both of the battery terminals may be disconnected. ● The battery may be discharged. (→P. 532) Contact your Toyota dealer if the problem cannot be repaired, or if repair procedures are unknown.
Page 524: If The Shift Lever Cannot Be Shifted From P
(a system to prevent accidental operation of the shift lever). Have the vehicle inspected by your Toyota dealer. The following steps may be used as an emergency measure to ensure that the shift lever can be shifted.
Page 525: If You Lose Your Keys/Wireless Remote Control Transmitter
5-2. Steps to take in an emergency If you lose your keys/wireless remote control transmitter Keys ■ New genuine keys can be made by your Toyota dealer. Bring a master key and the key number stamped on the key number plate. Wireless remote control transmitter ■...
Page 526: If The Battery Is Discharged
You can call your Toyota dealer or qualified repair shop. If you have a set of jumper (or booster) cables and a second vehi- cle with a 12-volt battery, you can jump start your Toyota following the steps below. STEP...
Page 527 Once the vehicle’s engine has started, remove the jumper STEP cables in the exact reverse order in which they were con- nected. Once the engine starts, have the vehicle checked at your Toyota dealer as soon as possible. Starting the engine when the battery is discharged ■...
Page 528 5-2. Steps to take in an emergency CAUTION Avoiding battery fires or explosions ■ Observe the following precautions to prevent accidentally igniting the flam- mable gas that may be emitted from the battery. Make sure the jumper cable is connected to the correct terminal and that it ●...
Page 529 5-2. Steps to take in an emergency NOTICE When handling jumper cables ■ Be careful that the jumper cables do not become tangled in the cooling fans or any of the belts when connecting or disconnecting them.
Page 530: If Your Vehicle Overheats
Wait until the temperature of the engine (shown on the instrument cluster) begins to fall and then stop the engine. If the fans are not operating: Stop the engine and call your Toyota dealer. After the engine has cooled STEP STEP...
Page 531 Water can be used in an emer- gency if engine coolant is (→ unavailable. P. 546 Have the vehicle checked at the nearest Toyota dealer as soon as possible. Overheating ■ If you observe the following, your vehicle may be overheating.
Page 532 5-2. Steps to take in an emergency NOTICE When adding engine coolant ■ Wait until the engine has cooled down before adding engine coolant. When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly can cause damage to the engine.
Page 533: If The Vehicle Becomes Stuck
5-2. Steps to take in an emergency If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes stuck in mud, dirt, or snow. Stop the engine. Set the parking brake and put the shift STEP lever in P.
Page 534 5-2. Steps to take in an emergency...
Page 535: Specifications Maintenance Data (Fuel, Oil Level, Etc.)
6-1. Specifications Maintenance data (fuel, oil level, etc.) Dimensions and weights Overall length 201.0 in. (5105 mm) Overall width 77.4 in (1965 mm) Overall height 68.9 in (1750 mm) Wheelbase 119.3 in (3030 mm) 65.6 in (1665 mm) Front 65.9 in (1675 mm) Tread 66.9 in (1700 mm) Rear...
Page 536: 6-1. Specifications
Vehicle identification number ■ The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle. This number is stamped on the top left of the instrument panel.
Page 537 6-1. Specifications Engine Model 2GR-FE engine Type 6 cylinder V type, 4 cycle, gasoline 3.70 × 3.27 in. (94.0 × 83.0 mm) Bore and stroke Displacement 210.9 cu.in. (3456 cm Drive belt tension Automatic adjustment Valve clearance Fuel Fuel type Unleaded gasoline only Octane rating 87 (Research Octane Number 91) or higher...
Page 538 6.4 qt. (6.1 L, 5.4 Imp.qt.) Without filter 6.0 qt. (5.7 L, 5.0 Imp.qt.) Oil grade ILSAC multigrade engine oil Use Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy the grade and viscosity shown below. Recommended oil viscosity...
Page 539: Spark Plug
Cooling system Capacity 12.0 qt. (11.3 L, 10.0 Imp.qt.) (Reference) Use either of the following. • “Toyota Super Long Life Coolant” • Similar high-quality ethylene glycol-based non- Coolant type silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technol- Do not use plain water alone.
Page 540 Toyota Genuine ATF WS NOTICE Automatic transmission fluid type ■ Using automatic transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damage the transmission of your vehicle.
Page 541 6-1. Specifications Brakes Pedal clearance 2.0 in. (52 mm) 0.04 ⎯ 0.24 in. (1 ⎯ 6 mm) Pedal free play Brake pad wear limit 0.04 in. (1.0 mm) Parking brake lining wear limit 0.04 in. (1.0 mm) 3 ⎯ 5 clicks Parking brake pedal travel Fluid type SAE J1703 or FMVSS No.116 DOT 3...
Page 542: Tail Lights
6-1. Specifications Light bulbs Light Bulbs Bulb No. Type Headlights (low beam) ⎯ With discharge headlights Without discharge headlights 9006 Headlights (high beam) 9005 Front fog lights 9006 Front turn signal and parking 3457A 27/7 lights ⎯ Front side marker lights Exterior Rear turn signal lights 7440...
Page 543: Fuel Information
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada. Fuel tank opening for unleaded gasoline ■ To help prevent incorrect fueling, your Toyota has a fuel tank opening that only accommodates the special nozzle on unleaded fuel pumps. If your engine knocks ■...
Page 544 Toyota allows the use of oxygenate blended gasoline where the oxygen- ● ate content is up to 10% ethanol or 15% MTBE. If you use gasohol in your Toyota, be sure that it has an octane rating no ● lower than 87.
Page 545 6-1. Specifications NOTICE Notice on gasoline quality ■ Do not use leaded gasoline. ● Leaded gasoline can cause damage to your vehicle’s catalytic converters causing the emission control system to malfunction. Do not use gasohol other than that stated here. ●...
Page 546: Tire Information
6-1. Specifications Tire information Typical tire symbols Run-flat tire or standard tire Compact spare tire Tire size (→P. 556) DOT and Tire Identification Number (TIN) (→P. 555) Uniform tire quality grading For details, see “Uniform Tire Quality Grading” that follows. Location of treadwear indicators (→P.
Page 547 6-1. Specifications Run-flat tire (RFT) or standard tire (→P. 515) This vehicle can be equipped with either run-flat tires (RFT) or standard tires. A “RFT” or “DSST” mark is molded on the sidewall of the run-flat tire. Tire ply composition and materials Plies are layers of rubber-coated parallel cords.
Page 548 6-1. Specifications Typical DOT and Tire Identification Number (TIN) DOT symbol Tire Identification Number (TIN) Tire manufacturer's identifica- tion mark Tire size code Manufacturer's optional tire type code (3 or 4 letters) Manufacturing week Manufacturing year : The DOT symbol certifies that the tire conforms to applicable Federal...
Page 549 6-1. Specifications Tire size Typical tire size information ■ The illustration indicates typical tire size. Tire use (P = Passenger car, T = Temporary use) Section width (millimeters) Aspect ratio (tire height to section width) Tire construction code (R = Radial, D = Diagonal) Wheel diameter (inches) Load index (2 or 3 digits) Speed symbol...
Page 550 U.S. Department of Transportation. It provides the purchasers and/or prospective purchasers of Toyota vehicles with information on uniform tire quality grading. Your Toyota dealer will help answer any questions you may have as you read this information. DOT quality grades ■...
Page 551 6-1. Specifications Treadwear ■ The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speci- fied government test course. For example, a tire graded 150 would wear one and a half (1-1/2) times as well on the government course as a tire graded 100.
Page 552 6-1. Specifications Warning: The temperature grades for this tire are established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either sepa- rately or in combination, can cause heat buildup and possible tire fail- ure.
Page 553 6-1. Specifications Tire related term Meaning 150 lb. (68 kg) times the number of occupants Normal occupant specified in the second column of Table 1 that weight follows Distribution of occupants in a vehicle as speci- Occupant distribution fied in the third column of Table 1 below The combined weight of installed regular pro- duction options weighing over 5 lb.
Page 554 6-1. Specifications Tire related term Meaning The surface area of the rim not covered by the Weather side inflated tire The part of the tire that is made of steel wires, Bead wrapped or reinforced by ply cords and that is shaped to fit the rim A breakdown of the bond between components Bead separation...
Page 555 6-1. Specifications Tire related term Meaning The parting of the innerliner from cord material Innerliner separation in the carcass (a) The sidewall that contains a whitewall, bears white lettering, or bears manufac- turer, brand, and/or model name molding that is higher or deeper than the same Intended outboard molding on the other sidewall of the tire, or sidewall...
Page 556 6-1. Specifications Tire related term Meaning A layer of rubber-coated parallel cords A parting of rubber compound between adja- Ply separation cent plies A mechanical device made of rubber, chemi- cals, fabric and steel or other materials, that, Pneumatic tire when mounted on an automotive wheel, pro- vides the traction and contains the gas or fluid that sustains the load...
Page 557 6-1. Specifications Tire related term Meaning That portion of a tire that comes into contact Tread with the road A tread section running circumferentially Tread rib around a tire Tread separation Pulling away of the tread from the tire carcass The projections within the principal grooves Treadwear indicators designed to give a visual indication of the...
Page 558: 6-2. Customization
Your vehicle includes a variety of electronic features that can be per- sonalized to your preferences. Programming these preferences requires specialized equipment and may be performed by your Toy- ota dealer. Some function settings are changed simultaneously with other functions being customized. Contact your Toyota dealer. Customized Item Function Default setting...
Page 559 6-2. Customization Customized Item Function Default setting setting Power sliding door Press twice operation Wireless Press and hold One short press remote con- trol → P. 27) Power back door oper- Press twice ation Press and hold One short press Driver's door unlocked in one All doors...
Page 560: Engine Switch
6-2. Customization Customized Item Function Default setting setting 7.5 seconds Time elapsed before 15 seconds lights turn off 30 seconds Operation when the Illumination doors are unlocked → P. 361) Operation after the engine switch is turned to the “LOCK” position Outer foot lights Seat belt Vehicle speed linked...
Page 561: Initialization Items To Initialize
6-3. Initialization Items to initialize The following items must be initialized for normal system operation in cases such as after maintenance is performed on the vehicle. Item When to initialize Reference Power sliding door After reconnecting or changing the P. 37 (if equipped) battery Power back door...
Page 562: Reporting Safety Defects For U.s. Owners
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-331-4331). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 563: Seat Belt Instructions For Canadian Owners (In French)
Seat belt instructions for Canadian owners (in French) The following is a French explanation of seat belt instructions extracted from the seat belt section in this manual. See the seat belt section for more detailed seat belt instructions in English. Utilisation correcte des ceintures de sécurité...
Page 564 ATTENTION ■ Lorsque vous utilisez la ceinture de sécurité du siège central de la troisième rangée N'utilisez pas la ceinture de sécurité du siège central de la troisième rangée avec l'une l'autre boucles déverrouillées. Si une seule des boucles est verrouillée, ceci peut entraîner des blessures graves, voire mortelles en cas de freinage brusque ou de collision.
Page 565 Entretien et soin ■ Ceintures de sécurité Nettoyez avec un chiffon ou une éponge humectée d'eau savonneuse tiède. Profitez de l'occasion pour vérifier régulièrement que les ceintures ne sont pas effilochées, entaillées, ou ne paraissent pas exagérément usées. ATTENTION ■ Détérioration et usure des ceintures de sécurité...
Page 567: Abbreviation List
Abbreviation list Abbreviation/Acronym list ABBREVIATIONS MEANING 2 Wheel Drive All Wheel Drive Anti-lock Brake System Accessory Automatic Locking Retractor Average Calibration Child Restraint System Electronic Control Unit Event Data Recorder Emergency Locking Retractor English/U.S. customary system/Metric GAWR Gross Axle Weight Rating GVWR Gross Vehicle Weight Rating Emission inspection and maintenance...
Page 568 Abbreviation list ABBREVIATIONS MEANING TRAC Traction Control Variation Vehicle Identification Number Vehicle Stability Control...
Page 569: Alphabetical Index
Alphabetical index Alphabetical index A/C.....240, 246, 256, 253 Side airbag operating ABS ...........215 conditions ......121 Air conditioning filter....469 Side airbag precautions ..125 Air conditioning system SRS airbags......118 Air conditioning filter....469 Alarm.........113 Front automatic air Antenna ........268 conditioning system ....246 Anti-lock brake system ...
Page 570 Alphabetical index Back-up lights Child restraint system Replacing light bulbs .... 486 Booster seats, definition..136 Wattage ........ 549 Booster seats, installation ..140 Back door Convertible seats, Back door ....... 47 definition ......136 Wireless remote control..27 Convertible seats, Battery installation......140 Checking ......
Page 571 Alphabetical index Cleaning Daytime running light Exterior........418 system ........188 Interior ........421 Defogger Seat belts ......422 Rear window ......260 Clock .........385 Side mirrors......260 Coat hooks .......396 Dimension ........542 Coin holder .......369 Dinghy towing ......237 Compass........413 Display Condenser ........446 Dynamic laser cruise Console box ......365 control.........
Page 572 Alphabetical index Emergency, in case of Engine coolant If the back door opener is Capacity ........546 inoperative ......49 Checking .......444 If the engine will not start..529 Preparing and checking before If the shift lever cannot be winter ........226 shifted ........
Page 573 Alphabetical index Front fog lights Garage door opener ....405 Replacing light bulbs .....486 Garage door opener box ..410 Switch........190 Gas station information ..592 Wattage.........549 Gauges........174 Front manual air conditioning Glove box .........365 system ........240 Grocery bag hooks ....394 Front passenger occupant classification system ....130 Hands-free system...
Page 574 Alphabetical index I/M test........429 License plate lights Identification Replacing light bulbs .....486 Engine ........543 Wattage.........549 Vehicle........543 Light bulbs Ignition switch ......167 Replacing ......486 Illuminated entry system ..361 Wattage.........549 Indicator lights ......177 Lights Initialization Door courtesy lights ....361 Items to initialize....
Page 575 Alphabetical index Maintenance Parking assist sensors.... 209 Do-it-yourself Parking brake ......173 maintenance .......430 Parking lights General maintenance....426 Replacing light bulbs..... 486 Maintenance data....542 Switch ........185 Maintenance requirements..424 Wattage......... 549 Meter Personal lights Instrument panel light Switch ........362 control .........176 Wattage.........
Page 576 Alphabetical index Rear turn signal lights Seats Replacing light bulbs .... 486 Adjustment ....56, 59, 61 Wattage ........ 549 Adjustment Rear window defogger.... 260 precaution ....58, 60, 62 Rear window wiper....193 Child seats/child restraint Replacing system installation ....140 Fuses........474 Cleaning ........421 Light bulbs ......
Page 577 Alphabetical index Spare tire Tables Inflation pressure....548 Front seat side table .....399 Spare tire.......516 Seatback tables ....397 Spark plug ........546 Tachometer ......174 Specifications......542 Tail lights Speech command switch ..332 Replacing light bulbs..... 486 Speedometer ......174 Switch ........185 Steering Wattage.........
Page 578 Alphabetical index Towing Warning buzzers Dinghy towing....... 237 Brake system ......504 Trailer towing......229 Seat belt reminder....507 Traction control....... 215 Warning lights TRAC ........215 Anti-lock brake system ..505 Trays......... 380 Brake assist system ....505 Trip information display ..181 Brake system ......504 Trip meter.........
Page 579 Alphabetical index Weight Cargo capacity ......219 Load limits ......225 Weight ........542 Wheels ........467 Window glasses ......100 Window lock switch....100 Windows Power windows .....100, 102 Rear window defogger ..260 Washer......191, 193 Windshield wiper de-icer..260 Windshield wipers ....191 Wireless remote control Replacing the battery ....472 Wireless remote control ..27 WMA disc........279...
Page 580: What To Do If
What to do if... What to do if... P. 515/ If you have a flat tire A tire punctures P. 516 If the engine will not start P. 529 The engine does not start Engine immobilizer system P. 111 If the battery is discharged P.
Page 581 What to do if... If a warning light turns on or a A warning light or indicator light P. 504 warning buzzer sounds... comes on Optitron type meters Non-Optitron type meters...
Page 582 What to do if... ■Warning lights Brake system warning Low fuel level warning light light P. 507 Driver’s seat belt reminder light P. 504 P. 507 Front passenger’s seat belt Charging system warn- reminder light ing light P. 505 P. 507 Low engine oil pressure Engine oil replacement warning light...
Page 583 Engine oil capacity qt. (L, Imp.qt.) Drain and refill Without filter 6.0 (5.7, 5.0) (Reference) With filter 6.4 (6.1, 5.4) Toyota Genuine Motor Oil or equivalent Oil grade: P. 545 Engine oil type ILSAC multigrade engine oil Recommended oil viscosity: SAE 5W-30...
