Installing the Access Point

Service to all Hewlett Packard Enterprise access points
should be performed by an AMCP certified technician or
similar.
The OC20 access points ship with two ceiling rail adapters for 9/
16" and 15/16" ceiling rails. Additional ceiling rail adapters for
other rail styles and wall mount adapters are available as
accessory kits.
!
The installer is responsible for securing the access point onto
the ceiling tile rail in accordance with the steps below. Failure
to properly install this product may result in physical injury
and/or damage to property.
1. Pull the necessary cables through a prepared hole in the
ceiling tile near where the access point will be placed.
2. Place the adapter against the back of the access point with
the adapter at an angle of approximately 30 degrees to the
tabs (see Figure 3).
3. Twist the adapter clockwise until it snaps into place in the
tabs (see Figure 3).

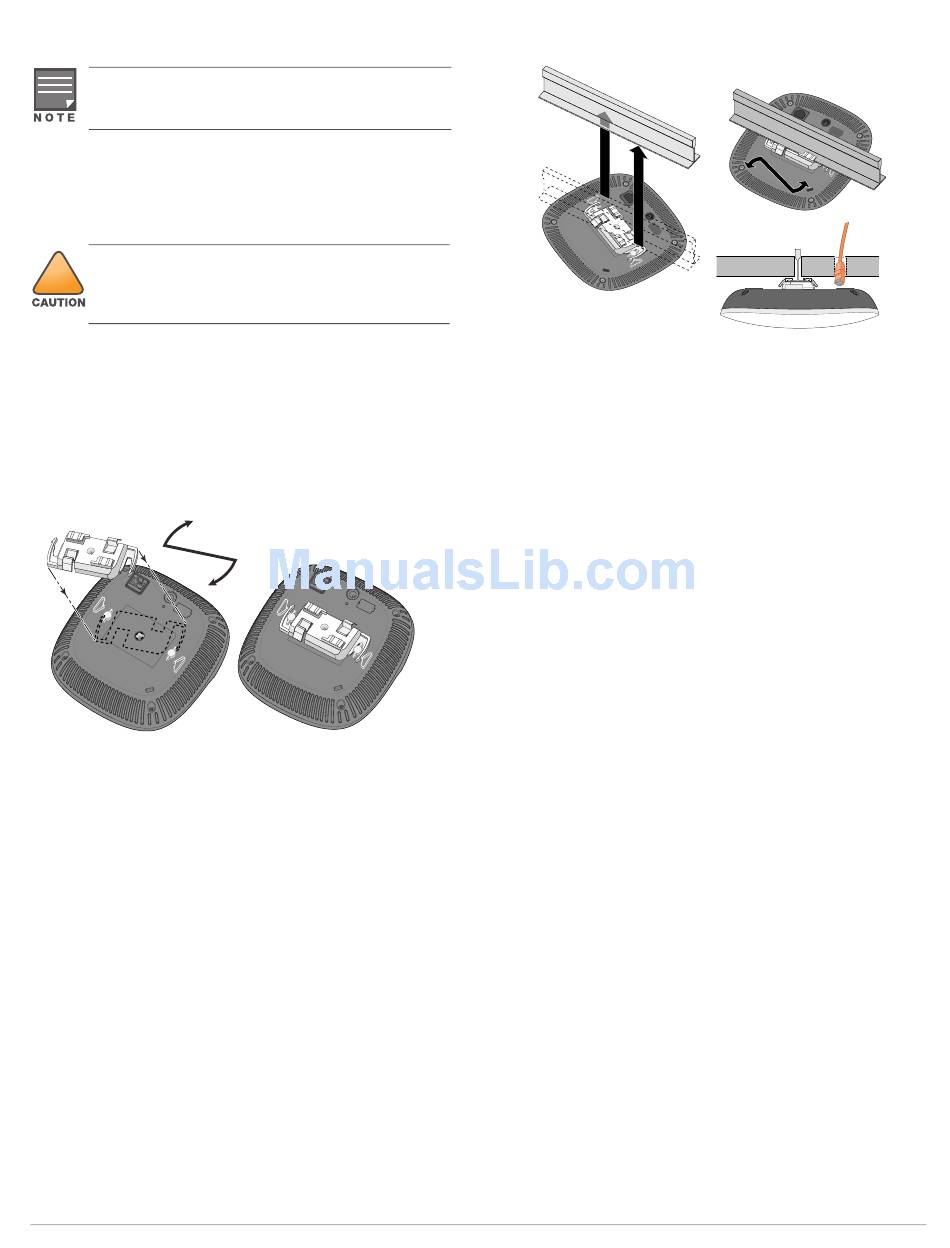

Attaching the Ceiling Rail Adapter
Figure 3
4. Hold the access point next to the ceiling tile rail with the
ceiling tile rail mounting slots at approximately a 30-degree
angle to the ceiling tile rail (see
cable slack is above the ceiling tile.
5. Pushing toward the ceiling tile, rotate the access point
clockwise until the device clicks into place on the ceiling tile
rail.
3
Figure 4). Make sure that any
Mounting the Access Point
Figure 4
Connecting Required Cables
Install cables in accordance with all applicable local and national
regulations and practices.
Configuration via the OfficeConnect App
Once the device is installed and powered up, it is configured via
the OfficeConnect app, which can be downloaded from the
® ®
Apple App Store or Google Play™ store. Launch the app for
step-by-step instructions on configuring your OC20 access point.
Verifying Post-Installation Connectivity
The integrated LEDs on the access point can be used to verify
that the access point is receiving power and initializing
successfully (see Table 1). Refer to the OfficeConnect Quick
Start Card included in the box with your OC20 AP for further
details on verifying post-installation network connectivity.
