KONVEKTA KL60CT/4 Operating Instruction

With digital air conditioning control system ks105. compressor:fkx4 / kv4; fkx24 / kv5; fkx40 / kv6
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

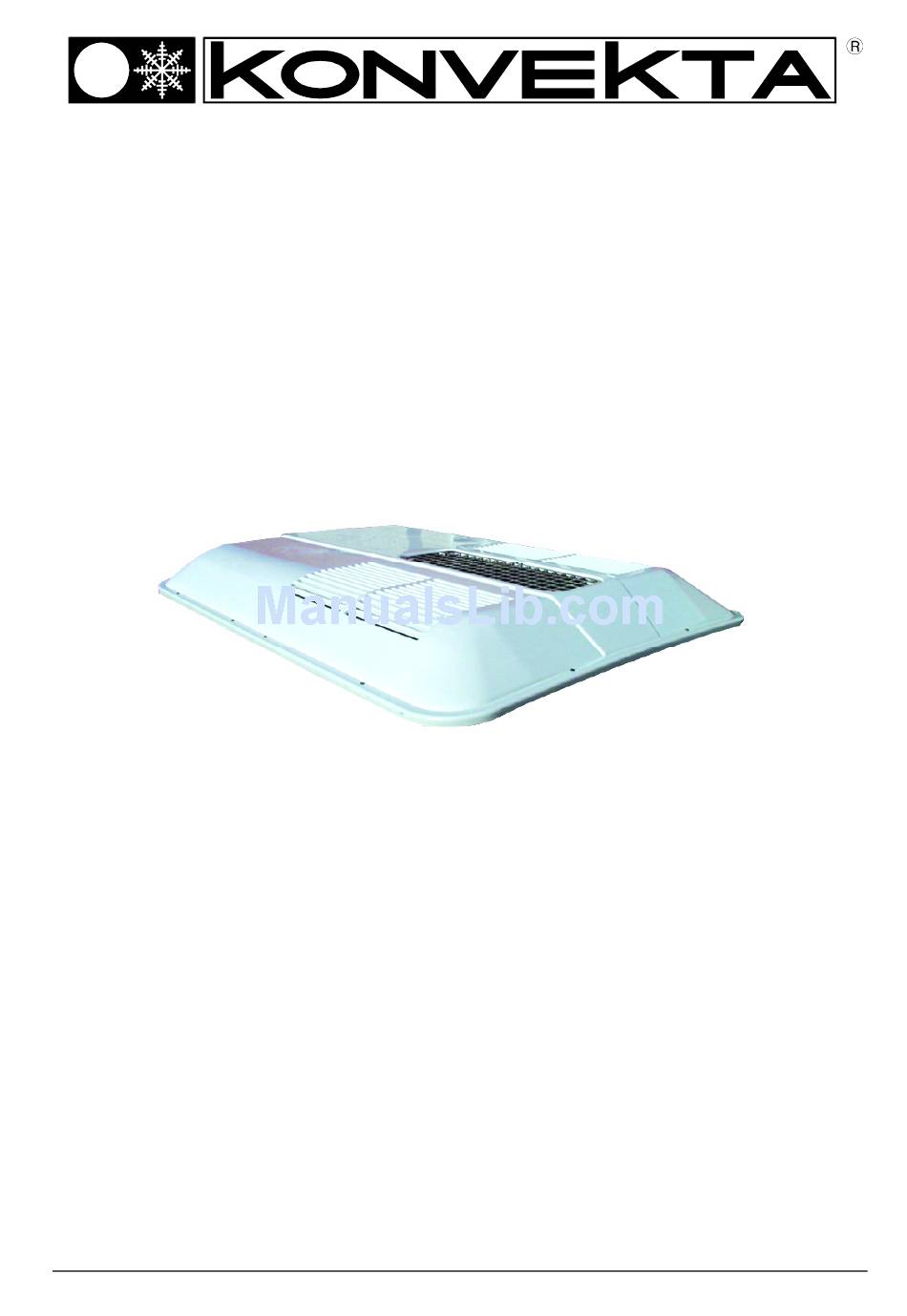

Operating Instruction

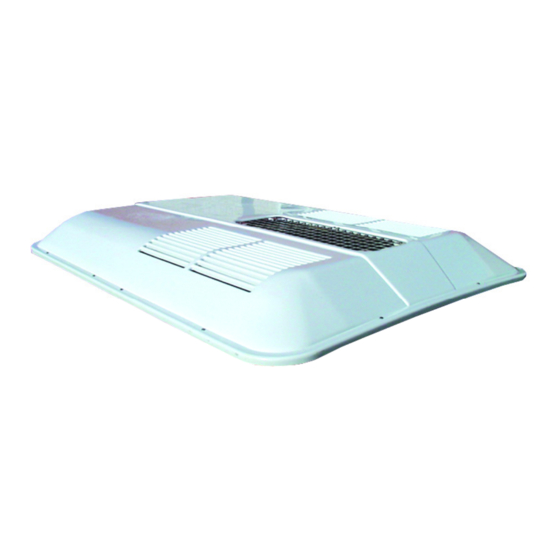

KONVEKTA Air Conditioner
KL60CT/4/fully automatic version
With digital air conditioning control system KS105
• R134a
• 24Volt DC
• Compressor:
ID#: BA- KL6C502AA
e-mail:
af tersales@konvekta.com
Internet: www.konvekta.com
FKX4 / KV4
FKX24 / KV5
FKX40 / KV6
for
KONVEKTA AG
P.O.Box 2280
34607 Schwalmstadt
GERMANY
Tel.:
(+49) 6691/76-0
Fax.: (+49) 6691/76-200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KL60CT/4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KONVEKTA KL60CT/4

Summary of Contents for KONVEKTA KL60CT/4

  • Page 1: Operating Instruction

    Operating Instruction KONVEKTA Air Conditioner KL60CT/4/fully automatic version With digital air conditioning control system KS105 • R134a • 24Volt DC • Compressor: FKX4 / KV4 FKX24 / KV5 FKX40 / KV6 KONVEKTA AG ID#: BA- KL6C502AA P.O.Box 2280 34607 Schwalmstadt...

  • Page 2: Table Of Contents

    Technical data air conditioner ..................5 1.1. Pressure Switch........................ 5 1.2. Technical data compressors ..................... 5 1.2.1. Type KONVEKTA KV4-KV6 ..................6 1.2.2. Type FKX........................6 Determined use........................7 Working with air conditioning unit ................... 7 Task and function of air conditioning unit............... 8 4.1.

  • Page 3: Foreword

    KONVEKTA or its distributors in case other than original KONVEKTA spare parts or parts bought from KONVEKTA AG have been used for maintenance and repair. This Operating instruction contain all necessary information to operate your air conditioner. In case you need more explanations please contact the next KONVEKTA service station see hand book: „KONVEKTA Service Stations“...

  • Page 4: Notes To The Operating Instruction

    In case your product is equipped with details not shown or described in the operating in- struction, your KONVEKTA -Service-Station will always be at disposal for informing you about correct operation. In the course of further developments we reserve the right to technical modifications without prenotice.

  • Page 5: Technical Data Air Conditioner

    BAKL6C502AA.doc 1. Technical data air conditioner Type KL60CT/4 Refrigerant R134a ·- quantity approx. Operating voltage Volt DC Current consumption Cooling capacity 22.000 Air volume 28.000 4.800 Measurements: - length - width 2.596 - height 1.800 Weight of unit, 1.1. Pressure Switch 0,3 ±...

  • Page 6: Type Konvekta Kv4-Kv6

    BAKL6C502AA.doc 1.2.1. Type KONVEKTA KV4-KV6 Compressor Type KV 4* KV 5 KV 6* Weight 32 kg 32 kg 32 kg Oil brand / quantity Esteröl SE55 / 2l Esteröl SE55 / 2l Esteröl SE55 / 2l Magnetic clutch 24V DC...

  • Page 7: Determined Use

    BAKL6C502AA.doc 2. Determined use The KONVEKTA air conditioner represents an air conditioning system that works with the ozone friendly refrigerant R 134a and which creates a pleasant and individually adjustable room tempera- ture by means of forced convection. The determined use includes also the observance of the Oper- ating instruction and the proof of regular inspections as well.

  • Page 8: Task And Function Of Air Conditioning Unit

    (H218 red) is flashing up. See Chapter 7, (Fault indicators and corrective action). − In case of an eventual damage of the a/c unit - operation should immediately be inter- rupted to avoid consequential damages. It’s recommended to contact one of KONVEKTA’s Service Stations and the unit should first be taken into operation again after it has been checked through specialists.

  • Page 9: Cooling Operation

    Step 1 on: approx. 4 K below setpoint temperature Step 2 on: approx. 6 K below setpoint temperature Step 2 off: approx. 4 K below setpoint temperature Step 1 on: approx. 2,5 K below setpoint temperature KONVEKTA AG Edition: 12.07.2001 Page: 9/13...

  • Page 10: Operator Controls

    If smog switch (S411) is activated, return air-, /mixed air-/ fresh air flap changes to position return air, even if air flap position is e.g. adjusted to fresh air position. Note: After a while switch has to be readjusted to position mixed - or fresh air. KONVEKTA AG Edition: 12.07.2001 Page: 10/13...

  • Page 11: Maintenance / Servicing

    Regular cleaning should be executed 2 times per year. In case of enormous dirt more than 2 times (blow through the condenser coil with compressed air). see hand book„KONVEKTA Service Stations source of supply: KONVEKTA AG, P.O. Box 2280, D-34607 Schwalmstadt KONVEKTA AG Edition: 12.07.2001...

  • Page 12: Trouble Check List

    V-belt check V-belt at compressor drive magnetic clutch check connections at magnetic clutch see handbook „KONVEKTA Service Stations“ operator is allowed to execute these works KONVEKTA AG Edition: 12.07.2001 Page: 12/13...

  • Page 13: Regulation Of Damages During The Warranty Period

    Apart from our warranty regulations and without recognition of any legal obligation we are prepared to take over according to our judgement costs for dismounting and re-installation in correspondence with our warranty time table. Assumption therefore is that these works are made by us or by an authorized KONVEKTA -service sta- tion.
