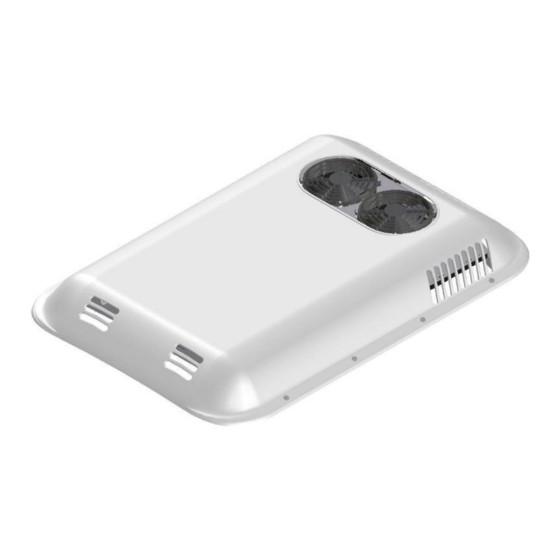

Operating Instruction

KL40T / KL45T / KL46T
with control KS55-Basic
Versions:
- 12 bzw. 24 Volt DC
- Recirculated Air
- Recirculated / Fresh Air
- Recirculated / Fresh Air / Heating
ID#: BBA-KL40T12AK
Version: A03
for KONVEKTA

Air Conditioning unit

Konvekta AG
Am Nordbahnhof 5
34613 Schwalmstadt
Germany
+49 ( 0 ) 66 91 / 76 – 0
+49 ( 0 ) 66 91 / 76 -
200
Info@konvekta.com
www.konvekta.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KL40T/12V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KONVEKTA KL40T/12V

  • Page 1: Operating Instruction

    Operating Instruction for KONVEKTA Air Conditioning unit KL40T / KL45T / KL46T with control KS55-Basic Versions: - 12 bzw. 24 Volt DC - Recirculated Air - Recirculated / Fresh Air Konvekta AG - Recirculated / Fresh Air / Heating Am Nordbahnhof 5...
  • Page 2: Table Of Contents

    Contents Page: • Introduction .......................... 3 • Information on the operating instructions ................4 Technical data ........................4 1.1. Compressors ........................5 Determined use ........................ 5 Generally information for a/c unit ................... 6 3.1. Operating Conditions ......................6 Introduction control KS55 ....................6 Operation ..........................
  • Page 3: Introduction

    KONVEKTA will annul without prenotice all obligations concerning guarantee, service con- tracts etc. regardless if granted by KONVEKTA or its distributors in case other than original KONVEKTA spare parts or parts bought from KONVEKTA AG have been used for mainte- nance and repair.
  • Page 4: Information On The Operating Instructions

    In case your product is equipped with details not shown or described in the operat- ing instruction, your KONVEKTA -Service-Station will always be at disposal for in- forming you about correct operation.
  • Page 5: Compressors

    ø depending on vehicle type Determined use The KONVEKTA air conditioner represents an air conditioning system that works with the ozone friendly refrigerant R 134a and which creates a pleasant and individually adjustable room tempera- ture by means of forced convection. The determined use includes also the observance of the Op- erating instruction and the proof of regular inspections as well.
  • Page 6: Generally Information For A/C Unit

    If you think that the a/c unit is damaged, switch it off immediately. To avoid further dam- age have it check at a KONVEKTA Service Station . Only after that you can take unit into op- eration.
  • Page 7: Operation

    5. Operation Danger of accident! − Focussing your attention on the road traffic is of top priority. − Only operate your air conditioning unit when the traffic situation allows it. − Make sure you can clearly recognize and read all operation- and display-elements at any time. −...
  • Page 8: Description Of The Display (Lcd Symbols)

    5.2. Description of the display (LCD symbols) Symbol Function Ambient-temperature display Room-temperature display 4-digit display for temperature / trouble-code etc. Passenger compartment Manual blower positions 1-7 Error in system Compressor is ON Evaporator blowers are ON Recirculated air flap in recirculated air mode Actual operation mode AUTO / REHEAT / HEAT / COOL...
  • Page 9: Maintenance / Servicing

    Before carrying out any maintenance works at your air conditioning unit, carefully read the KONVKETA safety provisions (TD00052A ) in order to avoid any dangers and accidents! On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location Source of supply: KONVEKTA AG, P.O.
  • Page 10: Troubleshooting

    − replace either bearing or entire com- compressor pressor slack V-belt − check V-belt at compressor drive On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location By user BAKL40T12AK Edition: 01.03.2107...
  • Page 11: Warranty Conditions

    Warranty Conditions The current „General Warranty Conditions KONVEKTA AG“ will apply. A copy will be furnished by the warranty department. Please contact gwl@konvekta.com Waste disposal in accordance with legal provisions After the phase of use the last proprietor is responsible for the adequate waste manage- ment.
