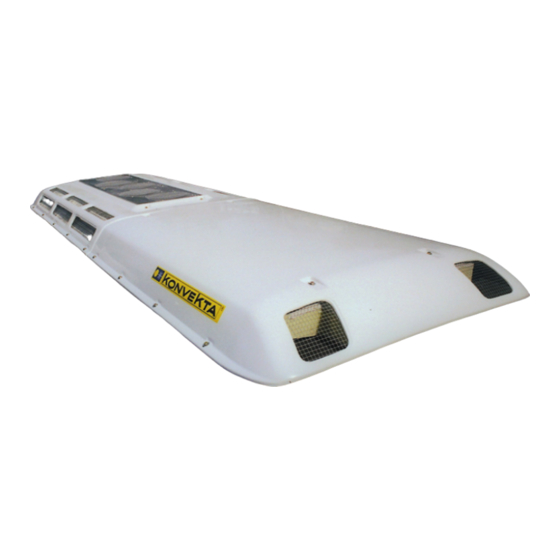

Operating Instruction

for KONVEKTA
Air Conditioning units
KL60
with control KS310
R134a
24 Volt DC
Versions:
ID#: BBA-KL60T12AE
Version: A02
up to
− Recirculated Air
− Fresh Air
− Heating
KL85T
Konvekta AG
Am Nordbahnhof 5
34613 Schwalmstadt
Germany
✆
+49 ( 0 ) 66 91 / 76 – 0
+49 ( 0 ) 66 91 / 76 - 200
Info@konvekta.com
www.konvekta.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KL60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KONVEKTA KL60

Summary of Contents for KONVEKTA KL60

  • Page 1: Operating Instruction

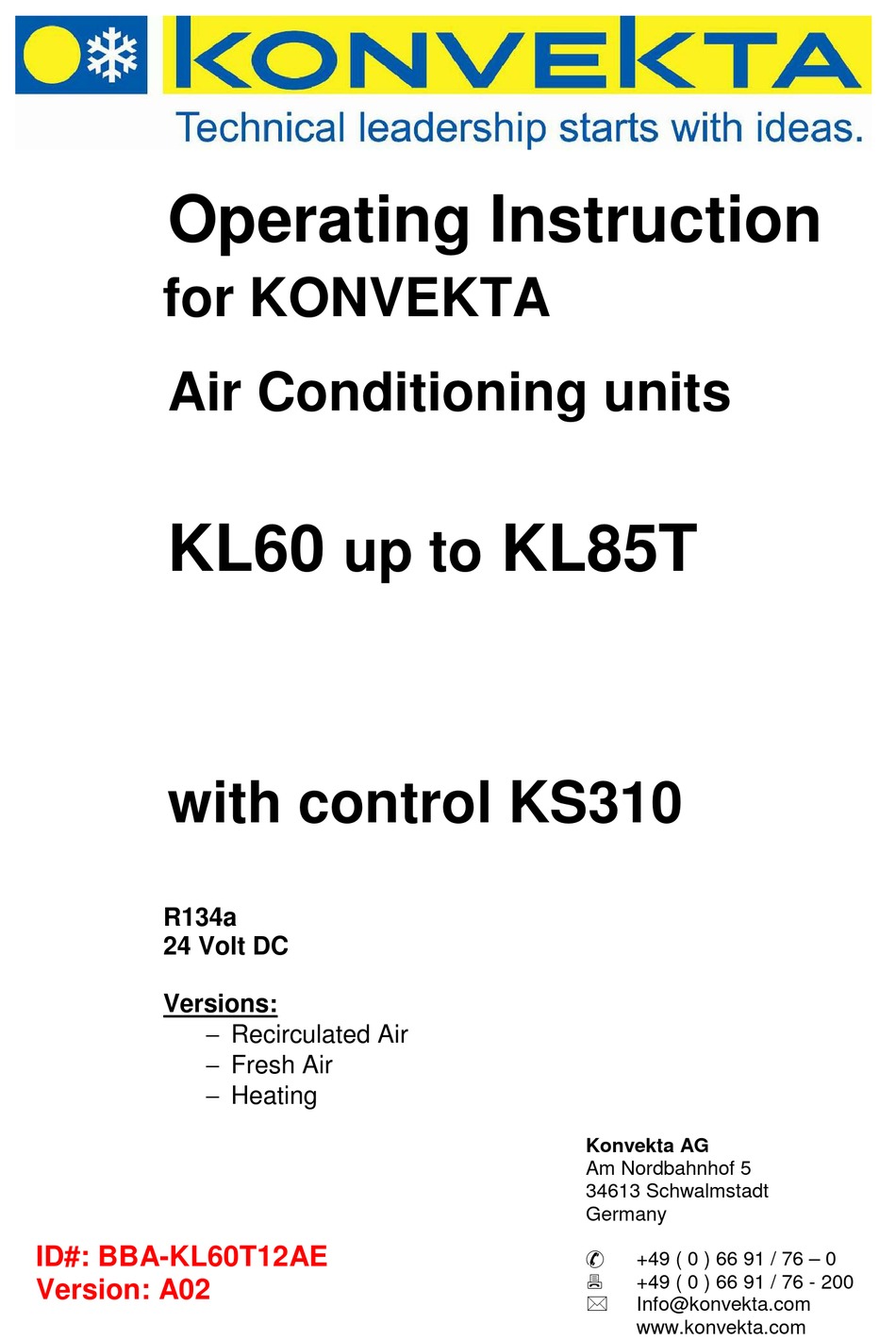

    Operating Instruction for KONVEKTA Air Conditioning units KL60 KL85T up to with control KS310 R134a 24 Volt DC Versions: − Recirculated Air − Fresh Air − Heating Konvekta AG Am Nordbahnhof 5 34613 Schwalmstadt Germany ID#: BBA-KL60T12AE ✆ +49 ( 0 ) 66 91 / 76 – 0...

  • Page 2: Table Of Contents

    • Information on the operating instructions ................ 4 • Technical data ........................4 1.1. Air conditioning units KL60 (T), KL65 (T), KL70T, KL80T ........... 4 1.2. Technical data compressors ....................4 1.2.1. Type KVX40 ........................5 Determined use ........................ 5 2.1.

  • Page 3: Introduction

    In case you need more explanations, please contact the next KONVEKTA ser- vice station. On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location.

  • Page 4: Technical Data

    In the course of further developments we reserve the right to technical modifications without preno- tice. Guarantee and liability conditions of KONVEKTA AG’s general business conditions are not enlarged by the above notes. Indications and photos should neither be copied and circulated nor used for competitor’s purposes.

  • Page 5: Type Kvx40

    The air conditioning unit may be taken into operation again only after it has been checked at a KONVEKTA Service Station. On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location.

  • Page 6: Operation

    Operation Danger of accidents! Focussing your attention on the road traffic is of top priority Only operate your air conditioning unit when the traffic situation allows it Make sure you can clearly recognize and read all operation- and display-elements at any time Protect all displays against irritating sun glare and any other optical disturbances Please note that the control panel keys have not been designed for heavy stressing Excessive or fast pressing of the keys for adjusting the set temperature does not accelerate the...

  • Page 7: Description Keys Driver's Seat

    Description keys driver’s seat Function Air distribution at the wind shield. Front box blower wind shield active. Prolonged activation of key: Activation of the defrost – function for the front windshield blower switches Air distribution/ De- to 100% air volume. frost Water valve opened 100%, front box is activated.

  • Page 8: Operation Passengers Compartment

    Operation passengers compartment Function Manual adjustment of air volume The adjustment of the evaporator blower is made in 7 stages. When ignition is ON the blower is limited to stage 3. Infinitely variable: In case of infinitely variable evaporator blower the 7 stages in the software Blower are divided in 7 stages.

  • Page 9: Generally Adjustments

    Function Change display from time to the outside temperature By pressing key S14 the display indication changes from time to the out- side temperature. ICE WARNING FUNCTION: At an outside temperature less than 2° C dis- Programming play flashes up. Circulated air flap is manually brought to the circulated air position Flap turns back to fresh air after 10 minutes.

  • Page 10: Maintenance / Service

    Before carrying out any maintenance works at your air conditioning unit, carefully read the KONVKETA safety provisions (TD00052A ) in order to avoid any dangers and accidents! On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location Source of supply: KONVEKTA AG, P.O.

  • Page 11: Return Air Grid

    With key S10 the fault can be deleted. With key S9 the next fault can be shown. If there is no defect, the display shows E---. If an error is indicated, please let the unit check immediately by a “KONVEKTA service station”. 7.5.

  • Page 12: Troubleshooting

    Defect bearing on compressor. Replace ball bearing or complete compres- sor only On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location By operator Warranty Conditions The current „General Warranty Conditions KONVEKTA AG“...

  • Page 13: Waste Disposal In Accordance With Legal Provisions

    Waste disposal in accordance with legal provisions After the phase of use the last proprietor is responsible for the adequate waste manage- ment. The environmental regulations in the exporting country must be observed. The following list contains the most important regulating literature, valid for the Federal Rep. of Germany: Resolution for dangerous substances Resolution for used oil...

This manual is also suitable for:

Kl85t

Table of Contents
