Operating Instruction

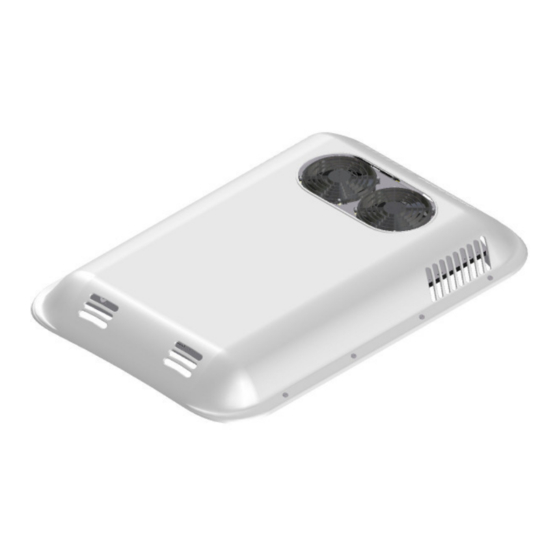

for KONVEKTA Air Conditioning unit
KL40T / KL45T / Kl46T
with control K5
Versions:
12 / 24 Volt DC
Recirculated Air
Fresh Air
Heating
ID#: BBA-KL40T12AB
Version: A06
Konvekta AG
Am Nordbahnhof 5
34613 Schwalmstadt
Germany
✆
+49 ( 0 ) 66 91 / 76 – 0
+49 ( 0 ) 66 91 / 76 – 200
Info@konvekta.com
www.konvekta.com
Advertisement
Table of Contents
Related Manuals for KONVEKTA KL40T
Summary of Contents for KONVEKTA KL40T

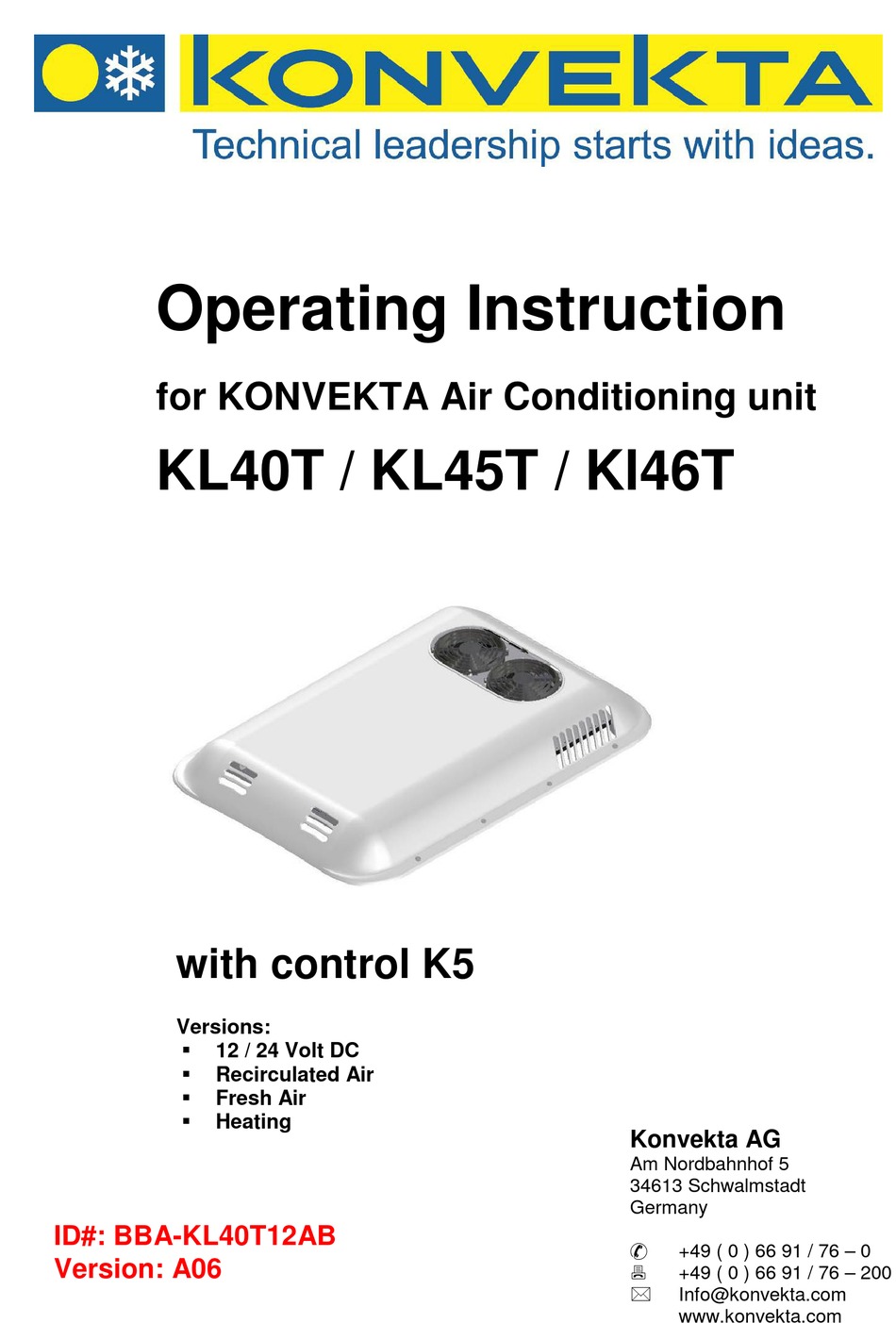

- Page 1 Operating Instruction for KONVEKTA Air Conditioning unit KL40T / KL45T / Kl46T with control K5 Versions: 12 / 24 Volt DC Recirculated Air Fresh Air Heating Konvekta AG Am Nordbahnhof 5 34613 Schwalmstadt Germany ID#: BBA-KL40T12AB ✆ +49 ( 0 ) 66 91 / 76 – 0 Version: A06 +49 ( 0 ) 66 91 / 76 –...
-
Page 2: Table Of Contents
Contents Page: Introduction ......................... 3 • Information on the operating instructions ................ 4 • Technical data ........................4 1.1. Compressors ........................5 Determined use ........................ 5 Generally information for a/c unit ................... 6 3.1. Operating Conditions ......................6 Introduction control K5 ....................6 Operation .......................... -
Page 3: Introduction
In case you need more explanations please contact the next KONVEKTA service station . On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location. -
Page 4: Information On The Operating Instructions
In the course of further developments we reserve the right to technical modifications without preno- tice. Guarantee and liability conditions of KONVEKTA AG’s general business conditions are not enlarged by the above notes. Indications and photos should neither be copied and circulated nor used for competitor’s purposes. -
Page 5: Compressors
ø depending on vehicle type Determined use The KONVEKTA air conditioner represents an air conditioning system that works with the ozone friendly refrigerant R 134a and which creates a pleasant and individually adjustable room tempera- ture by means of forced convection. The determined use includes also the observance of the Oper- ating instruction and the proof of regular inspections as well. -
Page 6: Generally Information For A/C Unit
If you think that the a/c unit is damaged, switch it off immediately. To avoid further damage have it check at a KONVEKTA Service Station . Only after that you can take unit into operation. On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location. -
Page 7: Operation
Operation Risk of accident! Priority must be given to the traffic. • Do only operate your air conditioner if the traffic situation does allow it. • Please make sure that all operation and indicating elements can be recognized and read proper- •... -
Page 8: A/C Operation On / Off
5.2. A/C operation ON / OFF Start vehicle engine (refer to orig. operating instruction of the vehicle). Note: If only the vehicle ignition was switched on without starting the vehicle engine, the blower speed will be reduced to the lowest level after 10 min. -
Page 9: 5.2.1. Manual Adjustment Of The Blower Speed
5.2.1. Manual adjustment of the blower speed The set value will be indicated in the display. e.g. 21° C: The blower speed will be indicated by an illuminat- e.g. speed 100%: ed display. Push shift-key „fan speed manual/automatic“: Press key LED „manual adjustment“... -
Page 10: Manual Heating Operation => Only In Case Of A/C Units With Heating Option
5.3.1. Manual heating operation => only in case of a/c units with heating option Press shift-key heating operation: Press key LED „manual Adjustment“ is lighting up „H“ for manual adjustment of the heating valve will be indicated in the display. The valve control will be indicated by an illuminated Display 100%: display. -
Page 11: Switch Recirc. Air Operation => Only In Case Of A/C Units With Rec. Air Flaps Option
Before carrying out any maintenance works at your air conditioning unit, carefully read the KONVKETA safety provisions (TD00052A ) in order to avoid any dangers and accidents! On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location. -
Page 12: Trouble Indication In The Display
ATTENTION: In case of trouble indication in the display (F0 resp. F1) the control panel is not ready for op- eration. Operation of the a/c system only after verification by qualified a KONVEKTA-Service- Station 6.1.1. Trouble at the temperature sensor F0 (room sensor, blue): A trouble at the room temperature sensor will be indicated by a flashing display. -
Page 13: Troubleshooting
V-belt − check V-belt at compressor drive On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location. By user Warranty Conditions The current „General Warranty Conditions KONVEKTA AG“ will apply. A copy will be furnished by the warranty department. -
Page 14: Waste Disposal In Accordance With Legal Provisions
Waste disposal in accordance with legal provisions After the phase of use the last proprietor is responsible for the adequate waste management. The environmental regulations in the exporting country must be observed. The following list contains the most important regulating literature, valid for the Federal Rep. of Germany: Resolution for dangerous substances Resolution for used oil...
