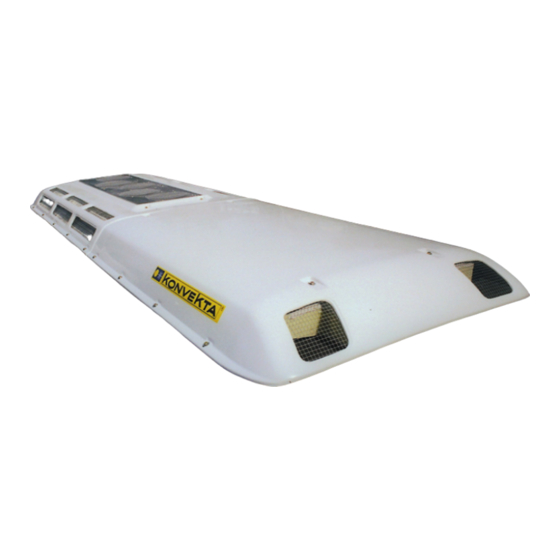

KONVEKTA KL60 Operating Instruction

Air conditioning units
Hide thumbs Also See for KL60:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions

Operating Instruction

for KONVEKTA air conditioning
units
- KL60
- KL80T
Version:
− 12 / 24 Volt DC
− Recirculated Air
with control KS60/12V
ID#:
ID#: BBA
BBA- - - - KL5C232AA
KL5C232AA
ID#:
ID#:
BBA
BBA
KL5C232AA
KL5C232AA
Version: A02
Version: A02
Version: A02
Version: A02
- KL70T
Konvekta AG
Konvekta AG
Konvekta AG
Konvekta AG
Am Nordbahnhof 5
34613 Schwalmstadt
Germany
+49 ( 0 ) 66 91 / 76 – 0
+49 ( 0 ) 66 91 / 76 – 200
Info@konvekta.com
www.konvekta.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KL60 and is the answer not in the manual?

Questions and answers

Related Manuals for KONVEKTA KL60

Summary of Contents for KONVEKTA KL60

  • Page 1: Operating Instruction

    Operating Instruction for KONVEKTA air conditioning units - KL60 - KL70T - KL80T Version: − 12 / 24 Volt DC − Recirculated Air with control KS60/12V Konvekta AG Konvekta AG Konvekta AG Konvekta AG Am Nordbahnhof 5 34613 Schwalmstadt Germany...
