Operating Instruction

for KONVEKTA Air Conditioning unit
KL40T / KL45T / KL45T
with control KS50
Versions:
12 / 24 Volt DC
Recirculated Air
Fresh Air
Heating
ID#: BBA-KL40T12AH
Version: A03
Konvekta AG
Am Nordbahnhof 5
34613 Schwalmstadt
Germany
✆
+49 ( 0 ) 66 91 / 76 – 0
+49 ( 0 ) 66 91 / 76 – 200
Info@konvekta.com
www.konvekta.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KL40T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KONVEKTA KL40T

Summary of Contents for KONVEKTA KL40T

  • Page 1: Operating Instruction

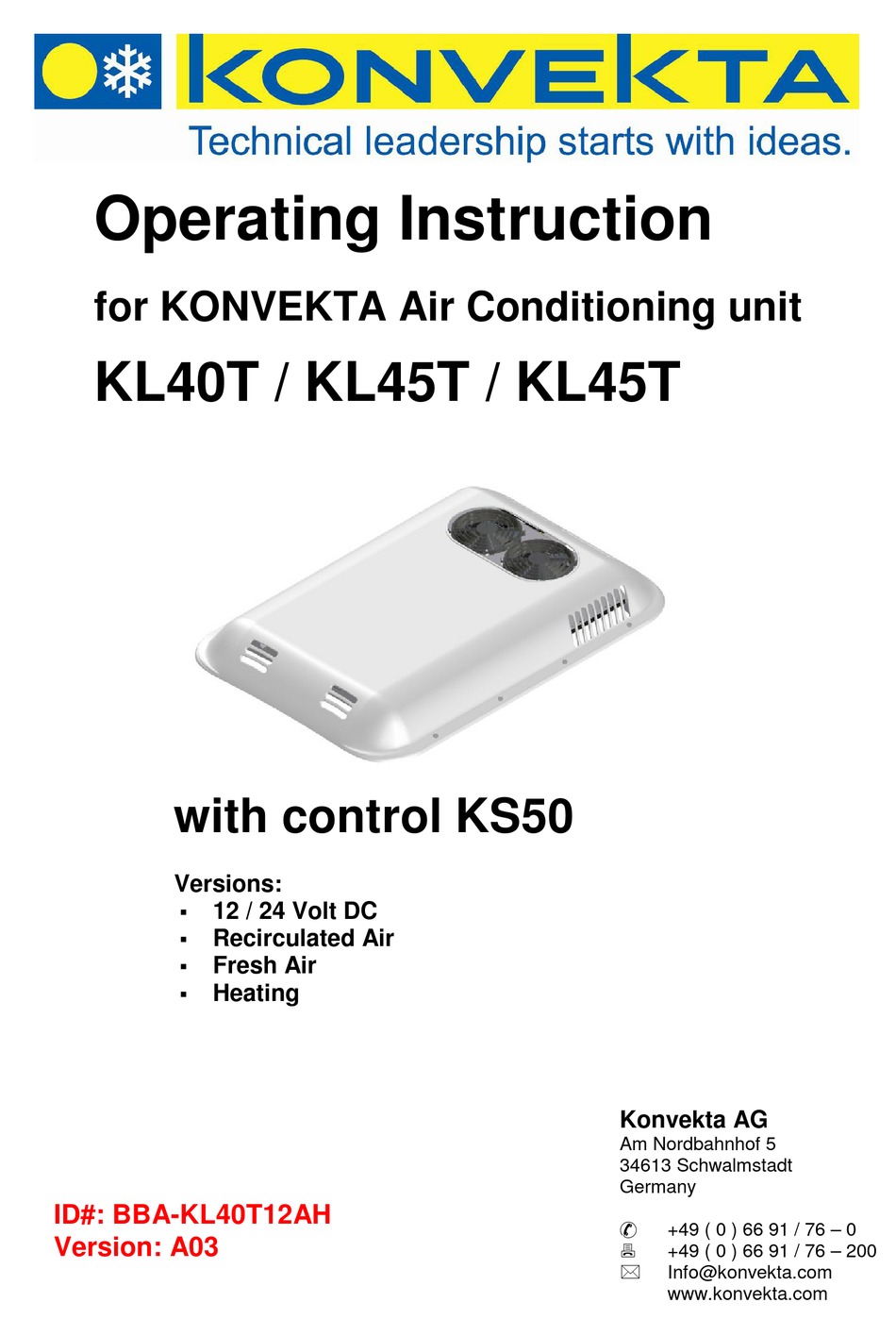

    Operating Instruction for KONVEKTA Air Conditioning unit KL40T / KL45T / KL45T with control KS50 Versions: 12 / 24 Volt DC Recirculated Air Fresh Air Heating Konvekta AG Am Nordbahnhof 5 34613 Schwalmstadt Germany ID#: BBA-KL40T12AH ✆ +49 ( 0 ) 66 91 / 76 – 0 Version: A03 +49 ( 0 ) 66 91 / 76 –...

  • Page 2: Table Of Contents

    Contents Page: Introduction ......................... 3 • Information on the operating instructions ................ 4 • Technical data ........................4 1.1. Compressors ........................5 Determined use ........................ 5 Generally information for a/c unit ................... 6 3.1. Operating Conditions ......................6 Introduction control KS50 ....................6 4.1.

  • Page 3: Introduction

    In case you need more explanations please contact the next KONVEKTA service station . On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location.

  • Page 4: Information On The Operating Instructions

    In the course of further developments we reserve the right to technical modifications without preno- tice. Guarantee and liability conditions of KONVEKTA AG’s general business conditions are not enlarged by the above notes. Indications and photos should neither be copied and circulated nor used for competitor’s purposes.

  • Page 5: Compressors

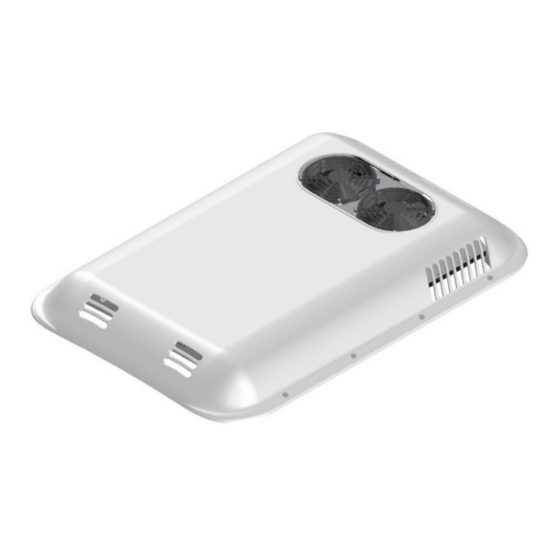

    ø depending on vehicle type Determined use The KONVEKTA air conditioner represents an air conditioning system that works with the ozone friendly refrigerant R 134a and which creates a pleasant and individually adjustable room tempera- ture by means of forced convection. The determined use includes also the observance of the Oper- ating instruction and the proof of regular inspections as well.

  • Page 6: Generally Information For A/C Unit

    If you think that the a/c unit is damaged, switch it off immediately. To avoid further damage have it check at a KONVEKTA Service Station . Only after that you can take unit into operation. On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location 3.1.

  • Page 7: Demounting

    4.2. Demounting 1. Open the accordant cover in the dash board to get access to the back side of the controller. 2. Press the mounting brackets together, either by hand or with a tool, and push the controller for- ward. 3.

  • Page 8: Switch On Air Conditioning Unit

    5.2. Switch on air conditioning unit By pressing key Blowers Plus (1) the A/C is switched on. Press After switching on the controller carries out a self-test. The software version (here: 1.0) as well as the operating mode (here: A) are indicated for approx. 3 sec.

  • Page 9: Manual Adjustment Of The Blowers

    5.5. Manual adjustment of the blowers The controller is in automatic blower operation mode. The AUTO symbol (7) is indicated. To decrease the blower speed press the key Blowers Minus (2). Press The AUTO symbol disappears. The Blower symbol (9) and the current speed in a bar diagram are displayed (here 40%).

  • Page 10: Fresh And Recirculating Air Operation

    If the ambient temperature is cold, the ECON mode should be activated to provide a comfortable climate in the vehicle and to save energy. . 5.7. Fresh and recirculating air operation In fresh air operation mode the air flap is open, a defined share of fresh air is supplied into the interior.

  • Page 11: Changeover Temperature Display Mode

    Dependent on the configuration of the controller, after a defined period of time the demisting mode is deactivated automatically. When the demisting mode is activated the blower speed is increased to 100%. The speed can be adjusted manually on demand. But to reach maximum demisting performance the blower speed should not be decreased.

  • Page 12: 5.10. Switch The Temperature Indication To ° Fahrenheit

    Before carrying out any maintenance works at your air conditioning unit, carefully read the KONVKETA safety provisions (TD00052A ) in order to avoid any dangers and accidents! On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location Source of supply: KONVEKTA AG, P.O.

  • Page 13: Condenser Coil

    V-belt check V-belt at compressor drive • On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location By user BAKL40T12AH Edition: 01.03.2017 Page: 13/14...

  • Page 14: Warranty Conditions

    Warranty Conditions The current „General Warranty Conditions KONVEKTA AG“ will apply. A copy will be furnished by the warranty department. Please contact gwl@konvekta.com Waste disposal in accordance with legal provisions After the phase of use the last proprietor is responsible for the adequate waste management.
