Front Panel Overview

1 2 3 4 5 6 7 8
CONFIG
E
A

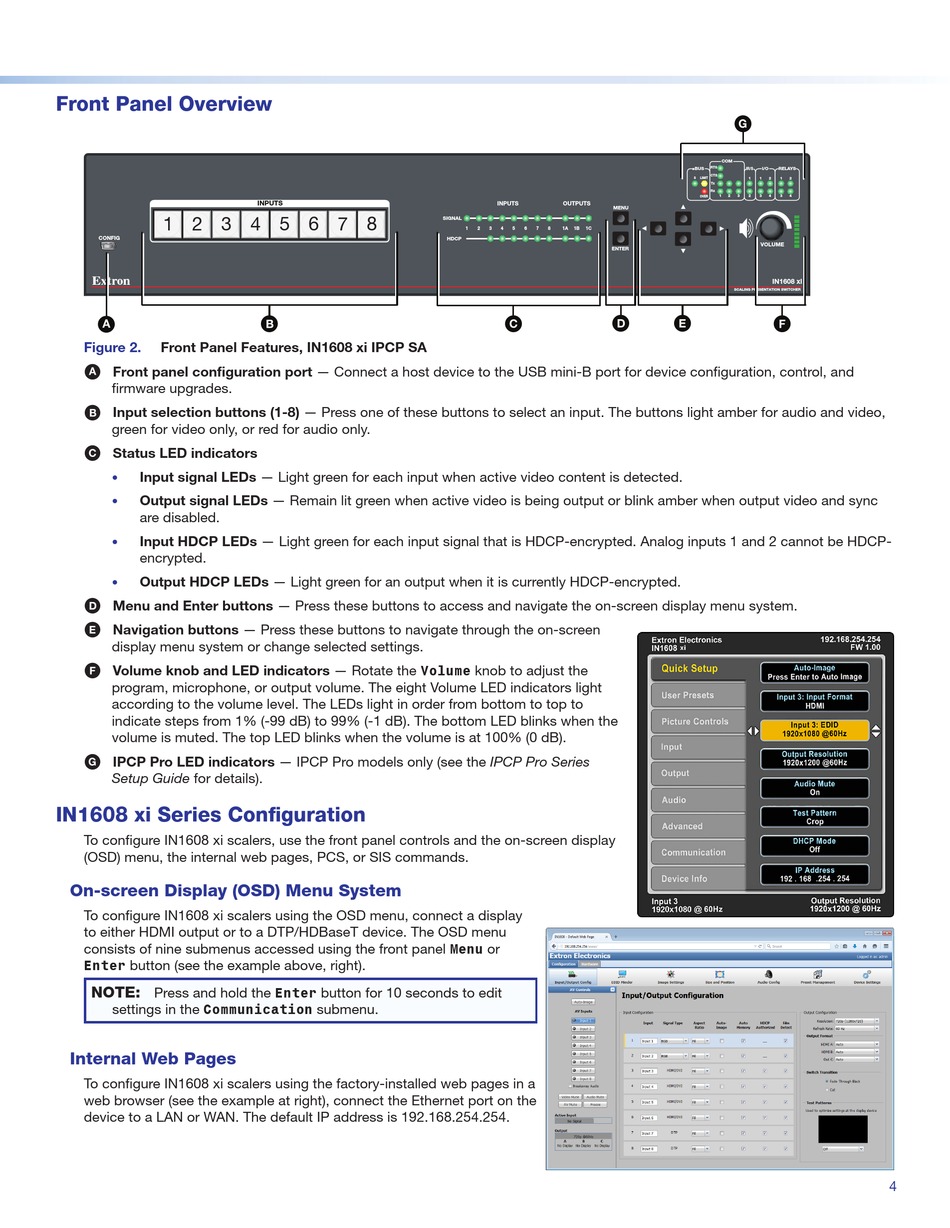

Figure 2. Front Panel Features, IN1608 xi IPCP SA
Front panel configuration port — Connect a host device to the USB mini-B port for device configuration, control, and
A
firmware upgrades.
Input selection buttons (1-8) — Press one of these buttons to select an input. The buttons light amber for audio and video,
B
green for video only, or red for audio only.
Status LED indicators
C
Input signal LEDs — Light green for each input when active video content is detected.
•
Output signal LEDs — Remain lit green when active video is being output or blink amber when output video and sync
•
are disabled.
Input HDCP LEDs — Light green for each input signal that is HDCP-encrypted. Analog inputs 1 and 2 cannot be HDCP-
•
encrypted.
Output HDCP LEDs — Light green for an output when it is currently HDCP-encrypted.
•
Menu and Enter buttons — Press these buttons to access and navigate the on-screen display menu system.
D
Navigation buttons — Press these buttons to navigate through the on-screen
E
display menu system or change selected settings.
Volume knob and LED indicators — Rotate the Volume knob to adjust the
F
program, microphone, or output volume. The eight Volume LED indicators light
according to the volume level. The LEDs light in order from bottom to top to
indicate steps from 1% (-99 dB) to 99% (-1 dB). The bottom LED blinks when the
volume is muted. The top LED blinks when the volume is at 100% (0 dB).
IPCP Pro LED indicators — IPCP Pro models only (see the IPCP Pro Series
G
Setup Guide for details).
IN1608 xi Series Configuration
To configure IN1608 xi scalers, use the front panel controls and the on-screen display
(OSD) menu, the internal web pages, PCS, or SIS commands.
On-screen Display (OSD) Menu System
To configure IN1608 xi scalers using the OSD menu, connect a display
to either HDMI output or to a DTP/HDBaseT device. The OSD menu
consists of nine submenus accessed using the front panel Menu or
Enter button (see the example above, right).
NOTE:
Press and hold the Enter button for 10 seconds to edit
settings in the Communication submenu.
Internal Web Pages
To configure IN1608 xi scalers using the factory-installed web pages in a
web browser (see the example at right), connect the Ethernet port on the
device to a LAN or WAN. The default IP address is 192.168.254.254.
INPUTS
B
INPUTS OUTPUTS
MENU
SIGNAL
1 2 3 4 5 6 7 8 1A 1B 1C
HDCP
ENTER
C D
G
COM
RTS
eBUS IR/S I/O RELAYS
CTS
S LIMIT
1 1 2 1 2
Tx
Rx
1 2 3 2 3 4 3 4
OVER
VOLUME
IN1608 xi
SCALING PRESENTATION SWITCHER
E F
4
