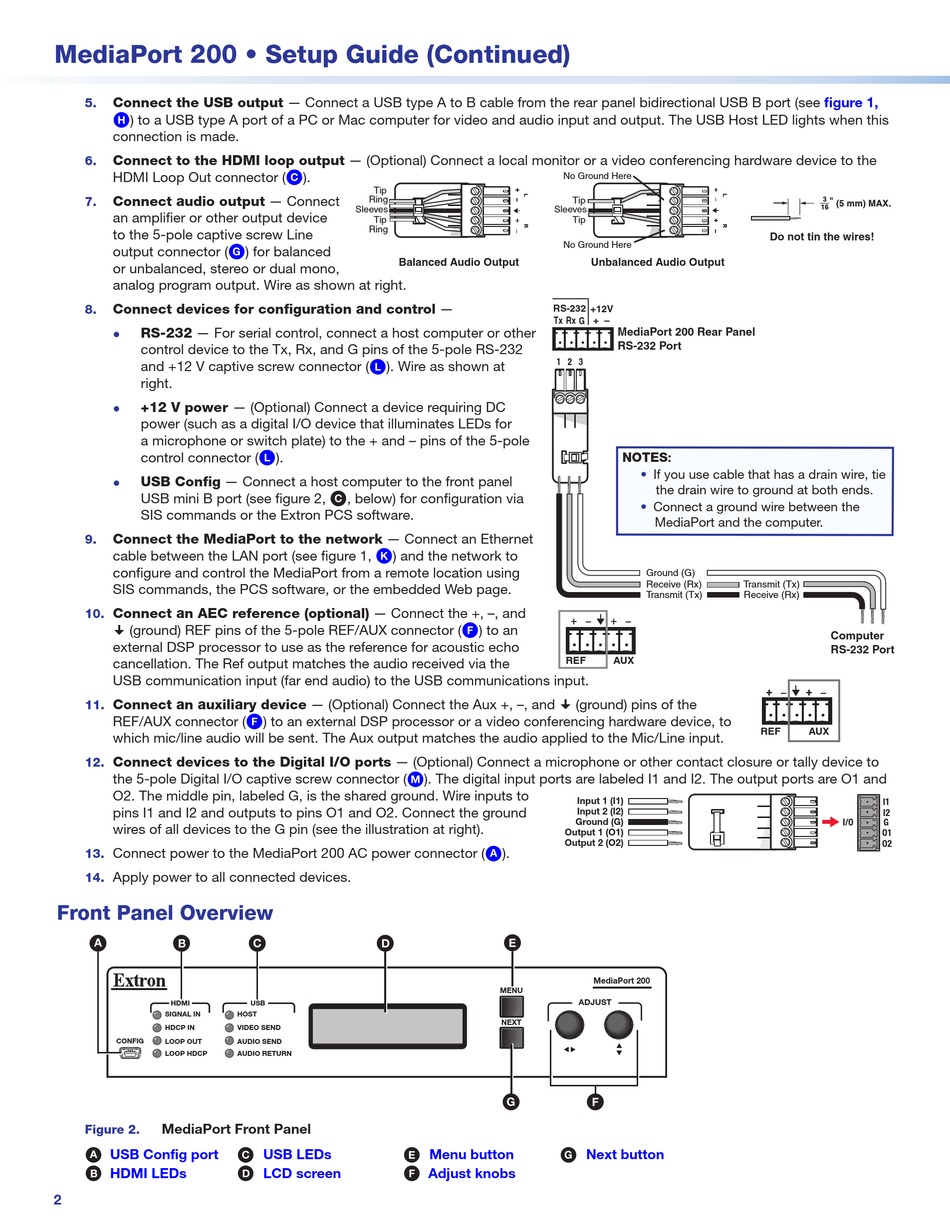

MediaPort 200 • Setup Guide (Continued)
Connect the USB output — Connect a USB type A to B cable from the rear panel bidirectional USB B port (see
5.
) to a USB type A port of a PC or Mac computer for video and audio input and output. The USB Host LED lights when this
H
connection is made.
Connect to the HDMI loop output — (Optional) Connect a local monitor or a video conferencing hardware device to the
6.
HDMI Loop Out connector (
Connect audio output — Connect
7.
an amplifier or other output device
to the 5-pole captive screw Line
output connector (
G
or unbalanced, stereo or dual mono,
analog program output. Wire as shown at right.
Connect devices for configuration and control —
8.
RS-232 — For serial control, connect a host computer or other
z
control device to the Tx, Rx, and G pins of the 5-pole RS-232
and +12 V captive screw connector (
right.
+12 V power — (Optional) Connect a device requiring DC
z
power (such as a digital I/O device that illuminates LEDs for
a microphone or switch plate) to the + and – pins of the 5-pole
control connector (
USB Config — Connect a host computer to the front panel
z
USB mini B port (see figure 2,
SIS commands or the Extron PCS software.
Connect the MediaPort to the network — Connect an Ethernet
9.
cable between the LAN port (see figure 1,
configure and control the MediaPort from a remote location using
SIS commands, the PCS software, or the embedded Web page.
Connect an AEC reference (optional) — Connect the +, –, and
10.
¤ (ground) REF pins of the 5-pole REF/AUX connector (
external DSP processor to use as the reference for acoustic echo
cancellation. The Ref output matches the audio received via the
USB communication input (far end audio) to the USB communications input.
Connect an auxiliary device — (Optional) Connect the Aux +, –, and ¤ (ground) pins of the
11.
REF/AUX connector (
which mic/line audio will be sent. The Aux output matches the audio applied to the Mic/Line input.
Connect devices to the Digital I/O ports — (Optional) Connect a microphone or other contact closure or tally device to
12.
the 5-pole Digital I/O captive screw connector (
O2. The middle pin, labeled G, is the shared ground. Wire inputs to
pins I1 and I2 and outputs to pins O1 and O2. Connect the ground
wires of all devices to the G pin (see the illustration at right).
Connect power to the MediaPort 200 AC power connector (
13.
Apply power to all connected devices.
14.

Front Panel Overview

A A B B
HDMI
SIGNAL IN
HDCP IN
CONFIG LOOP OUT
LOOP HDCP
MediaPort Front Panel
Figure 2.
USB Config port
A
HDMI LEDs
B
2
C ).
Tip
Ring
Sleeves
Tip
Ring
) for balanced
Balanced Audio Output
). Wire as shown at
L
).
L
, below) for configuration via
C
) and the network to
K
) to an external DSP processor or a video conferencing hardware device, to
F
M
C C D D
USB
HOST
VIDEO SEND
AUDIO SEND
AUDIO RETURN
USB LEDs
C E
LCD screen
D F
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Audio Output
RS-232
+12V
Tx Rx G + –
1 2 3
) to an
F
REF
). The digital input ports are labeled I1 and I2. The output ports are O1 and
Input 1 (I1)
Input 2 (I2)
Ground (G)
Output 1 (O1)
Output 2 (O2)
).
A
E E
MediaPort 200
MENU
ADJUST
NEXT
G G F F
Menu button Next button
G
Adjust knobs
Do not tin the wires!
MediaPort 200 Rear Panel
RS-232 Port
NOTES:
• If you use cable that has a drain wire, tie
the drain wire to ground at both ends.
• Connect a ground wire between the
MediaPort and the computer.
Ground (G)
Transmit (Tx)
Receive (Rx)
Transmit (Tx) Receive (Rx)
AUX
REF
figure 1,
Computer
RS-232 Port
AUX
I1
I2
I/O
G
O1
O2
