Summary of Contents for Extech Instruments CO260

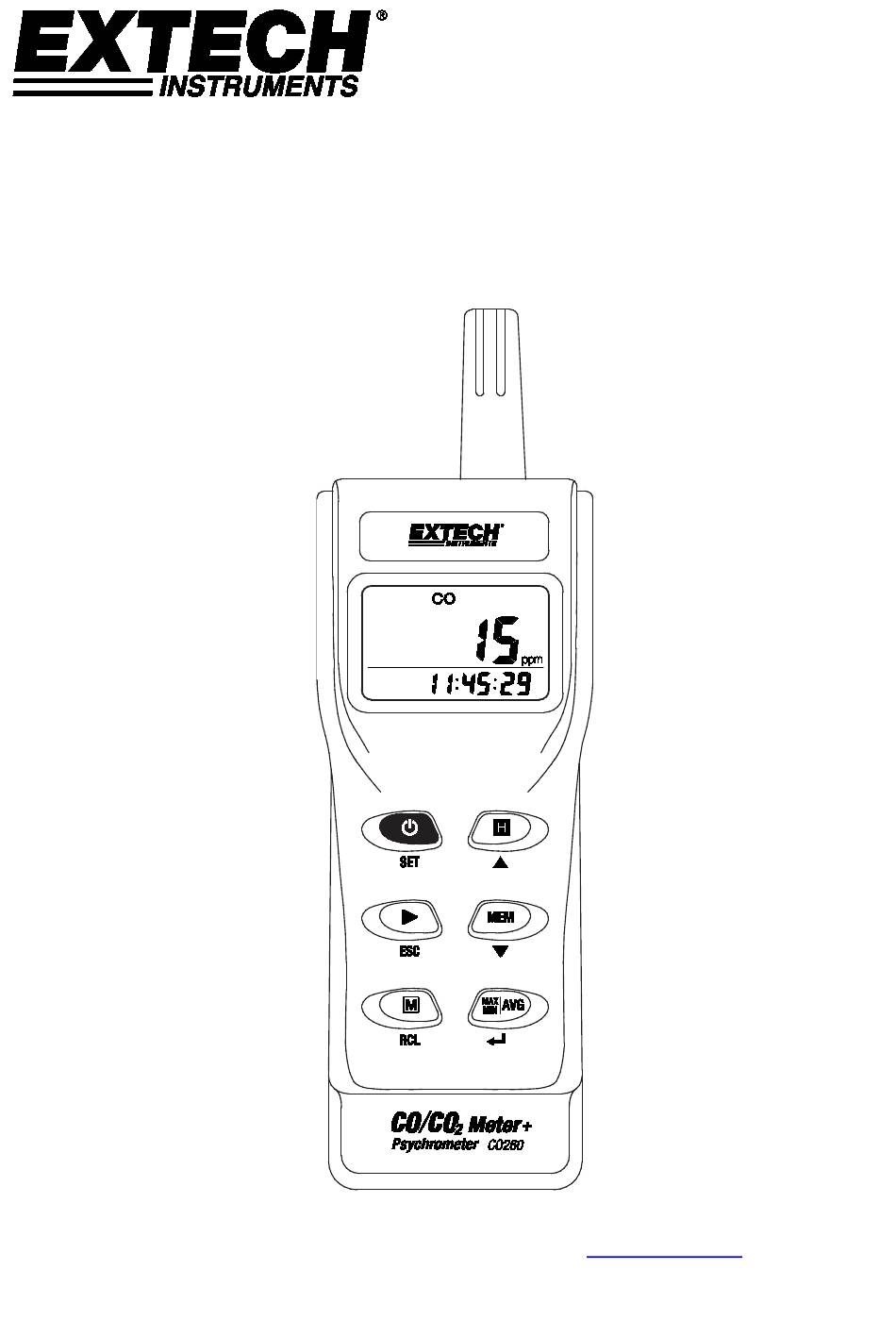

- Page 1 User Manual Carbon Monoxide (CO) and Carbon Dioxide (CO ) Meter With Air Temp/RH Measurements and Dew Point/Wet Bulb calculations Model CO260 Additional User Manual Translations available at www.extech.com...
-
Page 2: Safety Information
Carbon Monoxide Alarm or Monitoring requirements. • The CO260 Carbon Monoxide Monitor has not been tested by an independent lab to comply with the UL 2034 or IAS 6-96 standard. - Page 3 CO concentration of 1000ppm over an 8-hour average period. EPA Taiwan (Type 2): Indoor areas with special requirements for good air quality such as schools, hospitals, and day care centers have suggested CO level of 600ppm. CO260-en-GB_v1.0 8/17...
- Page 4 Short-term exposure limit (15 minutes weighted average) HOLD Freezes current reading on display MIN/MAX Minimum/Maximum readings Low battery indicator Dew point temperature Air temperature Wet bulb temperature Relative humidity C or F Celsius/Fahrenheit Calibration Mode Manual/automatic data logging RECALL View manually logged data CO260-en-GB_v1.0 8/17...
-
Page 5: Battery Installation
Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end- of-life devices to a designated collection point for the disposal of electrical and electronic equipment. CO260-en-GB_v1.0 8/17... -
Page 6: Powering The Meter
Short press the M/REL button to change the mode to CO if necessary. To take a measurement, trace the CO260 around the area of the suspected leak. The meter indicates the presence of carbon dioxide (CO ) in ppm in the primary display. The secondary display indicates the current date and time alternately. -
Page 7: Advanced Functions
ON for < 8 hours, the display only shows a weighted average of the readings up to the moment. The CO260 requires at least 5 minutes calculating STEL and TWA. The display shows “----” during the first 5 minutes from power ON. -
Page 8: Automatic Datalogging
To exit memory recall mode, short press the /ESC button. Automatic Datalogging The CO260 automatically records CO , CO, Temperature, or RH readings and can store up to 32,000 records. The sample rate can be set from 1 second to 4 hours 59 minutes and 59 seconds. -
Page 9: Setup Mode
Short press the H/ button to increase the time or short press the MEM/ button to decrease the time. Short press the MXMN/AV/ button to save the setting and advance to the minute setup. Short press the H/ button to increase the time or short press the MEM/ button to decrease the time. CO260-en-GB_v1.0 8/17... - Page 10 25°C. CAUTION: Do not calibrate the humidity without the default calibration salts. The meter will lose its current calibration data and will become inoperable. Contact Extech to order calibration salts or to inquire about calibration services. CO260-en-GB_v1.0 8/17...
- Page 11 CD-ROM and/or the instructions provided in the HELP Utility within the software program. Check the software download page of the website www.extech.com for the latest version of the PC software and its operating system compatibility. CO260-en-GB_v1.0 8/17...
-
Page 12: Specifications
F); 10 to 90% RH non-condensing Power Supply 4 x 1.5V ‘AA’ batteries or AC adaptor (9V) Battery Life approx. 24 hours (alkaline batteries) Dimensions / Weight 205 x 70 x 56mm (8.1 x 2.8 x 2.2“) / 200g (7.1 oz.) CO260-en-GB_v1.0 8/17... -
Page 13: Troubleshooting
2. Store the meter in an area with moderate temperature and humidity (refer to the operating and storage temperature ranges in the specifications section). Copyright © 2017 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO-9001 Certified www.extech.com CO260-en-GB_v1.0 8/17...
Need help?
Do you have a question about the CO260 and is the answer not in the manual?
Questions and answers
How do I calibrate this meter?
To calibrate the Extech Instruments CO260 meter for relative humidity:
1. Ensure calibration is performed in a controlled temperature environment of 25°C.
2. Plug the sensor probe into a 33% salt solution bottle.
3. Long press the ESC, MEM, and SET buttons simultaneously to enter calibration mode.
4. The LCD will blink "CAL" and display the current value (e.g., 32.8% at 25°C).
5. The meter will calibrate for about 60 minutes until the value stops blinking.
6. The calibration is complete once the value remains steady.
Caution: Do not calibrate without the default calibration salts, as this may cause the meter to lose calibration data and become inoperable. Contact Extech for calibration salts or services if needed.
