Brickcom OSD-040 36x Series Quick Installation Manual page 9

36x outdoor speed dome

Hide thumbs Also See for OSD-040 36x Series:

Install Camera with Mount Kit

1. Make a cable entry hole on the wall/ ceiling to insert the cable(s).

2. Mount the Speed Dome camera according to the "Speed Dome

Mounting Accessories Installation Guide".

3. Attach the waterproof rubber to the selected mount kit.

4. Route the Ethernet and I/O cables through the top holder and join the

selected mount kit with supplied screws and washers. Then adjust the

Waterproof Rubber over the joint.

5. Connect the Ethernet and I/O cables and hook the safety wired to the

camera.

6. Attach the camera to the top cover with the supplied screw and

washers.

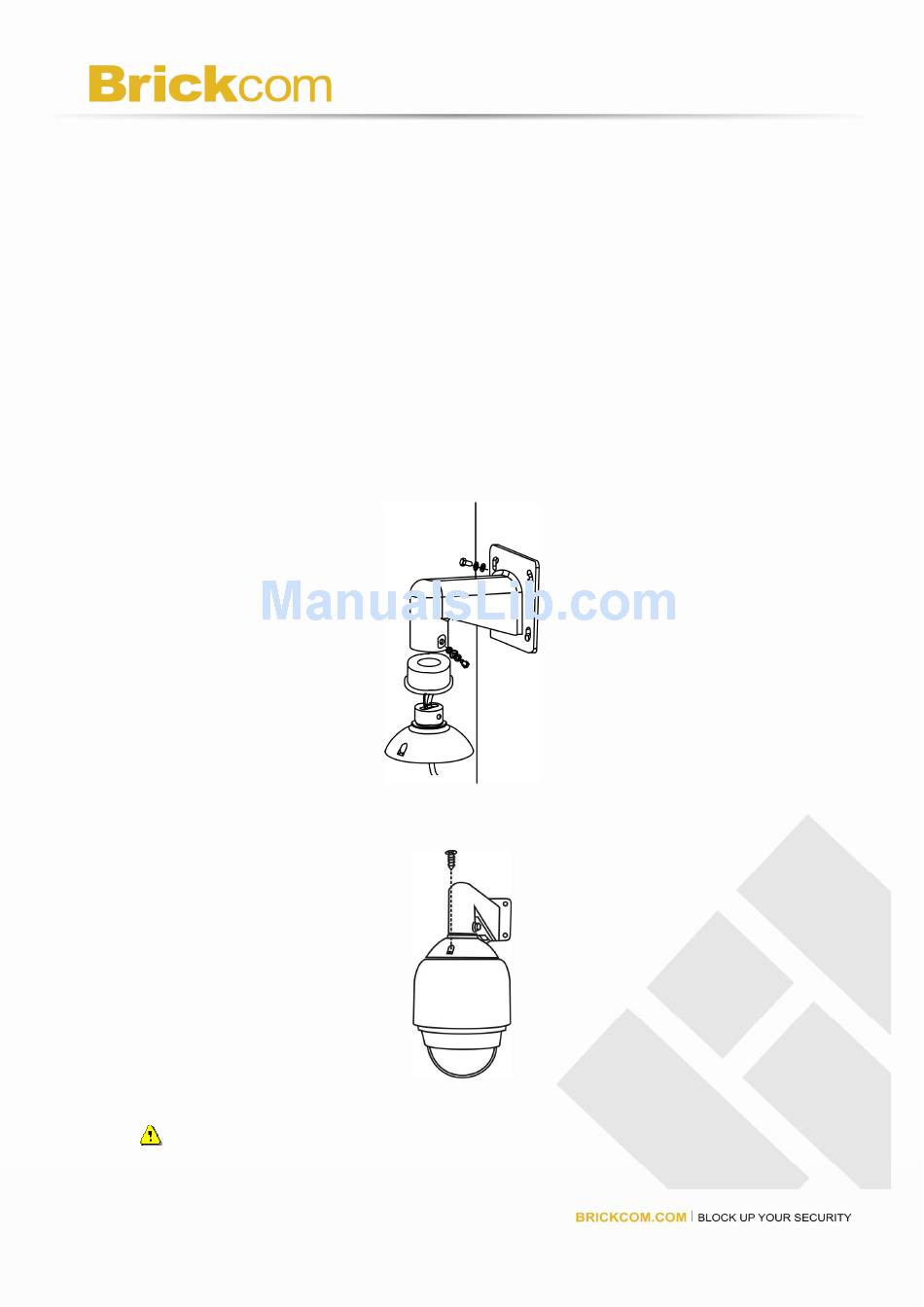

Wall Mounting: Pendant Mount (mounting example)

NOTE: Refer to the mounting instruction in the "Speed Dome Mounting

Accessories Installation Guide" for more details.
