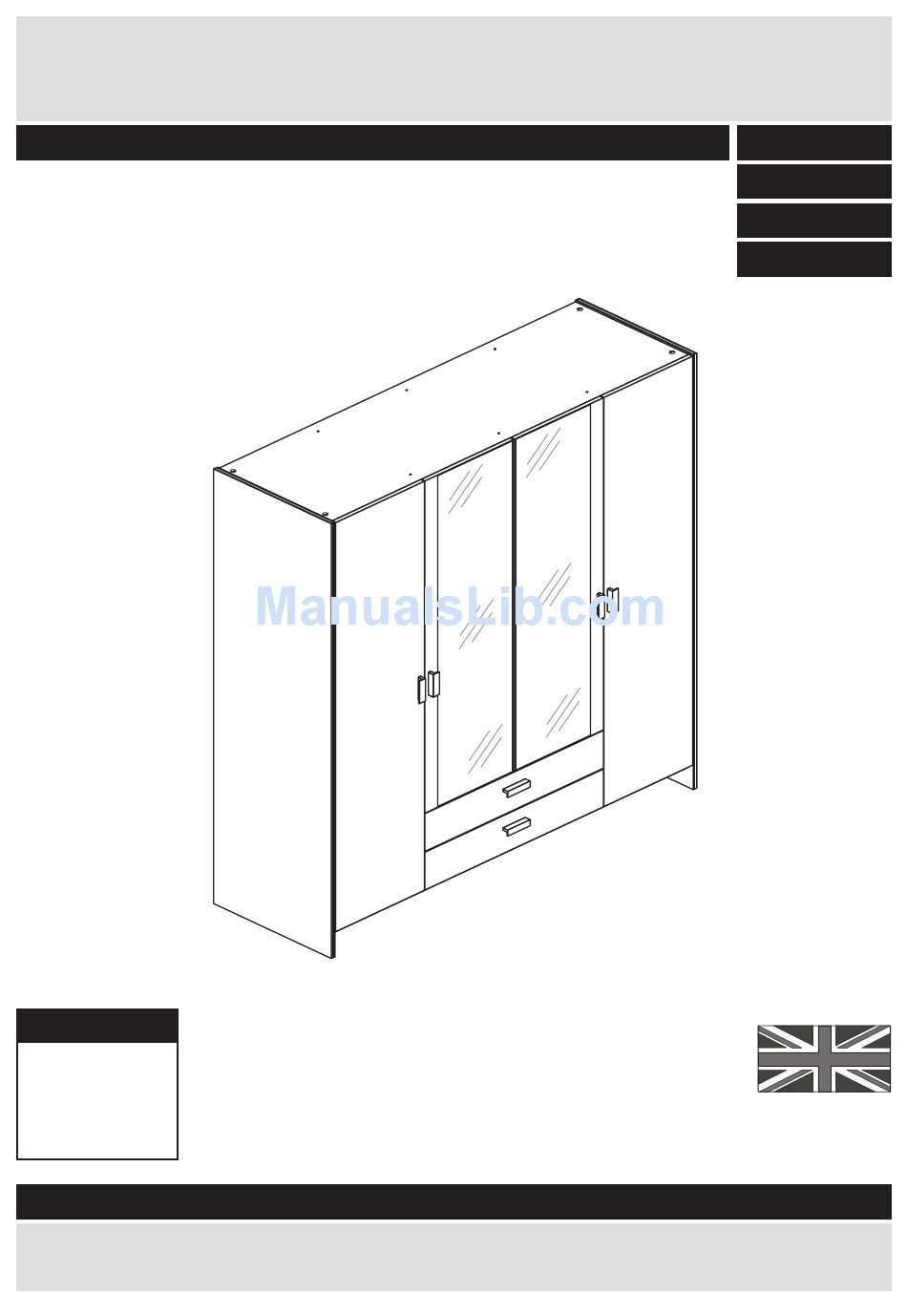

Capella - 2 Drawer 4 Door Robe

Assembly Instructions -

Dimensions

Width - 152cm

Depth - 49cm

Height - 181cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Please keep for future reference

266/0709

248/4112

266/9683

241/5844

MADE IN

BRITAIN

Issue 6 - 23/04/14
