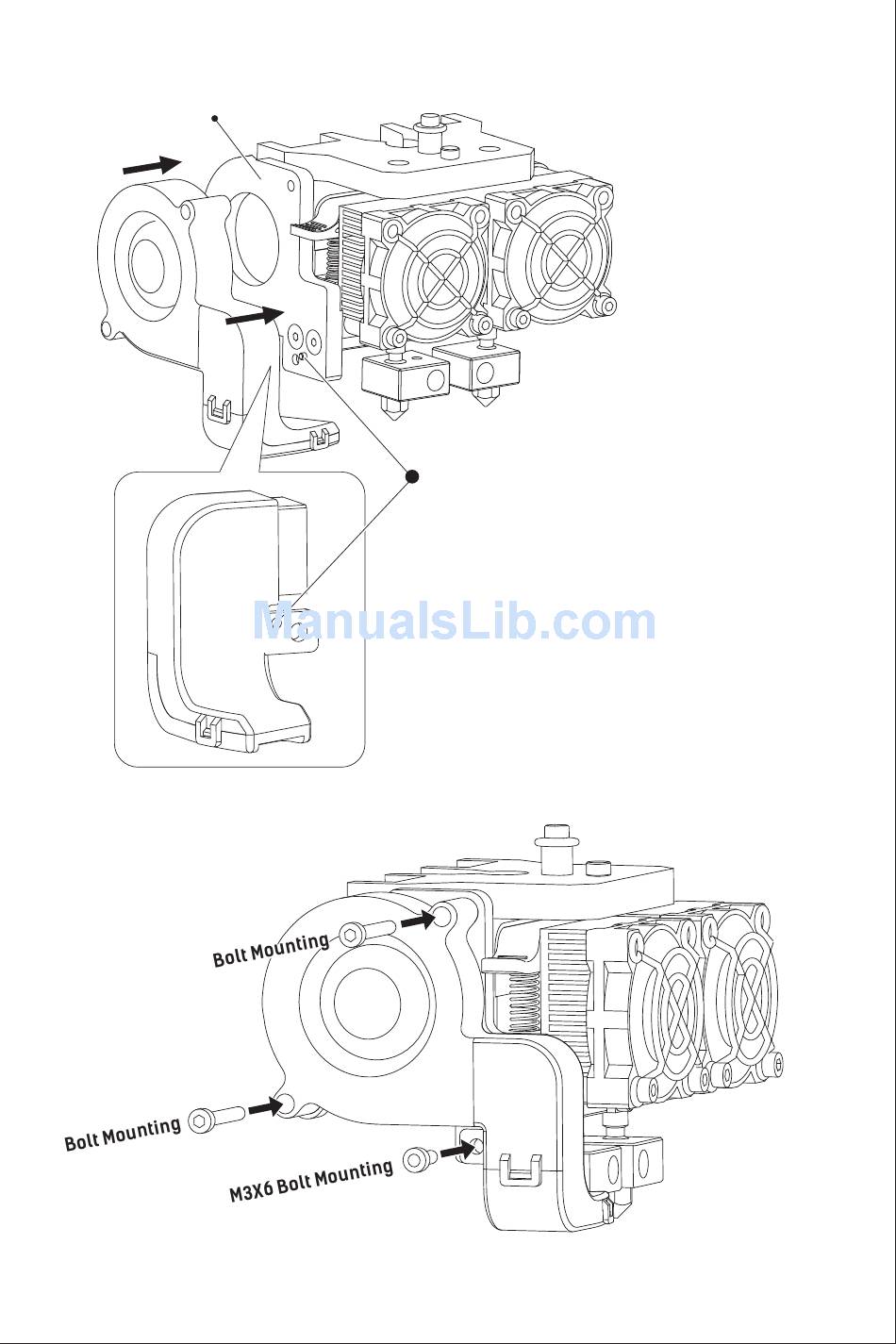

Turbofan Seat
Align the bump on the turbofan
seat to the hole in turbofan
sub-assembly.
1. Place the turbofan sub-assembly besides the
turbofan seat.
2. Insert the bump on the turbofan seat to the
turbofan sub-assembly.
3. Screw the two bolts in.
4. Take a M3 x 6 bolt from the extruder's accessory
kit and complete installation according to the
instruction below.
07
