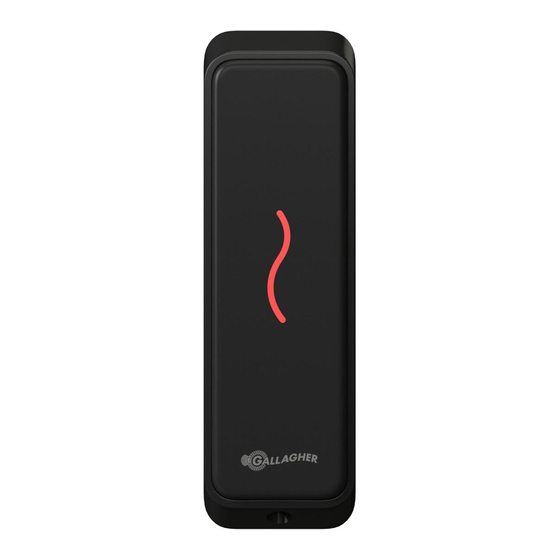

Gallagher T15 Mifare Reader Black Installation Note
Hide thumbs
Also See for T15 Mifare Reader Black:
- Custom installation notes (13 pages) ,
- Custom installation notes (25 pages)
Table of Contents
Advertisement
Gallagher
T15 Terminal
Installation Note
T15 Mifare Reader Black: C300470
T15 Mifare Reader White: C300471
T15 Multi Tech Reader Black: C300480
T15 Multi Tech Reader White: C300481
3E4237 Gallagher T15 Reader | Edition 1 | June 2016
Copyright © Gallagher Group Limited
T15 PIV Mifare Reader Black: C305470
T15 PIV Mifare Reader White: C305471
T15 PIV Multi Tech Reader Black: C305480
T15 PIV Multi Tech Reader White: C305481
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gallagher T15 Mifare Reader Black
Summary of Contents for Gallagher T15 Mifare Reader Black
- Page 1 T15 PIV Multi Tech Reader Black: C305480 T15 Multi Tech Reader Black: C300480 T15 Multi Tech Reader White: C300481 T15 PIV Multi Tech Reader White: C305481 3E4237 Gallagher T15 Reader | Edition 1 | June 2016 Copyright © Gallagher Group Limited Page 1...
- Page 2 Although every commercially reasonable effort has been taken to ensure the quality and accuracy of the information, Gallagher Group makes no representation as to its accuracy or completeness and it should not be relied on as such. To the extent permitted by law, all express or implied, or other representations or warranties in relation to the information are expressly excluded.
-
Page 3: Table Of Contents
Installation ............................8 LED indications ..........................10 Accessories ............................ 10 Technical specifications ........................11 Approvals and standards ........................ 12 Mounting dimensions ........................13 3E4237 Gallagher T15 Reader | Edition 1 | June 2016 Copyright © Gallagher Group Limited Page 3... -
Page 4: Introduction
Introduction The Gallagher T15 Reader is a smart card proximity reader. It can be installed as either an entry reader or exit reader. The reader contains an NXP chip for improved read range performance and supports Bluetooth® technology for hands-free access. - Page 5 2.2 Power supply The Gallagher T15 Reader is designed to operate over a supply voltage range of 9 - 16 Vdc measured at the reader terminals. The operating current draw is dependant on the supply voltage at the reader. The power source should be linear or a good quality switched-mode power supply.
- Page 6 (21 AWG) * The matching of wire sizes to equivalent wire gauges are only approximate. ** Recommended cable types for optimal HBUS RS485 performance. 3E4237 Gallagher T15 Reader | Edition 1 | June 2016 Copyright © Gallagher Group Limited Page 6...
-
Page 7: Distance Between Proximity Readers
When mounting a proximity reader on an internal wall, check that any reader fixed to the other side of the wall is not less than 200 mm (8 inches) away. 3E4237 Gallagher T15 Reader | Edition 1 | June 2016 Copyright © Gallagher Group Limited... -
Page 8: Installation
Ensure both you and the equipment are earthed before beginning any servicing. The Gallagher T15 Reader is designed to be mounted on any solid flat surface. However installation on metal surfaces, particularly those with a large surface area will reduce read range. The extent to which the range is reduced will depend upon the type of metal surface. - Page 9 A Cardax IV Reader connects to a Gallagher Controller 6000, Gallagher 4R/8R Module (attached to a Controller 6000), Gallagher GBUS Universal Reader Interface (Gallagher GBUS URI), Gallagher Controller 3000-8R or 3000-4R, Gallagher Local Bus Universal Reader Interface (Gallagher URI) or a Gallagher Local Bus Reader I/O Interface.
-
Page 10: Led Indications
T10 Dress Plate, Black, Pk 10 C300320 T10 Spacer, Black, Pk 10 C300300 T10 Spacer, White, Pk 10 C300301 T10 Protective Cover Spacer C300310 3E4237 Gallagher T15 Reader | Edition 1 | June 2016 Copyright © Gallagher Group Limited Page 10... -
Page 11: Technical Specifications
The reader is idle. Peak current during card read. Gallagher T Series readers are UL humidity tested and certified to 85% and have been independently verified to 95%. Note: The current values stated above have been reported using the default configuration for a reader in Command Centre. -
Page 12: Approvals And Standards
US - Equipment: com, burg and acc reader CA - Equipment: com, burg reader Please refer to the document “3E2793 Gallagher Command Centre UL Configuration Requirements” for a guide to configuring the Gallagher system to the appropriate UL Standard. 3E4237 Gallagher T15 Reader | Edition 1 | June 2016 Copyright ©... -
Page 13: Mounting Dimensions
Mounting dimensions 13 mm (1/2") diameter hole for cable 44 mm (1.73") IMPORTANT This picture is not to scale, therefore use the measurements provided. 3E4237 Gallagher T15 Reader | Edition 1 | June 2016 Copyright © Gallagher Group Limited Page 13...
