Gallagher

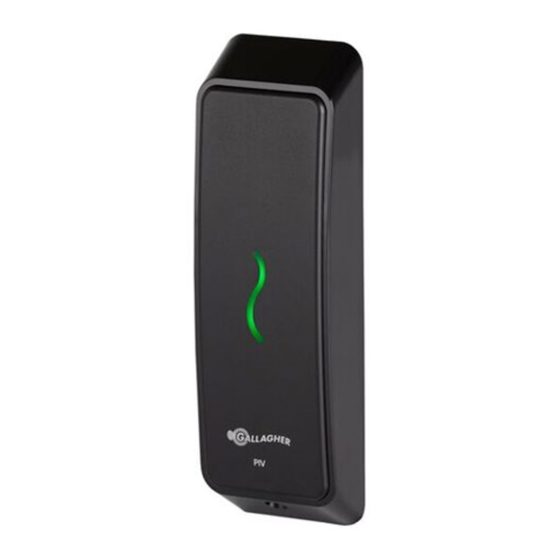

T15 Reader
Installation Note
T15 MIFARE® Reader, Black: C300470
T15 MIFARE® Reader, White: C300471
T15 Multi Tech Reader, Black: C300480
T15 Multi Tech Reader, White: C300481
3E4237 Gallagher T15 Reader | Edition 11 | February 2022
Copyright © Gallagher Group Limited
T15 PIV Reader, Black: C305470
T15 PIV Reader, White: C305471
T15 PIV Reader - Multi Tech, Black: C305480
T15 PIV Reader - Multi Tech, White: C305481
Page 1
Advertisement
Table of Contents
Related Manuals for Gallagher T15
Summary of Contents for Gallagher T15
- Page 1 T15 Multi Tech Reader, Black: C300480 T15 PIV Reader - Multi Tech, Black: C305480 T15 Multi Tech Reader, White: C300481 T15 PIV Reader - Multi Tech, White: C305481 3E4237 Gallagher T15 Reader | Edition 11 | February 2022 Copyright © Gallagher Group Limited Page 1...
- Page 2 Although every commercially reasonable effort has been taken to ensure the quality and accuracy of the information, Gallagher Group makes no representation as to its accuracy or completeness and it should not be relied on as such. To the extent permitted by law, all express or implied, or other representations or warranties in relation to the information are expressly excluded.
-
Page 3: Table Of Contents
Installation ............................7 LED indications ..........................10 Accessories ............................ 10 Technical specifications ........................11 Approvals and Compliance Standards.................... 12 Mounting dimensions ........................13 3E4237 Gallagher T15 Reader | Edition 11 | February 2022 Copyright © Gallagher Group Limited Page 3... -
Page 4: Introduction
Introduction The Gallagher T15 Reader is a smart card and Bluetooth® low energy technology reader. It can be installed as either an entry reader or exit reader. The reader sends information to the Gallagher Controller and acts upon information sent from the Gallagher Controller. The reader itself does not make any access decisions. -
Page 5: Before You Begin
• Power supply The Gallagher T15 Reader is designed to operate over a supply voltage of 13.6 Vdc measured at the reader terminals. The operating current draw is dependant on the supply voltage at the reader. The power source should be linear or a good quality switched-mode power supply. The performance of the reader may be affected by a low quality, noisy power supply. - Page 6 Terminate termination jumper Controller 6000 HBUS HBUS HBUS HBUS Device Device Device Device HBUS Module Terminate Terminate HBUS HBUS Device Device Terminate Terminate 3E4237 Gallagher T15 Reader | Edition 11 | February 2022 Copyright © Gallagher Group Limited Page 6...
-
Page 7: Distance Between Readers
When mounting a proximity reader on an internal wall, check that any reader fixed to the other side of the wall is not less than 200 mm (8 inches) away. 200 mm 3E4237 Gallagher T15 Reader | Edition 11 | February 2022 Copyright © Gallagher Group Limited Page 7... -
Page 8: Installation
Ensure both you and the equipment are earthed before beginning any servicing. The Gallagher T15 Reader is designed to be mounted on any solid flat surface. However installation on metal surfaces, particularly those with a large surface area will reduce read range. The extent to which the range is reduced will depend upon the type of metal surface. - Page 9 An HBUS Reader connects to a Gallagher Controller 6000, Gallagher 4H/8H Module (attached to a Controller 6000) or a Gallagher HBUS Door Module (connected to a Controller 6000). A Cardax IV Reader connects to a Gallagher Controller 6000, Gallagher 4R/8R Module (attached to a Controller 6000) or a Gallagher GBUS Universal Reader Interface (Gallagher GBUS URI).
-
Page 10: Led Indications
Access has been granted. Flashes Green Access has been denied. Flashes Red Flashes (Blue) Reading and validating a PIV card. Reading a Gallagher mobile credential. Cardax IV indication LED (squiggle) 3 Flash (Amber) No communications with the Controller. On (Green or Red) Fully configured and functioning normally. -
Page 11: Technical Specifications
-35 C - +66 C (outdoor). Gallagher T Series readers are UL humidity tested and certified to 85% and have been independently verified to 95%. Environmental protection and impact ratings are independently verified. 3E4237 Gallagher T15 Reader | Edition 11 | February 2022 Copyright ©... -
Page 12: Approvals And Compliance Standards
AS/NZS IEC 60839.11.1:2019 Grade 4, Class II C300480 only The C300480 variant of the T15 Readers is the only variant that complies with BIS. US - Equipment: com, burg and acc reader CA - Equipment: com, burg reader 3E4237 Gallagher T15 Reader | Edition 11 | February 2022 Copyright ©... -
Page 13: Mounting Dimensions
Mounting dimensions 13 mm (1/2") diameter hole for cable 44 mm (1.73") IMPORTANT This picture is not to scale, therefore use the measurements provided. 3E4237 Gallagher T15 Reader | Edition 11 | February 2022 Copyright © Gallagher Group Limited Page 13...
