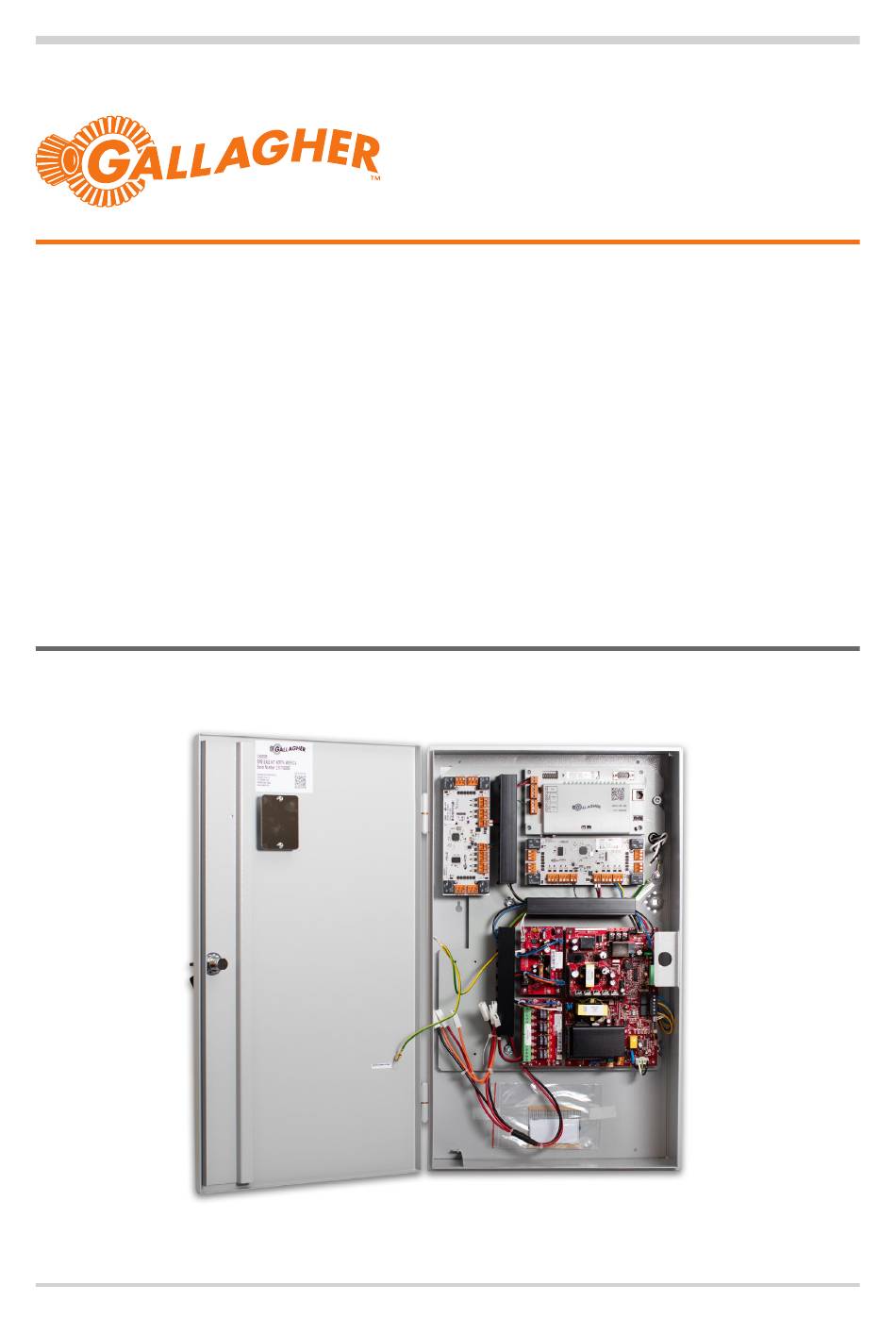

SMB USA Base Kit
Installation Note
Gallagher SMB USA Base Kit, T11 White Reader: C500306
Gallagher SMB USA Base Kit, T11 Black Reader: C500307
Gallagher SMB USA Base Kit, T15 White Reader: C500308
Gallagher SMB USA Base Kit, T15 Black Reader: C500309
Gallagher SMB USA Base Kit, T30 White Reader: C500311
Gallagher SMB USA Base Kit, T30 Black Reader: C500312
Edition 2 | April 2024
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gallagher SMB USA Base Kit
Summary of Contents for Gallagher SMB USA Base Kit
- Page 1 Gallagher SMB USA Base Kit Installation Note Gallagher SMB USA Base Kit, T11 White Reader: C500306 Gallagher SMB USA Base Kit, T11 Black Reader: C500307 Gallagher SMB USA Base Kit, T15 White Reader: C500308 Gallagher SMB USA Base Kit, T15 Black Reader: C500309...
-
Page 2: Kit Contents
Introduction Thank you for choosing Gallagher. The Gallagher SMB security solution has been designed to meet the security needs for small to medium businesses. It is a fully integrated cloud-based security system that offers intruder alarm, access control, monitoring and user management all within one mobile app. - Page 3 **To find the total current draw, add the current draw of the individual units in your cabinet. Refer to the end of this installation note and separate hardware installation notes for current draw values. For example: • Standby time of 4 hours minimum and assuming total load of LSP 150 Power Supply – 6A •...
- Page 4 What's connected? The hardware within the kit is pre-wired to support the site's default software configuration. OUT 5 OUT 5 OUT 6 OUT 6 IN 16 IN 16 IN 15 IN 15 IN 14 IN 14 IN 13 IN 13 Controller Controller Secondary...
- Page 5 Power Supply and battery connections • N - Grey = neutral • L -Black = Hot / Live – 110Vac • EG - Green = Ground / Earth - 110Vac • From D8 Distribution board D8 to primary 8In 4Out board and SMB Controller 12.4Vdc 24Vdc 24Vdc Blk:BAT-...
-
Page 6: Additional Information
To provide 24Vdc battery backup, connect the batteries as shown: Battery lead Battery lead Battery lead Negative Negative Positive Positive Battery Battery (not supplied) (not supplied) Additional Information Although the kit is pre-wired, ensure the following to meet UL2610 & UL294 compliance requirements: •... -
Page 7: Installation
Installation The installation of this kit must be carried out by a Gallagher SMB Partner. Follow the instructions in this document to install the kit. ATTENTION: This equipment contains components that can be damaged by electrostatic discharge. Ensure both you and the equipment are earthed before beginning any servicing. - Page 8 removed from the wall. • Locking the cabinet Two cabinet keys are provided to secure the contents of the cabinet. • Knockouts The knockouts in the side panels of the cabinet can be carefully tapped or cut out. Procedure 1. Disconnect the earth wires connected to the cabinet door and left inside of cabinet and remove the door for ease of installation.
- Page 9 Cabling should be a minimum size of 0.2mm (24AWG). For wiring diagrams and ratings refer Installation Note HBUS 8In 4Out Board and 3E2028 Install Note Gallagher Controller 6000. Connect the reader tail to the building cable. All cabling between HBUS devices should use ‘daisy chain’...
-
Page 10: Connect Inputs And Outputs
No. 6 pan head screw Bezel Building cable No. 6 pan head screw Building cable Reader tail Facia Connection Fit screw to secure facia to bezel 3. Connect inputs and outputs 8In 4Out Boards are pre-installed in the cabinet. The Primary board is directly below the controller. -
Page 11: Connect Power To The System
Relays are provided as ‘dry’ contacts or ‘electromagnetically switched’ contacts. Each relay is rated 3A at 24Vdc for a resistive load, or 1A at 24Vdc for an inductive load. The relay is controlled by the assigned output in the SMB Installer Portal. - Page 12 LifeSafety FPO150 The AC mains connection to the LifeSafety’s FPO150 power supply must be followed in accordance with LifeSafety’s installation manuals. All AC mains electrical connections must comply to the local electrical authority’s codes and NFPA section 70. Installation & service should be performed by a qualified service personnel.
- Page 13 Note: Both Battery Low alarm and Mains Failure alarm are sent as a system notification to the customer via the Gallagher SMB app. These events are also visible in the Event History of the controller in the SMB Installer Portal.
- Page 14 The controller will restart after the download. Configuration changes should not be published to the controller at this time. The Gallagher SMB solution only supports the latest firmware version on the controller. The firmware version can be viewed within the Properties section of the Controller lightbox in the SMB Installer Portal.
- Page 15 The 'Enter Network Password' web page displays. 4. Enter cloud for the username, then GGLcloud for the password and press Enter. The 'Gallagher Cloud Controller Configuration' web page displays. 5. Click the Proxy Server Configuration link. The 'Proxy Server Configuration' web page displays.
- Page 16 The key account holder will be the first person from your customer’s site to download the Gallagher SMB App. The Key Account holder performs a similar role to a facility manager and is the person who will invite other users to the site.
- Page 17 7. Controller the site Configure the site using the SMB Installer Portal. Configure Areas, Inputs, Outputs, Doors, then click PUBLISH to download the configuration changes to the controller. To meet UL requirements Exit Delay or Auto-Arming must not be configured. Fail to Arm must be configured for all areas.
- Page 18 The Key Account Holder will need to follow the instructions in the email to download the Gallagher SMB App and accept their credentials. Note: If you are unable to onboard the Key Account Holder, ensure they have a PIN or pattern set on their phone.
-
Page 19: Technical Specifications
Technical specifications Controller Value Voltage 12.4Vdc Current without devices connected 110mA Maximum current per RS485 port 750mA Temperature range -10°C to 70°C (14°F to 158°F) 0°C to 49°C (32°F to 120°F) UL verified Humidity 0 - 95% non-condensing 0 - 85% UL verified 10/100BaseT Ethernet port 1 x 10Mbs/100Mbs I/O Boards... - Page 20 Unit dimensions T11 Reader: Height 115mm (4.5") Width 70mm (2.8") Depth 12mm (0.5") T15 Reader: Height 139mm (5.47") Width 44mm (1.73") Depth 23mm (0.9") T30 Keypad Reader: Height 118.0mm (4.65") Width 86.0mm (3.39") Depth 26.7mm (1.05") Maximum number of access controlled doors on one SMB controller Standards and compliance FCC, RCM, RoHS...
-
Page 21: Partitioned Systems
0.20lb (0.09kg) Refer to the LifeSafety Power D8 Installation Manual for more information - https://www.lifesafetypower.com/docs/im_b100.pdf SMB USA Base Kit standards and compliance FCC, RCM, RoHS Partitioned Systems The protected area must be under the responsibility of one ownership and management. This... - Page 22 Engineering Note: for the Keypads only one is required any of the above. The unit shall be configured as an Arming device if Dual Access control and Burglar Alarm Operation. 1. Acknowledgment Signal AKA Handshake. Gallagher HBUS 8In 4Out Board (C300680) Shall be used with the following: When armed from the protected premise the Listed Tomar, Model 270LS-12-80-W steady-burn warning light, must be employed.
- Page 23 The reader / keypads shall have tamper options enabled if required. 9. When utilizing the Relays on the model Gallagher HBUS 8In 4Out Board (C300680) for burglar alarm applications the relays outputs are required to be supervised.
- Page 24 Disclaimer: Please note that information contained in this document is intended for general information only. While every effort has been taken to ensure accuracy at the date of the document, there may be errors or inaccuracies and specific details may be subject to change without notice. Copyright © Gallagher Group Ltd.
