These outdoor Altronix CCTV Power Supplies provide power via eight (8) fused or PTC protected outputs for CCTV
Cameras, heaters and other video accessories. Units are UL Listed UL2044 "U.S. and Canada for CCTV Equipment."
Altronix
Model Number
WPTV248UL
WPTV248ULCB
WPTV248175UL
WPTV248175ULCB
WPTV248300UL
WPTV248300ULCB
• UL Listed for Commercial CCTV Equipment (UL2044).
CUL Listed - CSA Standard C22.2 No.1-98, Audio,
Video and Similar Equipment.
• Surge suppression.
• AC power LED indicator.
• Power ON/OFF switch / circuit-breaker.
1. Mount unit in desired location. Use hardware supplied and stainless steel fasteners.
2. Slide switch on PD board to OFF position for models WPTV248UL and WPTV248ULCB (Fig. 2, pg. 5).
Turn OFF main switch on all other models (Figs. 3-4, pgs. 6-7).
3. All units are factory set for 24VAC operation.
For 28VAC operation (for models with 24VAC/28VAC option only), adjust unit prior to mounting and applying
power as follows: Change the wire position so that the black wire [28V] is connected to the terminal marked [P] and
the yellow wire [24V] is connected to the terminal marked [S].
4. Before drilling WP enclosure for wire entry, remove back plate (four (4) screws) with all internal parts
(Fig. 2A, pg. 5). For suggested wire entry locations refer to (Fig. 1, pg. 4). Use weather tight NEMA 4 rated
connectors, bushings, and cables.
5. Place back plate with all internal parts (four (4) screws) back into WP enclosure (Fig. 2A, pg. 5).
6. Connect AC power to the black and white flying leads of the transformer(s) (Figs. 2-4, pgs. 5-7), secure green lead
to earth ground. Use 18 AWG or larger for all power connections.
Keep power limited (PTC protected outputs only) wiring separate from non-power limited wiring.
Minimum .25" spacing must be provided. Use separate entries.
7. Measure output voltage before connecting devices. This helps avoid potential damage.
Terminals marked [1P - 8P] are of the same polarity.

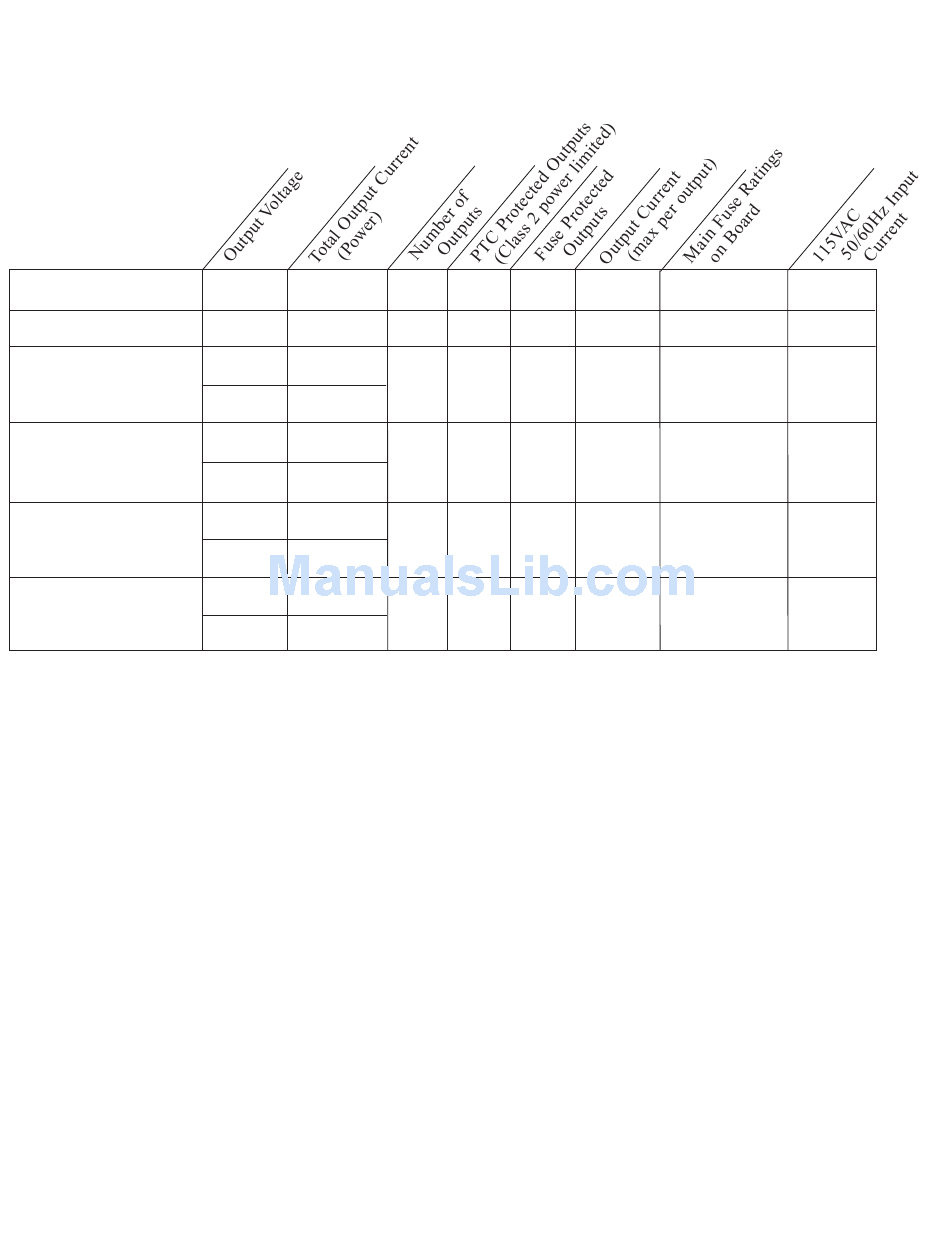

Eight (8) Output WPTV Reference Chart:
24VAC 3.5 amp
24VAC 3.5 amp
24VAC 7 amp
28VAC 6.25 amp
24VAC 7 amp
28VAC 6.25 amp
24VAC 12.5 amp
28VAC 10 amp
24VAC 12.5 amp
28VAC 10 amp

Specifications:

Installation Instructions:

Overview:
8 - x 3.5 amp
8 x - 2.5 amp
8 - x 3.5 amp
8 x - 2.5 amp
8 - x 3.5 amp
8 x - 2.5 amp
• Unit maintains camera synchronization.
• Ease of installation saves time & eliminates costly labor.
• Spare fuses included (on fuse protected models).
Enclosure Dimensions:
12"H x 8"W x 6"D
- 2 -
3.5 amp/250V .9 amp
- .9 amp
- 1.76 amp
- 1.76 amp
- 2.7 amp
- 2.7 amp
