Altronix WPTV248UL Installation Manual page 6

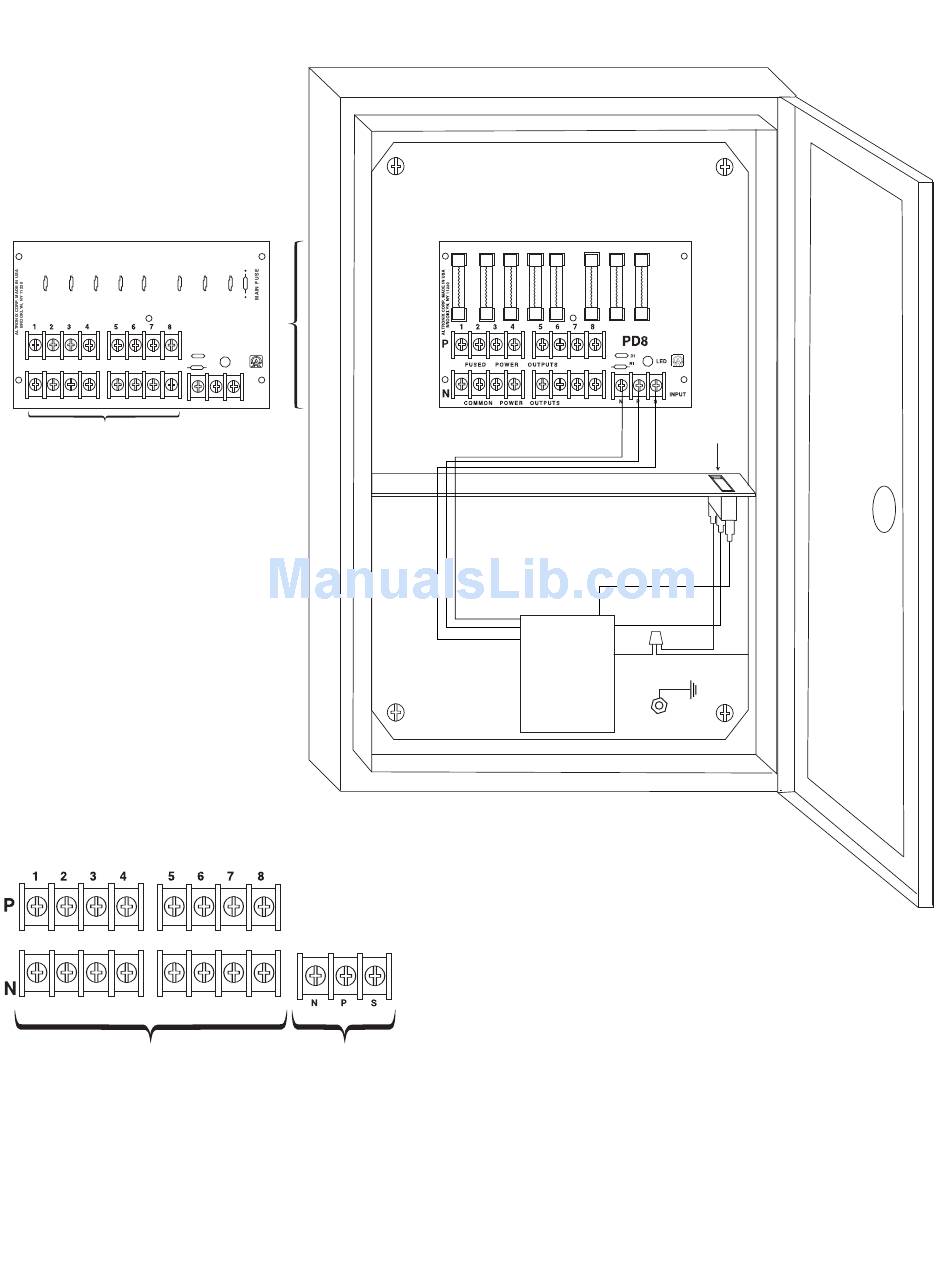

Fig. 3
WPTV248175UL • WPTV248175ULCB
Used on PTC Models
(example: WPTV248175ULCB)
F 1 F 2 F 3 F 4 F 5 F 6
P
F U S E D P O W E R O U T P U T S
N
C O M M O N P O W E R O U T P U T S
Power Limited
Class 2
Terminal Blocks for Fig. 3
24VAC or 28VAC
fused or PTC protected outputs
1 through 8.
F 7 F 8
PD8
D1
LED
R1
INPUT
N P S
Input:
24VAC or 28VAC
operation.
XFMR
- 6 -
non-power
limited
Power
Switch
White
Lead
115VAC Input
50/60 Hz.
Green
Lead
(Ground)
