Rack Rails and Mounting,
Install outer
rack rails
Installing in
rack
Removing from
rack
ClearCube Technology, Inc.
Continued

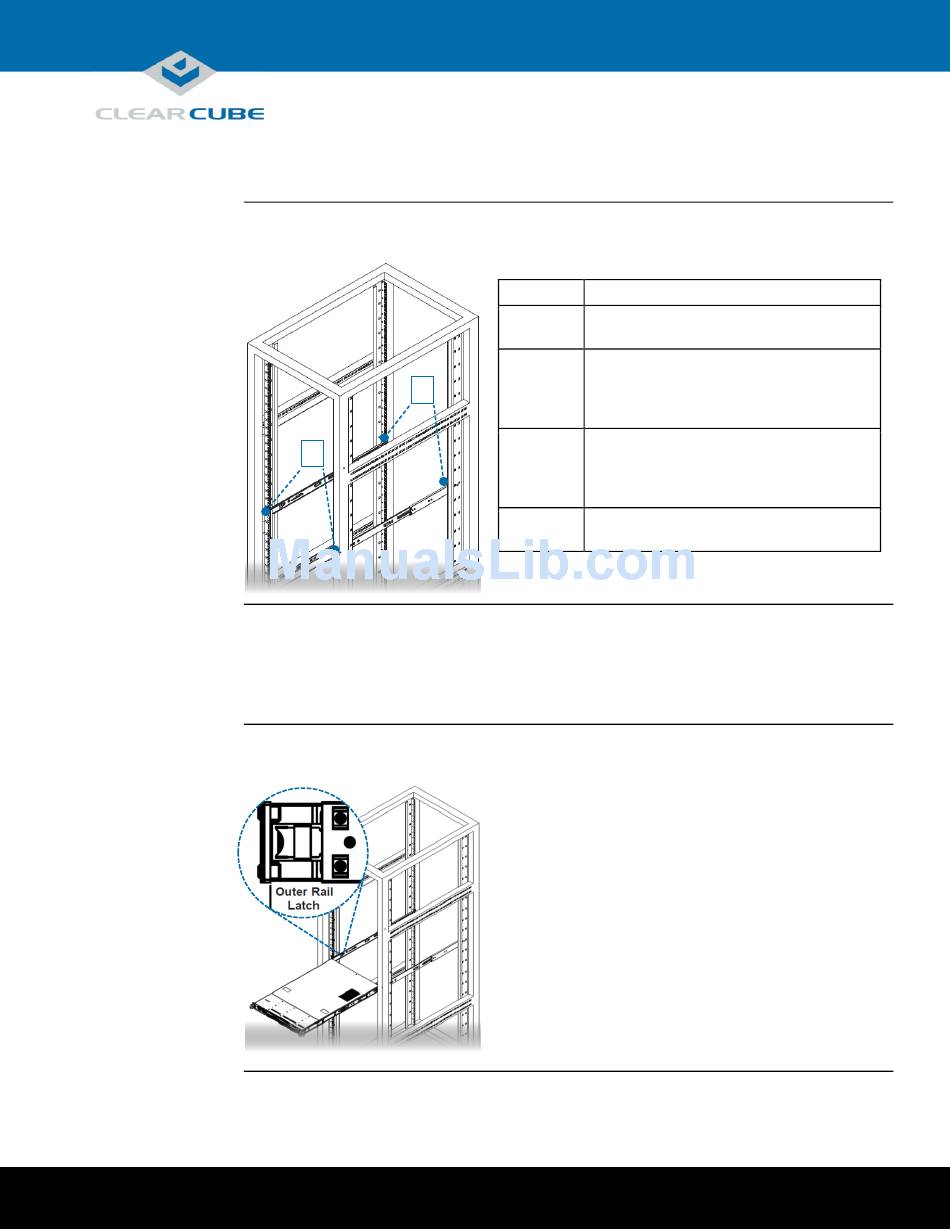

The picture and table below shows how to install the assembled outer rack rails in a rack.
B
A
To install a SmartVDI-110 Server in a rack:
1. While carefully lifting the workstation, slide the inner rail extensions into the front of the outer
rack rails.
2. Push the workstation into the rack until it clicks into the locked position.
This picture and table below show how to remove a SmartVDI-110 Server from a rack.
3700 W Parmer Lane
Step
1 Adjust the outer rack rails so that the outer
rails fit snugly in the rack.
2 Align the holes on the front of the outer rail
with the holes on the front of the rack and
secure with the screws provided (see A in
the adjacent picture).
3 Align the holes on the rear of the outer rack
rail with the holes on the rack and secure
with the screws provided (see B in the
adjacent picture).
4 Repeat these steps with the other outer rack
rail assembly.
Next step: Install the workstation in a rack.
1. Press the outer rack rail latch to release the workstation
chassis (the latch is shown in the adjacent picture).
2. Carefully slide the chassis forward off of the outer rack
rails and out of the rack.
Page 6 of 10
