SmartVDI-110 Overview and Features

SmartVDI-110
overview
SmartVDI-110
front panel
ClearCube Technology, Inc.
The SmartVDI-110 Server is a 1U, VDI-optimized, high-performance server based on the Intel
chipset. The list below shows SmartVDI 110 features.
 Intel Xeon
®
E5-2600 v3 series processor (up to 18 cores and 145 W)
 16 × DIMM slots, 288-pin DDR4
 Up to 512 GB DDR 4 ECC Registered Memory
 16 or 32 GB RDIMM modules
 4 × 2.5-inch SAS/SATA hot-swap drive bays
 2 × 10GBASE-T (GbE) Ethernet LAN ports
 1 × Ethernet dedicated IPMI port
 Support for IPMI 2.0

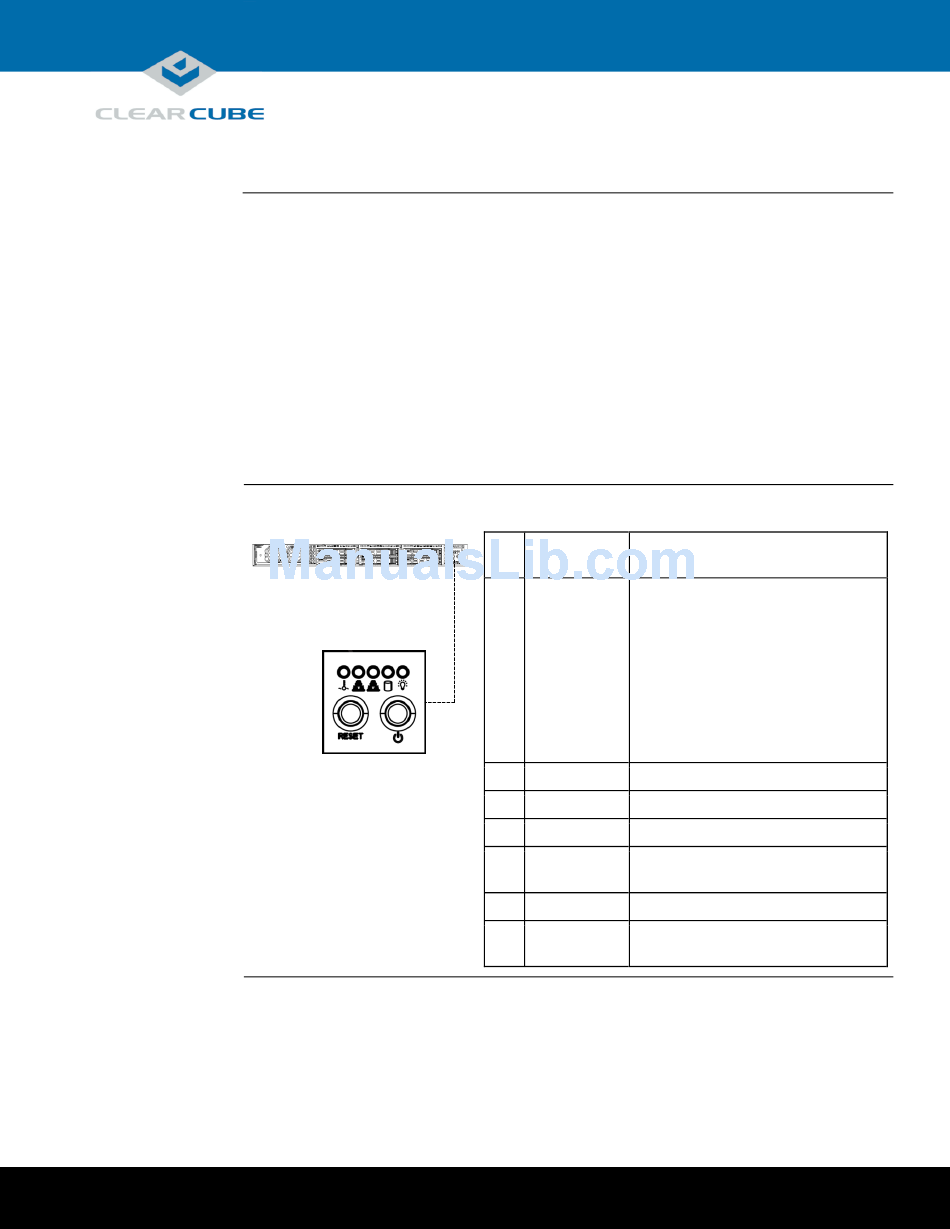

The picture and table below show indicators and buttons on the front panel of a SmartVDI-110.
1 2 3 4 5
6 7
3700 W Parmer Lane
Indicator or
Button
1 Overheat/
Fan Fail
2 NIC 2
3 NIC 1
4 HDD
5 Power
(Indicator)
6 Reset
7 Power
(Button)
Page 2 of 10
Austin, TX 78727
Description
Solid: overheat condition.
Flashing: fan failure.
To troubleshoot, ensure that cables do
not obstruct air flow, ambient room
temperature is appropriate, and all
fans are installed and operating. Also
ensure that the chassis cover, all
airflow shrouds, and all heat sinks are
installed properly.
Flashing: network activity.
Flashing: network activity.
Flashing: hard disk drive activity.
Solid: power is supplied to the server.
Press to restart the server.
Press to power on and power off
the server.
Continued on next page
