Rack Rails and Mounting,
Install inner
rail extensions
Assemble outer
rack rails
ClearCube Technology, Inc.
Continued

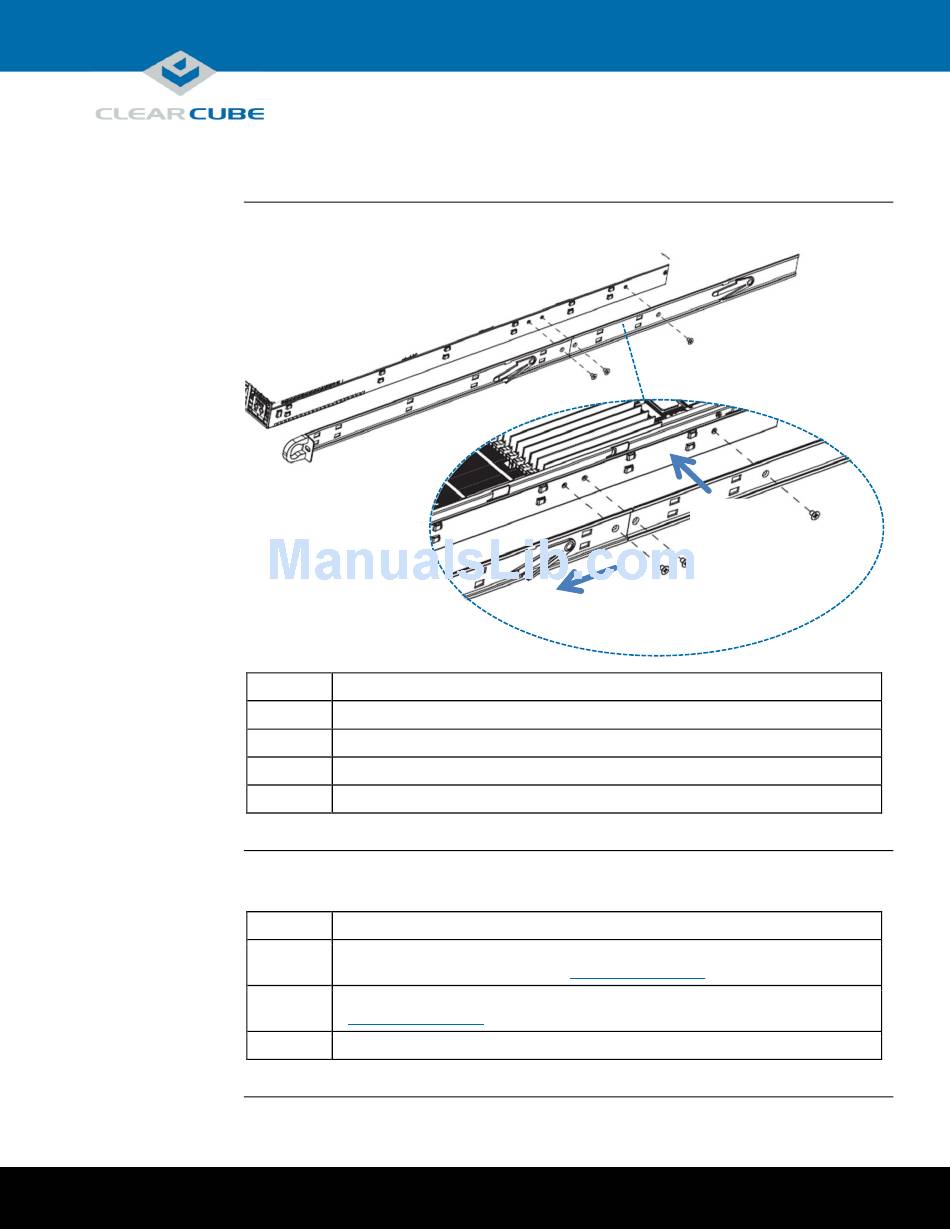

The picture and table below show how to attach and secure the inner rail extensions.
Step
1 Align the hooks on the side of the chassis with the slots on the inner rail extension.
2 Slide the extension rail toward the front of the chassis.
3 Secure the extension rail with the screws provided.
4 Repeat these steps to attach the other extension rail on the other side of the chassis.
Next step: assemble outer rack rails.
Outer rack rails consist of two sections: a longer front section and a shorter rear section. Slide these
together to assemble the rail.
Step
1 Identify the left and right outer rack rails by examining the ends (brackets). These
brackets bend outward as shown in
2 Slide the front section of the outer rack rail into the rear outer rack rail as shown in
"Rack rail
components."
3 Repeat these steps to assemble the other outer rack rail.
Next step: install outer rack rails in a rack.
3700 W Parmer Lane
Step 2
Action
Action
"Rack rail
Page 5 of 10
Austin, TX 78727
Step 1
Step 3
components."
Continued on next page
