CD8620- or CD6620-series thin client
Package
Contents
Pedestal and thumb screw
Power adapter and power cable
This Quick Start Guide
Processor:
Specifications
Chipset:
Memory:
Graphics:
Audio:
Network:
Smart Card Reader: Models CD8624 and CD6624 only
BIOS:
USB:
Storage:
Power:
Dimension:
ClearCube Technology, Inc.

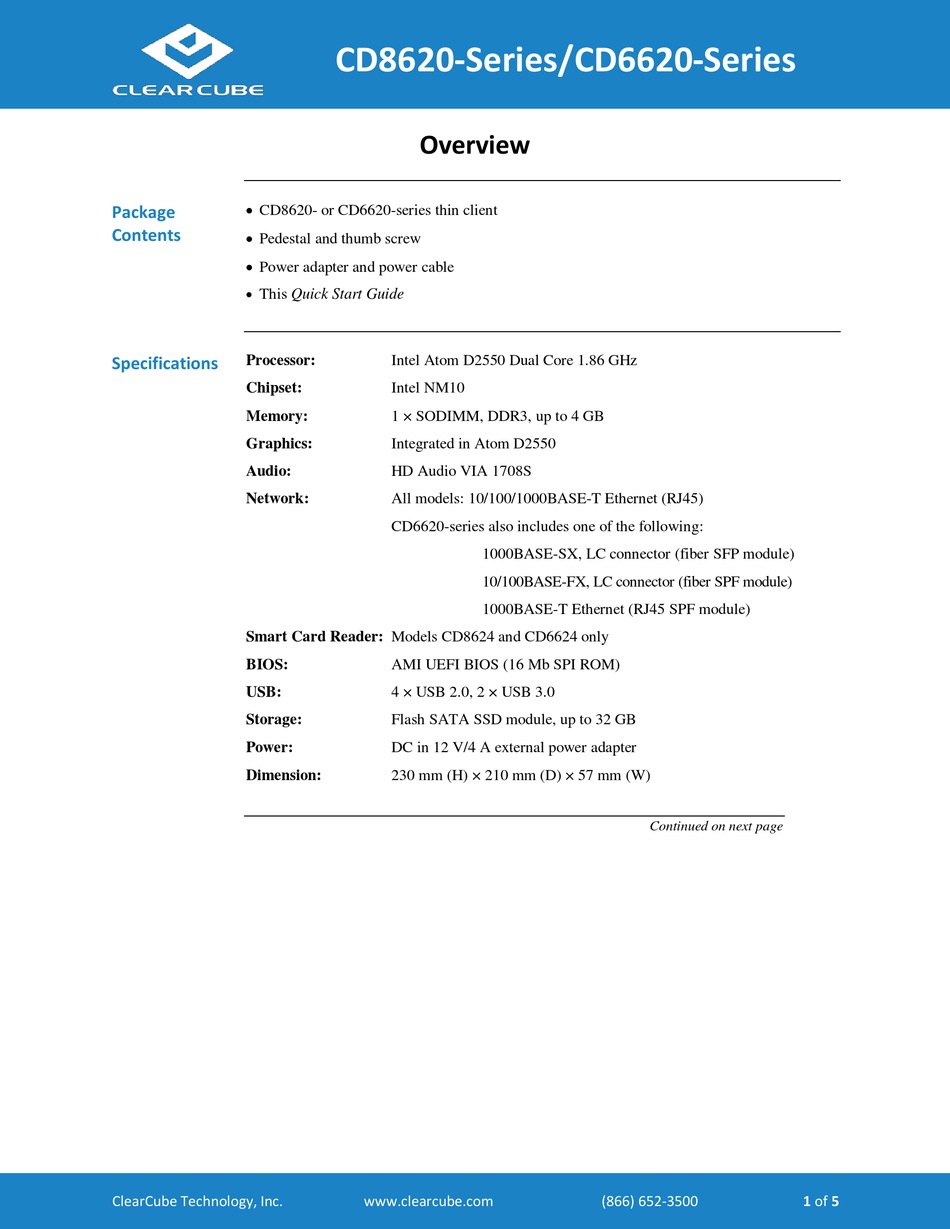

CD8620-Series/CD6620-Series
Overview
Intel Atom D2550 Dual Core 1.86 GHz
Intel NM10
1 × SODIMM, DDR3, up to 4 GB
Integrated in Atom D2550
HD Audio VIA 1708S
All models: 10/100/1000BASE-T Ethernet (RJ45)
CD6620-series also includes one of the following:
1000BASE-SX, LC connector (fiber SFP module)
10/100BASE-FX, LC connector (fiber SPF module)
1000BASE-T Ethernet (RJ45 SPF module)
AMI UEFI BIOS (16 Mb SPI ROM)
4 × USB 2.0, 2 × USB 3.0
Flash SATA SSD module, up to 32 GB
DC in 12 V/4 A external power adapter
230 mm (H) × 210 mm (D) × 57 mm (W)
www.clearcube.com
Continued on next page
(866) 652-3500
1 of 5
Advertisement
Table of Contents
Related Manuals for ClearCube CD8620 series
Summary of Contents for ClearCube CD8620 series
- Page 1 Flash SATA SSD module, up to 32 GB Power: DC in 12 V/4 A external power adapter Dimension: 230 mm (H) × 210 mm (D) × 57 mm (W) Continued on next page ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 1 of 5...
- Page 2 See the documentation for the remote protocol application that you use for additional information. Network Infrastructure Copper and Fiber Ethernet (Network Media Varies by Model) Thin Client with Chassis with Monitors and Peripherals Blades and VMs ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 2 of 5...
- Page 3 Models CD662x only: The network interfaces for the add-on SFP card (SFP module) and the onboard RJ45 are both enabled. You can disable either network interface from the BIOS. Optionally, connect a printer to the thin client. Continued on next page ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 3 of 5...
- Page 4 If the thin client contains a smart card reader: Install a smart card reader driver on the remote device to which users connect. Drivers are available at www.clearcube.com/support. Be sure that the Windows operating system Smart Card service (SCardSvr) is running on the remote device to which users connect.
-
Page 5: Additional Information
CD8620-Series/CD6620-Series Resources and Support ClearCube Sentral Administrator’s Guide describes how to use ClearCube Sentral to manage Additional thin clients, chassis, and related devices; perform connection brokering; and more. Information Web site: www.clearcube.com/support Contacting Support Email: support@clearcube.com Phone: (512) 652-3400 Toll-free: (866) 652-3400 G0200168, Rev B 2014.07.17...
