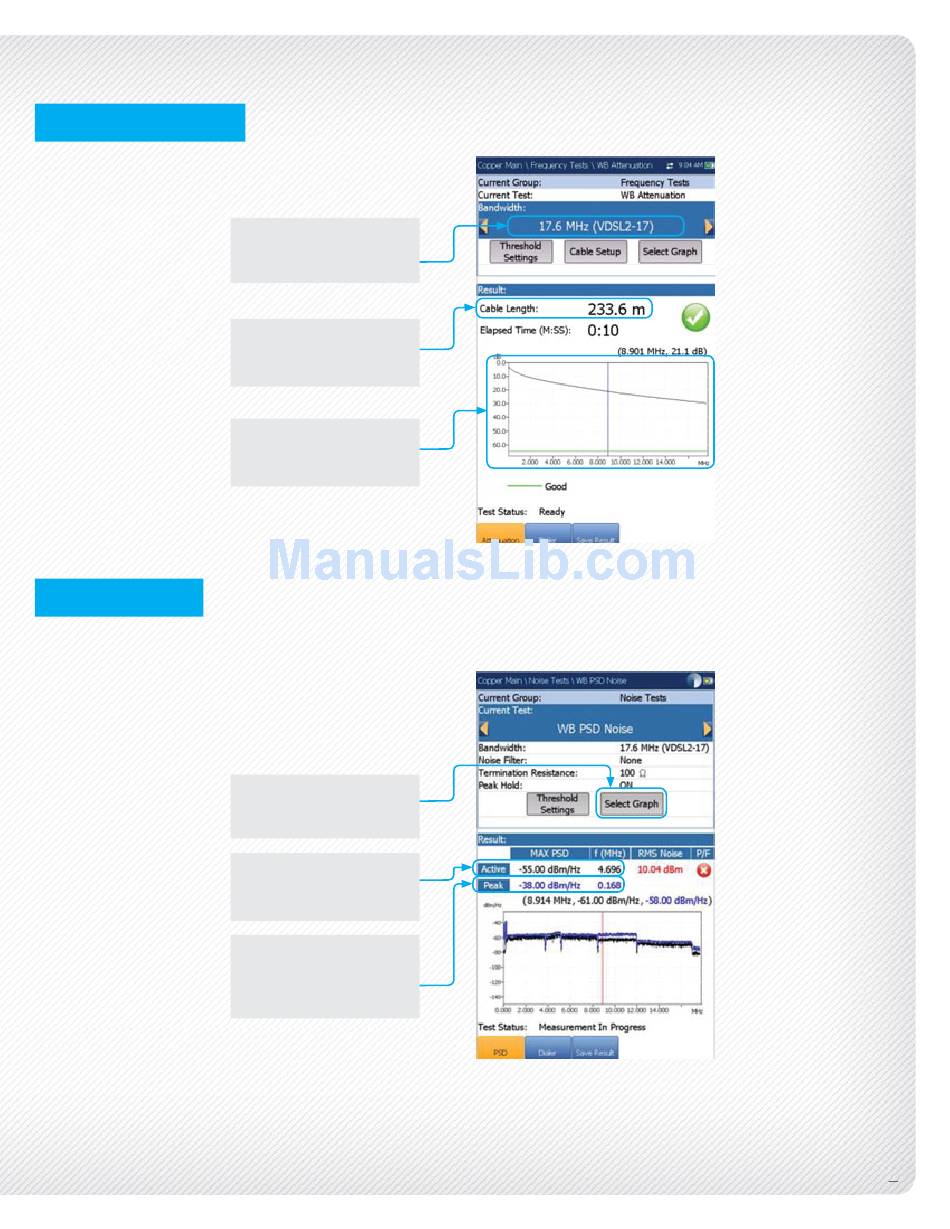

WB SE Attenuation
› Unique technique used to measure insertion
loss (attenuation) across a selected range
WB PSD Noise
› Crosstalk/RFI detection from live pairs
› Frequency band selection (ADSL2+ 2.2MHz,
to VDSL2 30MHz)
› Blue plot shows peak levels since start of test
› Black plot shows live levels
Frequency Band Selection
(ADSL2+ 2.2MHz, to VDSL2
30MHz)
Cable Length
View of estimated cable length
along with a pass/fail
Graph Selection
Select to move cursor and
navigate graph
Graph Selection
Select to move cursor and
navigate graph
Active
Live maximum noise level and
frequency
Peak
Historical maximum noise level
and frequency measured since
start of test
