- Page 1 ROCKETLINX ES7110 ES7110/ES7110-VB QUICK INSTALLATION GUIDE 2000550 Rev E | Release Date - August 2015...

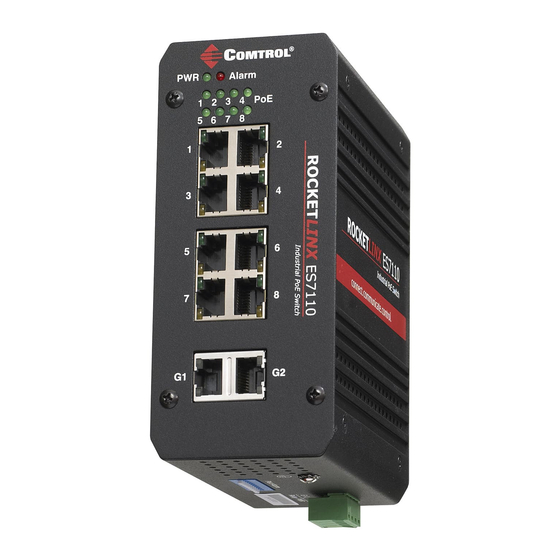

- Page 2 INTRODUCTION The RocketLinx ES7110 series is an industrial Power over Ethernet (PoE) switch with eight Fast Ethernet ports and two Gigabit uplink ports to ensure high-bandwidth connection. The ES7110 is compliant with the IEEE 802.3af PoE standard to deliver a maximum of 15.4 W per port with a total output power budget of 65W.
- Page 3 Electrical Specification ES7110 ES7110-VB Power Input 48VDC 12-24VDC Power Consumption (without PD loading) 11W@ 24VDC Power Consumption (with PD loading) 80W @ 24VDC Maximum Output/Power PoE Port 15.4W 15.4W Total PoE Power Budget Power Supply DC Power output AC Power input 12 to 24AWG Wire Power Supply Requirements...
- Page 4 Alarm System Earth Ground Maximum 1A/24VDC Extra Power System Port Alarm SET THE DIP SWITCH The ES7110 has a 10-pin DIP switch located on the bottom panel to configure the Port Link Alarm for the Ethernet ports. The following table shows the DIP switch number mapping to the corresponding PoE and Gigabit ports as follows.
- Page 5 Description DIP Switch Status 1 - 2 Enables the Gigabit port failure alarm for this port Off (Default) Disables the Gigabit port failure alarm for this port 3 - 10 Enables the PoE port failure alarm for this port Off (Default) Disables the PoE port failure alarm for this port MOUNT THE ES7110 The ES7110 can be mounted on a DIN rail or on a wall panel.
- Page 6 Connect one side of an Ethernet cable into any switch port and connect the other side to your attached device. Make sure that the cables are less than 100 meters (328 feet). RJ45 Pin 10/100BASE-TX PoE 1000BASE-TX Uplink ports: • (Alternative B) 10BASE-T: 2-pair Category 3, 4, 5...
- Page 7 This table provides details about the port status LEDs. Port Status Description PoE 1-8 Green The port is connected Blinking Transmitting or receiving Link/ packets Activity The port link is inactive PoE 1-8 Full-duplex mode Yellow connection Full- Blinking Data collision Duplex/ Collision The link is inactive or...
- Page 8 COMTROL CUSTOMER SERVICE You can use one of the following methods to contact Comtrol. Contact Method Web Address or Phone Number http://www.comtrol.com/support Support Downloads http://downloads.comtrol.com/html/default.htm Website http://www.comtrol.com +1 763.957.6000 Phone...
