Vehicle Detection Is Ensured By A Combination Of; Microwave And Ultrasonic Wave; Component Name - Optex OVS-01GT Installation Instructions Manual

2

Component Name

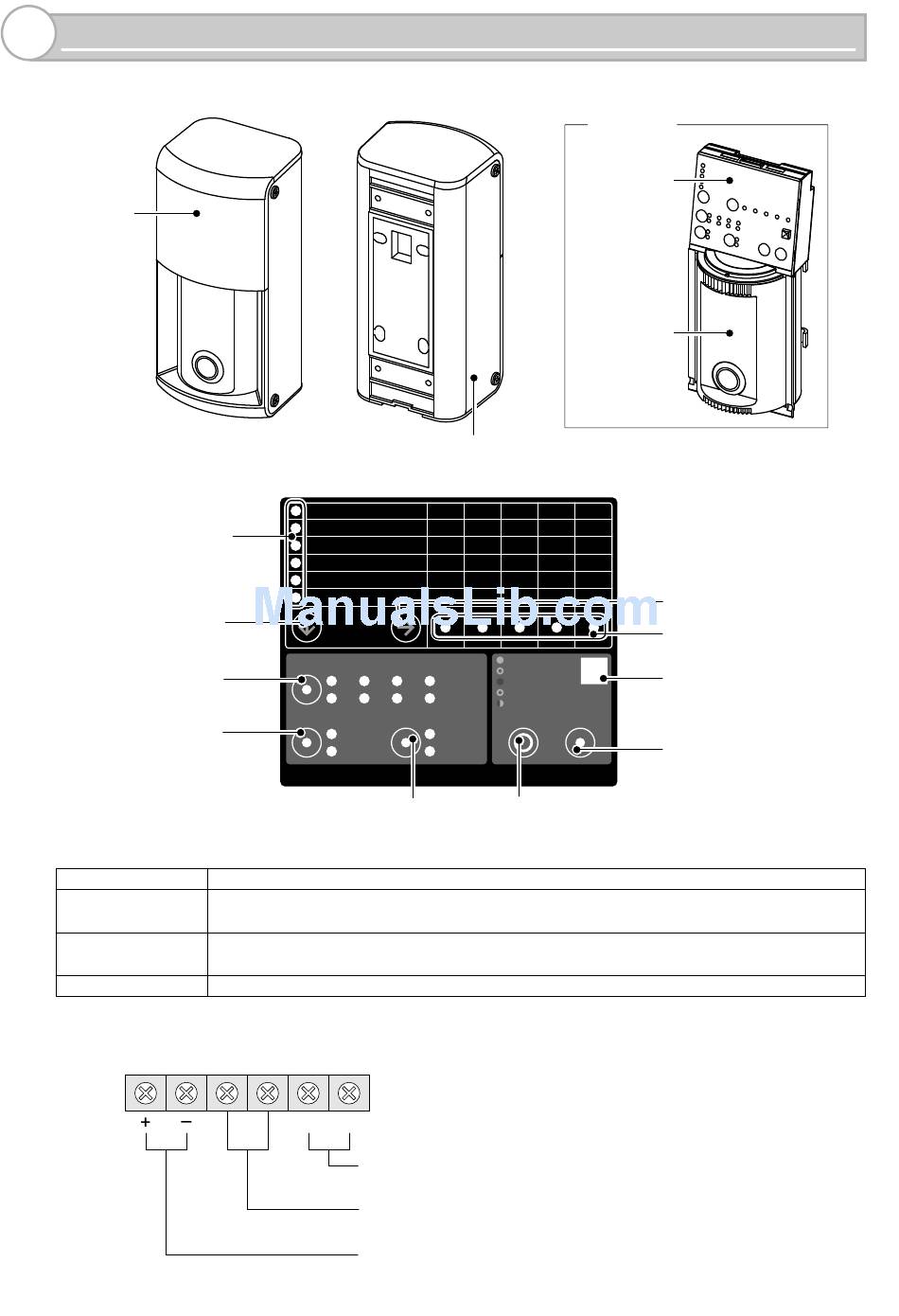

Front Cover
■ Operation Unit
Mode Indicator
Mode Selection button
Microwave Maximum
Range button
Output button
Operation Indicator
●
Standard Operation
Detection Area Check
Calibration
Sensor Reset
■ Terminal Block
Power
Sensitivity
Human Cancel Adjust
Presence Detection Timer (min)
Sensitivity Boost Timer (sec)
Ultrasonic Maximum Range (m)
Input
MODE VALUE
Microwave Maximum Range (m)
2 2.5
4 4.5
Output Sensor Mode
N.O.
N.C.
Sensor Mode button
Standby: Solid Green, Detected: Solid Red
Non detection: Blinking Green, Microwave sensor detected: Blinking Yellow
Ultrasonic sensor detected: Blinking Purple, Microwave and ultrasonic sensor detected: Blinking Red
Getting Ready: Slow Blinking Blue, Calibrating: Quick Blinking Blue,
Ultrasonic sensor detection error: Alternate Blinking Red-Blue
Reset Complete: Solid Yellow for 2 seconds
Output Input
Signal GNP
Input Active High / Low Switchable
Non-Voltage Relay Output N.O. / N.C. Switchable
30VDC 0.3A or less (resistance load)
Power Supply 12-24VDC
Base
1 2 3 4
1 2 3 4
5 60 180 Infinity
Off 5 10 20
Off 0.6 0.8 1
Wake L Wake H Inhibit L Inhibit H
Standby
Area Check
3 3.5
Detection
Calibration
5 5.5
Calibration Error
Calibration Area Check
Activation
Vehicle
Protection
Calibration button
Applicable Wire
Solid wire: 0.5-1.2mm (AWG 30-16)
Stranded wire: 0.3-2.0sq (AWG 22-14)
-3-
Sensor Unit
Operation Unit
Sensor Unit
5
5
40
Value button
Value Indicator
Operation Indicator
Area Check button
