Optex OVS-01GT Quick Reference Manual

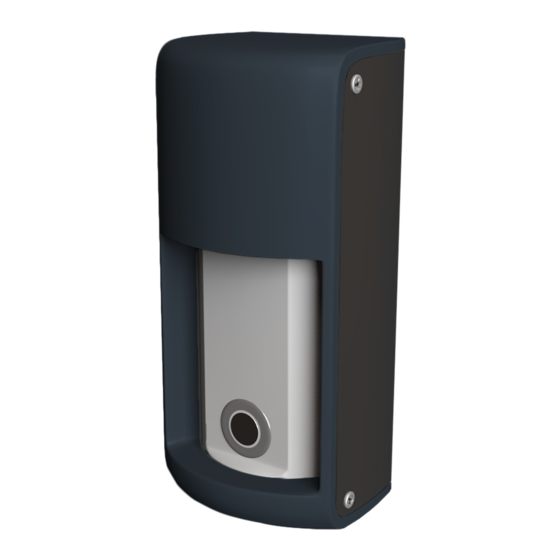

OVS-01GT Quick Reference Guide

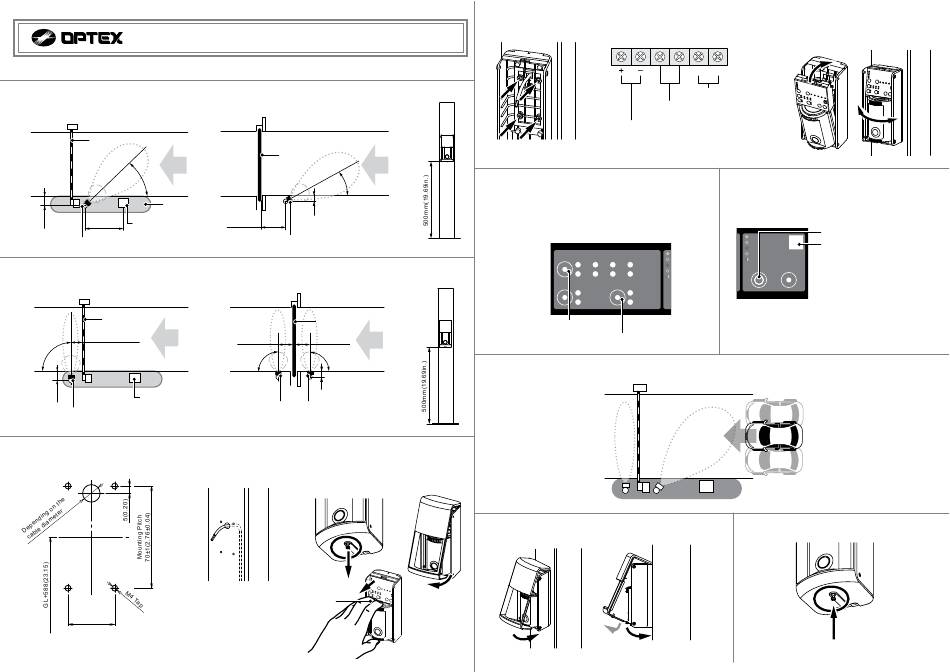

1. If used for Activation, go to section 2. If used for Vehicle protection, go to section 3.
2. If Activation mode, find the installation location by referring the following chart.
Installation height has to be 500mm(19.69" ) from the ground.
Barrier Gate
Gate Bar
Vehicle
Path
45°
Island
150mm 1800mm
Ticket Vending
(5.90in.) (70.87in.)
Machine
Operation Type: Activation
Installation Height of 500mm(19.69in.)
3. If Vehicle protection mode, find the installation location by referring the following chart. Always recommended to install
700mm(70.87" ) far from barrier or slide gate. Installation height has to be 500mm(19.69" ) from the ground.
Barrier Gate
Gate Bar
Vehicle
700mm(27.56in.)
Path
90°
Island
150mm
Ticket Vending
(5.90in.)
Machine
Operation Type:Vehicle Protection
Installation Height of 500mm(19.69in.)
4. Install the sensor, wire it and apply power.
[1] Make holes to mount the sensor. [2] Run a cable thru the post or pole.
Mounting
Pitch 32±1
(1.26±0.04)
[Unit : mm(inch)]
Slide Gate
Public side
Secure side
Gate
Vehicle
Path
30°
100mm(3.94in.)
1100mm
(43.3in.)
Operation Type: Vehicle Protection
Installation Height of 500mm(19.69in.)
Slide Gate
Secure side
Public side
Gate
700mm 700mm
Vehicle
(27.56in.) (27.56in.)
Path
90° 90°
100mm(3.94in.)
Operation Type: Vehicle Protection
Installation Height of 500mm(19.69in.)
[3] Loosen the retaining screws on the bottom
of the front cover and remove the front
cover, detach the sensor unit.
Hold here and
pull forward
[4] Mount the base using 4 screws. [5] Connect wires.
Power Output
Non-Voltage Relay Output N.O. / N.C. Switchable
30VDC 0.3A or less (resistance load)
Power Supply 12-24VDC
Applicable Wire
Single conductor: 0.5-1.2mm (equivalent to CPEV)
Stranded wire: 0.3-2.0sq
5. Set the Microwave maximum range and Sensor mode as follows:
Activation : 5m(16.4' )
Vehicle protection : 3.5m(11.48' ) (factory default setting)
Usually, other settings can be default settings.
For detailed settings, refer to Advance Installation on page 17.
Microwave Maximum Range (m)
2 2.5 3 3.5
4 4.5 5 5.5
Output Sensor Mode
N.O. Activation
N.C. Vehicle
Protection
Microwave Maximum
Range botton
Sensor Mode button
7. System operation check.
Check the entire coverage area by using actual vehicle.
8. Put the front cover on the top of the base first, and attach it
while spreading it open and pushing down the front cover.
[6] Attach the sensor body to the base
and adjust the sensor angle.
Input
Signal GNP
Input Active High / Low Switchable
6. Perform sensor calibration in order to memorize the
background of the detection area. Ensure no
pedestrians or vehicles are present.
1. Press the Calibration button.
Standby
Area Check
2. Operation indicator blinks in blue.
Detection
Calibration
3. Step away from sensor and
Calibration Error
Calibration Area Check
outside detection area.
4. Green LED lights when done
Calibration
correctly.
Left side of the lane
Center of the lane
Right side of the lane
9. Tighten the front cover retaining screw.
