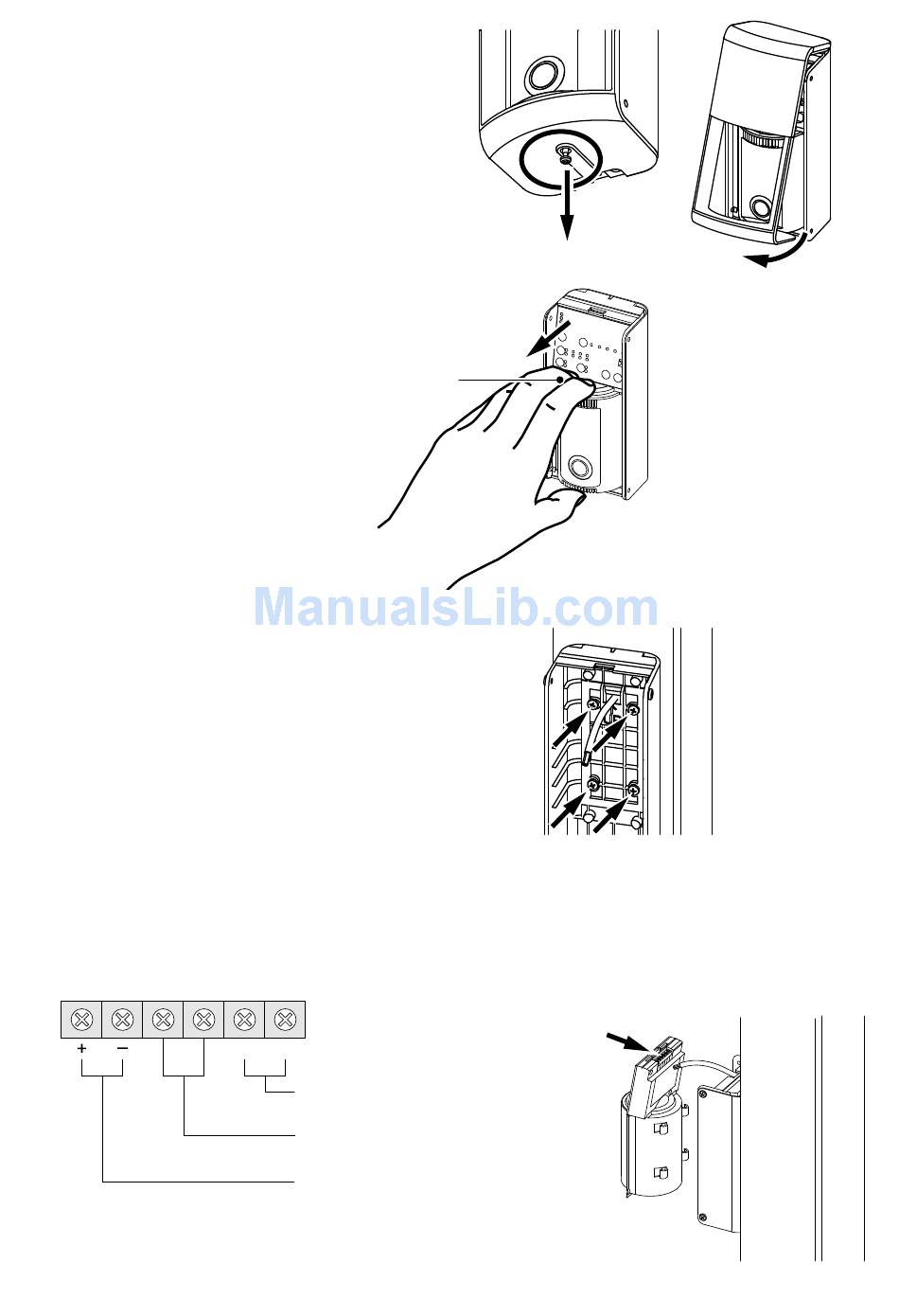

[4] Loosen the retaining screws on the bottom of the
front cover and remove the front cover.
* Do not loosen the screw completely. The screw
may fall out.
If losing the screw, use a M3 x 10 philips screw.
[5] Detach the sensor unit.
[6] Fix the base to the pole.
[7] Connect wires to the terminal.
Attach the relay output wire to "Output" terminal.
Attach the wakeup / inhibit wire to "Input" terminal.
Power Output
Signal GNP
Applicable Wire
Solid wire: 0.5-1.2mm (AWG 30-16)
Stranded wire: 0.3-2.0sq (AWG 22-14)
Hold here and pull forward
Input
Input Active High / Low Switchable
Non-Voltage Relay Output N.O. / N.C. Switchable
30VDC 0.3A or less (resistance load)
Power Supply 12-24VDC
