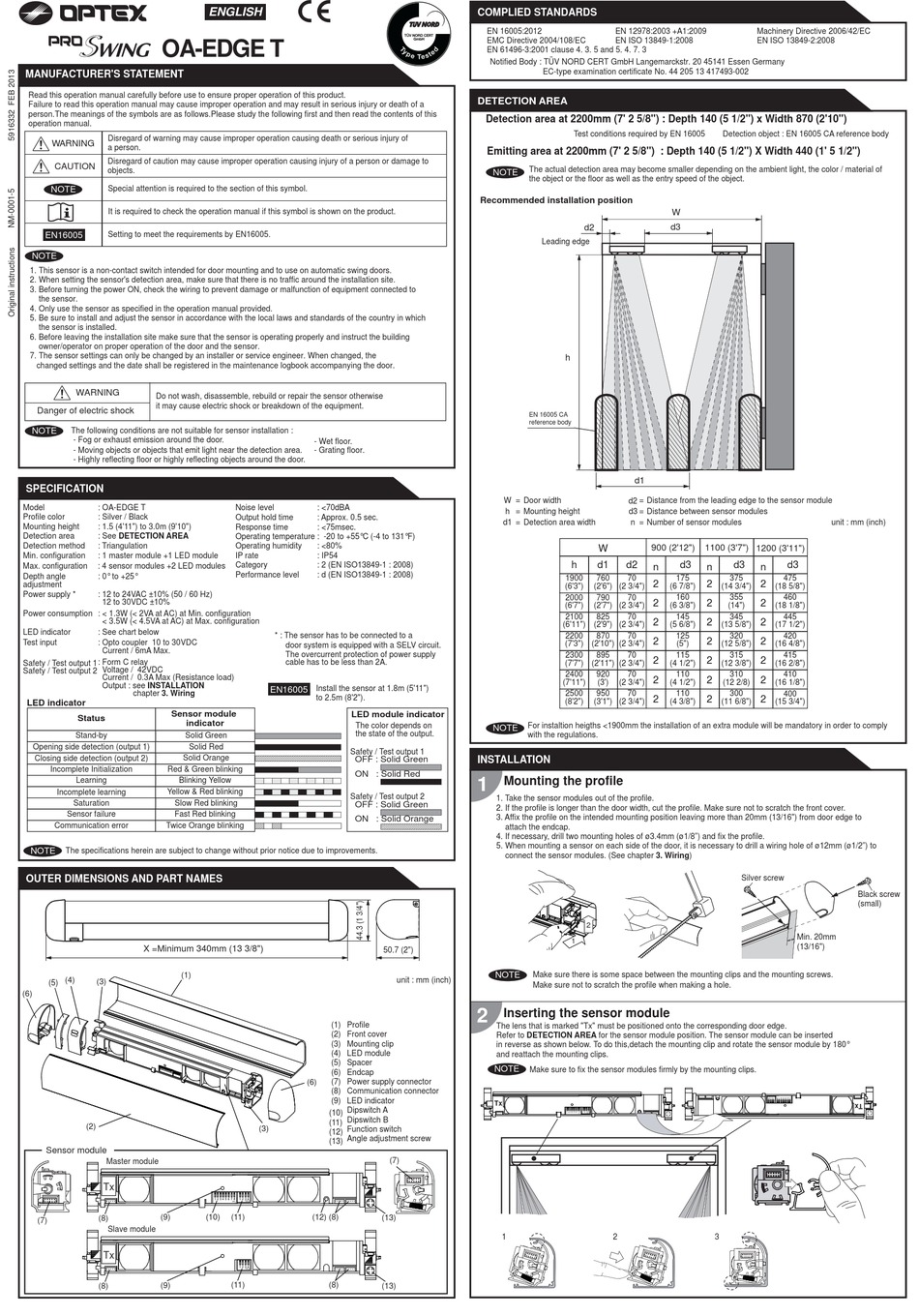

Optex Pro Swing OA-Edge T Original Instructions

OA-EDGE T
MANUFACTURER'S STATEMENT
MANUFACTURER'S STATEMENT
Read this operation manual carefully before use to ensure proper operation of this product.
Failure to read this operation manual may cause improper operation and may result in serious injury or death of a
person.The meanings of the symbols are as follows.Please study the following first and then read the contents of this
operation manual.
Disregard of warning may cause improper operation causing death or serious injury of
WARNING
a person.
Disregard of caution may cause improper operation causing injury of a person or damage to
CAUTION
objects.
NOTE Special attention is required to the section of this symbol.
It is required to check the operation manual if this symbol is shown on the product.
EN16005 Setting to meet the requirements by EN16005.
NOTE
1. This sensor is a non-contact switch intended for door mounting and to use on automatic swing doors.
2. When setting the sensor's detection area, make sure that there is no traffic around the installation site.
3. Before turning the power ON, check the wiring to prevent damage or malfunction of equipment connected to
the sensor.
4. Only use the sensor as specified in the operation manual provided.
5. Be sure to install and adjust the sensor in accordance with the local laws and standards of the country in which
the sensor is installed.
6. Before leaving the installation site make sure that the sensor is operating properly and instruct the building
owner/operator on proper operation of the door and the sensor.
7. The sensor settings can only be changed by an installer or service engineer. When changed, the
changed settings and the date shall be registered in the maintenance logbook accompanying the door.
WARNING
Do not wash, disassemble, rebuild or repair the sensor otherwise
it may cause electric shock or breakdown of the equipment.
Danger of electric shock
NOTE The following conditions are not suitable for sensor installation :
- Fog or exhaust emission around the door.
- Moving objects or objects that emit light near the detection area.
- Highly reflecting floor or highly reflecting objects around the door.
SPECIFICATION
Model : OA-EDGE T
Profile color : Silver / Black
Mounting height : 1.5 (4'11") to 3.0m (9'10")
Detection area : See DETECTION AREA
Detection method : Triangulation
Min. configuration : 1 master module +1 LED module
Max. configuration : 4 sensor modules +2 LED modules
Depth angle : 0° to +25°
adjustment
Power supply * : 12 to 24VAC ±10% (50 / 60 Hz)
12 to 30VDC ±10%
Power consumption : < 1.3W (< 2VA at AC) at Min. configuration
< 3.5W (< 4.5VA at AC) at Max. configuration
LED indicator : See chart below
Test input : Opto coupler 10 to 30VDC
Current / 6mA Max.
: Form C relay
Safety / Test output 1
Voltage / 42VDC
Safety / Test output 2
Current / 0.3A Max (Resistance load)
Output : see INSTALLATION
chapter 3. Wiring
LED indicator
Sensor module
Status
indicator
Stand-by Solid Green
Solid Red
Opening side detection (output 1)
Closing side detection (output 2) Solid Orange
Incomplete Initialization Red & Green blinking
Blinking Red
Learning Blinking Yellow
Yellow & Red blinking
Incomplete learning Slow Green blinking
Saturation Slow Red blinking
Sensor failure Fast Red blinking
Twice Green blinking
Communication error Twice Orange blinking
NOTE The specifications herein are subject to change without prior notice due to improvements.
OUTER DIMENSIONS AND PART NAMES
X =Minimum 340mm (13 3/8")
(1)
(4)
(3)
(5)
(6)
(2)
Sensor module
Master module
Tx
(9)
(8)
(7)
Slave module
Tx
(9)
(8)
ENGLISH
- Wet floor.
- Grating floor.
Noise level : <70dBA
Output hold time : Approx. 0.5 sec.
Response time : <75msec.
Operating temperature : -20 to +55°C (-4 to 131°F)
Operating humidity : <80%
IP rate : IP54
Category : 2 (EN ISO13849-1 : 2008)
Performance level : d (EN ISO13849-1 : 2008)
* : The sensor has to be connected to a
door system is equipped with a SELV circuit.
The overcurrent protection of power supply
cable has to be less than 2A.
EN16005 Install the sensor at 1.8m (5'11")
to 2.5m (8'2").
LED module indicator
The color depends on
the state of the output.
Safety / Test output 1
OFF : Solid Green
ON : Solid Red
Safety / Test output 2
OFF : Solid Green
ON : Solid Orange
(1) Profile
(2) Front cover
(3) Mounting clip
(4) LED module
(5) Spacer
(6) Endcap
(6) (7) Power supply connector
(8) Communication connector
(9) LED indicator
Dipswitch A
(10)
Dipswitch B
(11)
(3)
Function switch
(12)
Angle adjustment screw
(13)
ON
ON
(10) (11) (12) (8)
ON
(11) (8)
COMPLIED STANDARDS
EN 16005:2012
EMC Directive 2004/108/EC
EN 61496-3:2001 clause 4. 3. 5 and 5. 4. 7. 3
Notified Body : TÜV NORD CERT GmbH Langemarckstr. 20 45141 Essen Germany
EC-type examination certificate No. 44 205 13 417493-002
DETECTION AREA
Detection area at 2200mm (7' 2 5/8") : Depth 140 (5 1/2") x Width 870 (2'10")
Emitting area at 2200mm (7' 2 5/8") : Depth 140 (5 1/2") X Width 440 (1' 5 1/2")
The actual detection area may become smaller depending on the ambient light, the color / material of
NOTE
the object or the floor as well as the entry speed of the object.
Recommended installation position
Leading edge
EN 16005 CA
reference body
W = Door width
h = Mounting height
d1 = Detection area width
For instaltion heigths <1900mm the installation of an extra module will be mandatory in order to comply
NOTE
with the regulations.
INSTALLATION
1 Mounting the profile
1. Take the sensor modules out of the profile.
2. If the profile is longer than the door width, cut the profile. Make sure not to scratch the front cover.
3. Affix the profile on the intended mounting position leaving more than 20mm (13/16") from door edge to
attach the endcap.
4. If necessary, drill two mounting holes of ø3.4mm (ø1/8") and fix the profile.
5. When mounting a sensor on each side of the door, it is necessary to drill a wiring hole of ø12mm (ø1/2") to
connect the sensor modules. (See chapter 3. Wiring)
50.7 (2")
NOTE Make sure there is some space between the mounting clips and the mounting screws.
unit : mm (inch)
Make sure not to scratch the profile when making a hole.
2 Inserting the sensor module
The lens that is marked "Tx" must be positioned onto the corresponding door edge.
Refer to DETECTION AREA for the sensor module position. The sensor module can be inserted
in reverse as shown below. To do this,detach the mounting clip and rotate the sensor module by 180°
and reattach the mounting clips.
NOTE
Make sure to fix the sensor modules firmly by the mounting clips.
Tx
(7)
(13)
1
(13)
EN 12978:2003 +A1:2009
EN ISO 13849-1:2008
Test conditions required by EN 16005 Detection object : EN 16005 CA reference body
W
d3
d2
h
d1
d2 = Distance from the leading edge to the sensor module
d3 = Distance between sensor modules
n = Number of sensor modules
W 900 (2'12") 1100 (3'7")
h d1 d2 d3 d3
n n
1900 760 70 175 375
2 2
(6'3") (2'6") (2 3/4") (6 7/8") (14 3/4")
2000 790 70 160 355
2 2
(6'7") (2'7") (2 3/4") (6 3/8") (14")
2100 825 70 145 345
2 2
(6'11") (2'9") (2 3/4") (5 6/8") (13 5/8")
2200 870 70 125 320
2 2
(7'3") (2'10") (2 3/4") (5") (12 5/8")
2300 895 70 115 315
2 2
(7'7") (2'11") (2 3/4") (4 1/2") (12 3/8")
2400 920 70 110 310
2 2
(7'11") (3') (2 3/4") (4 1/2") (12 2/8)
2500 950 70 110 300
2 2
(8'2") (3'1") (2 3/4") (4 3/8") (11 6/8")
2
1
ON ON
2 3
Machinery Directive 2006/42/EC
EN ISO 13849-2:2008
unit : mm (inch)
1200 (3'11")
d3
n
475
2
(18 5/8")
460
2
(18 1/8")
445
2
(17 1/2")
420
2
(16 4/8")
415
2
(16 2/8")
410
2
(16 1/8")
400
2
(15 3/4")
Silver screw
Black screw
(small)
Min. 20mm
(13/16")
