Summary of Contents for Sparky Group FSPE 80

  • Page 2 OPERATING INSTRUCTIONS SPECIFICATIONS Model FSPE 80 FSPE 81 Power input 550 W 550 W –1 –1 No load strokes 300-3200 min 300-3200 min Variable speed Bevel cutting angle ± 45 ± 45 Pendulum action 3-stage 3-stage Cutting capacity in: wood...

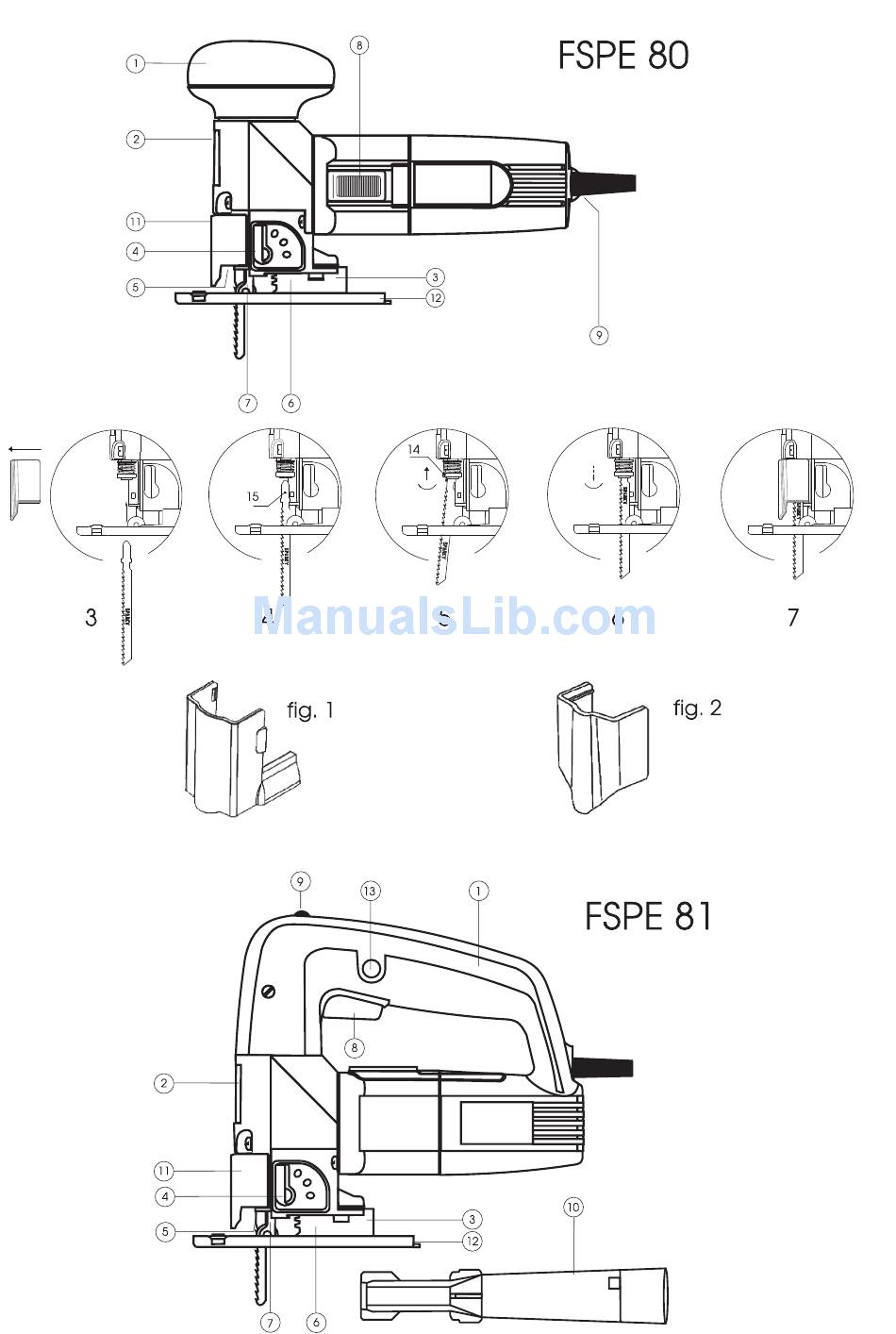

  • Page 3 Make sure the saw blade is tightened to hol- - Continuous use der 5. Switching on: FSPE 80 - press and lock ON/OFF switch 8 in the indicated direction. FSPE 81- press ON/OFF switch 8 and lock it by DURING CARRYING OUT ANY WORK, PLEASE DO OBSERVE THE FOLLOWING button 13.
  • Page 4 OPERATING INSTRUCTIONS Vertical stroke rate adjustment Bevel cutting The vertical stroke rate can be adjusted smoothly Unscrew screw 3 by the hexagon wrench 12 atta- by rotating regulator 9 from position “A” to position ched to adapter 10. Pull the base plate “G”.
  • Page 5 OPERATING INSTRUCTIONS Warranty The guarantee period for SPARKY power tools is determined in the guarantee card. Faults due to defective materials implemented as well as defects in workmanship will be corrected free of charge through replacement or repair. Faults due to normal wear, overloading or improper handling will be excluded from the guarantee.

This manual is also suitable for:

Fspe 81
