Ubiquiti NanoSwitch N-SW Quick Start Manual

Outdoor 4-port poe passthrough switch
Hide thumbs Also See for NanoSwitch N-SW:
Table of Contents

Advertisement

Quick Links

Outdoor 4-Port PoE
Passthrough Switch
Model: N-SW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NanoSwitch N-SW and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti NanoSwitch N-SW

Summary of Contents for Ubiquiti NanoSwitch N-SW

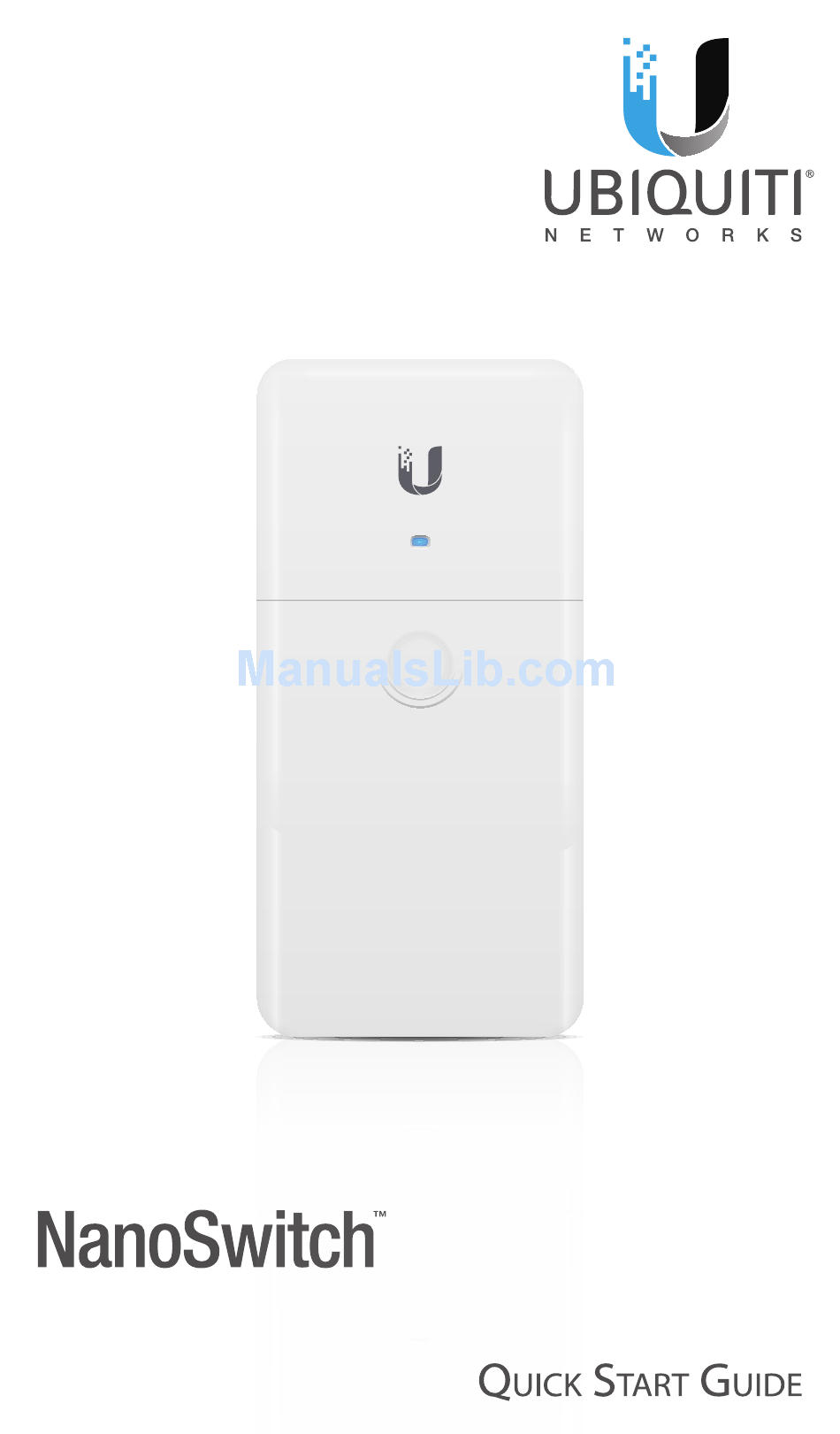

  • Page 1 Outdoor 4-Port PoE Passthrough Switch Model: N-SW...

  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti Networks® NanoSwitch . This Quick Start Guide is designed to guide you ™ through installation and also includes warranty terms. Package Contents Outdoor 4-Port PoE Passthrough Switch Model: N-SW NanoSwitch Metal Straps Quick Start Self-Tapping (Qty.
  • Page 3 • Surge protection should be used for all outdoor installations. We recommend that you use two Ethernet Surge Protectors, model ETH-SP, one near the N-SW and the other at the entry point to the building. The ETH-SP will absorb power surges and safely discharge them into the ground.

  • Page 4: Hardware Overview

    Hardware Overview System LEDs Port Cover The LED will light blue when the device is powered on.
  • Page 5 PoE Out PoE In Ground Bonding Point with a Machine Screw and Nut RJ45 LEDs State Status Link Green Link Established Activity Amber Flashing Indicates Activity Ports Port Description PoE In RJ45 port supports 10/100/1000 Ethernet connections, and supports 24V passive PoE to power the switch.
  • Page 6 Connect a Drain Wire (Optional) If a drain wire is used to ground the NanoSwitch, attach it to the Ground Bonding Point with the Self-Tapping Screw and nut. At the installation site, secure the other end of the drain wire to a grounded mast, pole, tower, or grounding bar.

  • Page 7: Hardware Installation

    Hardware Installation Install the NanoSwitch either on a pole or a wall. Follow the appropriate steps for your installation: Pole-Mounting 1. Feed the included Metal Straps through the slots located on the back of the NanoSwitch. 2. Wrap the Metal Straps around the pole. Use a 7 mm socket wrench or screwdriver to turn the screws clockwise and securely fasten the straps to the pole.
  • Page 8 3. Remove the Port Cover by pressing on its center and sliding it down. Note: If you are using a drain wire for grounding, proceed to the Connecting Power section. 4. Remove the Self-Tapping Screw and nut from the Ground Bonding Point, and drill a 4.5 mm pilot hole into the pole.
  • Page 9 5. Insert the Self-Tapping Screw into the pilot hole. Securely fasten the screw to ensure the Ground Bonding Point is bonded to the pole. Wall-Mounting 1. Secure two screws (not included) to the wall, spaced 38 mm apart. 2. Leave a gap of 3 mm from each screw head to the wall. 3 mm ≤...
  • Page 10 3. With the drain wire already attached, insert the screw heads into the Keyhole Slots on the back of the NanoSwitch. Press down on the NanoSwitch to secure it. Keyhole Slots *640-00314-01* 640-00314-01...

  • Page 11: Connecting Power

    Connecting Power The NanoSwitch is powered by PoE. Connect an Ethernet cable from a 24V passive PoE power source to the PoE In port. Connecting Ethernet 1. Connect an Ethernet cable to a PoE Out port. 2. Connect the other end of the Ethernet cable to an Ethernet device.

  • Page 12: Specifications

    Specifications N-SW Dimensions 196.4 x 93.5 x 32.4 mm (Excluding Mount) ( 7.73 x 3.68 x 1.28") Weight 271 g (9.6 oz) Enclosure White Polycarbonate Networking Interfaces (4) 10/100/1000 Mbps Ethernet RJ45 Supported Voltage Range Passive 24V PoE In Power Method Passive 24V PoE In Passive PoE Max Wattage 24V, 1A per Port (24W)

  • Page 13: Safety Notices

    UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period.
  • Page 14 Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...

  • Page 15: Limitation Of Liability

    In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s selection of products (including the Products) for buyer’s application and/or failure of products (including the Products) to meet government or regulatory requirements.

  • Page 16: Industry Canada

    cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Industry Canada CAN ICES-3(A)/NMB-3(A) This Class A digital apparatus complies with Canadian CAN ICES-003.
  • Page 17 Deutsch Die Europäische Richtlinie 2012/19/EU verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische und elektronische Geräte über die dafür zuständigen und von der Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu...

  • Page 18: Declaration Of Conformity

    English Hereby, UBIQUITI NETWORKS, declares that this N-SW device, is in compliance with the essential requirements and other relevant provisions of Directives 2014/30/EU, 2014/35/EU. The full text of the EU declaration of conformity is available at the following internet address: www.ubnt.com/compliance...
  • Page 19 Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: www.ubnt.com/compliance Íslenska [Icelandic] Hér, UBIQUITI NETWORKS, því yfir að þetta N-SW tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/30/ESB, 2014/35/ESB. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance...

  • Page 20: Online Resources

    U logo, the Ubiquiti beam logo, airMAX, airOS, InnerFeed, PowerBeam, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. App Store is a service mark of Apple Inc. Android, Google, Google Play, the Google Play logo and other marks are trademarks of Google Inc.
