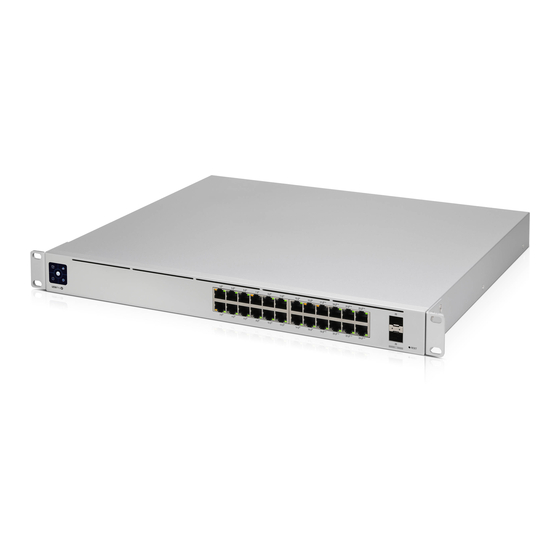

Ubiquiti UniFi USW-PRO-24-POE Quick Start Manual
Hide thumbs
Also See for UniFi USW-PRO-24-POE:
- Quick start manual (13 pages) ,
- Quick start manual (15 pages) ,
- Quick start manual (16 pages)
Related Manuals for Ubiquiti UniFi USW-PRO-24-POE
Summary of Contents for Ubiquiti UniFi USW-PRO-24-POE

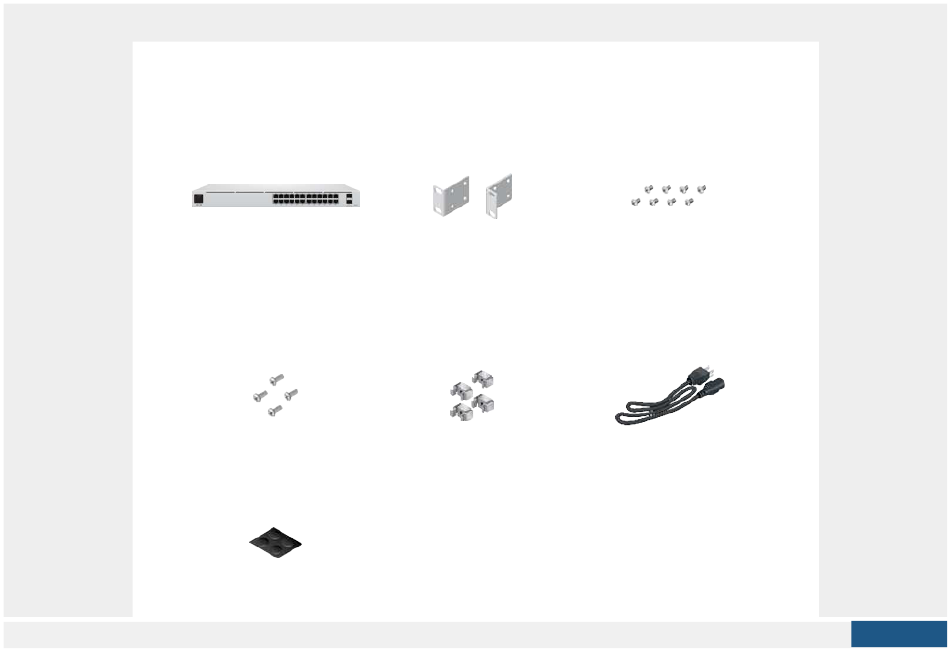

- Page 1 Package Contents UniFi Switch Rack-Mount Brackets (Qty. 2) Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 2: System Requirements
Rubber Feet (Qty. 4) System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.6 (1.8 or newer recommended) Web Browser: Google Chrome (Other browsers may have limited functionality.) UniFi Controller software v5.10.x (or newer), available at: ui.com/download/unifi IMPORTANT: We strongly recommend using UPS backup and power regulation... - Page 3 Touchscreen Display Bootup Animation Initializing. Steady White Factory defaults, waiting for adoption. Successfully adopted by a network and working Steady Blue properly. This indicates that you clicked Locate in the UniFi Location Animation Controller software. The software will also display the location of the device on the map.
- Page 4 Link Established at 10/100 Mbps Amber Flashing Indicates Activity Link Established at 1000 Mbps Green Flashing Indicates Activity SFP+ Speed/Link/Activity LED (Ports 25 - 26) No Link Link Established at 1 Gbps Green Flashing Indicates Activity Link Established at 10 Gbps White Flashing Indicates Activity RJ45 (Ports 1 - 16)
-
Page 5: Installation Requirements
This button serves two functions for the UniFi Switch: Restart Press and release the Reset button quickly. Restore to Factory Default Settings Press and hold the Reset button for more than five seconds. USP LED The LED lights up blue when there is an active power connection on the USP DC input. -
Page 6: Hardware Installation
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable Note: Although the cabling can be located outdoors, the UniFi Switch itself should be housed inside a protective enclosure. - Page 7 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 8 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 9: Connecting Power
Connecting Power Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 10 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 11 Connecting Ethernet Connecting SFP Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 12 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 13 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 14: Software Installation
For information about compatible fiber SFP modules, visit: ubnt.link/UniFi_SFP_DAC_Compatibility Software Installation Download and install the latest version of the UniFi Controller software at ui.com/download/unifi and follow the on-screen instructions. Note: If you already have UniFi Controller v5.10.x or newer installed, skip to “Adopting the UniFi Switch”. - Page 15 You can manage your network and view network statistics using the UniFi Controller management interface. To adopt the UniFi Switch, proceed to “Adopting the UniFi Switch”. For information on configuring and using the UniFi Controller software, refer to the User Guide on the website: ui.com/download/unifi Adopting the UniFi Switch...
- Page 16 2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model column. To adopt the UniFi Switch, click Adopt. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 17: Specifications
3. The System LED on the UniFi Switch will turn blue to confirm that it has been successfully adopted. Specifications USW-Pro-24-POE Dimensions 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72") Weight 4.30 kg (9.48 lb) With Rackmount Brackets 4.39 kg (9.68 lb) Interfaces Networking... - Page 18 USW-Pro-24-POE Management Ethernet In-Band Power Method Universal Input 100-240VAC/50-60 Hz USP RPS DC Input 52VDC, 7.69A; 11.5VDC, 2.61A Power Supply AC/DC, Internal, 450W Supported Voltage Range 100 to 240VAC Max. Power Consumption (Excluding PoE Output) LEDs System Status RJ45 Data Ports PoE;...
-
Page 19: Safety Notices
* Background noise level: 27.5 dBa PoE Interfaces Ports 1-16 POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) Ports 17-24 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) Max. PoE Wattage per Port by PSE 802.3at 802.3bt Voltage Range 802.3af Mode... -
Page 20: Electrical Safety Information
risk of electric shock from lightning. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. -
Page 21: Australia And New Zealand
Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. -
Page 22: Weee Compliance Statement
WEEE Compliance Statement Declaration of Conformity Online Resources © 2020 Ubiquiti Inc. All rights reserved. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
