Ubiquiti UniFi US-8-60W Quick Start Manual
8-port managed gigabit switch with 802.3af poe
Hide thumbs
Also See for UniFi US-8-60W:
- Quick start manual (11 pages) ,
- Quick start manual (11 pages) ,
- Quick start manual (12 pages)
Related Manuals for Ubiquiti UniFi US-8-60W
Summary of Contents for Ubiquiti UniFi US-8-60W

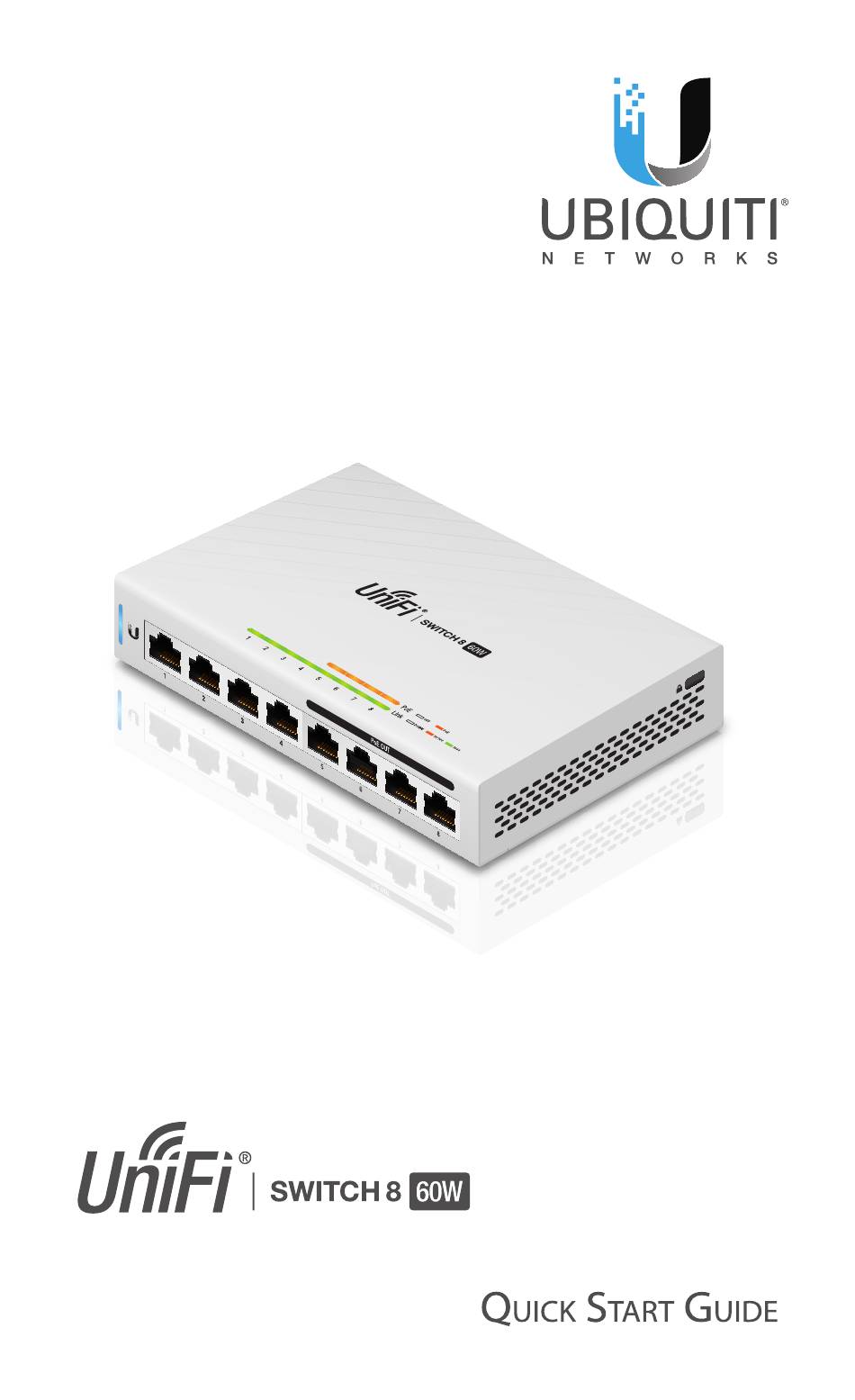

- Page 1 8-Port Managed Gigabit Switch with 802.3af PoE Model: US-8-60W https://arttel.ru/shop/kommutatory/ubiquiti-...
-
Page 2: System Requirements
Introduction Thank you for purchasing the Ubiquiti Networks® UniFi® 8-Port Managed Gigabit Switch with 802.3af PoE. This Quick Start Guide is designed to guide you through the installation and also includes the warranty terms. Package Contents UniFi Switch Mounting Screws Screw Anchors (Qty. -
Page 3: Network Topology Requirements
NOC UniFi Cloud Key (UniFi Controller) UVC-G3-DOME UAP-AC-PRO UAP-AC-IW US-8-60W Internet Remote Access to UniFi Controller Sample Network Diagram All UniFi devices support off-site management controllers. For setup details, refer to the User Guide on the website: documentation.ubnt.com/unifi https://arttel.ru/shop/kommutatory/ubiquiti-... -
Page 4: Hardware Overview
Power port. Reset This button serves two functions for the UniFi Button Switch: Restart • Press and release the Reset button quickly. • Restore to Factory Default Settings Press and hold the Reset button for more than five seconds. https://arttel.ru/shop/kommutatory/ubiquiti-... - Page 5 Flashing Blue This is used to locate a device. When you click Locate in the UniFi Controller software, the System LED will flash blue. The software will also display the location of the UniFi Switch on the map. https://arttel.ru/shop/kommutatory/ubiquiti-...
- Page 6 RJ45 LEDs Link/Speed/Activity State Status PoE Off Amber PoE On (IEEE 802.3af ) No Link Link Established at 10/100 Mbps Link/ Amber Speed/ Flashing Indicates Activity Activity Link Established at 1 Gbps Green Flashing Indicates Activity *640-00253-04* 640-00253-04 https://arttel.ru/shop/kommutatory/ubiquiti-...
- Page 7 MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE VENTILATION HOLES FOR ADEQUATE AIRFLOW. WARNING: The US-8-60W must not be stacked. Do not place it on top of another switch. Do not place anything on top of the US-8-60W. https://arttel.ru/shop/kommutatory/ubiquiti-...
-
Page 8: Hardware Installation
1. Drill two 6 mm holes set 73.5 mm apart. 73.5 mm 2. Insert a Screw Anchor into each hole, and fasten a Screw into each anchor. 3. Leave a clearance of approximately 3 mm between the screw head and the wall. 3 mm https://arttel.ru/shop/kommutatory/ubiquiti-... - Page 9 4. Mount the UniFi Switch by inserting the screw heads into the mounting slots on the bottom of the switch. Then slide the switch down to lock it in place. https://arttel.ru/shop/kommutatory/ubiquiti-...
- Page 10 ESD protection by connecting the ancillary ground. 1. Loosen the ground screw and secure a ground wire (not included) to the grounding point. 2. Secure the other end of the ground wire to a grounding block or other grounded structure. https://arttel.ru/shop/kommutatory/ubiquiti-...
-
Page 11: Connecting Power
Connecting Power 1. Connect the Power Adapter to the Power port on the back of the UniFi Switch. 2. Connect the Power Cord to the Power Adapter. Connect the other end of the Power Cord to a power outlet. https://arttel.ru/shop/kommutatory/ubiquiti-... -
Page 12: Connecting Ethernet
1. Connect an Ethernet cable from your DHCP server or LAN to any port on the UniFi Switch. P o E 2. Connect your 802.3af PoE devices to ports 5-8, and PoE will automatically be activated. P o E https://arttel.ru/shop/kommutatory/ubiquiti-... -
Page 13: Software Installation
You can manage your network and view network statistics using the UniFi Controller management interface. To adopt the UniFi Switch, proceed to the Adopting the UniFi Switch section. For information on configuring and using the UniFi Controller software, refer to the User Guide on the website: documentation.ubnt.com/unifi https://arttel.ru/shop/kommutatory/ubiquiti-... - Page 14 2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model column. To adopt the UniFi Switch, click Adopt. 3. The System LED on the UniFi Switch will turn blue to confirm that it has been successfully adopted. https://arttel.ru/shop/kommutatory/ubiquiti-...
-
Page 15: Specifications
8 Gbps, Non-Blocking LEDs System Status RJ45 Data Ports PoE; Link/Speed/Activity ESD/EMP Protection ± 24kV Air, ± 24kV Contact Operating Temperature -5 to 45° C (23 to 113° F) Operating Humidity 5 to 95% Noncondensing Certifications CE, FCC, IC https://arttel.ru/shop/kommutatory/ubiquiti-... -
Page 16: Safety Notices
Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection. Protective bonding must be installed in accordance with local national wiring rules and regulations. https://arttel.ru/shop/kommutatory/ubiquiti-... -
Page 17: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... - Page 18 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
-
Page 19: Limitation Of Liability
Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING... -
Page 20: Industry Canada
Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. https://arttel.ru/shop/kommutatory/ubiquiti-... - Page 21 Folgen für Umwelt und die menschliche Gesundheit zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das Produkt erworben haben. https://arttel.ru/shop/kommutatory/ubiquiti-...
