Summary of Contents for Ubiquiti EdgeSwitch 8

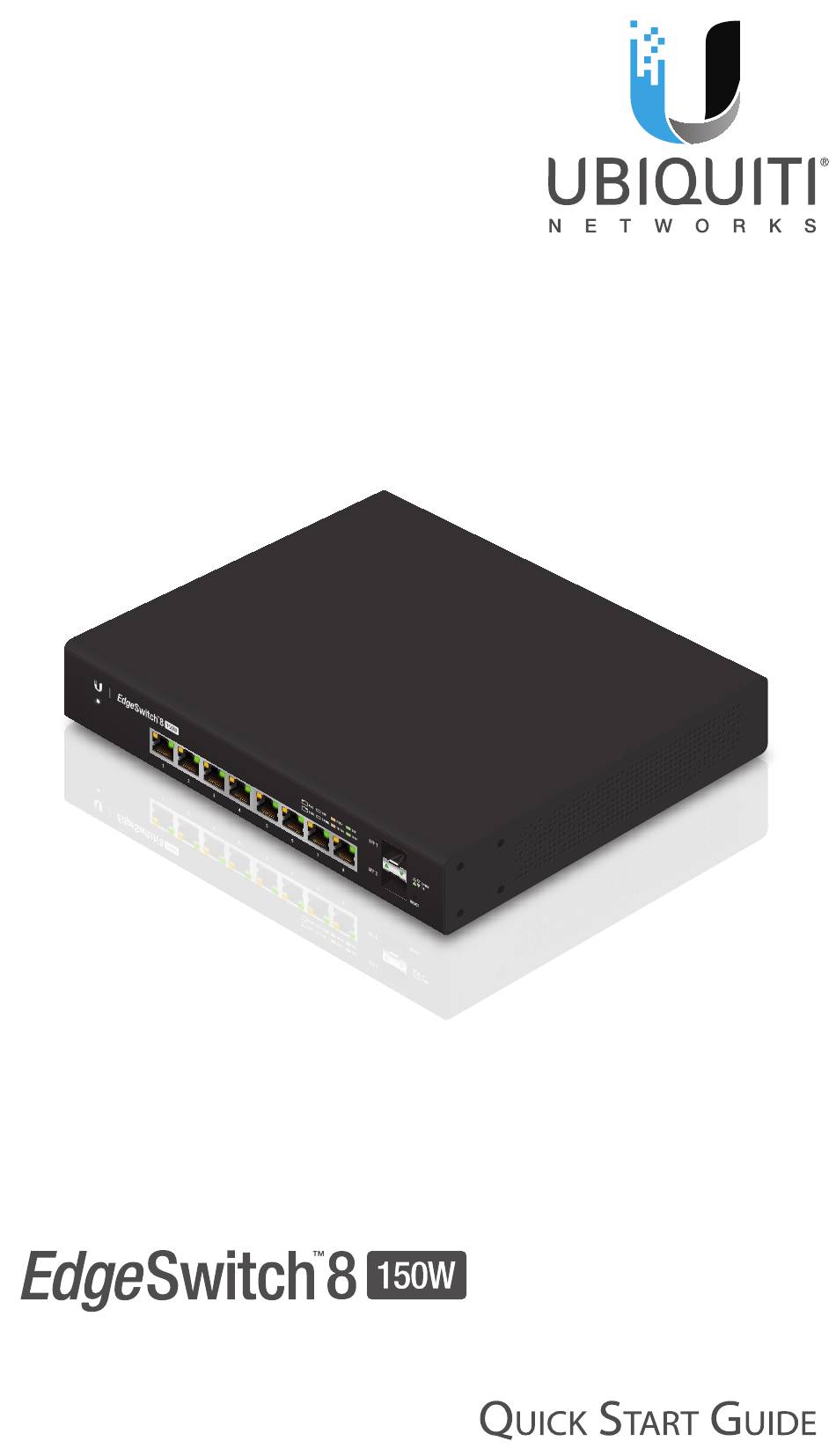

- Page 1 AC or DC Powered, Managed PoE+ Gigabit Switch with SFP Model: ES-8-150W...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® EdgeSwitch ™ This Quick Start Guide is designed to guide you through the installation and also includes the warranty terms. Package Contents EdgeSwitch ES-8-150W Power Cord Mount Brackets Bracket Screws (Qty. 2) (M4, Qty. -
Page 3: Installation Requirements
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable WARNING: To reduce the risk of fire or electric shock, do not expose the switch to rain or moisture. -
Page 4: Hardware Overview
Hardware Overview LEDs RJ45 Link/Speed/Activity System Link/Speed/Activity RJ45 LEDs State Status No PoE Amber IEEE 802.3af/802.3at Green 24V Passive No Link Link Established at 10/100 Mbps Amber Link/ Speed/ Flashing Indicates Activity Activity Link Established at 1000 Mbps (1 Gbps) Green Flashing Indicates Activity... - Page 5 System LED State Status Steady Blue Initializing. Flashing Blue Resetting to factory defaults. Steady White Ready for use and working properly. SFP LEDs State Status No Link Link/ Speed/ Link Established at 1 Gbps Green Activity Flashing Indicates Activity...
-
Page 6: Front Panel
Front Panel RJ45 1-8 SFP 1-2 Reset Button Port Description RJ45 ports support 10/100/1000 Ethernet RJ45 1-8 connections and configurable Power over Ethernet (auto PoE+ or 24V Passive). Hot-swappable SFP ports support 1 Gbps SFP 1-2 connections. There are two methods to reset the EdgeSwitch to factory defaults: Runtime Reset (Recommended) The EdgeSwitch should be running after bootup... -
Page 7: Back Panel
Back Panel Console Port AC Power DC Input Ground Port Description RJ45 serial console port for Command Line Interface (CLI) management. Use an RJ45-to-DB9, serial console cable, also known as a rollover cable, to connect the Console port to your computer. Then configure the following settings as needed: Console •... -
Page 8: Side Panels
Side Panels Ventilation Holes WARNING: FAILURE TO PROVIDE PROPER VENTILATION MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE VENTILATION HOLES FOR ADEQUATE AIRFLOW. WARNING: The ES-8-150W must not be stacked. Do not place it on top of another switch. Do not place anything on top of the ES-8-150W. -
Page 9: Hardware Installation
Hardware Installation The EdgeSwitch may be placed on a desktop, or mounted on a shelf or wall. Shelf Mounting 1. Position the two Mount Brackets as shown below, and attach the brackets using the eight Bracket Screws. 2. Secure the EdgeSwitch to the shelf using the four Mounting Screws. -
Page 10: Wall Mounting
Wall Mounting 1. Position the two Mount Brackets as shown below, and attach the brackets using the eight Bracket Screws. 2. Attach the EdgeSwitch to the wall using the four Screw Anchors and four Mounting Screws. -
Page 11: Connecting Ac Power
Connecting AC Power 1. Connect the Power Cord to the AC power port on the back of the EdgeSwitch. 2. Plug the Power Cord into a power outlet. - Page 12 Connect DC Power (Optional) For stand-alone DC power or redundant power backup, connect a 42 to 56VDC power source to the EdgeSwitch: Note: Only AC power or DC power can be used at any one time. With both power sources connected, the input with the highest voltage will be used (output voltage of the internal AC/DC PSU is 54VDC);...
-
Page 13: Connecting Ethernet
Connecting Ethernet 1. Connect an Ethernet cable from your DHCP server or LAN to any port on the EdgeSwitch. 2. Connect your computer or host system and other devices to the other ports on the EdgeSwitch. - Page 14 Using SFP Ports To use an SFP port: 1. Remove the dust plug covering the SFP port. 2. Insert a compatible fiber SFP module into the SFP port. 3. Connect the fiber optic cable to the fiber SFP module. For information about compatible fiber SFP modules, visit: community.ubnt.com/edgemax *640-00235-04* 640-00235-04...
-
Page 15: Accessing The Configuration Interface
Press enter (PC) or return (Mac). 2. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it. - Page 16 Press enter (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License...
- Page 17 5. The EdgeSwitch Configuration Interface will appear. Go to System > Connectivity > IPv4. 6. Change the IP Address to a unique IP address or select DHCP on the IPv4 tab. Click Submit. Note: If you change the IP settings, then the session will be cut off, and you will need to reconnect to the EdgeSwitch using the new IP address.
-
Page 18: Specifications
Specifications EdgeSwitch ES-8-150W Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25") Weight Without Wall Mount 1.72 kg (3.79 lb) With Wall Mount 1.8 kg (3.96 lb) Line Rate 10 Gbps, Non-Blocking LEDs System Status RJ45 Data Ports PoE;... -
Page 19: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 20: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... - Page 21 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
-
Page 22: Limitation Of Liability
Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING... - Page 23 . u b n t . c o m ©2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeMAX, EdgeOS, EdgePower, EdgeSwitch, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc.
