Managed PoE+ Gigabit Switch
with SFP
Model: US-8-150W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the US-8-150W and is the answer not in the manual?

Questions and answers

Summary of Contents for Ubiquiti US-8-150W

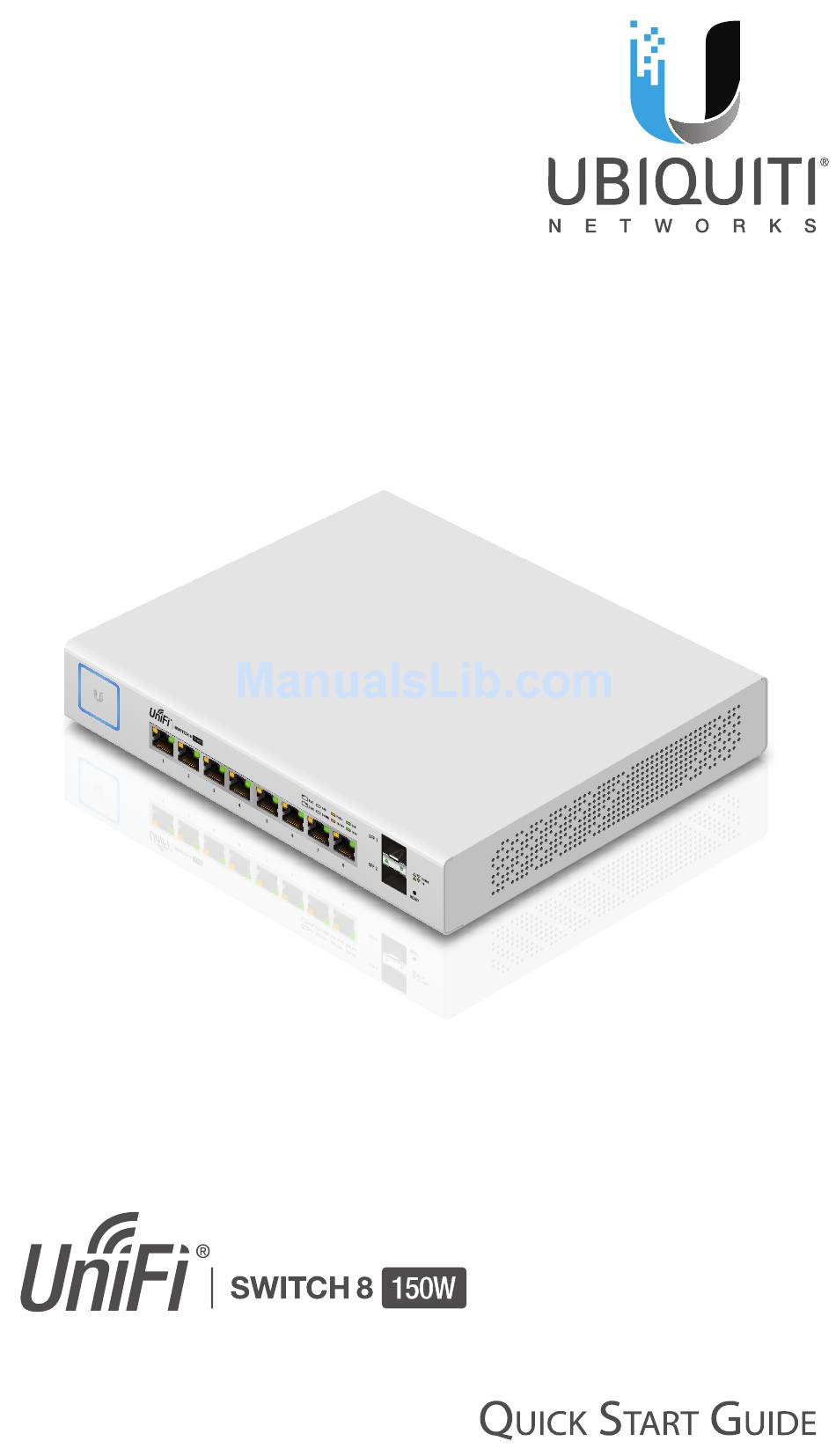

  • Page 1 Managed PoE+ Gigabit Switch with SFP Model: US-8-150W...
  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti Networks® UniFi® Switch. This Quick Start Guide is designed to guide you through the installation and also includes the warranty terms. Package Contents UniFi Switch Managed PoE+ Gigabit Switch with SFP Model: US-8-150W...
  • Page 3: Network Topology Requirements

    Network Topology Requirements • A DHCP-enabled network for the UniFi Switch to obtain an IP address (connected devices will also obtain IP addresses after deployment) • A UniFi Cloud Key or management station running the UniFi Controller v4.8.5 (or newer) software, located either on-site and connected to the same Layer 2 network, or off-site in a cloud or NOC UAP-AC-PRO...
  • Page 4: Hardware Overview

    Hardware Overview Ethernet Ports RJ45 1-8 SFP 1-2 Reset Button Port Description RJ45 ports support 10/100/1000 Ethernet RJ45 1-8 connections and Power over Ethernet (PoE). Hot-swappable SFP ports support 1 Gbps SFP 1-2 connections. This button serves two functions for the UniFi Switch: •...
  • Page 5 LEDs RJ45 System Link/Speed/Activity Link/Speed/Activity System LED State Status Flashing White Initializing. Steady White Factory defaults, waiting for integration. Device is busy; do not touch or unplug it. Alternating This usually indicates that a process such White/Blue as a firmware upgrade is taking place. Successfully integrated into a network Steady Blue and working properly.
  • Page 6 RJ45 LEDs State Status No PoE Amber IEEE 802.3af/802.3at Green 24V Passive No Link Link Established at 10/100 Mbps Amber Link/ Flashing Indicates Activity Speed/ Activity Link Established at 1000 Mbps (1 Gbps) Green Flashing Indicates Activity SFP LEDs State Status No Link Link/ Speed/ Link Established at 1 Gbps...
  • Page 7: Hardware Installation

    Hardware Installation The UniFi Switch should be placed on a horizontal surface. WARNING: FAILURE TO PROVIDE PROPER VENTILATION MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE VENTILATION HOLES FOR ADEQUATE AIRFLOW. WARNING: The UniFi Switch must not be stacked. Do not place it on top of another switch.
  • Page 8: Connecting Ethernet

    Connecting Ethernet 1. Connect an Ethernet cable from your DHCP server or LAN to any port on the UniFi Switch. 2. Connect your computer or host system and other devices to the other ports on the UniFi Switch.
  • Page 9 Using SFP Ports To use an SFP port: 1. Remove the dust plug covering the SFP port. 2. Insert a compatible fiber SFP module into the SFP port. 3. Connect the fiber optic cable to the fiber SFP module. For information about compatible fiber SFP modules, visit: community.ubnt.com/unifi...
  • Page 10: Software Installation

    Software Installation Download and install the latest version of the UniFi Controller software at downloads.ubnt.com/unifi and follow the on-screen instructions. Note: If you already have UniFi Controller v4.8.5 or newer installed, skip to the section, Adopting the UniFi Switch. After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface.
  • Page 11 Adopting the UniFi Switch 1. From the UniFi Controller dashboard, click Devices in the left menu bar. 2. On the Devices screen, locate the UniFi Switch in the list of devices under the Name/MAC Address column. To adopt the UniFi Switch, click Adopt. 3.
  • Page 12: Configuring Poe Settings

    Configuring PoE Settings By default, PoE settings for ports 1-8 are set to auto-sensing PoE+. PoE will automatically be activated on the port when an 802.3af/at device is connected. For 24V passive PoE, PoE must be manually activated. WARNING: Before manually activating 24V passive PoE, ensure that the connected device supports 24V passive PoE.
  • Page 13 3. Click Actions for the port you want to configure. 4. Select the appropriate mode: Off, 24V Passive, or PoE+ from the PoE setting. Then click Apply. For more information, refer to the User Guide on the website: documentation.ubnt.com/unifi...
  • Page 14: Specifications

    Specifications UniFi Switch US-8-150W Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25") Weight 1.7 kg (3.75 lb) Processor Specs ARM Cortex-A9 400MHz Memory Information 256MB DDR3 Code Storage 32 MB NOR Flash Line Rate 10 Gbps, Non-Blocking...
  • Page 15: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
  • Page 16: Limited Warranty

    (VIII) has been damaged or impaired as a result of using third party firmware; (IX) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or has not been received by Ubiquiti within 30 days of issuance of the RMA.
  • Page 17 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
  • Page 18: Limitation Of Liability

    Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING...
  • Page 19: Industry Canada

    Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 20 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 21 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
  • Page 22: Declaration Of Conformity

    [German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ.
  • Page 23: Online Resources

    [Swedish] egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
  • Page 24 . u b n t . c o m ©2015-2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
