Ubiquiti USW-Pro-24-POE Quick Start Manual
  1. Manuals
  2. Brands
  3. Ubiquiti Manuals
  4. Switch
  5. UniFi USW-Pro-24-POE
  6. Quick start manual

Ubiquiti USW-Pro-24-POE Quick Start Manual

Hide thumbs Also See for USW-Pro-24-POE:

Advertisement

Table of Contents

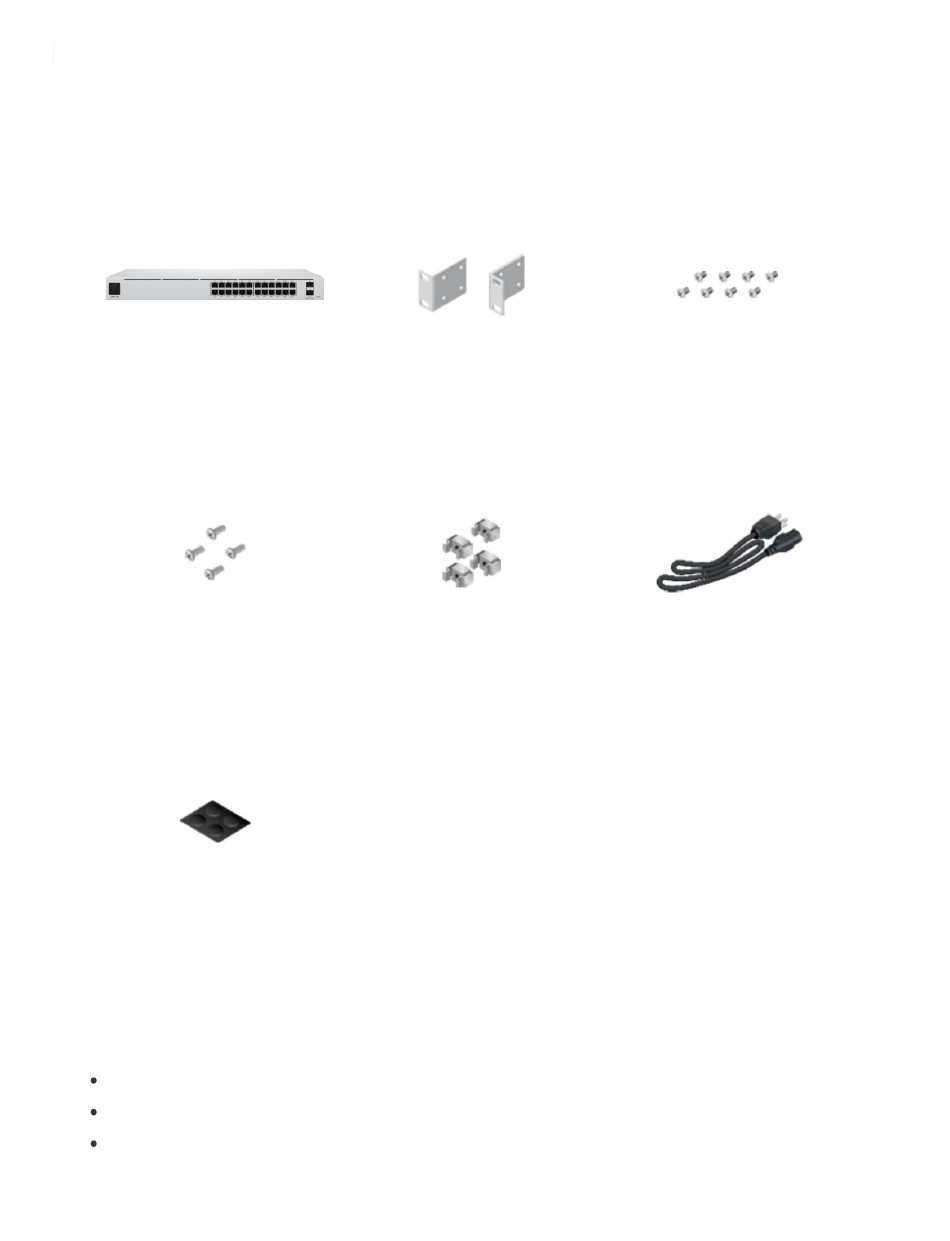

Package content

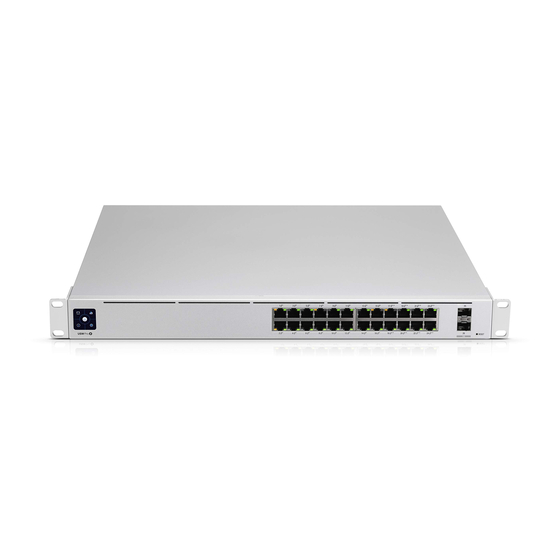

UniFi Switch
Set Screws (Qty: 4) Cage Nuts (Qty: 4)
Rubber base (qty: 4)
System Requirements
Linux, Mac OS X or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or later is recommended)
Web browser: Google Chrome (other browsers may have limited
functionality).
https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html
USW-Pro-24-POE Quick Start Guide
Rack mount brackets
(qty: 2)
Screw Clamps (Qty: 8)
Power cord
1/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USW-Pro-24-POE and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti USW-Pro-24-POE

Summary of Contents for Ubiquiti USW-Pro-24-POE

  • Page 1 USW-Pro-24-POE Quick Start Guide Package content Screw Clamps (Qty: 8) UniFi Switch Rack mount brackets (qty: 2) Power cord Set Screws (Qty: 4) Cage Nuts (Qty: 4) Rubber base (qty: 4) System Requirements Linux, Mac OS X or Microsoft Windows 7/8/10 Java Runtime Environment 1.6 (1.8 or later is recommended)

  • Page 2: Hardware Description

    UniFi Controller Software v5.10.x or later, available at: USW-Pro-24-POE Quick Start Guide ui.com/download/unifi IMPORTANT: We strongly recommend using power regulation and supporting an uninterruptible power supply to prevent equipment damage due to local AC power stability issues. hardware description Touch screen startup animation Starting.
  • Page 3 Amber PoE 802.3af/at/bt USW-Pro-24-POE Quick Start Guide RJ45 Speed/Link/Activity LED (Ports 1 - 24) disabled not connected Link established at 10/100 Mbps Amber Blinking indicates activity Link established at 1000 Mbps Green Blinking indicates activity SFP+ Speed/Link/Activity LED (Ports 25 - 26)

  • Page 4: Installation Requirements

    Ethernet connections and must be connected to the AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and electrostatic discharge phenomena with Ubiquiti's Industrial Grade Shielded Ethernet Cable. For more details, visit: ui.com/toughcable...
  • Page 5 USW-Pro-24-POE Quick Start Guide 5/15 https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html...

  • Page 6: Power Connection

    USW-Pro-24-POE Quick Start Guide Power connection 6/15 https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html...

  • Page 7: Ethernet Connection

    USW-Pro-24-POE Quick Start Guide ethernet connection 7/15 https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html...

  • Page 8: Sfp Connection

    USW-Pro-24-POE Quick Start Guide SFP connection 8/15 https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html...

  • Page 9: Software Installation

    USW-Pro-24-POE Quick Start Guide For more information on compatible fiber SFP modules, visit: ubnt.link/ UniFi_SFP_DAC_Compatibility Software installation Download and install the latest version of the UniFi driver software at ui.com/download/unifi and follow the instructions on the screen. Note: If you already have UniFi Controller version 5.10.x or higher installed, go to the "UniFi Switch Implementation"...
  • Page 10 Once you have installed the software and run the USW-Pro-24-POE UniFi Quick Controller management interface will appear. Enter the administrator name and Start Guide installation wizard, a login screen for the UniFi password you created and click Sign In. You can manage your wireless network and view network statistics through the UniFi Controller's management interface.

  • Page 11: Specifications

    USW-Pro-24-POE Quick Start Guide 2. On the Devices screen, locate the UniFi switch in the list of devices in the Model column. To approve the UniFi switch, click Adopt. 3. The System LED on the UniFi Switch will turn blue to confirm successful deployment.
  • Page 12 USW-Pro-24-POE USW-Pro-24-POE Quick Start Guide Weight 4,30 kg (9,48 lb) With rack mounting brackets 4,39 kg (9,68 lb) Interfaces (24) 10/100/1000 RJ45 ports (2) 1/10G SFP+ Ethernet ports Ethernet and bandwidth Management feeding method universal entry 100-240V AC/50-60Hz USP RPS DC input 52 V CC, 7,69 A;...

  • Page 13: Safety Instructions

    USW-Pro-24-POE Quick Start Guide Maximum PoE Wattage per Port per PSE 802.3at 802.3bt 44-57 V 802.3af voltage range mode 50-57 V 802.3at/bt voltage range mode safety instructions 1. Read, follow and save these instructions. 2. Pay attention to all warnings.
  • Page 14 ISED from Canada CAN ICES-3(A)/NMB-3(A) Australia and New Zealand Warning: This equipment complies with Class A of CISPR 32. In a residential environment, it may cause radio interference. CE marked 14/15 https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html...

  • Page 15: Online Resources

    The CE marking on this product indicates that the product complies with all applicable USW-Pro-24-POE Quick Start Guide directives. WEEE Compliance Statement Declaration of conformity online resources © 2020 Ubiquiti Inc. All rights reserved. 15/15 https://dl.ubnt.com/qsg/USW-Pro-24-POE/USW-Pro-24-POE_ES.html...
