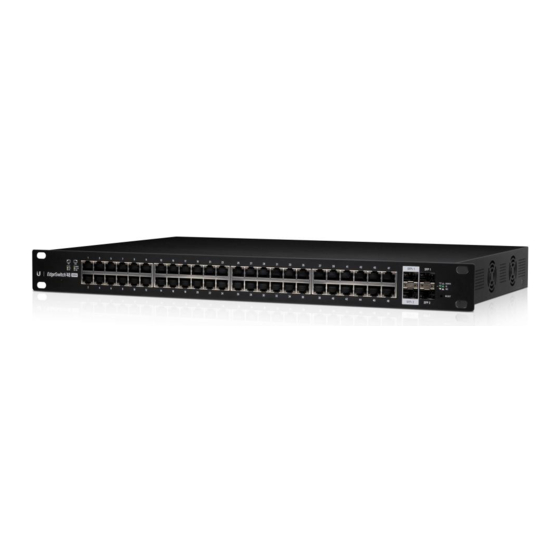

ES-48-500W, ES-48-750W Quick Start Guide

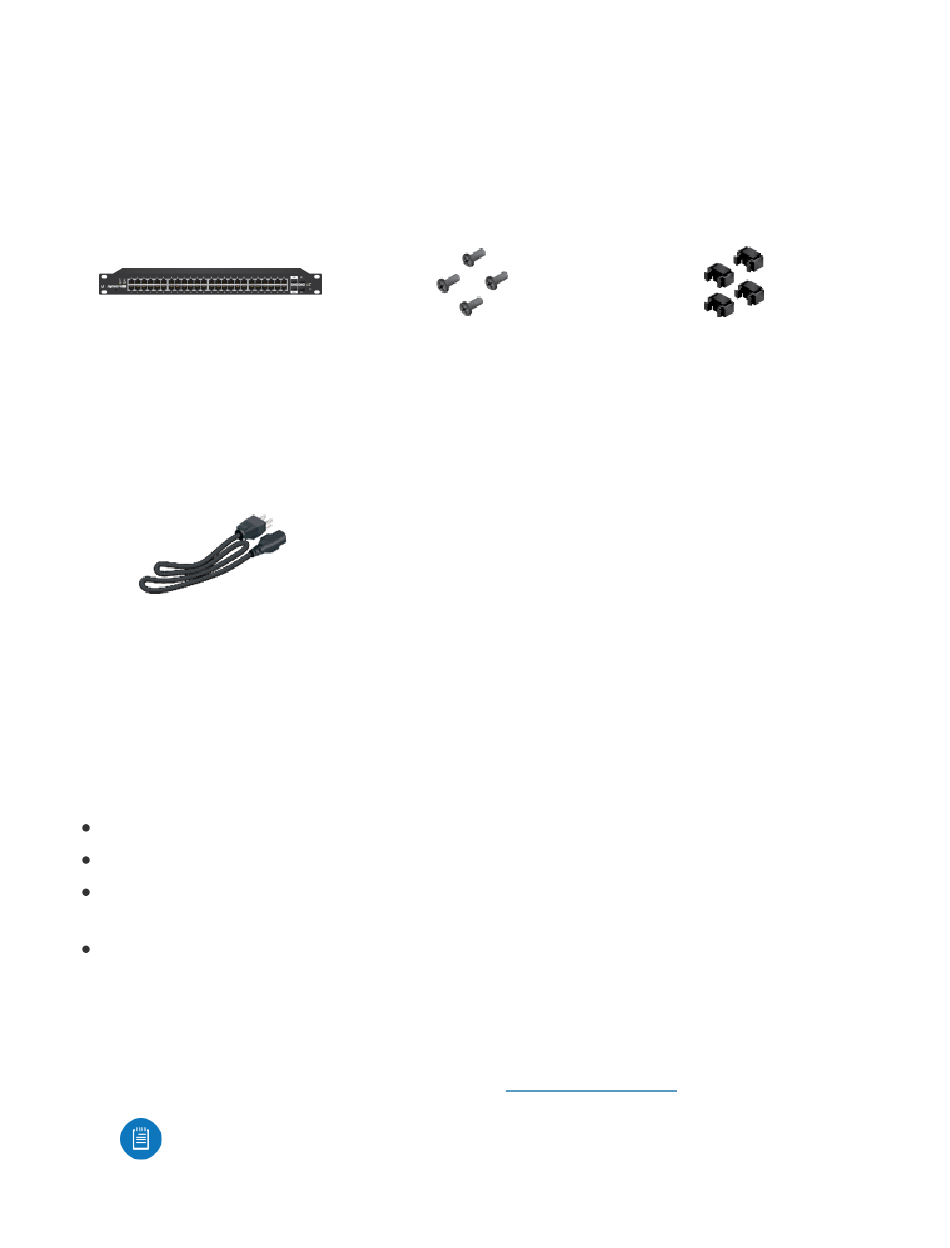

Package Contents
EdgeSwitch
Power Cord
Installation Requirements
Phillips screwdriver
Standard-sized, 19" wide rack with a minimum of 1U height available
For indoor applications, use Category 5 (or above) UTP cabling approved for
indoor use.
For outdoor applications, shielded Category 5 (or above) cabling should be used
for all wired Ethernet connections and should be grounded through the AC
ground of the power supply.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded Ethernet
cable from Ubiquiti. For more details, visit:
Although the cabling can be located outdoors, the EdgeSwitch
Note:
itself should be housed inside a protective enclosure.
Mounting Screws (Qty. 4)
ui.com/toughcable
Cage Nuts (Qty. 4)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EdgeSwitch ES-48-500W and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti EdgeSwitch ES-48-500W

Summary of Contents for Ubiquiti EdgeSwitch ES-48-500W

  • Page 1 We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable Although the cabling can be located outdoors, the EdgeSwitch Note: itself should be housed inside a protective enclosure.

  • Page 2: Hardware Overview

    The System LED functionality has been updated with firmware v1.8.0. We recommend that you update the EdgeSwitch to the latest firmware. Flashing White Bootup in progress. Ready for use, not connected to Ubiquiti Internet White Service Provider (UISP™). See “UISP Management”...
  • Page 3 Amber IEEE 802.3af/802.3at Green 24V Passive RJ45 Speed/Link/Activity LED (Ports 1 - 48) No Link Link Established at 10/100 Mbps Amber Flashing Indicates Activity Link Established at 1000 Mbps (1 Gbps) Green Flashing Indicates Activity SFP+ Speed/Link/Activity LED (Ports 1 - 2) No Link Link Established at 1 Gbps Green...

  • Page 4: Hardware Installation

    Reset Button to learn how to reset an EdgeSwitch to factory defaults. Click here Console Port RJ45 serial console port for Command Line Interface (CLI) management. Power Port Connect the included Power Cord to the Power port. Hardware Installation 2 .  ...

  • Page 6: Connecting Ethernet

    Connecting Ethernet...
  • Page 7 The PoE settings for ports 1-48 are set to PoE+ auto by default, so Note: 802.3af/at devices can be plugged in and automatically receive PoE. For instructions on how to enable 24V passive PoE, refer to “Configuring PoE Settings” Connecting SFP+/SFP These ports support the specified module types at the following speeds: Ports SFP+ Module Type...

  • Page 9: Accessing The Configuration Interface

    For information about compatible fiber SFP+ or SFP modules, visit: ubnt.link/SFP_DAC_Compatibility Accessing the Configuration Interface The EdgeSwitch is set to DHCP by default, so it will try to automatically obtain an IP address. If that fails, then it will use the default fallback IP address, 192.168.1.2. Proceed to the appropriate section, DHCP or “Fallback IP Address”...

  • Page 10: Specifications

    Ensure that your computer (or other host machine) is connected to the EdgeSwitch. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3. Launch your web browser. Type the appropriate IP address in the address field (192.168.1.2 is the default fallback IP address).
  • Page 11 Dimensions 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75") Weight ES-48-500W 6.1 kg (13.5 lb) ES-48-750W 6.5 kg (14.3 lb) Total Non-Blocking Line Rate 70 Gbps Max. Power Consumption ES-48-500W 500W ES-48-750W 750W Power Method 100-240VAC/50-60 Hz, Universal Input Power Supply ES-48-500W AC/DC, Internal, 500W DC...

  • Page 12: Safety Notices

    Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. Failure to provide proper ventilation may cause fire hazard. Keep at least WARNING: 20 mm of clearance next to the ventilation holes for adequate airflow. To reduce the risk of fire or electric shock, do not expose this product to WARNING: rain or moisture.

  • Page 13: Declaration Of Conformity

    The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
