Ubiquiti US-XG-6POE Quick Start Manual

10g 6-port switch with 802.3bt poe++
Hide thumbs Also See for US-XG-6POE:
Table of Contents

Advertisement

Quick Links

10G 6-Port Switch
with 802.3bt PoE++
Model: US-XG-6POE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the US-XG-6POE and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti US-XG-6POE

Summary of Contents for Ubiquiti US-XG-6POE

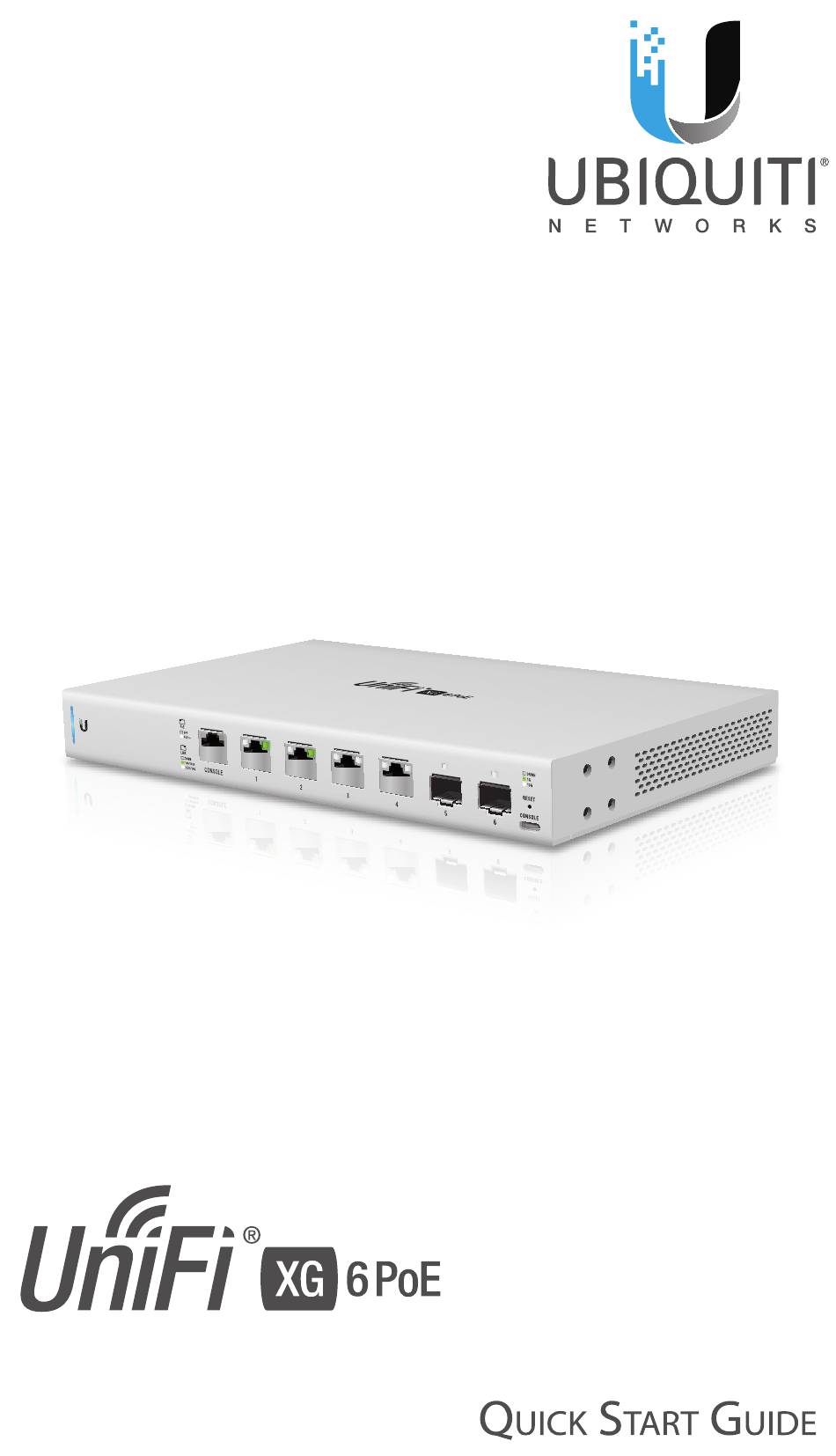

  • Page 1 10G 6-Port Switch with 802.3bt PoE++ Model: US-XG-6POE...

  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti Networks® UniFi® 6-Port 10G Switch with 802.3bt PoE++. This Quick Start Guide is designed to guide you through the installation and also includes the warranty terms. Package Contents UniFi Switch Mount Brackets Bracket Screws...

  • Page 3: Network Topology Requirements

    • A UniFi Cloud Key or management station running the UniFi Controller software v5.8.x (or newer), located either on-site and connected to the same Layer 2 network, or off-site in a cloud or NOC UniFi Cloud Key (UniFi Controller) US-XG-6POE USG-XG-8 (DHCP Server) Internet Portlan d Everything is...

  • Page 4: Hardware Overview

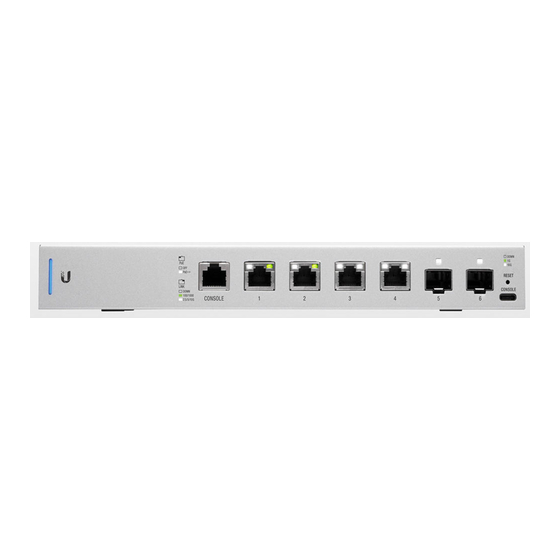

    Hardware Overview Front Panel RJ45 1-4 SFP+ 5-6 RJ45 Console USB Console Ports Port Description RJ45 RJ45 serial console port for Command Console Line Interface (CLI) management. Use an RJ45-to-DB9, serial console cable, also known as a rollover cable, to connect the Console port to your computer.
  • Page 5 Reset Button Reset Button Button Description Reset This button serves two functions for the Button UniFi Switch: • Restart Press and release the Reset button quickly. Restore to Factory Default • Settings Press and hold the Reset button for more than five seconds.
  • Page 6 LEDs System System LED State Status Flashing White Initializing. Steady White Factory defaults, waiting for adoption. Alternating Device is busy; do not touch or unplug it. White/Blue This usually indicates that a process such as a firmware upgrade is taking place. Steady Blue Successfully adopted by a network and working properly.
  • Page 7 RJ45 LEDs Link/Speed/Activity State Status PoE Disabled White 802.3af/at/bt PoE No Link Link Established at 100 or 1000 Mbps Green Link/ Speed/ Flashing Indicates Activity Activity Link Established at 2.5, 5, or 10 Gbps White Flashing Indicates Activity SFP+ LEDs Link/Speed/Activity State Status No Link Link Established at 1 Gbps...

  • Page 8: Back Panel

    Back Panel DC In Power Ground Port Description DC Input Optional DC input for connecting a stand-alone or redundant DC power source (not included) with minimum power: 40W, 44 to 57VDC. Power Connect the included Power Adapter to the Power port. Ground Ancillary grounding point for enhanced ESD protection.

  • Page 9: Hardware Installation

    (rackmount accessory sold separately). WARNING: The US-XG-6POE must not be stacked. Do not place it on top of another switch. Do not place anything on top of the US-XG-6POE. WARNING: FAILURE TO PROVIDE PROPER VENTILATION MAY CAUSE FIRE HAZARD.
  • Page 10 Using the Cable Clip (Optional) 1. Remove the ground screw from the grounding point. 2. Insert the cord of the Power Adapter into the Cable Clip.
  • Page 11 3. Connect the Power Adapter to the Power port. 4. Use the ground screw to attach the ground wire (not included) and Cable Clip to the grounding point. 5. Secure the other end of the ground wire to a grounding block or other grounded structure.

  • Page 12: Connecting Power

    Connecting Power Use the included Power Adapter to power the UniFi Switch. You can also use the DC Input option as stand-alone power or a hot backup. Using the Power Adapter 1. If you haven’t already connected the Power Adapter, then connect it to the Power port.
  • Page 13 Using the DC Input (Optional) For stand-alone power or redundant backup, connect a DC power source to the UniFi Switch. Note: Only one power source can be used at any one time. With both power sources connected, the input with the highest voltage will be used;...

  • Page 14: Connecting Ethernet

    Connecting Ethernet 1. Connect an Ethernet cable from your DHCP server or LAN to any port 1 to 4. 2. Connect your other network devices to the remaining RJ45 ports.
  • Page 15 Connecting SFP+ To use an SFP+ port: 1. Remove the protective plug covering the SFP+ port. 2. Plug a compatible fiber module into the SFP+ port. 3. Connect the fiber optic cable to the fiber module. Then connect the other end of the cable to another fiber device. For information about compatible fiber SFP modules, visit: community.ubnt.com/unifi...

  • Page 16: Software Installation

    Software Installation Download and install the latest version of the UniFi Controller software at www.ubnt.com/download/unifi and follow the on-screen instructions. Note: If you already have UniFi Controller v5.8.x or newer installed, skip to the section, Adopting the UniFi Switch. After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface.
  • Page 17 Adopting the UniFi Switch 1. From the UniFi Controller dashboard, click Devices in the left menu bar. 2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model column. To adopt the UniFi Switch, click Adopt. 3.

  • Page 18: Specifications

    Specifications US-XG-6POE Dimensions 165 x 268.1 x 31.8 mm (6.50 x 10.56 x 1.25") Weight 1.3 kg (2.87 lb) Interfaces Networking (4) 100 Mbps or 1/2.5/5/10G RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Management Ethernet In-Band (1) RJ45 Serial Port Out-of-Band...

  • Page 19: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

  • Page 20: Limited Warranty

    Limited Warranty www.ubnt.com/support/warranty/ The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 21: Rohs/Weee Compliance Statement

    CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste.
  • Page 22 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 23: Declaration Of Conformity

    Ελληνικά [Greek] Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή US-XG-6POE, είναι σε συμμόρφωση με τις βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις των οδηγιών 2014/30/EE, 2014/35/EE. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: www.ubnt.com/compliance Magyar [Hungarian] Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a US-XG-6POE készülék...
  • Page 24 Italiano [Italian] Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo US-XG-6POE, è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti delle direttive 2014/30/UE, 2014/35/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: www.ubnt.com/compliance Latviešu valoda [Latvian]...

  • Page 25: Online Resources

    . u b n t . c o m ©2018-2019 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, TOUGHCable, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc.
